quarter elliptic -or- z-box and revolver shackles?

hey guys ive been looking at rear suspension setups that put less strain on the leafs and i wanted your guys input on if i should do them or not

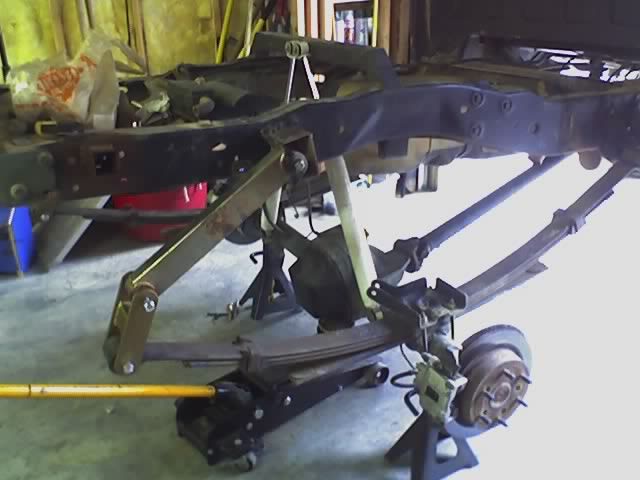

the first is 034x4s version of a quarter elliptic
Name:  04-19-06_1202.jpg
Views: 354
Size:  35.4 KB

and the other one is the "front leaf mount"
z-box (mounts on frame and shackle mounts to bottom)
Name:  b9123.jpg
Views: 56
Size:  15.7 KB

revolver (rear shackle)
Name:  g5.jpg
Views: 45
Size:  8.1 KB

let me know what you think, i know im over thinking flex and what not i just want less stress and binding in my suspension

Thanks
-Andy
