Shock help-RCD Bilstein 5100's?

Does anyone know the specs on the 5100's that come with the RCD kit? I've been trying to find their compressed/extended lengths and haven't had any luck. Are they the 12" travel shock?

The only reason I ask is that a guy is looking to trade his 14" travel shocks for some 12"s and I'm looking to get longer shocks in the rear.

Thanks.

Last edited by seed60; 06-10-2009 at 02:09 PM.
Reply With Quote
  #2
Old 06-10-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Well that was easy enough. Couldn't find anything on the internet, just gotta get the right person at RCD.

They are the BE5-A092-T5 shocks. Extended=29.75, Collapsed=18.

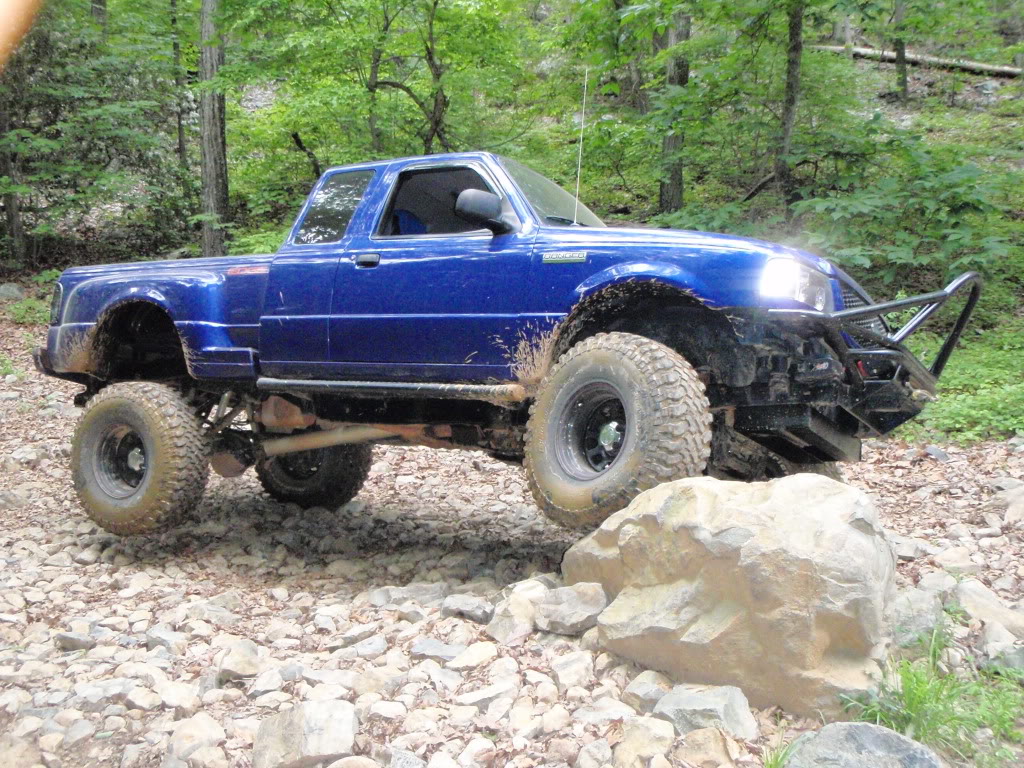

I guess my next question is about the 14" shocks. How well do you think they would help me? I know they would help my droop but would it harm my uptravel?

With the RCD shackle and 6" skyjacker leafs I don't have enough droop in my shock. It's acting like a limit strap.

I want that tire on the ground!!!!
Name:  P5230073.jpg
Views: 21
Size:  261.0 KB
Reply With Quote
  #3
Old 06-10-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
its going to hurt your uptravel. but see if the shock is bottomed out on the other side. if it is then that isnt helping either.
Reply With Quote
  #4
Old 06-10-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by zabeard View Post
its going to hurt your uptravel. but see if the shock is bottomed out on the other side. if it is then that isnt helping either.

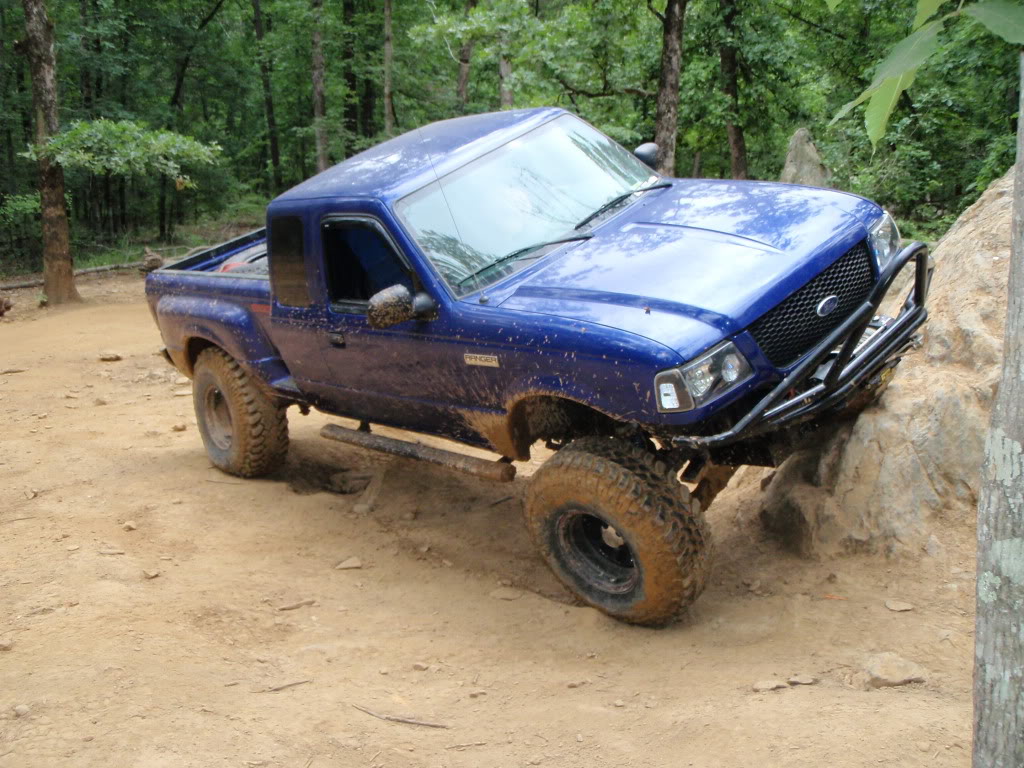

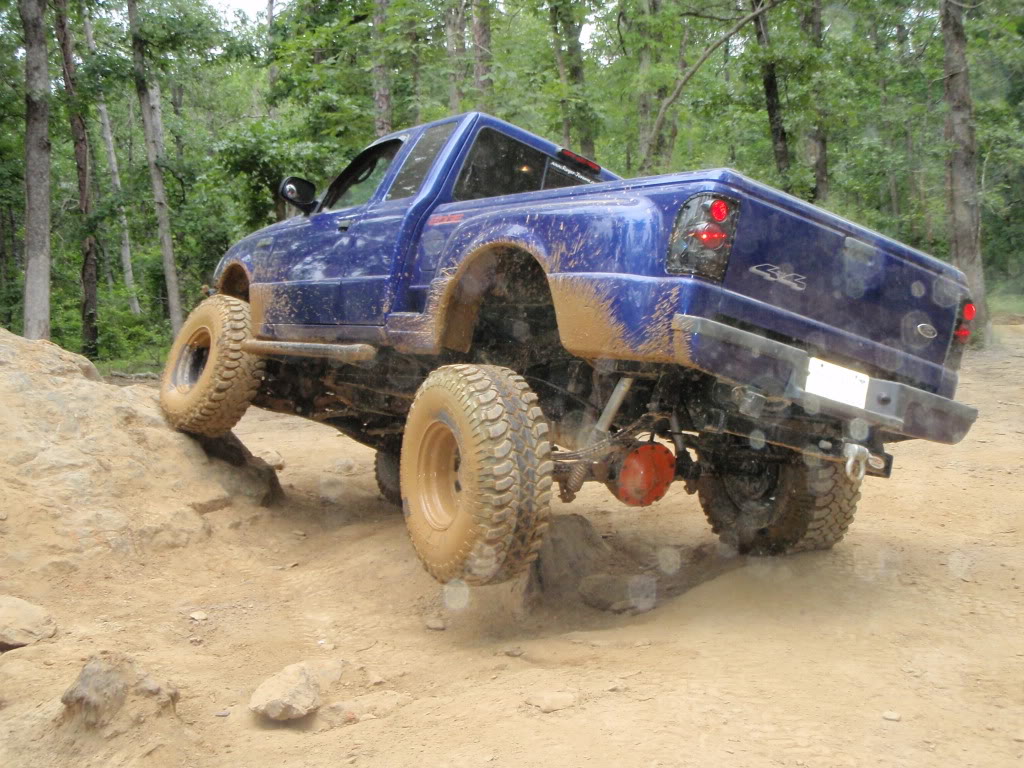

That's one thing I haven't checked. I've always thought my leafs are what is limiting my up travel. Being as this is as much tuck as I get, I would think there would be some shock left to go up. But I don't know.

Name:  P5230134.jpg
Views: 21
Size:  187.0 KB
Name:  P5230132.jpg
Views: 22
Size:  196.0 KB

I guess I need to flex it with the forklift and start measuring, with and without shocks.

Any advice is appreciated. Thanks.

Last edited by seed60; 06-10-2009 at 01:44 PM.
Reply With Quote
  #5
Old 06-10-2009
schatten789's Avatar
Member

Join Date: Feb 2007
Location: Matagorda County, Texas
Posts: 735
Your leaf looks straight in that last pic, it should bend up some.
Reply With Quote
  #6
Old 06-10-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I was gonna say, i have the bilsteins from the RCD kit laying in my garage (too long with the current setup, no block, no AAL, tabs half way up the axle) I could have measured them for you.

you have some ***** putting that truck at such steep angles.
Reply With Quote
  #7
Old 06-10-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by schatten789 View Post
Your leaf looks straight in that last pic, it should bend up some.
Yeah, these leafs are still pretty new. They almost flatten out but get no where near inverting.

Quote:
Originally Posted by 99ranger4x4 View Post
I was gonna say, i have the bilsteins from the RCD kit laying in my garage (too long with the current setup, no block, no AAL, tabs half way up the axle) I could have measured them for you.

you have some ***** putting that truck at such steep angles.
That's how I roll!! lol
Reply With Quote
  #8
Old 06-10-2009
schatten789's Avatar
Member

Join Date: Feb 2007
Location: Matagorda County, Texas
Posts: 735
Quote:
Originally Posted by seed60 View Post
Yeah, these leafs are still pretty new. They almost flatten out but get no where near inverting.
Mine would invert with ease. lol Thats how I stuffed my 29" tires.
Reply With Quote
  #9
Old 06-10-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by schatten789 View Post
Mine would invert with ease. lol Thats how I stuffed my 29" tires.
stock ranger springs and 6" lift springs are quite a bit different.. flattening 6" lift springs is more than you slightly inverting your stockers.
Reply With Quote
  #10
Old 06-10-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I agree matt, I dont see him inverting lifted springs.
Reply With Quote
  #11
Old 06-11-2009
schatten789's Avatar
Member

Join Date: Feb 2007
Location: Matagorda County, Texas
Posts: 735
Even though he said in his first post and it is obvious he doesn't have blocks it still didn't occur to me that his leafs weren't oem. lol

I still though he would be able to at least get slightly past flattening them though. I learn something new everyday.
Reply With Quote
  #12
Old 06-11-2009
Lefty04LevelII's Avatar
Member

Join Date: Aug 2005
Location: DFW
Posts: 1,447
your leaf AND shock combo might be limiting factors. I can tuck my 33s with the RCD rear bilsteins and my deavers. The deavers are coupled with the RCD shackle and I'm not running my blocks (deavers are 2.5" lift springs).





I'm fully tucked in these 2 pics and still have my wheels touching. When you flex like that, is your shock on the tucked wheel fully compressed?
Reply With Quote
  #13
Old 06-11-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
I'm fully tucked in these 2 pics and still have my wheels touching. When you flex like that, is your shock on the tucked wheel fully compressed?
I'm thinking that the leafs are the limiting factor so I "should" have some shock left. But I haven't really checked the shock while flexing.

The new shocks I am looking at are 20" collapsed, 34.5" extended. Compared to my 18" collapsed and 29.75" extended that I have now. Hopefully with some measuring I'll see that my shock has more to collapse and it'll give me enough room to be able to run those 14's.
