Rear Lowering HELP

if i take the shackle hangers, flip them over how much of a drop would i get? and i have 2" lift shackles, ccould i use those after i flip the hangers for added drop?? and if so how much?
Reply With Quote
  #2
Old 04-06-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
shackle flip ~2inch drop.
Put in lift shackles will lower your truck after the flip...but you will probably have to notch your bed
Reply With Quote
  #3
Old 04-06-2010
02_xlt's Avatar
Member
Thread Starter

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
Quote:
Originally Posted by Dangerranger01 View Post
shackle flip ~2inch drop.
Put in lift shackles will lower your truck after the flip...but you will probably have to notch your bed
well yea i knew doin the left shackles afther flipping the hanger would lower it more, i just didnt know how much more....i wanna do a 7/7 but i have almost no clue on the logistics of lowering, just lifting lol any help would be awesome
Reply With Quote
  #4
Old 04-06-2010
02_xlt's Avatar
Member
Thread Starter

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
and is there a thread on how to PROPERLY flip the hangers?
Reply With Quote
  #5
Old 04-06-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 02_xlt View Post
well yea i knew doin the left shackles afther flipping the hanger would lower it more, i just didnt know how much more....i wanna do a 7/7 but i have almost no clue on the logistics of lowering, just lifting lol any help would be awesome
How much more is your lift shackle from stock?

Quote:
Originally Posted by 02_xlt View Post
and is there a thread on how to PROPERLY flip the hangers?
If you're hangers aren't a rust bucket, you can reuse them. Other than that unbolt/cut hangers and flip. Install with grade 8 hardware. How hard is that?
Reply With Quote
  #6
Old 04-06-2010
02_xlt's Avatar
Member
Thread Starter

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
Quote:
Originally Posted by Dangerranger01 View Post
How much more is your lift shackle from stock?





If you're hangers aren't a rust bucket, you can reuse them. Other than that unbolt/cut hangers and flip. Install with grade 8 hardware. How hard is that?
2"

does the leaf spring go in front of or behind the shackle?
Reply With Quote
  #7
Old 04-06-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 02_xlt View Post
2"

does the leaf spring go in front of or behind the shackle?
lolwut?

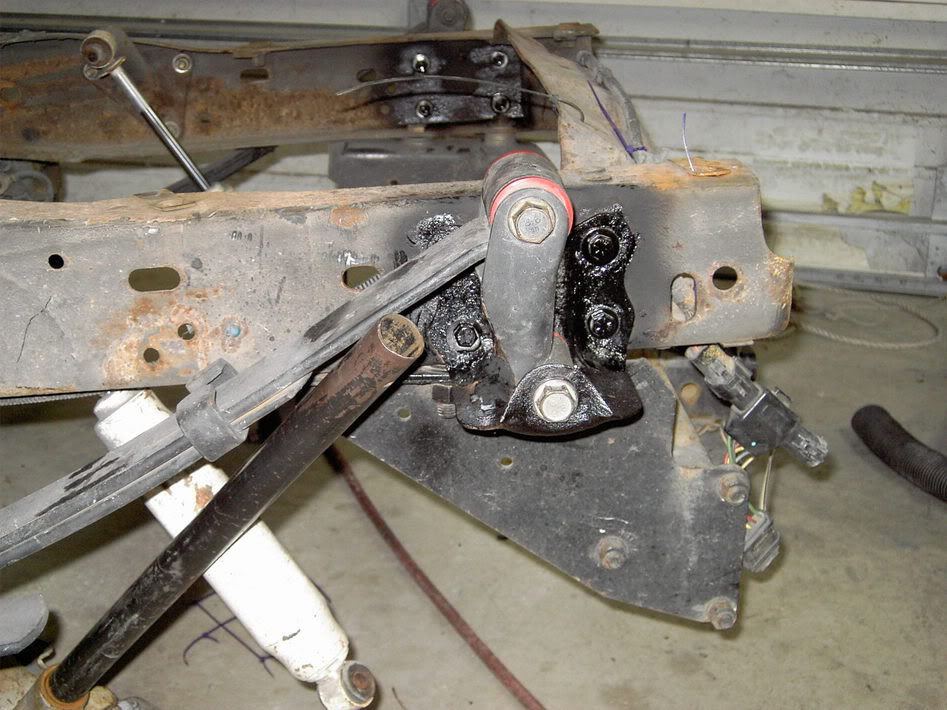

It will look like this with stock shackles:
Name:  PICT2550.jpg
Views: 54
Size:  135.9 KB



But if you do lowering shackles with the flip, i'm thinking you'll need to notch the bed so clear.
I can't find a pic right meow but i'm still searching.
Reply With Quote
  #8
Old 04-06-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Oh yeah, definitly notch the bed, check it:



Reply With Quote
  #9
Old 04-06-2010
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
wait, wut are you doing? the right way would be to remove the stock blocks, and flip the hangers
Reply With Quote
  #10
Old 04-07-2010
02_xlt's Avatar
Member
Thread Starter

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
Quote:
Originally Posted by SVT01RANGER View Post
wait, wut are you doing? the right way would be to remove the stock blocks, and flip the hangers
i dont have stock blocks, im just a 2wd xlt
Reply With Quote
  #11
Old 04-07-2010
02_xlt's Avatar
Member
Thread Starter

Join Date: Mar 2010
Location: Mauriceville, TX
Posts: 134
Quote:
Originally Posted by Dangerranger01 View Post
lolwut?

It will look like this with stock shackles:




But if you do lowering shackles with the flip, i'm thinking you'll need to notch the bed so clear.
I can't find a pic right meow but i'm still searching.
thanx for the pics man. im goin to start saving for the front drop right meow! lmao
Reply With Quote
  #12
Old 04-07-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
that pic is of my truck. you won't have any room under the bed for the other shackles. you could cut a hole in the bed floor, but there are other ways to get that low.
