As requested - Shackle info.

What are shackles and what do they do?

i looked em up and all i found was about dropping your truck 2 inches and stuff and obviously i dont want to dropp..

why would someone wanna just lift the rear and not the front.. it would look like a nose dive would it not??


Well i was told to make this thread so any help is much obliged.
Reply With Quote
  #2
Old 10-06-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Did you try searching?
Reply With Quote
  #3
Old 10-06-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Yeah most of what i found wasnt that helpful some of it was but most people already knew what it was.. and how to do it.. i am asking what it is and how to do it.
Reply With Quote
  #4
Old 10-06-2008
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
Shackles connect the leafsprings to the frame...

When the spring flexs it needs room to go, so the shackles act as a "pivot point"

you can get lift OR lowering shackles...
Reply With Quote
  #5
Old 10-06-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ok I was just checking, you can normally find all your info that way. They replace your stock shackle and lower where your leaf springs mount on the truck, thus raising your truck. What you do is jack the truck up and place your frame on some jack stands, unbolt your springs, lower the axle down with a jack and replace the shackle. Then jack it back up and bolt it all back together.
Reply With Quote
  #6
Old 10-06-2008
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
The shackle is just 2 bolts... one to the frame and one to the leaf pack...

Most older trucks they are seized in there... but some are lucky enough to come right out...
Reply With Quote
  #7
Old 10-06-2008
billabong98z's Avatar
Member
iTrader: (2)

Join Date: Oct 2008
Location: Indianapolis
Posts: 176
im pretty sure shackles drop other makes such as chevy and what not ut they can be used to lift fords...and the reason they only raise the rear is because there are other ways to lift just the front such as torsion twist or new coils
Reply With Quote
  #8
Old 10-06-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
haha..i wasn't too harsh was I?



A shackle is a way of moving the leaf spring away from the hanger....in your application, it would drop one end of the leaf spring lower than it was before, thus creating lift. in a lowered application, like the intended use of the shackles we use for lift, it raises one end of the leaf to create 'lowering' because the hanger is flipped upside down compared to a stock ranger hanger.

Also acts as a pivot point for the spring while 'flexing'

On our rangers, a longer shackle will create lift. But also to be noted, it also pushes your axle center line forward. The reason i keep throwing rear flares. lol.

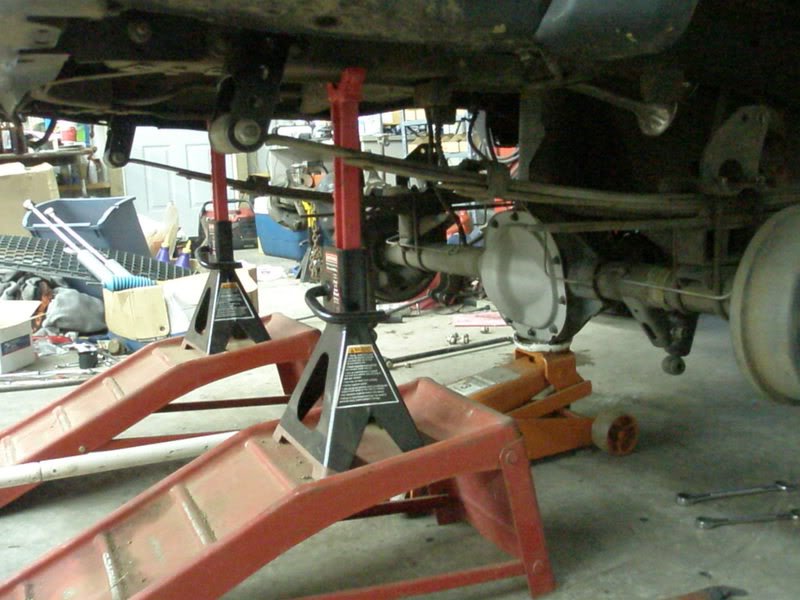

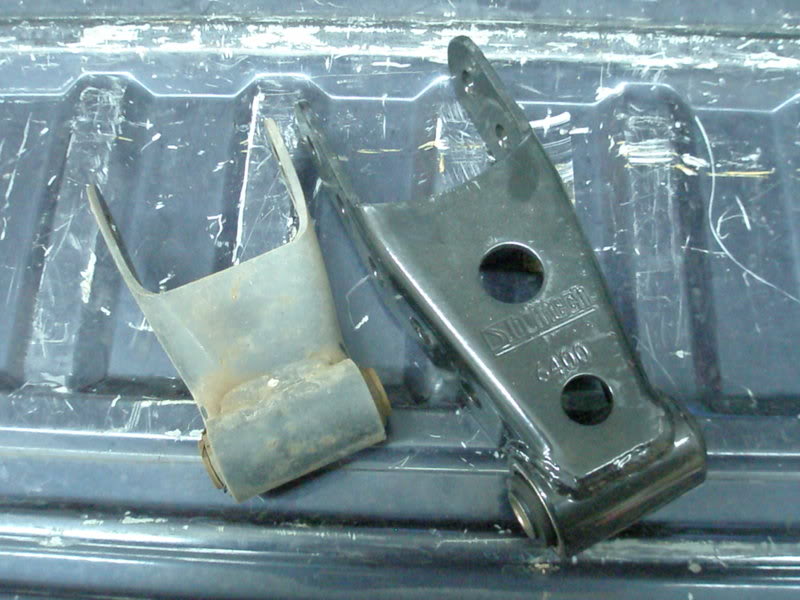

Name:  P5300196.jpg
Views: 6
Size:  85.7 KB



Name:  P5300197.jpg
Views: 6
Size:  86.3 KB

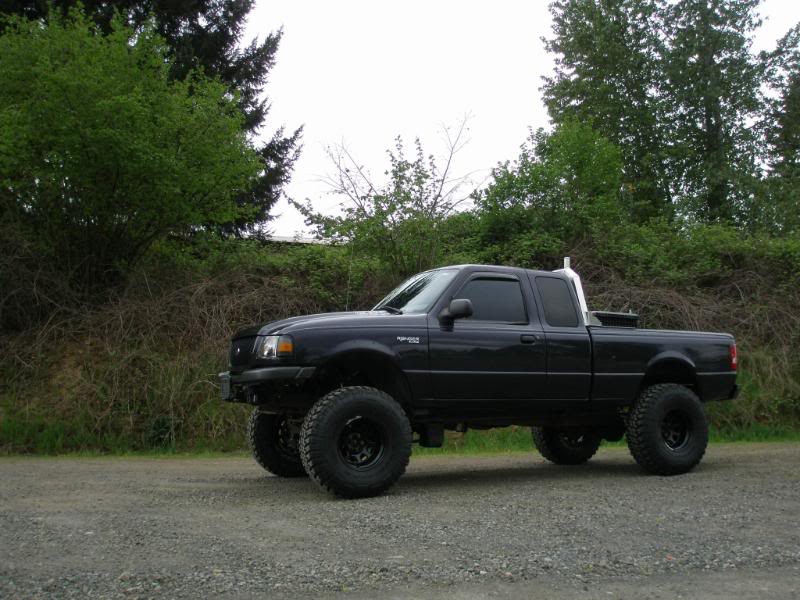

Before shackles...
Name:  P5110197.jpg
Views: 5
Size:  92.4 KB

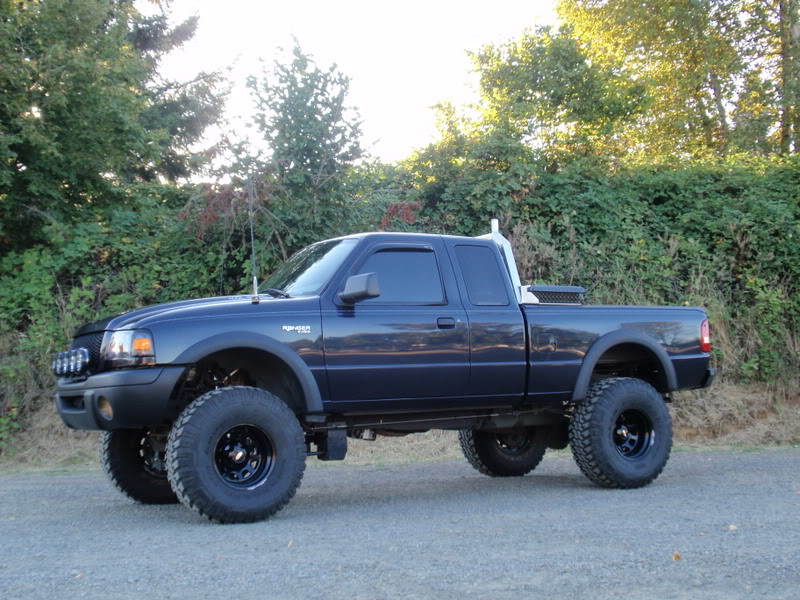

With shackles...
Name:  P9120427.jpg
Views: 9
Size:  135.1 KB
Reply With Quote
  #9
Old 10-06-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Okay cause the 6400's says they drop 2 inches.. but your saying on ford the lift it. and its a basic replacement of the old ones?
Reply With Quote
  #10
Old 10-06-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Everyone and their BL's too bad i cant haha.
Reply With Quote
  #11
Old 10-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
w/o shackles you would tear your frame.

good enough? lol
Reply With Quote
  #12
Old 10-06-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Quote:
Originally Posted by 99ranger4x4 View Post
w/o shackles you would tear your frame.

good enough? lol
well thats straight to the point thank you mccain =]
Reply With Quote
  #13
Old 10-06-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by jaycheetwood View Post
Okay cause the 6400's says they drop 2 inches.. but your saying on ford the lift it. and its a basic replacement of the old ones?
on chevys...the hanger is upside down compared to the ranger hanger. The leaf and shackle are above the hanger on chevys....on rangers the leaf and shackle is below the hanger. Lowered ranger guys opt to flip the hanger to gain some more drop. The 2/3 DJM lowering kit flips the axle to above the leaf(5" drop) and give you pretty much exactly a belltech 6400 shackle to lift it 2" to net 3" drop. lol.

Hangers are opposite of eachother.

On a chevy, it's 2" lowering(longer shackle, brings the leaf higher up, thus making it lower). On a ranger, the 2" chevy drop shackle DROPS the leaf spring down lower away from the frame/bed, thus creating lift. I gained 1.5" of lift after the install of the 2" chevy drop shackles.
Reply With Quote
  #14
Old 10-06-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
and they actually add travel to your leafs by rotating forward and following the are and provide a smoother ride in the back.
Reply With Quote
  #15
Old 10-06-2008
jaycheetwood's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
Well then my questions are all answered here hahah thank you..
Reply With Quote
  #16
Old 10-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by jaycheetwood View Post
Okay cause the 6400's says they drop 2 inches.. but your saying on ford the lift it. and its a basic replacement of the old ones?
on rangers the shackles go down

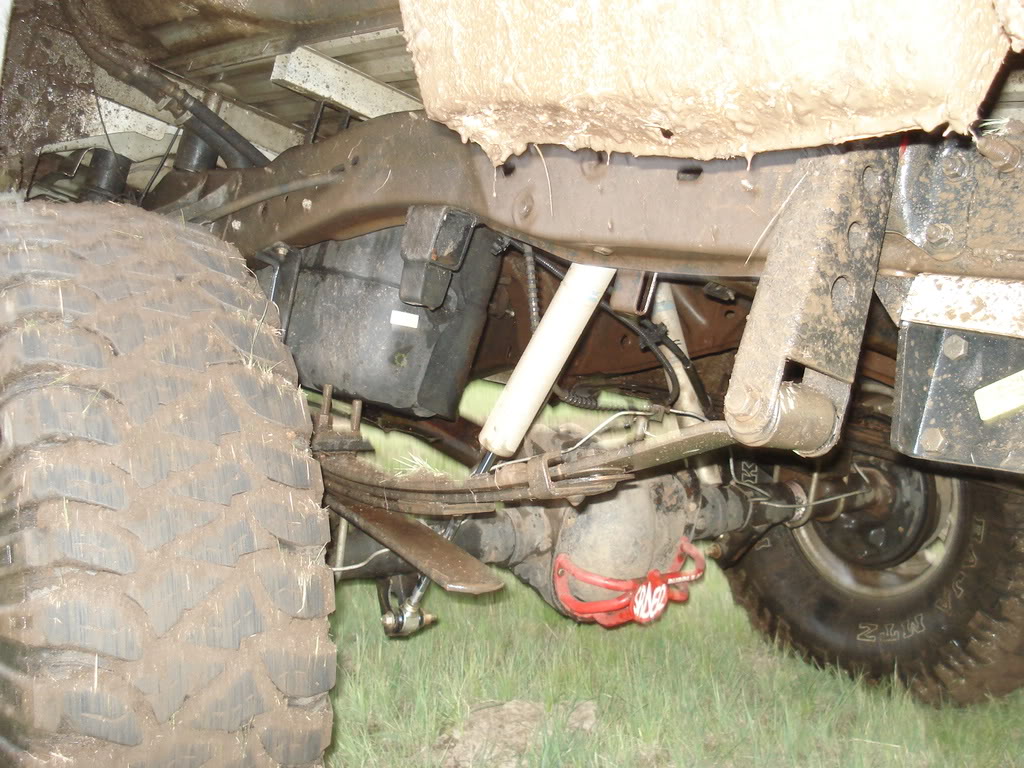

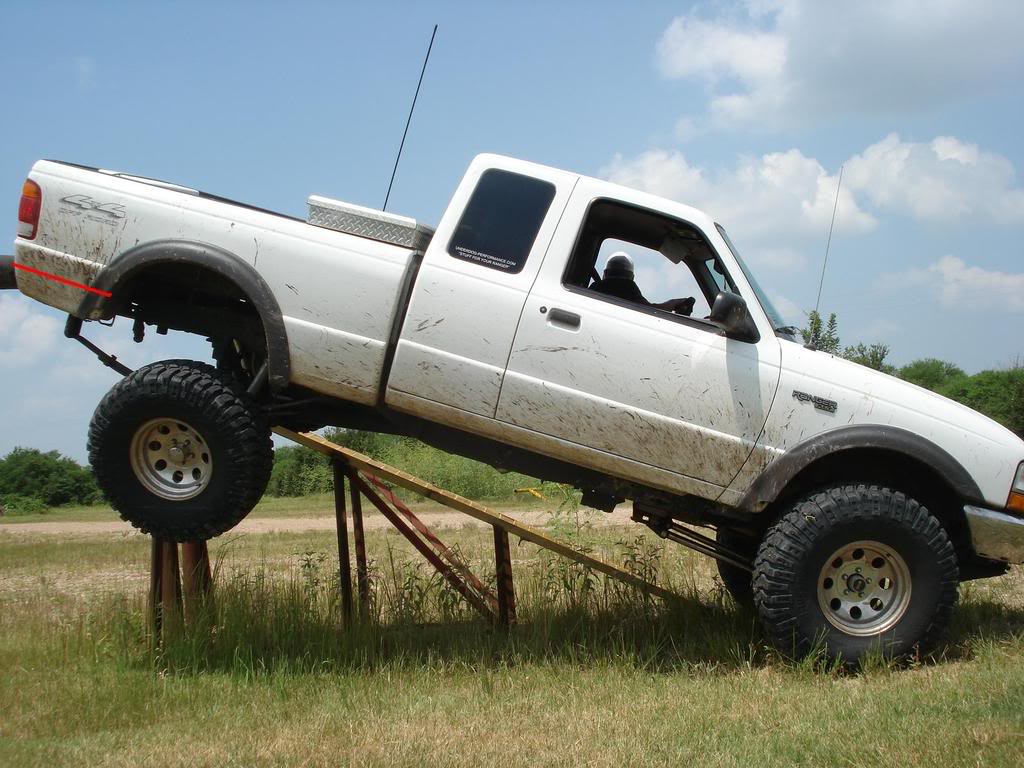

Name:  DSC04507.jpg
Views: 5
Size:  171.3 KB

Name:  trimbed.jpg
Views: 7
Size:  116.7 KB

on chevys they face up





so a longer shackle on a chevy would lower it since it moves the spring up, where as it pushes the spring on our truck down there for lifting it.
