are shackles bad?
#26
02-02-2010
Join Date: Aug 2008
Location: Davie, FLA
Posts: 685
Likes: 0
Received 0 Likes
on
0 Posts
i got maxed tbars and a total of 4inches of blocks in the rear(bad idea i kno) but my frnt end is higher then the rear by 3/4 of an inch. but my frnt end has paid the price, with wearing out balljoints every 6 months and tie rod ends every 8 months, i wouldnt recommend it, plus keeping it aligned is fun too, do a spindle lift and in a couple of yrs it will pay off.
#30
02-04-2010
#32
02-04-2010
#34
02-05-2010
Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
Likes: 0
Received 0 Likes
on
0 Posts
I don't know if the same with all years or what, but when a buddy of mine here installed the Belltech shackles in his '07 FX4 he had to cut the end of the exhaust pipe off where it bends out because the drivers side shackle was hitting it. Now it just points straight back and exits by the front of the hitch, just cut it on an angle so its kinda pointing down. Just something to keep in mind. LR
#35
02-05-2010
#37
02-05-2010
Join Date: Feb 2010
Location: Norfolk, VA/Reidsville,GA
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
all I did to mine was crank the t-bars 3 complete turns. and took off my mudflap brackets and my 32"s clear with no problem and have never rubbed even at rausch creek.
shackles are probably a better way to lift the rear as apposed to an add a leaf. because of the smoother ride. both will have the same effect.
Im assuming youre concerned about the 265's fitting? lol Im pretty sure 265/75/16 are really close to a 32" tire.
dont buy the torsion keys, just crank the factory ones. Ive had mine cranked for a year and a half and had no front end issues
shackles are probably a better way to lift the rear as apposed to an add a leaf. because of the smoother ride. both will have the same effect.
Im assuming youre concerned about the 265's fitting? lol Im pretty sure 265/75/16 are really close to a 32" tire.
dont buy the torsion keys, just crank the factory ones. Ive had mine cranked for a year and a half and had no front end issues
#38
02-05-2010
a whole add a leaf set? all an AAL is, is a new leaf, and new bolts that are longer, both would be needed in what you said...
not to mention that if you get your spring re-arced, you are going to be changing the way everything works, because of the angle of the shackle... if you are going to go with a spring with more arc, you should also be using a longer spring...
not to mention that if you get your spring re-arced, you are going to be changing the way everything works, because of the angle of the shackle... if you are going to go with a spring with more arc, you should also be using a longer spring...
#39
02-05-2010
Join Date: Feb 2010
Location: Norfolk, VA/Reidsville,GA
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
you sound like you have had experience with this but all add a leaf i have seen on the interweb involved several springs
ive also seen this done several times at the welding shop back home never had it done personally but will soon and yes you will need 1 new spring and 2 longer bolts. everyone i kn ow thats got this done always had good things to say its also cheaper
ive also seen this done several times at the welding shop back home never had it done personally but will soon and yes you will need 1 new spring and 2 longer bolts. everyone i kn ow thats got this done always had good things to say its also cheaper
#40
04-15-2010
Join Date: Jul 2009
Location: delray beach, FL
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts

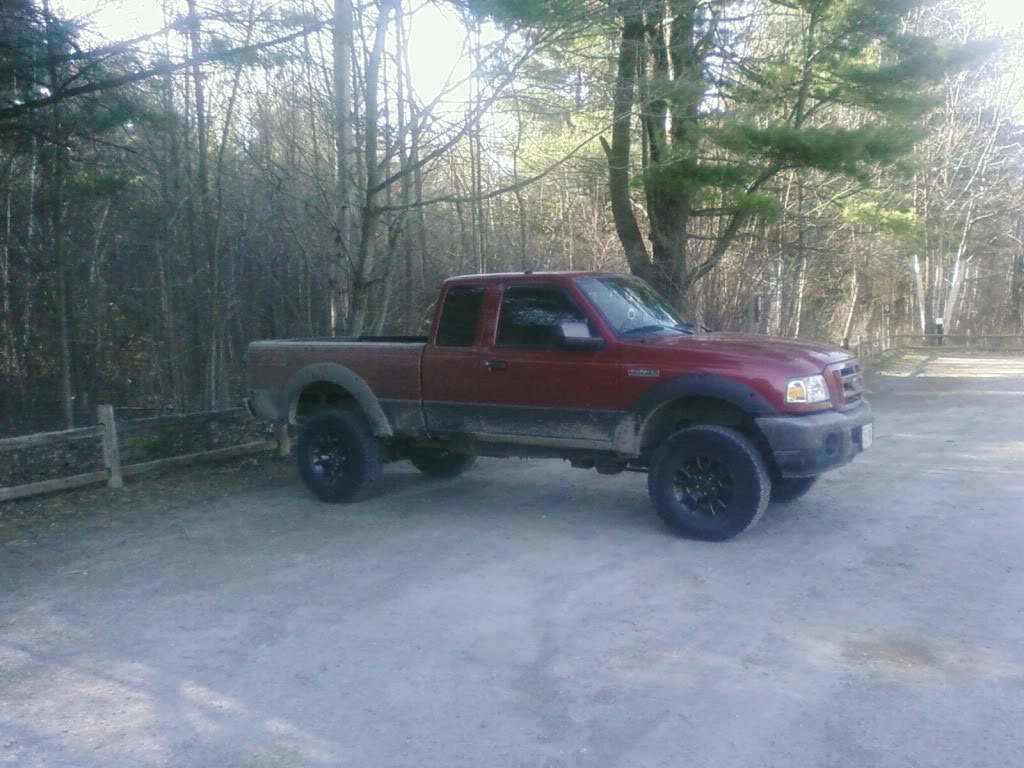

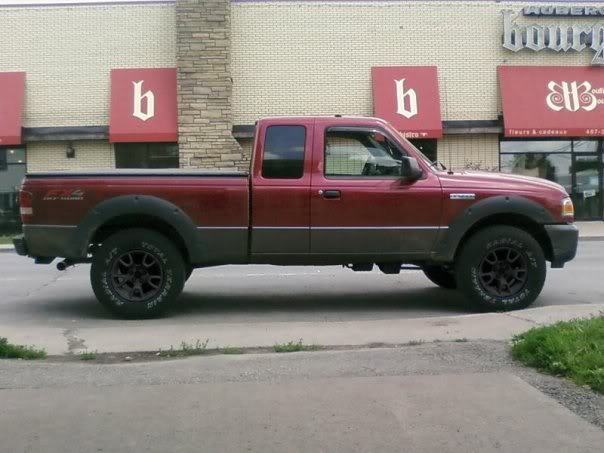

Seb do you have the short or long AAL's? could you send me a larger pic of your truck please?
#41
04-15-2010
