Should i Replace ball joints myself?

Well, i was on my way out the door, but decided to look on here for some info first... And im having second thoughts on doing this myself.. I have NO ball joint press or anything, and i dont know if the auto hobby shop does.. I have NO experience with this either...

so should i do it myself and save the dough for my coilover conversion? or have someone else do it
Reply With Quote
  #2
Old 08-14-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
It's not that hard to do, I did both upper and lowers myself.

You can rent the ball joint press and separator from auto zone, I just used a BFH to remove the old joints instead of renting the separator though.

It's pretty straight forward when you start looking at it, only like 3 bolts on the upper, remove caliper, mounting bracket, rotor. then your ready to pop out the bottom.
Reply With Quote
  #3
Old 08-14-2009
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
There are no autozone's in Germany...

I didn't use a ball joint press when I did mine. A BFH like 4LO stated to pound it out then use a socket big enough to go over the ball joint so you won't damage it and whack it back in. The upper ball joints aren't replaceable. You have to buy new upper control arms for both sides.
Reply With Quote
  #4
Old 08-14-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Quote:
Originally Posted by Toms994x4 View Post
There are no autozone's in Germany...

I didn't use a ball joint press when I did mine. A BFH like 4LO stated to pound it out then use a socket big enough to go over the ball joint so you won't damage it and whack it back in. The upper ball joints aren't replaceable. You have to buy new upper control arms for both sides.
I didn't think about him being in Germany, but like Tom said, no need for a ball joint press.

If you can find the Moog upper control arms, the joints in them are replaceable if you ever have to do it again.
Reply With Quote
  #5
Old 08-14-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
im going to be replacing one tonight. ill take lots of pics and so youll know exactly how easy it is..
Reply With Quote
  #6
Old 08-14-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
yeah, so how crappy is this.. Get to the auto hobby shop, get the ENTIRE pass. side taken apart, brakes, everything.. Open the box, they sent me the wrong freaking upper control arm.. they send me the drivers side one piece instead of the pass. side 2 piece.. I was HIGHLY upset.. Are the lower ball joints the same on both sides? i didnt want to do the lower and not the uppper, so im waiting until i can get the right one...
Reply With Quote
  #7
Old 08-14-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
ahh the ease of ttb ball joints ftw... no expensive arms to replace lol
Reply With Quote
  #8
Old 08-14-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
yeah, tell me about it, just dropped almost 90 bucks on one, and it was for the wrong side! now i have to drop another almost 90 bucks!
Reply With Quote
  #9
Old 08-14-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
You can use the one piece on the passenger side if it's the right one.

https://www.ranger-forums.com/forum2...sion-bars.html
Reply With Quote
  #10
Old 08-14-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
really? it seems REally big for the pass. ill post up pics give me a sec
Reply With Quote
  #11
Old 08-15-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
here are the pics.. let me know if i can use this upper control arm.. i dont think it will work, but let me know!

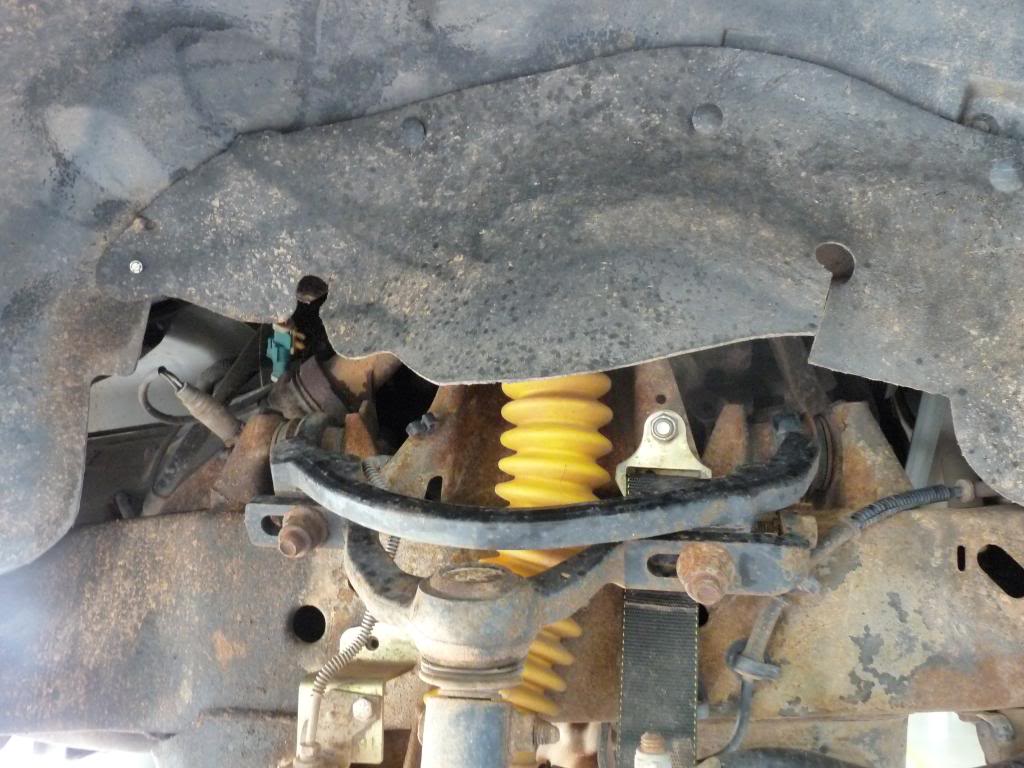

current upper control arm ***.
Name:  P1020254.jpg
Views: 32
Size:  117.3 KB

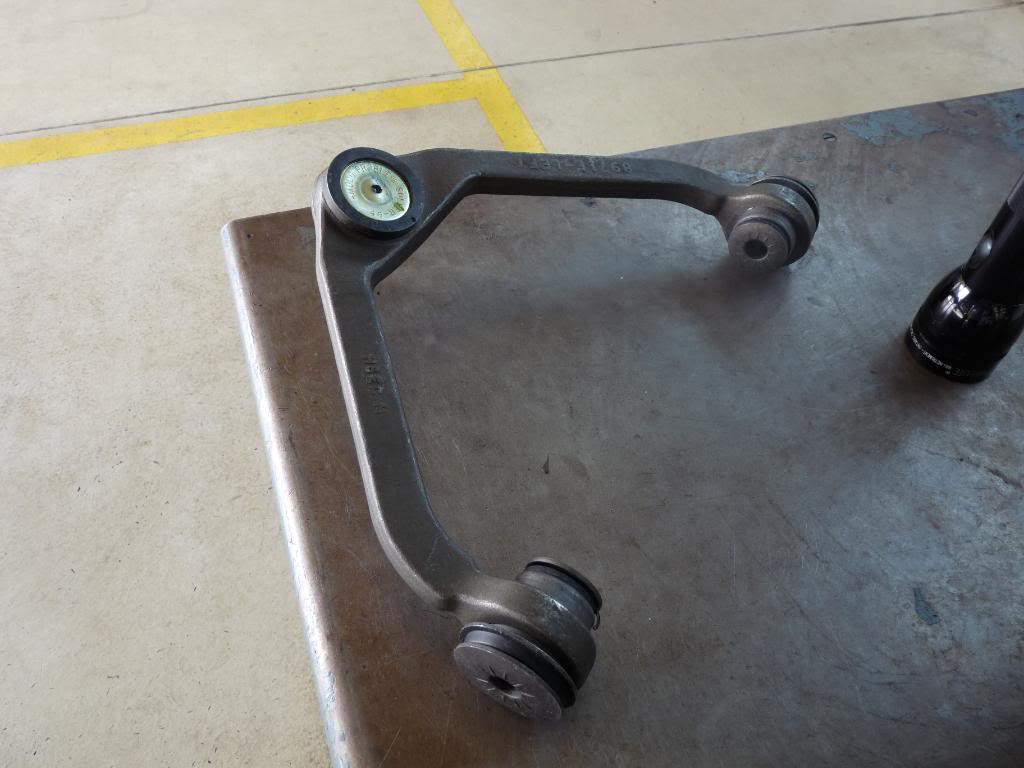

the one-piece they sent me:
Name:  P1020255.jpg
Views: 22
Size:  79.1 KB

here is the lower ball joint..

Name:  P1020256.jpg
Views: 23
Size:  83.4 KB
Reply With Quote
  #12
Old 08-15-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
That looks like the Moog passenger side 1 piece control arm to me.

I would be willing to bet it's the one you need.
Reply With Quote
  #13
Old 08-15-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Looks right to me, they now use 1 piece on both sides. Crossrefernce your Moog part # with www.rockauto.com
Reply With Quote
  #14
Old 08-15-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
whats the part number on that arm?
Reply With Quote
  #15
Old 08-15-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
the part number is K8708T.. it says LEFT on the control arm.. which would mean drivers side.. well unless your looking at the truck then its the pass. side lol
Reply With Quote
  #16
Old 08-15-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
yea thats the wrong one. you need K80068 for the passenger side
Reply With Quote
  #17
Old 08-15-2009
God,Country,FORD's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
yeah i figured.. Dam people lol
