Skyjacker 4" - looking for experience with it

My rear axle is now forward of center after installing a lift kit. Skyjacker tells me this is normal for a 97 4wd supercab Ranger.
Has anyone else experienced this?
Anyone have the same kit that can post or send me a picture?
Thanks.
([email protected])

Reply With Quote
  #2
Old 08-08-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
what did you use to lift the rear?
Reply With Quote
  #3
Old 08-08-2008
psvines's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Earlysville, VA
Posts: 22
SJ FR34S, part of the class II lift kit.
I removed the 2" stock blocks, then removed the shims. I'll be reinstalling the shims based on SJ advice.
Reply With Quote
  #4
Old 08-08-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
that is what? Lift block? i dont know superlift part numbers
Reply With Quote
  #5
Old 08-08-2008
psvines's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Earlysville, VA
Posts: 22
Skyjacker 4" leaf springs, FR34S, for a 97 Ranger.
Reply With Quote
  #6
Old 08-08-2008
yetti96's Avatar
Member

Join Date: Mar 2008
Location: Fort Myers, FL
Posts: 371
4" Lift springs (4" is assumed you use the stock blocks).
Reply With Quote
  #7
Old 08-08-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
if you used the actual leaf packs switch them around..
Reply With Quote
  #8
Old 08-09-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
this is gonna happen no matter what. the rear axle pivots around a fixed point as it is hooked to the driveshaft. This means that if you "lift" the rear of the truck, the axle is not going to just go straight down unless you get a longer driveshaft. Think of this: if you compress the rear suspension, where do you think the axle will go? Straight up? No. Its gonna swing up and back like its hooked to a pendulum (ie the driveshaft!) Does that make sense? Try this out: take a ball, tie a string to it and hold it level. This will represent the rear pumpkin and driveshat. Now hold it horizantal and lower the ball (equivelent of lifting the truck) and see where the ball goes. It doesnt move straight down! it goes down and forward following the arc created by the fixed driveshaft. I hope that makes sense... Ive seen youre other posts about this so I hope I have cleaerd this issue up with you. Its just the geometry of lifting the rear of a truck, its normal. Only way for this not to happen is a body lift!

As for the driveshaft shaking in lower gears, I would check the pinion angle as maybe the shims (those little wedges) which should have come on the bottom of the leafsprings are pointed the wrong way. They should be pointed forward. front of truck < rear of truck. This lines up the pinion correctly.

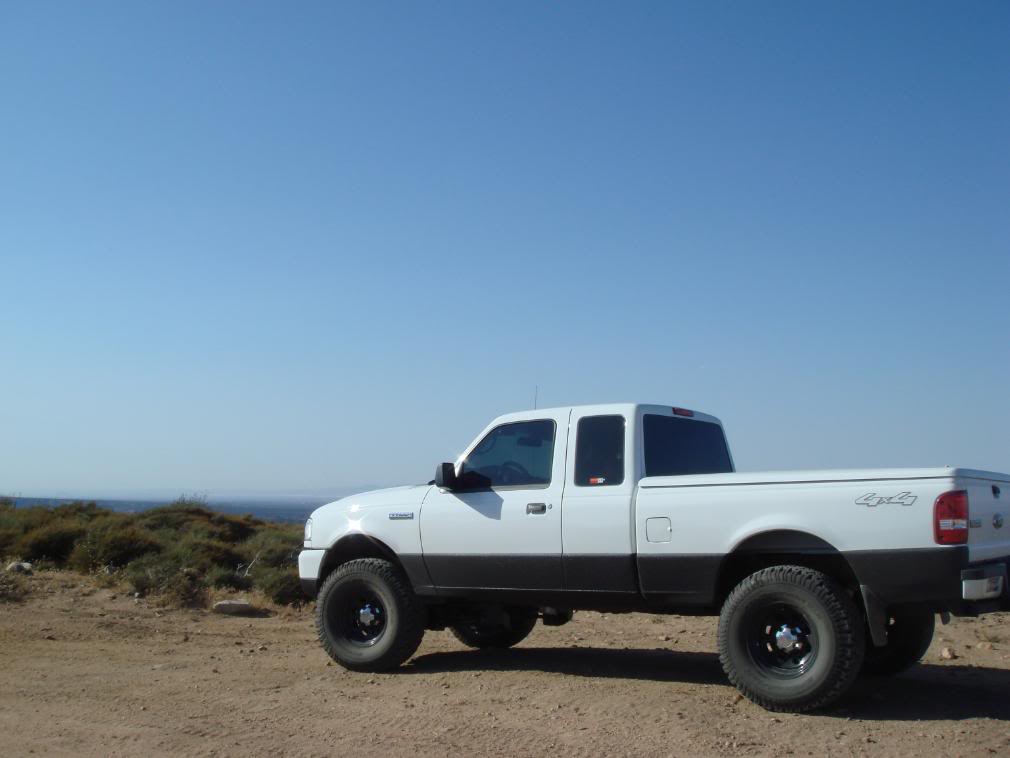

I have the exact same set up and no problem. you can see my axle has moved forward as a result of the lift:

Name:  DSC00523.jpg
Views: 8
Size:  49.5 KB

(maybe hard to see in this pic, but its the best pic i have)

Last edited by 08XLT4x4; 08-09-2008 at 03:40 AM.
