So the time has come

i can get 2 axles from an old conversion van for free, the rear is a D60, i didnt look to close at the front, D60 or D44 im guessing.

but since i can get them free, and i keep breaking CV shafts which is pissing me off, i have decided im going to get my *** in gear and get this a rolling 2wd SFA truck for hopefully under a grand. (maybe) haha

Anyways, my main question here is, can i use ranger leaves for the front? if not i'll use waggy leaves but i like the flexibility of ranger leaves. im just looking for opinions really, not a speech... my only concern is that they may be too "flexy"

thanks
Reply With Quote
  #2
Old 01-28-2008
4x4offroad99's Avatar
Member

Join Date: Jun 2007
Location: Athens GA
Posts: 648
My bossman uses Ranger leafs on the front of his crawler, they flex out dang good. Id suggest a 3 or 4 leaf pack.
Reply With Quote
  #3
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yea i love the flex in the rear thats why i want to do it.. if i have to trailer it behind a uhaul to get it home because its squirrley on the highway.. so be it
Reply With Quote
  #4
Old 01-28-2008
4x4offroad99's Avatar
Member

Join Date: Jun 2007
Location: Athens GA
Posts: 648

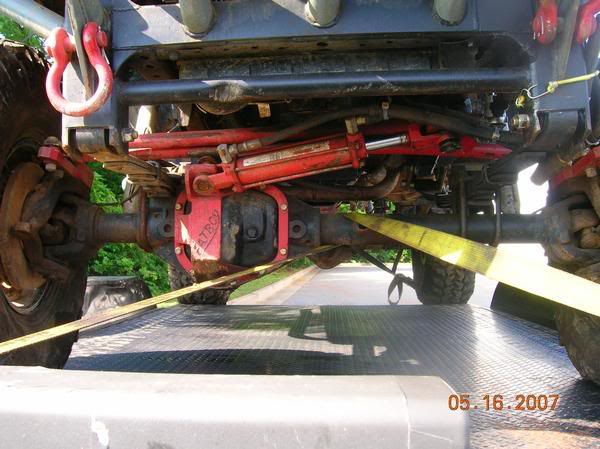

Heres the front of his crawler. 3 leaf Ranger packs...
Name:  ifgsdfgh.jpg
Views: 2
Size:  49.2 KB
Reply With Quote
  #5
Old 01-28-2008
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
it would be something new but i think i like the coil look better
Reply With Quote
  #6
Old 01-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
do coils...

most of the people with leaf spring setup wish they went coils or coil overs. at least the ranger guys.
Reply With Quote
  #7
Old 01-28-2008
Urandaman's Avatar
Member

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
do coil overs!
or hyrdos... then you dont have to flex by driving up stuff.. just lift the tire up there haha
Reply With Quote
  #8
Old 01-28-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I used F-150 coils in mine. Very smooth.

However, by the time I was done with this and that, I'm well over $1000 even though I didn't pay a dime for the axle -- it was free. But stuff adds up after awhile and if you have to buy a welder to get the job done even more so, lol.
Reply With Quote
  #9
Old 01-28-2008
Urandaman's Avatar
Member

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
if ya want coils from a f150 i think i have some layin around
Reply With Quote
  #10
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
wanna send em up free of charge?
or if i pay shipping?

im trying to get this a driving 2wd truck at the bare minimum, i have seen some crazy flex with leaves.

i have access to a heated shop, no lifts though
a 220v Stick welder and a friend who did the whole SAS on his yoda by him self.

my plan was to get the axle under it and if it has 4.10s in it hook up the 4wd via square front drive shaft dont give me **** about it unless you've seen one in action and still dont like it, i iike that you cant destroy them, you can lay the truck onto it and it will just grind away at the rock.. with and a spool in the rear, one of the generous members on here said he would buy me a spool if i got my *** in gear.. then when i got home i was going to swap All Pro LT leaves in and do the gears/locker up front

i dont want to do coils now, because then i would have to 3/4 link it.. and that just takes even more time and money

plus i like having the ability to beat the living **** out of the leaves and have them take even more
Reply With Quote
  #11
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i will probably end up skipping coils and going straight to coil overs or possible air shocks
Reply With Quote
  #12
Old 01-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
talk to 2002FX4 he is going to coils.. he might have a bunch of parts for ya
Reply With Quote
  #13
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by 4x4offroad99 View Post
Heres the front of his crawler. 3 leaf Ranger packs...
more pics
Reply With Quote
  #14
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zabeard View Post
talk to 2002FX4 he is going to coils.. he might have a bunch of parts for ya
thanks, pm sent
Reply With Quote
  #15
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
so anyone else?
yay or ney on ranger leaves?
Reply With Quote
  #16
Old 01-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
can you get them cheap or what? gunna run chevys in the rear and the stockers in the front?
Reply With Quote
  #17
Old 01-28-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by Urandaman View Post
if ya want coils from a f150 i think i have some layin around
Mine were 4" lift coils. My donor truck had been lifted. Stock coils won't be long enough.

Stock coils are about 13" long. 4" lift coils about 17" long.
Reply With Quote
  #18
Old 01-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
what size wheels? what size brakes? what lug? if its 8 lug i doubt you can get 15" wheels to work unless you use chevy calipers
Reply With Quote
  #19
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
if at all possible i want to keep my 15" tires so i can save there..


next question. will it be possible to get away with not running high steer right away?

i know im kinda being cheap but yall have NO idea how much this truck is pissing me off being IFS and spitting out CV shafts faster then they get shipped in...
Reply With Quote
  #20
Old 01-28-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zabeard View Post
can you get them cheap or what? gunna run chevys in the rear and the stockers in the front?

either stockers f/r
Stockers rear Waggys front
63s back stockers front
63s back Waggys front

or just go ahead and get All Pro leaves up front..

idk yet
Reply With Quote
  #21
Old 01-29-2008
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
If you get leaves your wasting money. Zabeard & N3elz are proof that leaves are a complete waste of time. Do it right the first time, saves you money.
Reply With Quote
  #22
Old 01-29-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
lots less things to go wrong and fail on the trail, an idiot can get them on and working plus with the all pro leaves i will be able to out flex a number of guys on coils..

you can beat and beat on them.. like i said i dont have a huge budget.. coils means 4 linking the beast to do it right and all that jazz..
Reply With Quote
  #23
Old 01-29-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
anyone have helpful advice... like does anyone know if i'll be able to use the linkage off the truck and not have to do high steer?



i dont want to hear leaves are a bad idea and im wasting money and time.. leaves can take a hell of alot of abuse..
and they're not that expensive
Reply With Quote
  #24
Old 01-29-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
just run an extended Ford Radius arm suspesion. You could canabalize a junkyard truck for the parts and it could be done for cheap. And it will have more then enough flex.
Reply With Quote
  #25
Old 01-29-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
use the steering it has and buy a new drag link with the proper heims or TREs on it for the steering box.

dont skimp on the steering shaft.
Reply With Quote
