SuperLift Front Components (From Summit)

I found this on summit racing's website yesterday. http://www.summitracing.com/parts/SLF-9630/

So I emailed the people at summit and asked if it would fit my 01 and what the kit they advertised came with. He only told me it would work on a 98-99 only. WHAT?! I thought Rangers above 1998 all had torsion bar front suspensions if they were 4X4 or EDGE models.

So my question is, has anybody had any experience with this kit and know what really comes in it and will it fit my 01?
Reply With Quote
  #2
Old 02-23-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
You'd need more than that kit anyways... you could make one for a 98/99 work you'd just have to use the smaller rotors if the knuckles don't have the dual bolt pattern.
Reply With Quote
  #3
Old 02-23-2012
Jelly's Ford's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
Well dang, I was getting excited lol. So I would have to buy shocks, limit straps, and someway to lift the back right? Or are there other things missing from that kit too?
Reply With Quote
  #4
Old 02-24-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Rotors didn't change till 2003 so that shouldn't be a factor.
Reply With Quote
  #5
Old 02-24-2012
Ranger Smith's Avatar
Member
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Wow thats cheap! Is that the entire kit for the front suspension?
Reply With Quote
  #6
Old 02-24-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
The kit for 2000 up is k358, where as the 98/99 is k357. Not sure about the difference though.
Reply With Quote
  #7
Old 02-24-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Yeah that's not the kit. The one you want is the k358
Reply With Quote
  #8
Old 02-24-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
There are several different components to the K358 kit and that is one (sort of). ignore that picture, that is wrong, it is just the knuckles. In fact it is somewhat outdated, the new component is 9637. you also need 9631 for the additional front end components, and 2338 is the part number for the rear components. So, sorry to bust your bubble. 9630 and 9637 are both front knuckles, but 9637 is the newer one. Hope this helps. These are all the individual kits that make up K358

http://www.summitracing.com/parts/SLF-9637/

http://www.summitracing.com/parts/SLF-9631/

http://www.summitracing.com/parts/SLF-2338/

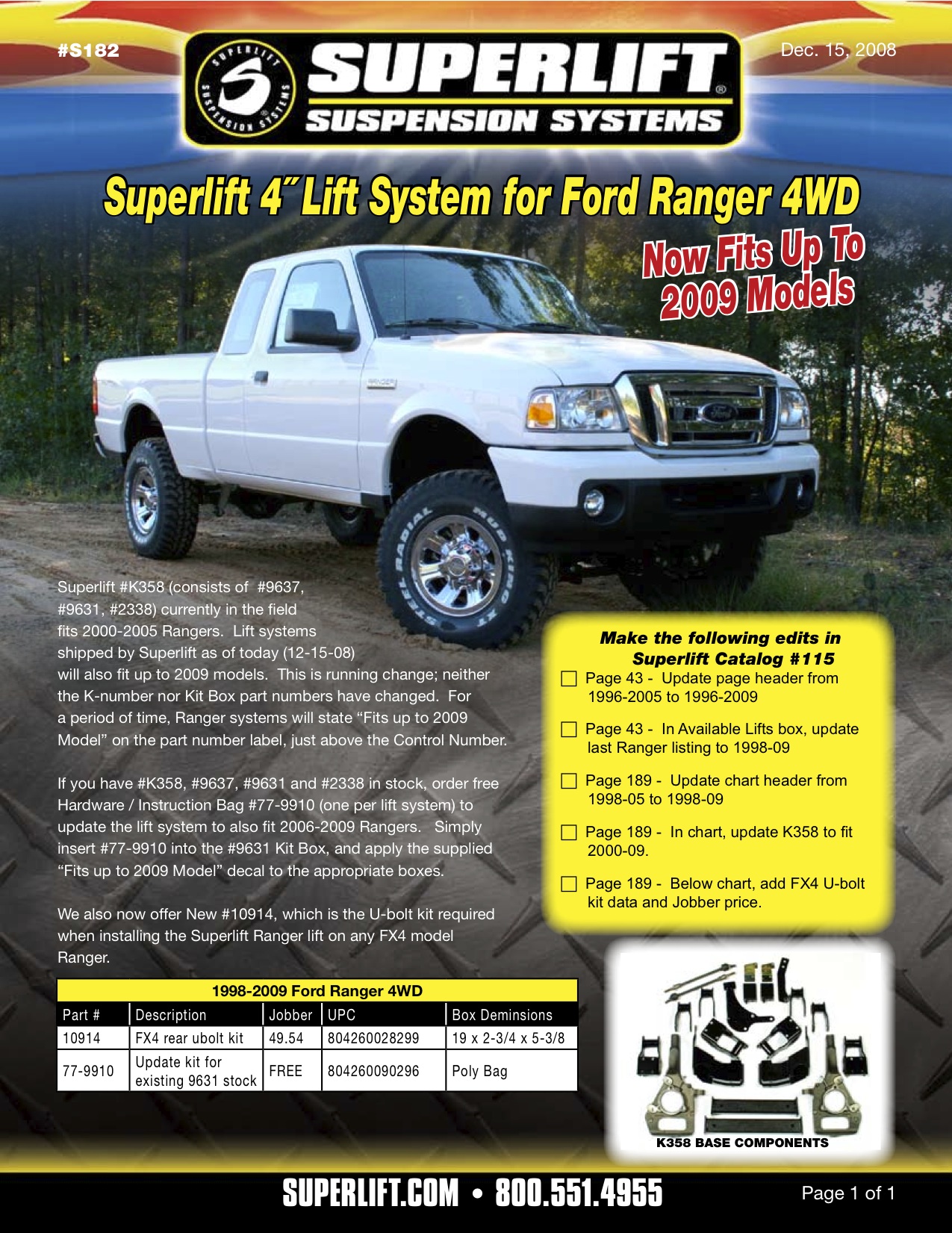

Here is also a document I found, it is referring to updating the older kits to be compatible with 06+ rangers (all new kits should have all the parts inlcuded, this was to back date any kits still in stock. Still, something to be aware of if buying used)

Attached Thumbnails
SuperLift Front Components (From Summit)-s182.jpg
Reply With Quote
  #9
Old 02-24-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
That ranger doesn't really look that good to advertise with. lol
Reply With Quote
  #10
Old 02-24-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
Rotors changed in 01.
Reply With Quote
  #11
Old 02-24-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Quote:
Originally Posted by 2004xlmiller View Post
Rotors changed in 01.
Rotors were bumped up to 12" in 2003 on 4x4 rangers. Everything before that is 11.25".
Reply With Quote
  #12
Old 02-24-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Quote:
Originally Posted by SteelDirigible View Post
There are several different components to the K358 kit and that is one (sort of). ignore that picture, that is wrong, it is just the knuckles...9630 and 9637 are both front knuckles, but 9637 is the newer one....
I was looking at that kit myself, and it looks in the picture like instead of new knuckles, it has extention brackets for your factory knuckles.

I was going to email Superlift and find out exactly what is in the kit, because I just scored a set of knuckles off CL very cheap.
Original plan was just to make my own drop brackets for the LCAs and diff, but then I saw that kit. Obviously it was too good to be true. Oh well.

By the way, the knuckles I have are the old ones, but the brake caliper pads are still cast large enough for both rotor sizes. If anyone has the older ones and wants to put them on a newer truck (or just upgrade their brakes), you would just need to have them drilled for the new brackets. Obviously, having a machine shop do this would be the way to go, as you don't want to screw anything up by drilling inaccurately.

Last edited by ME00Stepside; 02-24-2012 at 07:08 AM. Reason: just read SD's post again.
Reply With Quote
  #13
Old 02-24-2012
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Quote:
Originally Posted by ME00Stepside View Post
I was looking at that kit myself, and it looks in the picture like instead of new knuckles, it has extention brackets for your factory knuckles.
If this is true then do not get that kit.
Reply With Quote
  #14
Old 02-24-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Quote:
Originally Posted by k.blakeley View Post
If this is true then do not get that kit.
I have Superlift knuckles I scored off CL, so I would have been tossing the extension brackets in the trash.

However, as SteelDirigible pointed out, the part number is just the knuckles. Summit obviously just has the wrong picture there.
Reply With Quote
  #15
Old 02-24-2012
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Quote:
Originally Posted by ME00Stepside View Post
I have Superlift knuckles I scored off CL, so I would have been tossing the extension brackets in the trash.

However, as SteelDirigible pointed out, the part number is just the knuckles. Summit obviously just has the wrong picture there.
Then it seems like a good deal for the front lift. The rear just get some chevy drop shackles and some AALs and you will be set. Also its a good time to replace ball joints (if needed) since you have everything apart. I changed my front diff gear lube when I did mine, alot easier when the axle is out.
Reply With Quote
  #16
Old 02-24-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
I'm replacing everything. I have a second set of control arms I'm rebuilding and welding on coilover uprights, then getting powdercoated and installing urethane bushings and new ball joints. I won't be putting the lift in until I've got all new stuff ready to go in.

I already have shackles, and I plan on doing Exploder leaves with the SL. The pic in my sig is before I did the coilovers, shackles, and put the 265's on. I need to get a more recent pic there.
Reply With Quote
  #17
Old 02-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by ME00Stepside View Post
Summit obviously just has the wrong picture there.
Agreed... that's definitely not a torsion bar Ranger kit.
Reply With Quote
  #18
Old 02-24-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
lol thats why it says the picture may not represent the actual product
Reply With Quote
  #19
Old 02-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Not everyone reads that though... lol.
Reply With Quote
  #20
Old 02-24-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
ad:
Quote:
86 Vette, 110K miles, excellent condition. All maintainance records available. White with red interior.



note: image is just a representation. actual vehicle may vary





























delivery:

Attached Thumbnails
SuperLift Front Components (From Summit)-1986-white-convertible-corvette.jpg   SuperLift Front Components (From Summit)-writing-how-write-check.jpg   SuperLift Front Components (From Summit)-4989637850_fb1a06e7ac.jpg
Reply With Quote
  #21
Old 02-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
lol that's awesome
Reply With Quote
  #22
Old 02-24-2012
Jelly's Ford's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
Alright thanks for the info folks. Too bad that kit wasn't for everything, because that is a killer price.
Reply With Quote
  #23
Old 05-03-2012
Member

Join Date: May 2012
Location: Ohio
Posts: 1
Do you have to buy the steering knuckles to lift my 2000 4x4 ranger?
Reply With Quote
  #24
Old 05-03-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
You definitely need the Superlift knuckles to go with the rest of the kit... it won't work without them.
