T-bar swap question

Alright, since I'm just bought some #1 t-bars (thx HighRollerII) I'm going to be putting them in. To the people that have taken t-bars out or swapped them, did you use the gear puller tool or did you use something else.

Also if the gear puller is the only way too go, do you know if there is somewhere that I can rent the tool, I looked at home depot but couldn't find any gear pullers.

They have them at sears, but I don't know if you can rent tools from there or not. I would rather not buy a $40 tool that I'm going to use once and never again. I guess if I had to I could use it carefully and take it back

Also if anybody has any pics of the process that would be good, the how-to on generation-edge doesn't have pics anymore.

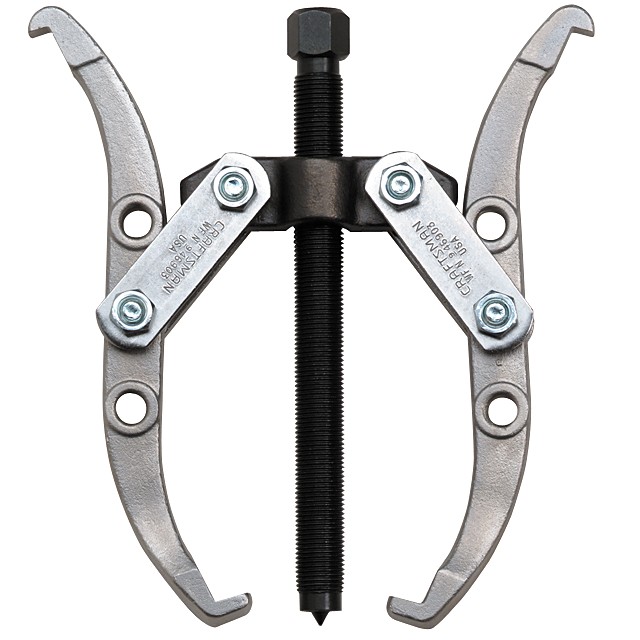

Here is a pic of the tool
Reply With Quote
  #2
Old 10-10-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
i uncranked the bolt that you tighten to lift..and if came out and i pushed them foward took the keys off..and ran them out the control arm no special tools needed..i think (:

and your welcome
Reply With Quote
  #3
Old 10-10-2007
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
I know around here we have a Atwoods that sell them for 9 bucks....mabey tractor supply has them i dont know. Autozone you can rent them
Reply With Quote
  #4
Old 10-10-2007
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I'd read that sometimes you could get the bars out by letting the suspension hang at full droop with the shocks disconnected, but it wasn't enough for mine. I grabbed my stock bottle jack and stuck a short socket extension on top of it (vertically) and jacked it up just a tad......worked wonderfully and it was free........
Reply With Quote
  #5
Old 10-10-2007
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
I supported the truck on jack stands and then placed a jack under the lower control arm and jacked it up a little and then removed the spindle. Once the spindle is out lower the jack slowly, this will unload the tbar and let you remove the tbar bolt and then remove the bar.
Reply With Quote
  #6
Old 10-10-2007
04 EDGE
Unregistered User

Posts: n/a
i used a large C clamp with the flat end removed so just the ball was exposed. fit right in the key like it was made for it!

hows the alignment chad?
Reply With Quote
  #7
Old 10-10-2007
camodown's Avatar
Lost in Nowhere
Thread Starter
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Thx guys, well out of all these different ways, one of them should work haha
Reply With Quote
  #8
Old 10-19-2007
camodown's Avatar
Lost in Nowhere
Thread Starter
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Well got off work early today so decided to tackle it. Pretty easy process, the thing that took the longest was getting my damn transfer case skid back on haha. anyway specs

After I put them in I had gained about 2 inches but after it settled it is an inch higher all around, but if I want i still have lots of thread left. So I can probably get another inch if I really want to. I think it rides better now with the #1's then the b bars, but I haven't really drove around a lot yet.

So I recommend swapping to 1's if you don't have them if you add a bumper or winch or something like that to the front.

and now I have some b rated bars if anybody wants them.
