Thinking about Bagging the front of my truck

It been awhile since I've been on here, Ive been busy with school and working on my 89 mustang. I haven't done anything to my truck lately, my stangs been getting all the money, now I think its time for my truck to get some put into it.

Im thinking about bagging the front of my truck. Im not thinking about laying frame of anything I just want the adjustability and the fun that goes with doing it. My trucks lowered 2/3 now.

How low can you go with stock control arms? The drive height I want is no or little fender gap on top of the tire.

Ive been throwing this idea around in my head for awhile so Im just curious on your opinion. What do you think?

Heres a somewhat recent pic right after I took my sand bags out for the winter so the rears alittle high because i still had air in my air shocks for the sand bags.


Last edited by ike34; 06-19-2008 at 01:51 PM.
Reply With Quote
  #2
Old 06-19-2008
MEC454's Avatar
Member

Join Date: Mar 2008
Location: honolulu hawaii
Posts: 61
bagg it! nice truck. what size rim/tire you running?
Reply With Quote
  #3
Old 06-19-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
Quote:
Originally Posted by MEC454 View Post
bagg it! nice truck. what size rim/tire you running?
17x9s with 255/45s and 17x10.5s with 285/40s
Reply With Quote
  #4
Old 06-19-2008
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
i say bag it. your truck looks ba man with those stang rims.
Reply With Quote
  #5
Old 06-19-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
if your going for the look just get djm arms it will set you right there, but you wont have adjust ability

I wouldnt bag on stock arms its not worth the hassle.

Get a set of djm arms and then bag you will have horrible camber issues with those stock uppers.
Reply With Quote
  #6
Old 06-22-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
Anybody know who has the lowest prices on arms? Or is selling some used?
Reply With Quote
  #7
Old 06-22-2008
BLAZED96's Avatar
Member

Join Date: Jun 2008
Location: BROWARD COUNTY, FLORIDA
Posts: 32
jason at suicidedoors.com has the best arms but not the cheapest but you can use your stock ones and still lay frame with some modifications. i bagged my 96 dr on 22's to lay with air ride tech arms iam not sure they make one for ranger thoe but i laid with 18's and stock arms iam sure ranger can to.

http://www.suicidedoors.com/BagBracketsBracketKits.php these are the brackets you need plus either a 2,3,4,link or bags over leaf for the rear
Reply With Quote
  #8
Old 06-22-2008
MEC454's Avatar
Member

Join Date: Mar 2008
Location: honolulu hawaii
Posts: 61
summit or stylin trucks.
Reply With Quote
  #9
Old 06-22-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
I like to use my stock arms for now just for awhile then get arms, Im not concerned about laying frame right now, I would just like the adjustablility for now because I still use my truck as a truck right now but it will eventually lay frame when its not really used as a truck.
Reply With Quote
  #10
Old 06-22-2008
BLAZED96's Avatar
Member

Join Date: Jun 2008
Location: BROWARD COUNTY, FLORIDA
Posts: 32
in that case look into a bolt on front air setup that you can get from air ride tech or mostly any where like mec said summit,streetbeat ect...

i got an air over leaf kit made by air ride tech that will fit your truck for sale pm me if intrested it 100% bolt on and will lower your truck from 2-5 inches and raise over stock hight check it out. http://www.ridetech.com/catalog/AIRoverLeaf-28-1.html
Reply With Quote
  #11
Old 06-22-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
Ive thought about that kit for the rear. How did u like it?
For the front heres what I'm thinking about

Slam 5 or 6 bags, which should I use?
Bag cups from suicide doors, gravity werx or illusive designs
5 or 8 gallon tank
3/8 or 1/2 valves not sure which to go with
And I don't have a clue what compressor to get
And of course all of the little other things like fittings etc
Reply With Quote
  #12
Old 06-22-2008
BLAZED96's Avatar
Member

Join Date: Jun 2008
Location: BROWARD COUNTY, FLORIDA
Posts: 32
slams re7 are the best 2500lbs if you got a 4cyl , 1/2 line with 3/8 valves will get you a good enough speed 1/2 line and 1/2 valves will get you up off the ground at 200psi. as for compressors go with viair 380 and at least 8 gallons.

heres a pic of my blazer 18's with stock arms contitech 2600's lower spindles and air ride tech air over leaf and a small 2.5bolt in notch
Name:  IM000535.jpg
Views: 46
Size:  134.1 KB

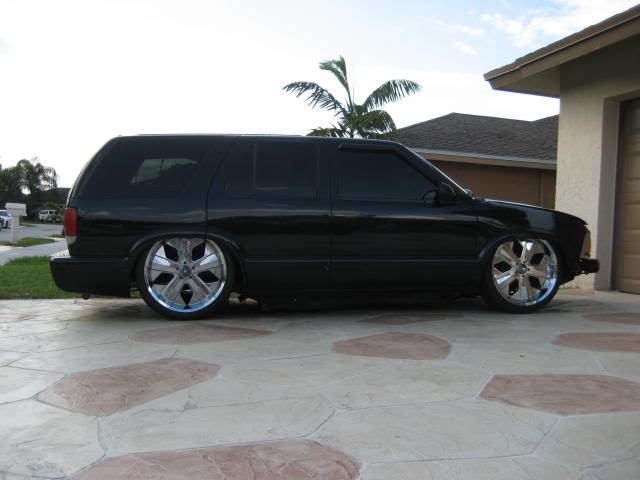

and then 22's and fourlink lower control arms upper control arms 10inch notch
Name:  nov23016.jpg
Views: 50
Size:  33.1 KB
Reply With Quote
  #13
Old 06-22-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
Ive been doing some reading, Ive read that I probably would have to do alot of cutting to the spring pocket with 7s vs 6s, is there really a big difference between them?

By the way thanks for all of your help
Reply With Quote
  #14
Old 06-23-2008
BLAZED96's Avatar
Member

Join Date: Jun 2008
Location: BROWARD COUNTY, FLORIDA
Posts: 32
Quote:
Originally Posted by ike34 View Post
Ive been doing some reading, Ive read that I probably would have to do alot of cutting to the spring pocket with 7s vs 6s, is there really a big difference between them?

By the way thanks for all of your help
either way you have to cut so the bag dosent rub its only alil more for the 7s but the ride quality is worth it and they use less psi to lift

as for the art kit ill give it to u for 120.00 plus whatever it cost to ship ill send u pics
Reply With Quote
  #15
Old 06-26-2008
ike34's Avatar
Member
Thread Starter

Join Date: Jul 2005
Location: Waterloo, IA
Posts: 268
Heres the setup Im thinking Im going to go with, what do you think?

DJM Control Arms
Slam Bags 6 or 7
Bag Cups (illusive designs)
3/8 Valves
1/2 Air Line
8 Gallon Tank
Air Over Leaf For the Rear (it will work for what I want to do right now, I'll eventually go 4 link)
Not Sure On A Compressor Yet, Opinions Are Welcome

I'm thinking of running 6 Valves, having the front bags independent of each other, so I don't get air transfer in corners, and running the rear together, Is this good or should I run 8 valves?
Reply With Quote
