those familiar with rti ramps, whats your score if you've tested - Ranger-Forums - The Ultimate Ford Ranger Resource


Suspension Tech General discussion of suspension for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 04-22-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
those familiar with rti ramps, whats your score if you've tested

they have one at a local shop, so i tried my luck, i scored a 632, which isnt bad for a body lifted ifs truck lol
i flexed more then any of the other ifs rigs
and even more then a few of the sfa rigs as well

super fun! but nobody took pics. but next week i'll try again
Reply With Quote
  #2
Old 04-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
pics or it didn't happen
Reply With Quote
  #3
Old 04-22-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
haha the most i can give you is the list posted up by the shop on my local 4x4 forum :(

Quote:
GO4X4IT 638 (98 ZJ with 4" lift)
TYS 4X4 FTW 632 (my ranger)
DOUG H 698 (not sure)
WISHFULTHINKER 624 (stock xj)
NAMELESS 491 (durango with torsion bar crank/shackle lift in rear)
TONY A 1109 (unbelievable TJ with super low gears)
SHINOBI 972 (01 WJ w/ 6" lift)
KQOTUW 580 (XJ with a few " of lift)
CHMICHELS 349 (stock zj with sways attached)
EXPLODER 459 (stock 96 explorer)
KRO7 870 (not sure)
JEHU 567 (stock unlimited wrangler rubicon)
ROBERT 456 (not sure)
FLOORYA 385 (stock diesel liberty)
DISCOVERYXD 680 (land rover discovery with plenty of lift)
Reply With Quote
  #4
Old 04-22-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
gave you all the rigs i could for a bit of a comparison
Reply With Quote
  #5
Old 04-22-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575

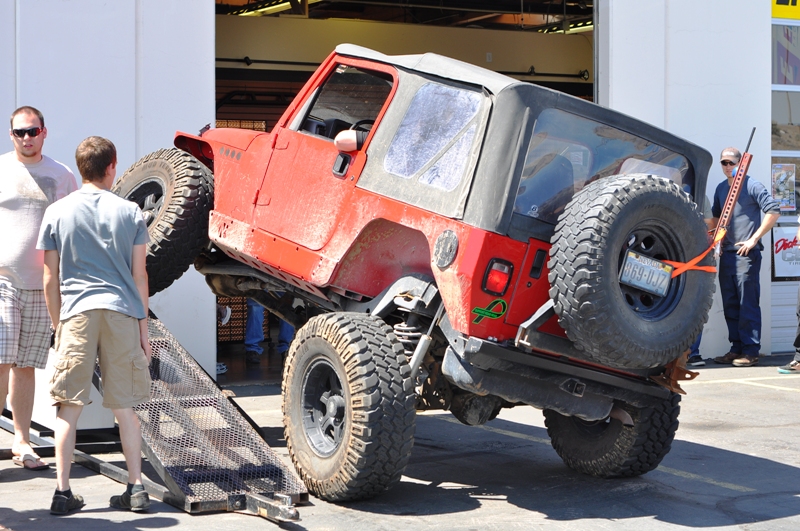

the TJ that scored the highest..
Attached Thumbnails
those familiar with rti ramps, whats your score if you've tested-misc-001.jpg
Reply With Quote
  #6
Old 04-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
and you know wheel base is factored RTI score, so you may have scored higher, but they may have gone higher.
Reply With Quote
  #7
Old 04-22-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
oh yeah i know, i went higher then quite a few, but they also had shorter wheel bases lol
Reply With Quote
  #8
Old 04-23-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Sway bars on or off?
Reply With Quote
  #9
Old 04-23-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I wish I had one to score on!
Reply With Quote
  #10
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by brianjwilson View Post
Sway bars on or off?
me? i left the front on. i think i'll disconnect it next week and see if i do any better
Reply With Quote
  #11
Old 04-23-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
how is it measured? like what the formula??
Reply With Quote
  #12
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
The test proceeds as the vehicle attempts to climb the ramp as high as possible with a single front or rear tire without lifting a wheel off the ground. The distance the vehicle can travel up the ramp without loosing contact with the ground is measured from the leading edge of the ramp itself to the point on the ramp just below the center of the hub of the wheel on the ramp. The distance is measured up the ramp and on the ramp, not to the actual hub of the wheel. That number is the divided by the vehicles wheelbase and then multiplied by 1000 to calculate the average. For example if a vehicle with a 81 inch wheelbase traveled 59 inches up a 20 degree ramp then the RTI would be calculated as: 59 divided by 81 x 1000 = 728 (rounded down). This method of multiplying by the vehicle's wheelbase allows vehicles of different wheelbases to compete with each other on the same ramp.
Reply With Quote
  #13
Old 04-23-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
You would have gotten atleast a few extra inches with the front sway bar disconnect.
Plus you could always cheat and air down, lol.
Zach I would be interested to see what kind of numbers you could pull off with the ranger!
Reply With Quote
  #14
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
yeah seriously zach, that thing flexes great

you need to find an rti ramp and post up your score!
Reply With Quote
  #15
Old 04-23-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Zach won't do it!! haha
"he knows it'll do what he designed it to do"

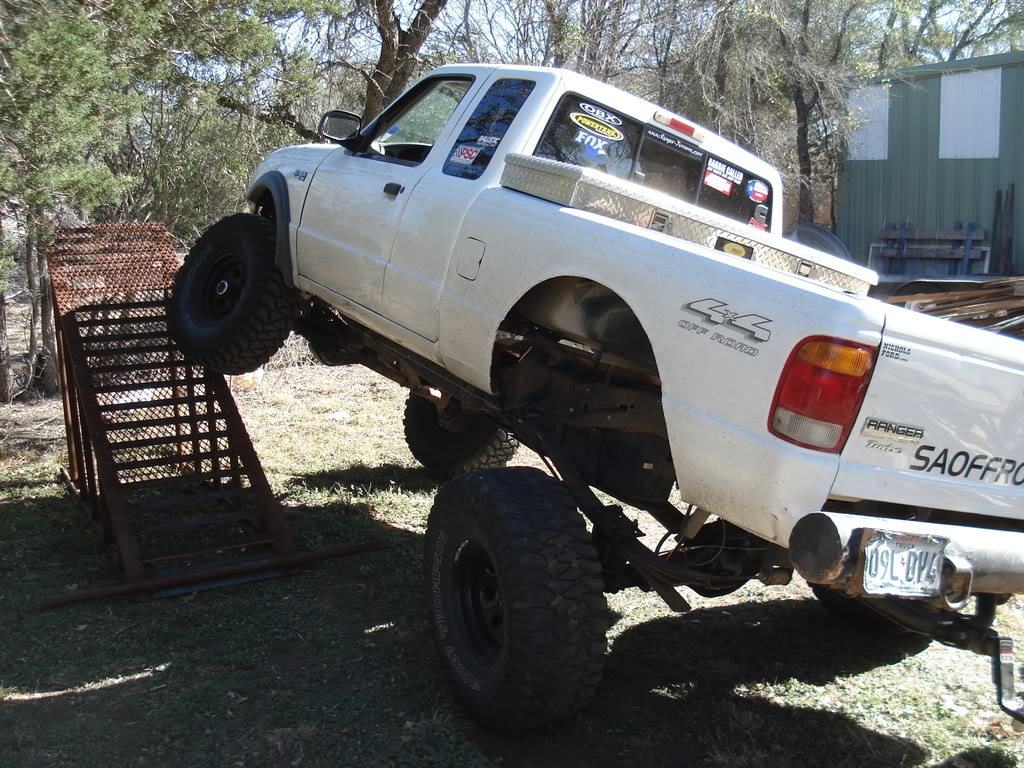

Mine scored about yey much, before the front limit straps though.. Once i get more uptravel up front, and get the driveshaft figured out i should get a little more.

oh yea, its in 2wd, open rear diff, 3.50s. no need for 4wd, my tire was about to leave the ground and the tire slipped.

Name:  DSC05457.jpg
Views: 13
Size:  221.2 KB
Reply With Quote
  #16
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
dayumn

do you know what you scored?
Reply With Quote
  #17
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
so how hard is it to take out the sway bar?
Reply With Quote
  #18
Old 04-23-2009
03bamaGT's Avatar
Member

Join Date: Aug 2006
Location: B'ham, AL
Posts: 1,752
Quote:
Originally Posted by Tys 4x4 View Post
so how hard is it to take out the sway bar?
Should just be like 6 bolts...pretty easy.
Reply With Quote
  #19
Old 04-23-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by Tys 4x4 View Post
dayumn

do you know what you scored?
yep, scored about ^^ yey much.
next time i go out there I'll measure.

Quote:
Originally Posted by Tys 4x4 View Post
so how hard is it to take out the sway bar?
I've got a torch in the garage

mine came off, i tried to sell it, no luck.. then it got cut into 3 pieces to fit into the garbage can.
Reply With Quote
  #20
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
lol i just got it off

i dont see myself putting it back on, but i might keep it just incase i guess
Reply With Quote
  #21
Old 04-23-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Sell it over on RPS, someone is sure to buy it lol
Reply With Quote
  #22
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
lol why over there?
Reply With Quote
  #23
Old 04-23-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Lowered group, people more interested in better handling.
Reply With Quote
  #24
Old 04-23-2009
Tys 4x4 FTW's Avatar
RF Veteran
Thread Starter
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
crazies lol

i love it, it handles like a big fat kid
believe it or not, it still handles better then our old H2 did.
Reply With Quote
  #25
Old 04-23-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
LOL it handles like ME!!!!!!! Awkward, rolly, and excessive!
Reply With Quote
