Is it time for replacement?

I'm wondering if it is time to do some replacements on the ball joints and upper arms. I noticed the passenger side lower ball joint looked busted when changing the oil a few weeks ago so I looked around at the upper arms and the bushings are looking cracked and dry. Not getting any odd noises or rough riding, except when hitting crappy roads. Just want to see what you guys think and if I should start collecting the parts now. Thanks!

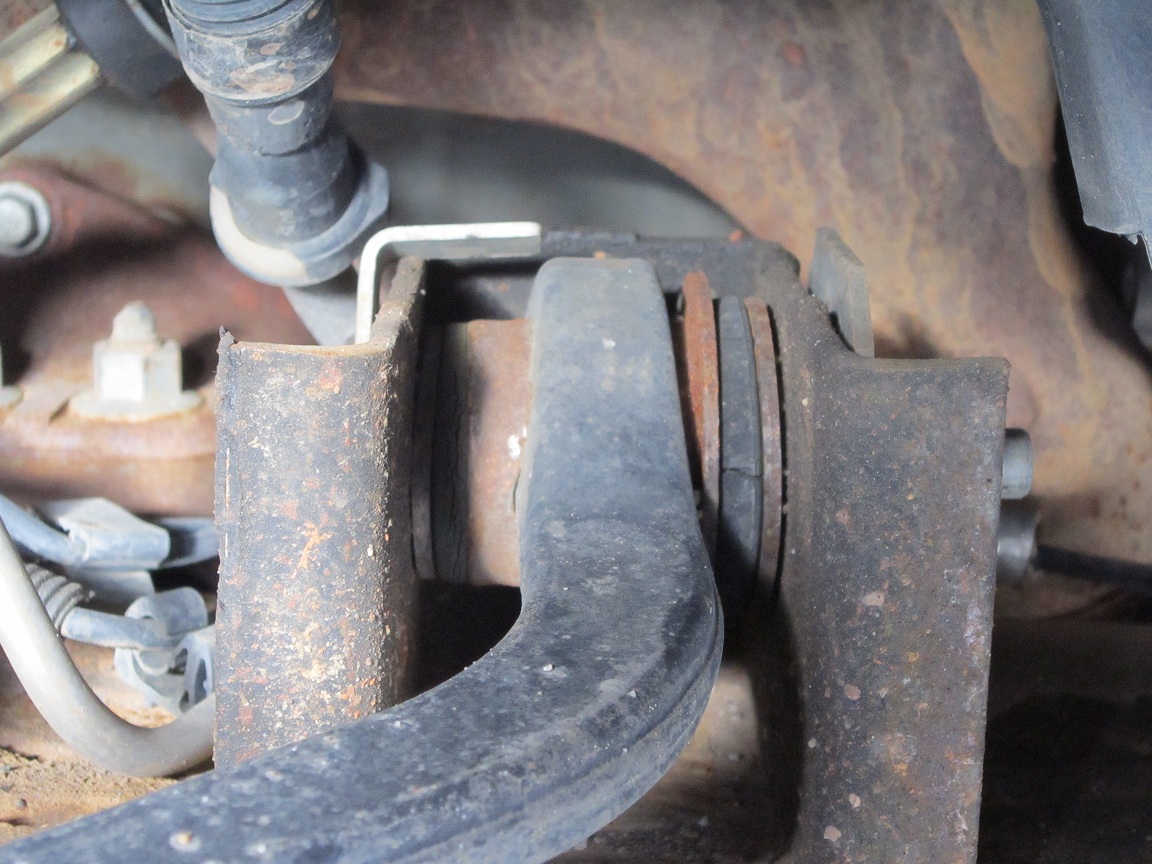

upper arm driver side
Is it time for replacement?-driver_upper_arm1.jpg

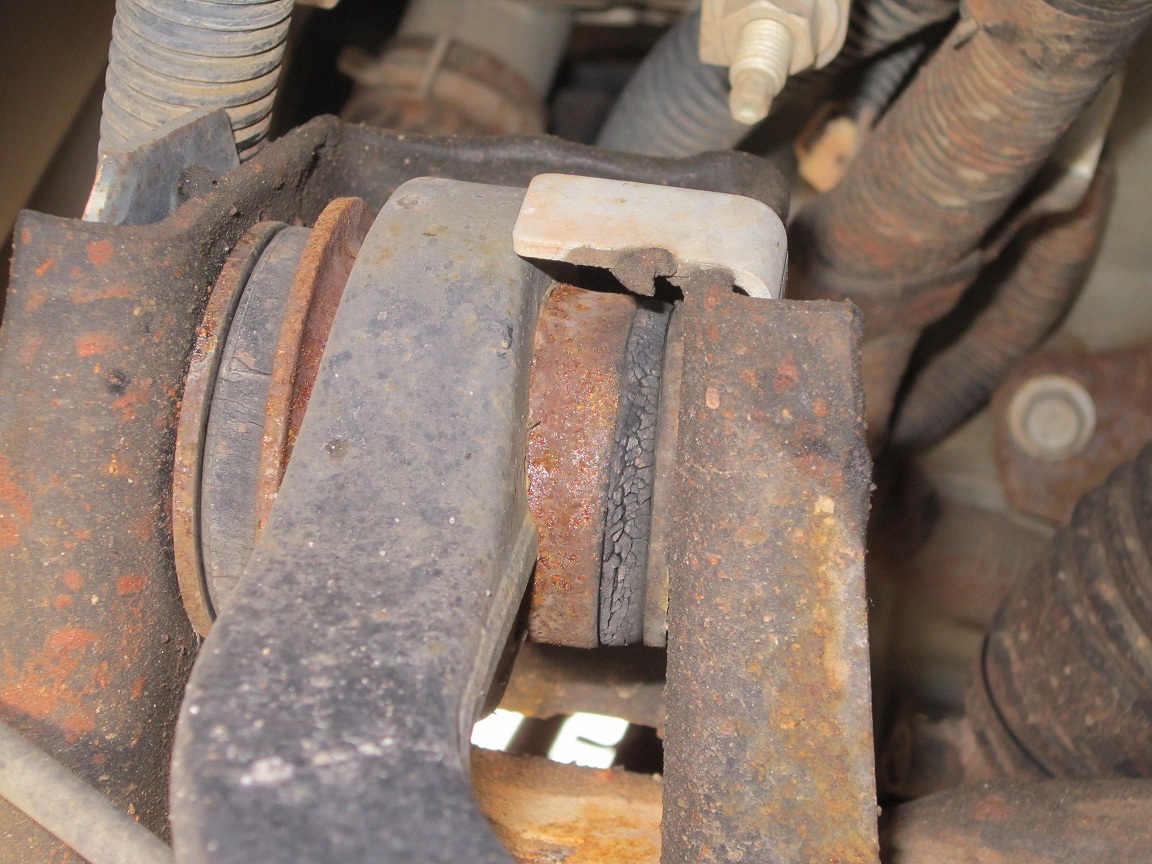

upper arm driver side
Is it time for replacement?-driver_upper_arm.jpg

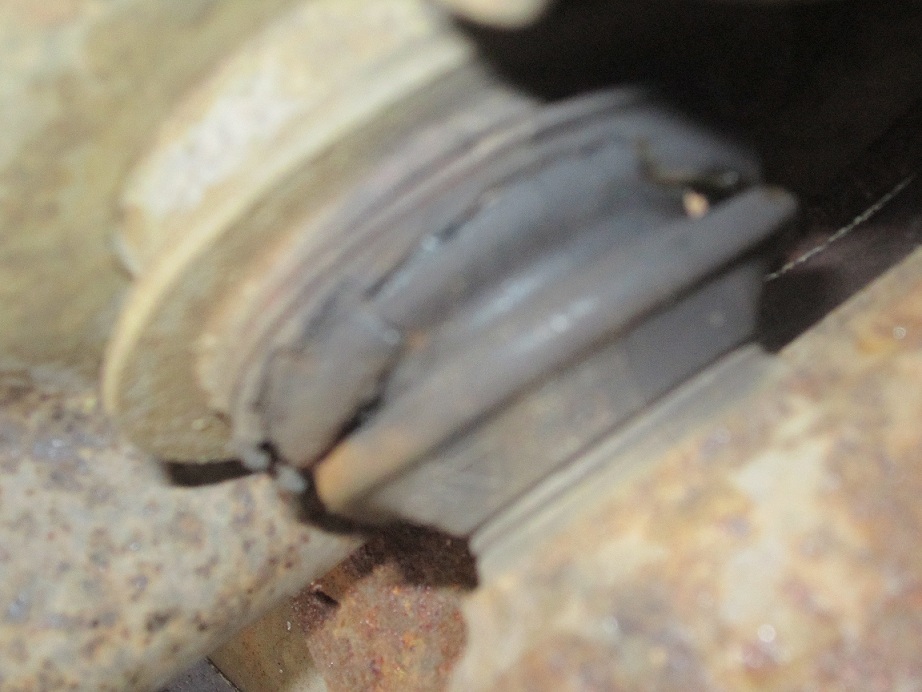

passenger lower ball joint
Is it time for replacement?-pass_lower_balljoint.jpg

passenger upper arm
Is it time for replacement?-passenger-upper-arm-ctr.jpg
Reply With Quote
  #2
Old 12-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I'd be doing the ball joints soon for sure... they won't last long with cracked boots. You can do just the boot, but if you're going that far you may as well put the whole thing in but that's just my opinion!
Reply With Quote
  #3
Old 12-24-2012
web's Avatar
web web is offline
Member

Join Date: Oct 2011
Location: Columbia, MD
Posts: 210
Well, for the price that you can buy an entire new a-arm on Rockauto, you might as well replace them all (about 30$ each with new ball joints already pressed in).
Reply With Quote
  #4
Old 12-24-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Get the Moog Joint... And do it all !
Reply With Quote
  #5
Old 12-24-2012
hilljack13's Avatar
Member
Thread Starter

Join Date: Oct 2012
Location: Florida Panhandle
Posts: 34
I'm looking at these two part numbers from Moog. Lower arm K80052 and 54 and ball joint K8771T.

I've seen a lot of different part numbers so hope these are OK?
Reply With Quote
  #6
Old 12-25-2012
atrocity's Avatar
Member

Join Date: Dec 2009
Location: 954Fl
Posts: 547
Since you're doing a-arms you'll need 2x
Moog K80065 Cam Bolt Kit : Amazon.com : Automotive Moog K80065 Cam Bolt Kit : Amazon.com : Automotive
aswell. Doesn't look like you have them already.
Reply With Quote
  #7
Old 12-26-2012
hilljack13's Avatar
Member
Thread Starter

Join Date: Oct 2012
Location: Florida Panhandle
Posts: 34
Thanks for the heads up on that one
Reply With Quote
  #8
Old 01-09-2013
hilljack13's Avatar
Member
Thread Starter

Join Date: Oct 2012
Location: Florida Panhandle
Posts: 34
Can anyone tell me the difference between these two part numbers....besides price? And also what grease to use when I install.

K80054 & CK80054

Last edited by hilljack13; 01-09-2013 at 11:13 AM.
Reply With Quote
