  #26
Old 06-10-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
4.88s and 28s

phew that biach is gonna scream! haha
Reply With Quote
  #27
Old 06-10-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
before RCD and 35's

Tire height: 285/75 ~ 32.5"
I Bottom of grill surround: 34.5"
H Top of front fender opening: 40"
G Bottom of rocker panel: 22.5"
F Window sill: 52"
E Top of roof: 70"
D Top of rear fender opening: 34"
C Top of bed: 51"
B Bottom of rear bumper: 23.5"
A Top of tailgate when down: 33" (?)

Rear Diff: 9"
Skid plate: 18 1/4"
Cross Member: 11 3/4


small

Last edited by 99ranger4x4; 06-11-2007 at 09:52 AM.
Reply With Quote
  #28
Old 07-22-2007
projectAtoB's Avatar
Member

Join Date: Jul 2007
Location: nc
Posts: 16

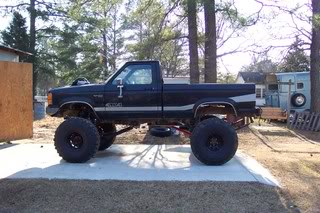

Name:  projectAtoB009.jpg
Views: 28
Size:  25.8 KB

3' to the bottom of the door (36")
3 1/2 foot to bottom of front and rear bumpers (42")
7'3" to the top of the cab (87")
Reply With Quote
  #29
Old 08-03-2007
compleckz's Avatar
Member

Join Date: Aug 2007
Location: Charlemont, MA
Posts: 1
Tire height: 33"
I Bottom of grill surround: 37"
H Top of front fender opening: 41"
G Bottom of rocker panel: 26"
F Window sill: 55"
E Top of roof: 74.5"
D Top of rear fender opening: 44"
C Top of bed: 55.5"
B Bottom of rear bumper: 30"
A Top of tailgate when down: 40.5"

SJ 8" coils front, sj 6" leaves rear w/ stock block and belltech 6400s (2")

so suspension wise i'd say a true 8" rear, and 6.5-7" front... we need numbers from a few stock trucks on 235/75s!

Last edited by compleckz; 08-03-2007 at 02:17 PM.
Reply With Quote
  #30
Old 08-03-2007
Member

Join Date: Jul 2007
Location: Selah,wa
Posts: 6
Tire size: 37"
I: 39.5"
H: 46"
G: 27.5"
F: 56"
E: 76"
D: 44.5"
C: 56"
B: 27"
A: 40"
Reply With Quote
  #31
Old 08-15-2007
4x404Edge's Avatar
Member

Join Date: May 2007
Location: Orchard Park, NY
Posts: 239
Quote:
Originally Posted by 99ranger4x4
before RCD and 35's

Tire height: 285/75 ~ 32.5"
I Bottom of grill surround: 34.5"
H Top of front fender opening: 40"
G Bottom of rocker panel: 22.5"
F Window sill: 52"
E Top of roof: 70"
D Top of rear fender opening: 34"
C Top of bed: 51"
B Bottom of rear bumper: 23.5"
A Top of tailgate when down: 33" (?)

Rear Diff: 9"
Skid plate: 18 1/4"
Cross Member: 11 3/4


small
Why is it that your front fender opening is 6 inches taller then the rear? That doesnt make sense...
Reply With Quote
  #32
Old 09-07-2007
dead's Avatar
Member

Join Date: Sep 2007
Location: Rockwall/Dallas, TX
Posts: 382
Quote:
Originally Posted by 4x404Edge
Why is it that your front fender opening is 6 inches taller then the rear? That doesnt make sense...
He has a big *** homemade bumper. It did look off in person. I haven't seen it since the RCD and other work.
Reply With Quote
  #33
Old 10-21-2007
95offroadx's Avatar
Member

Join Date: Jan 2006
Location: palmyra, pa
Posts: 454


tire height(actual size)- 36.25"
bottom of rock panel- 24.5"
window sill-55"
top of roof-78"
top of rear fender-42.5"
bottow of rear bumper- 29"

still is gonna grow 2" more, but i like having a lower ground clearence for the tires.
Reply With Quote
  #34
Old 10-22-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by dead
He has a big *** homemade bumper. It did look off in person. I haven't seen it since the RCD and other work.
try cranking the t-bars 8 times.. lol

and i think the front fenders are higher than the back anyways
Reply With Quote
  #35
Old 11-28-2007
badkarma's Avatar
Member

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
Don't know how tall it is but it's 6 and a crushed Dr.Pepper cans to the valance.

Name:  mytruck271.jpg
Views: 28
Size:  142.0 KB
Reply With Quote
  #36
Old 11-28-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
lol nice kevan.

hey when are you going to post a bunch of pictures of the suspension work? closer up stuff. i am just curious and i like new ideas.
Reply With Quote
  #37
Old 11-28-2007
badkarma's Avatar
Member

Join Date: Nov 2004
Location: Austin Texas
Posts: 171
as soon as I finish the radius arms and xmember. Oh yeah skid plates too not that they will be much help.
Reply With Quote
  #38
Old 11-28-2007
4x4sport08's Avatar
Member

Join Date: Nov 2007
Location: belwood,ontario,canada
Posts: 26
2008 sport 4x4 all stock for now lol
Reply With Quote
  #39
Old 11-28-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by badkarma
as soon as I finish the radius arms and xmember. Oh yeah skid plates too not that they will be much help.

alright ill be waiting on them
Reply With Quote
  #40
Old 02-04-2008
Member

Join Date: Dec 2007
Location: idleyld Park , oregon
Posts: 40
I want to see differential clearance .

.
Reply With Quote
  #41
Old 02-04-2008
S1att3r's Avatar
Member

Join Date: Nov 2007
Location: Emory, TX
Posts: 226
stock height for now
Reply With Quote
  #42
Old 03-07-2008
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Could you guys put up some more measurments? Im wondering how tall my truck will be with 4" SL/3" BL and 35s. Im gettin a little worried that its not gonna fit in the garage :(
Reply With Quote
  #43
Old 07-16-2008
mhughes165's Avatar
Member

Join Date: Jun 2008
Location: Browns Mills, NJ
Posts: 194
ive got 37" to the bottom of my doors, not really feelin like measuring everything else out
Reply With Quote
  #44
Old 09-25-2008
trucks423's Avatar
Member
iTrader: (2)

Join Date: Jul 2008
Posts: 687
top of front fender is 27 1/2
top of rear fender is 28 1/4
Reply With Quote
  #45
Old 02-18-2009
tx03edge's Avatar
Member

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Does anyone have these measurements for a stock height edge?
Reply With Quote
  #46
Old 02-19-2009
LITTLE FOOT's Avatar
Member

Join Date: Feb 2009
Location: alden, ny
Posts: 18
Quote:
Originally Posted by badkarma View Post
Don't know how tall it is but it's 6 and a crushed Dr.Pepper cans to the valance.

ok iv been trolling the site and i came acrossed this. i have seen this truck alot. it also comes up on google. i love this thing, very clean
Reply With Quote
  #47
Old 02-20-2009
tx03edge's Avatar
Member

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Icon14

if this is the new method of measurement...then i have 4 cans and one crushed one ....hahahaha
Reply With Quote
  #48
Old 02-25-2009
sofa king shifty's Avatar
Member

Join Date: Feb 2009
Location: Lakeside,Ca
Posts: 53
33 TIRES (2WD)
A=NO GATE
B=30 1/2
C=54
D=40
E=80
F=58
G=29 1/2
H=46
I=42
Reply With Quote
  #49
Old 11-09-2009
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
bottom of front fenders are 37 1/4" bottom of rear fenders are 36 1/4"...specs in sig, but 1" body is gone...adding 3" body soon!
Reply With Quote
  #50
Old 01-21-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by Oh5Edge View Post
2005 Ranger Edge

Tire height: 33"
I Bottom of grill surround: 38 1/4"
H Top of front fender opening: 44"
G Bottom of rocker panel: 27 1/2"
F Window sill: 57"
E Top of roof: 79"
D Top of rear fender opening: 45 1/2"
C Top of bed: 57"
B Bottom of rear bumper: 30"
A Top of tailgate when down: 40 1/2"
2001 Ranger Edge

Tire height: 31"
I Bottom of grill surround: 32"
H Top of front fender opening: 36 1/2"
G Bottom of rocker panel: 19"
F Window sill: 47 1/2"
E Top of roof: 69 1/2"
D Top of rear fender opening: 36 1/2" (Currently have 220lbs of salt bags in the rear, rear sits higher w/o weight)
C Top of bed: 48 1/4"
B Bottom of rear bumper: 21"
A Top of tailgate when down: 32 1/2"
Reply With Quote
