What are these bars called?

What are these bars called? (I want to say torsion bars, but I know I'd be wrong)
The weird part is that one side stands proud of the lower control arm (I think that's the way it's suppose to be because I've seen other trucks like this) The other side is recessed into the lower control arm but what's even stranger than that is that the bar that didn't take a hit is the one that sitting back inside the LCA and the side that took a hit is sticking out.
The bar on the side that took a hit is bent and it has to be replaced.

How do you replace these bars? and the one that is pushed into the LCA, can it be knocked back out by hitting the other end?

Any help would be greatly appreciated,

Brian

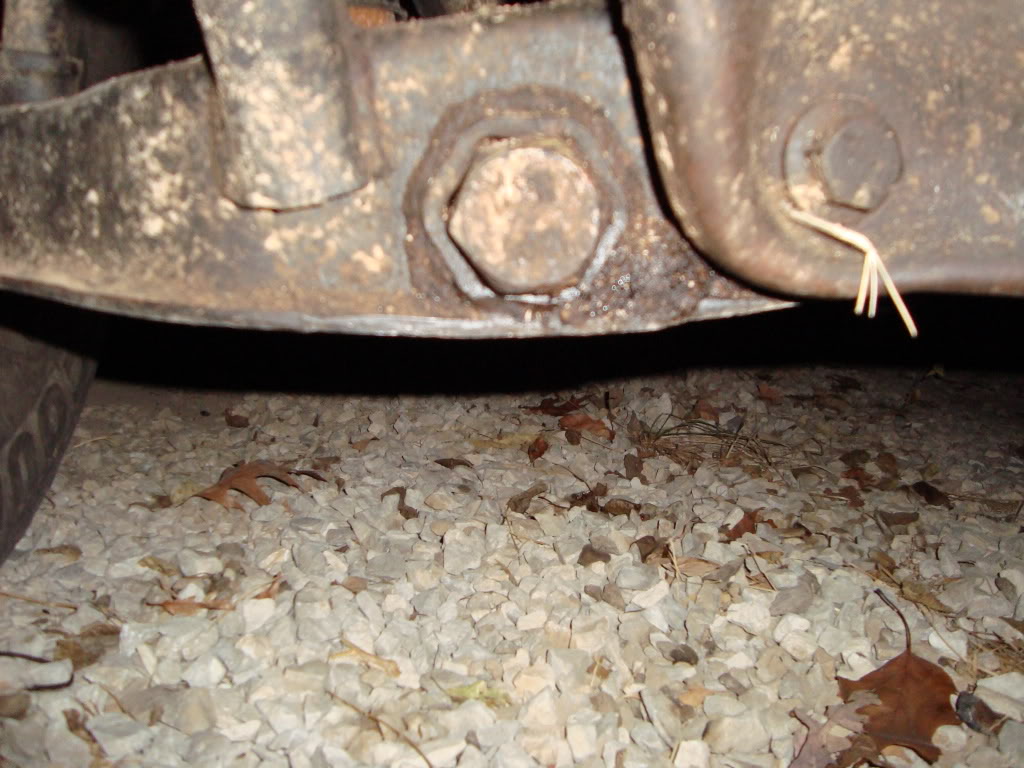

Name:  031.jpg
Views: 10
Size:  147.2 KB

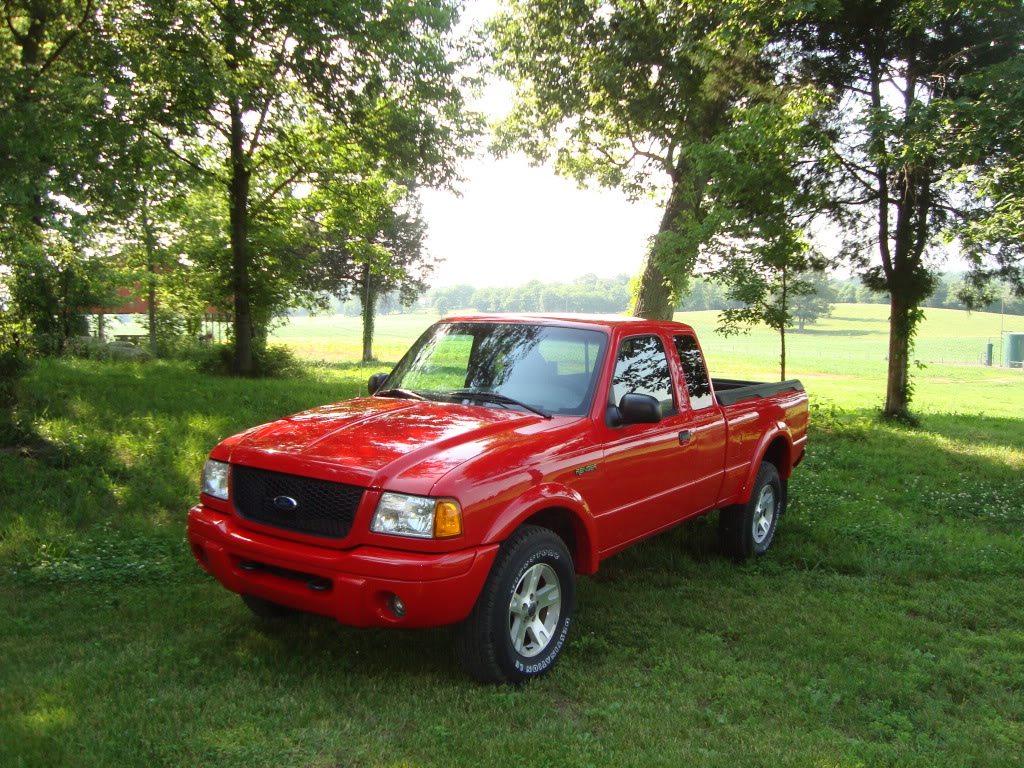

Name:  030.jpg
Views: 4
Size:  286.0 KB
Reply With Quote
  #2
Old 11-12-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
you are correct those are the torsion bars
Reply With Quote
  #3
Old 11-12-2010
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Yep those are your torsion bars. The reason the ps is sticking out is because the frame is bent, probably near the front cab mount. The rear mount for the bar is most likely in the proper location so that will give you an idea how far the frame is pushed back. To remove the bars you need to remove the shock(so the suspension can flex down)(jack under frame not suspension) and unscrew the tension bolt on the back all the way and disassemble the rear mount. Once the rear is disassembled the bar should come right out of the lower control arm. Be careful springs(and torsion bars) store energy that can hurt you!
Reply With Quote
  #4
Old 11-13-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by wvcat View Post
Yep those are your torsion bars. The reason the ps is sticking out is because the frame is bent, probably near the front cab mount. The rear mount for the bar is most likely in the proper location so that will give you an idea how far the frame is pushed back. To remove the bars you need to remove the shock(so the suspension can flex down)(jack under frame not suspension) and unscrew the tension bolt on the back all the way and disassemble the rear mount. Once the rear is disassembled the bar should come right out of the lower control arm. Be careful springs(and torsion bars) store energy that can hurt you!
Well, I guess I'm starting to learn what all these suspension parts are called
I knew you would come to the rescue on this one. I guess the torsion bars that I seen sticking out on the other trucks were cranked.
So, normally the torsion is back into the octogan hole instead of sticking out of it?
I'm also wondering about what part is going to release the energy so I don't get my head knocked off.
Reply With Quote
  #5
Old 11-13-2010
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
dont try to use a c clamp to remove them, itll hurt u...buy a torsion bar tool, yes they are expensive, but can u really put a price on being able to use your hands
Reply With Quote
  #6
Old 11-13-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Can you rent a torsion bar tool? And where would I even put the C-Clamp? I don't have the first clue about removing a torsion bar.
Can someone post some pictures?
Reply With Quote
  #7
Old 11-13-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
Quote:
Originally Posted by BlackRanger04 View Post
Can you rent a torsion bar tool?
i think you should be able to

Quote:
Originally Posted by BlackRanger04 View Post
I don't have the first clue about removing a torsion bar.
a chilton or haynes manual should tell you
Reply With Quote
  #8
Old 11-13-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
I used a standard 2 jaw puller from Sears to change out my torsion bars. It worked well but you have to be super careful as the puller will try to slip one direction when tightening it. You have to hold it at the correct angle as you tighten it or it will fly off and possibly hurt you.

Here's the puller I used: Craftsman

It's not a bad job though. Once you do one side, you fly through the other side.

BE CAREFUL.


GB :)
Reply With Quote
  #9
Old 11-13-2010
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
I can't fully remember but I think i removed the shock and unhooked the upper/lower ball joints. Then the front suspension just went the full way down and the tbar was easy as hell to remove by hand.
Reply With Quote
  #10
Old 11-13-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
jack the truck up in the air let the front suspension droop all the way then take off the protective plates covering the key.... pull the adjustment bolt all the way out (heat it up to make your job easier). use a jack with a piece of wood or whatever to unseat the key.

no need for a "torsion bar tool"
Reply With Quote
  #11
Old 11-13-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Thanks for all the advise ... It sounds like the way 99offroadrngr does it sounds safer and I wouldn't need a torsion bar tool.
Reply With Quote
  #12
Old 11-13-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
In my opinion, it'd be just as dangerous using a jack as it would to use a puller like I did. It's only safe using the correct tool meant for removing Ford torsion bars. I know I had both of mine swapped out, using the puller, in less than 3 hours.

To each his own though.


GB :)
Reply With Quote
  #13
Old 11-13-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
I think I'm going to have somebody do this for me. It sounds like I could get killed doin this.
Would anyone be interested in replacing a torsion bar for me?
Reply With Quote
  #14
Old 11-13-2010
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
here is a thread I had on this with pics. it is not really that dangerous if you do it right.
https://www.ranger-forums.com/f15/t-bar-how-97289/
Reply With Quote
  #15
Old 11-13-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Bird76Mojo View Post
In my opinion, it'd be just as dangerous using a jack as it would to use a puller like I did. It's only safe using the correct tool meant for removing Ford torsion bars. I know I had both of mine swapped out, using the puller, in less than 3 hours.

To each his own though.


GB :)
you need to put your purse down on the table and take the gloves off when working on a truck
1hr TOPS to do both sides. the hardest part is to take the adjustment bolt off but if you heat it up and use an impact gun to blast it out theres no problems at all
Reply With Quote
  #16
Old 11-13-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Yeah, it's not difficult or dangerous if you use common sense.
Reply With Quote
  #17
Old 11-14-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Well I'll be dam, This doesn't look too dangerous. I thought a spring was gonna come flyin out and knock my head off when I unbolted that cover plate.
Thanks for all the instructions on how to do this.
Reply With Quote
  #18
Old 11-14-2010
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by 99offroadrngr View Post
you need to put your purse down on the table and take the gloves off when working on a truck
1hr TOPS to do both sides. the hardest part is to take the adjustment bolt off but if you heat it up and use an impact gun to blast it out theres no problems at all

I'd do it 99offroadranger's way. Seriosuly, nothing is gonna go flying. Just make sure your truck is supported solidly.
Reply With Quote
  #19
Old 11-14-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
Quote:
Originally Posted by 99offroadrngr View Post
you need to put your purse down on the table and take the gloves off when working on a truck
1hr TOPS to do both sides. the hardest part is to take the adjustment bolt off but if you heat it up and use an impact gun to blast it out theres no problems at all

That's the most idiotic response I could ever imagine. lol I'm not a professional mechanic and I've never claimed to be one. I also take my sweet time when doing a job. No reason not to. I also have no air compressors, impacts, etc.. From opening the shed and dragging the tools out, to finishing the job and putting the tools up, it took me those three hours. I can see how some people would finish it faster. Good for them.

I'll make sure your mom doesn't forget her purse though.



GB :)
Reply With Quote
  #20
Old 11-14-2010
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by Bird76Mojo View Post
That's the most idiotic response I could ever imagine. lol I'm not a professional mechanic and I've never claimed to be one. I also take my sweet time when doing a job. No reason not to. I also have no air compressors, impacts, etc.. From opening the shed and dragging the tools out, to finishing the job and putting the tools up, it took me those three hours. I can see how some people would finish it faster. Good for them.

I'll make sure your mom doesn't forget her purse though.



GB :)


It's a lot easier and safer to use a jack than a tbar puller but honestly.....Both activities are easy as hell. I also didn't use air compressors/impacts. Just hand tools.


But as to the time, I prolly took more than 3 hours. I'm slow
Reply With Quote
  #21
Old 11-14-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Bird76Mojo View Post
That's the most idiotic response I could ever imagine. lol I'm not a professional mechanic and I've never claimed to be one. I also take my sweet time when doing a job. No reason not to. I also have no air compressors, impacts, etc.. From opening the shed and dragging the tools out, to finishing the job and putting the tools up, it took me those three hours. I can see how some people would finish it faster. Good for them.

I'll make sure your mom doesn't forget her purse though.



GB :)
How is it an idiotic response? You said that using a jack is just as dangerous as using your puller which is completely false, you should probably just bring your truck to a shop every time you need to get your tires rotated since you think its "dangerous" to use it to jack up on the torsion key and you probably also sit down to pee. I'm no mechanic either but I also don't shake like a little girl when I do anything on the truck. I've swapped mine out ONCE and it took me an hour, although it doesn't matter how long it takes because everyone works at a different pace.

Last edited by 99offroadrngr; 11-14-2010 at 05:35 PM.
Reply With Quote
  #22
Old 11-14-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
We're all very happy for you and amazed at your superior wrench turning skills and super speed. lol

I'll keep working on all of my trucks thanks.. I always have and always will. No shaking or quivering involved. Again, just idiotic.



GB :)
Reply With Quote
  #23
Old 11-14-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Bird76Mojo View Post
We're all very happy for you and amazed at your superior wrench turning skills and super speed. lol
It's called an impact wrench you fool and you must be the only one amazed since you don't have one. Get with it dumbass.


oh yeah btw if using the puller is dangerous why would you tell him to use one? Sounds pretty idiotic to me.
Reply With Quote
  #24
Old 11-14-2010
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Toreador4x4 in MI did not use a t-bar tool and swapped in my #1 inless then 30 minutes..
Reply With Quote
  #25
Old 11-14-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by Lazler View Post
Toreador4x4 in MI did not use a t-bar tool and swapped in my #1 inless then 30 minutes..
I did it how he did but in double the time because im still a newb but thanks to him i got em done

Were you amazed by the speeds of an impact wrench? its insane!!!!
