  #26
Old 03-26-2009
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
I do!
Reply With Quote
  #27
Old 03-26-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
OWNED!!11!!!
Reply With Quote
  #28
Old 03-27-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369

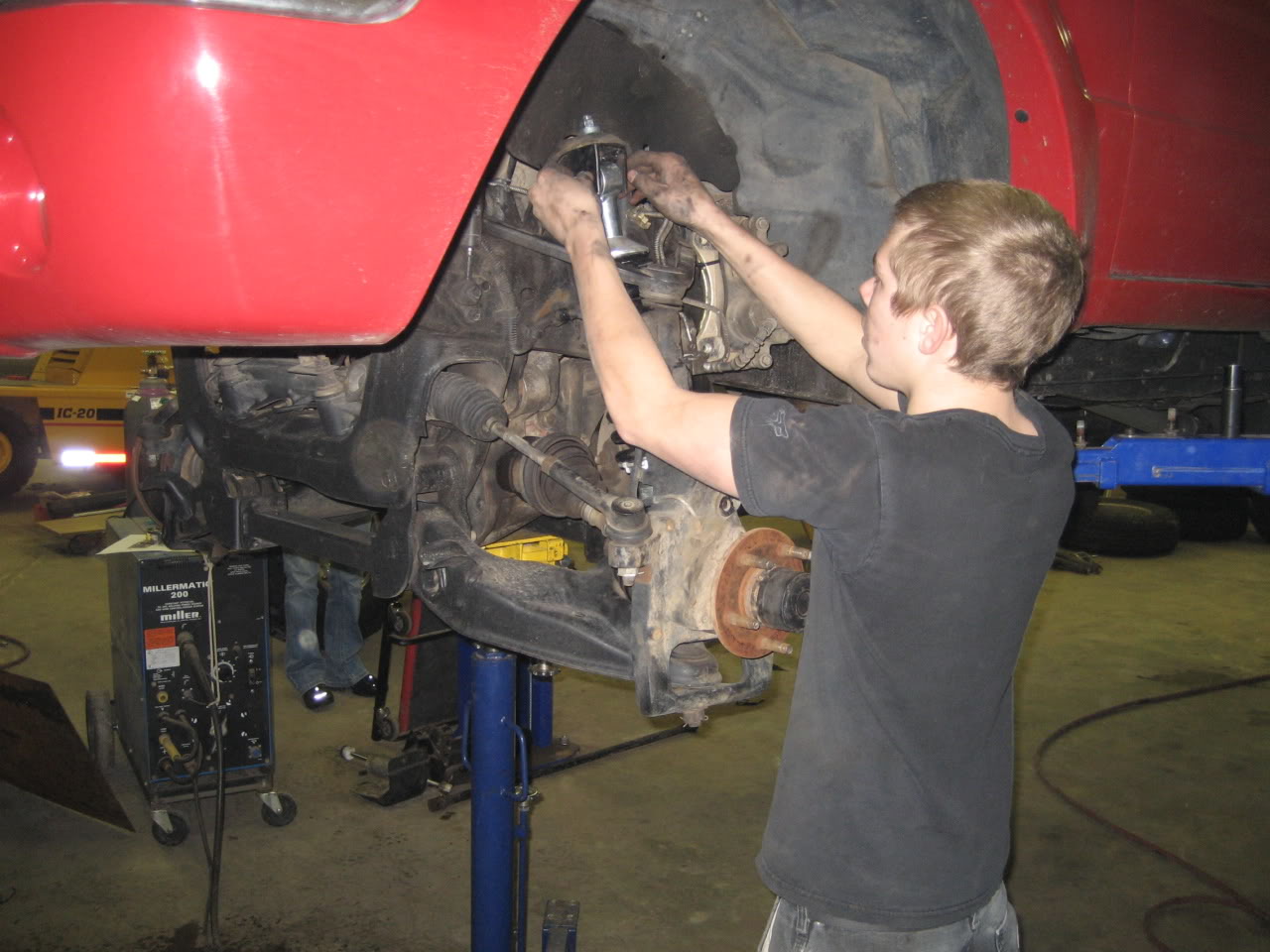

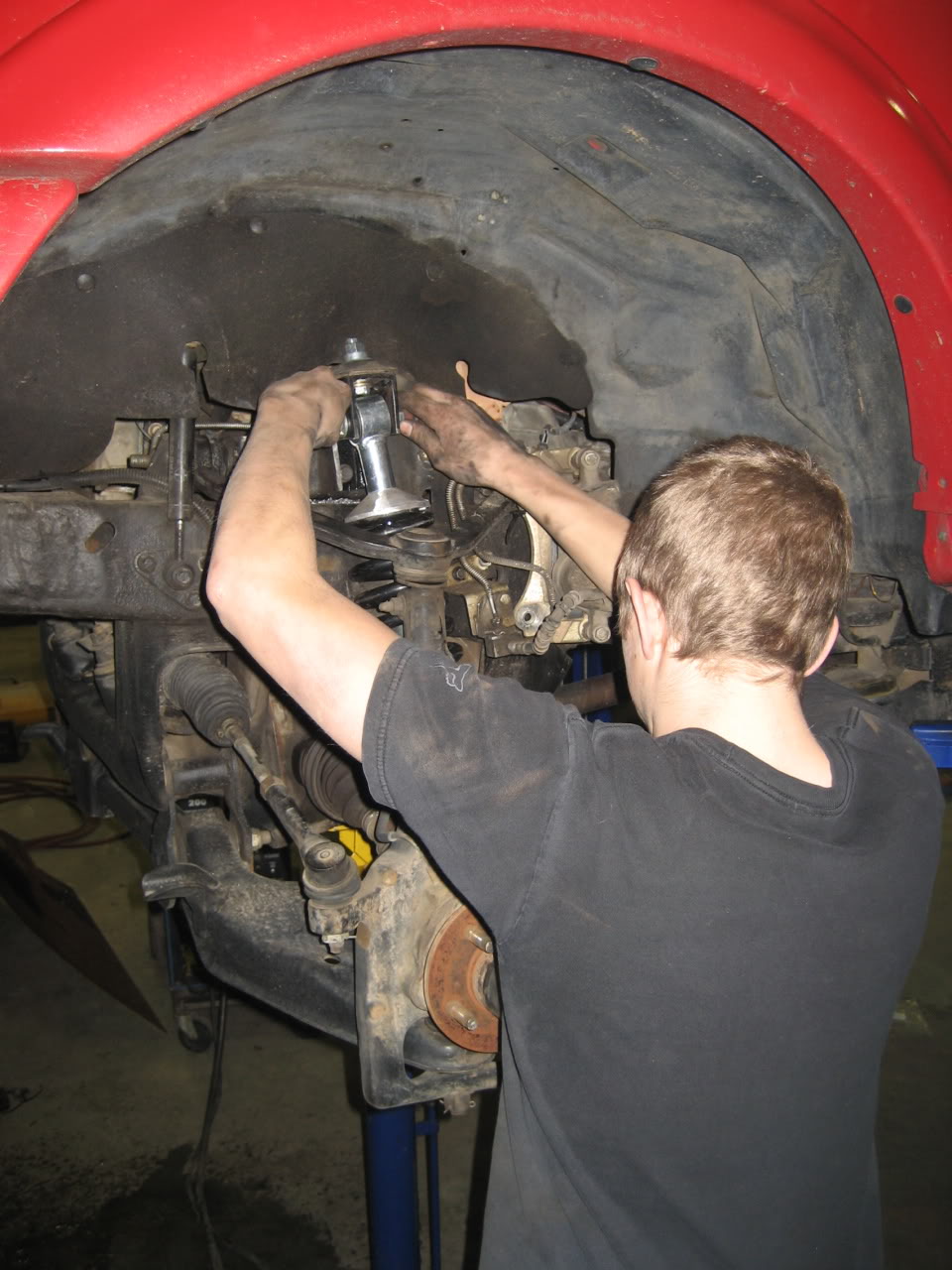

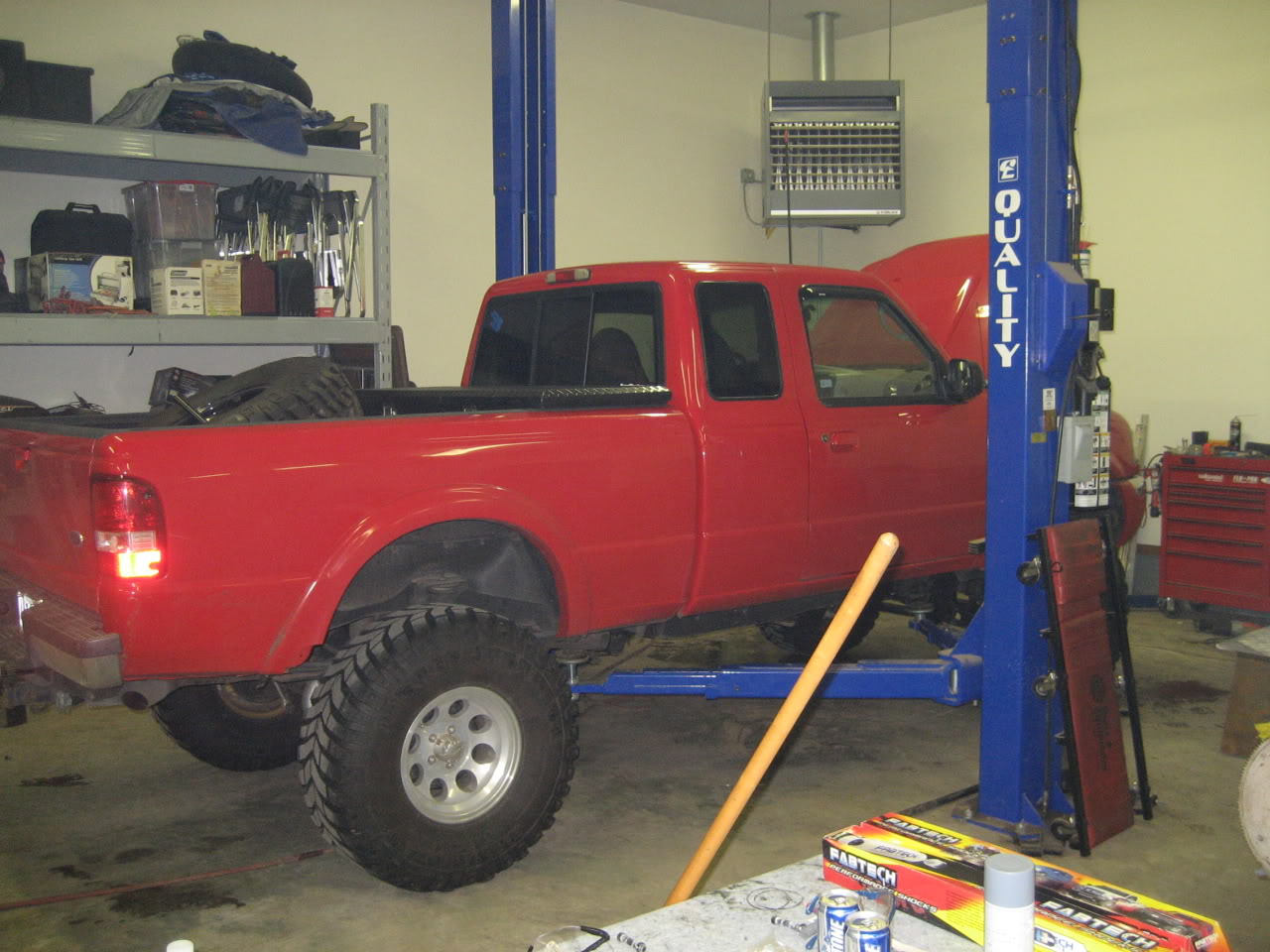

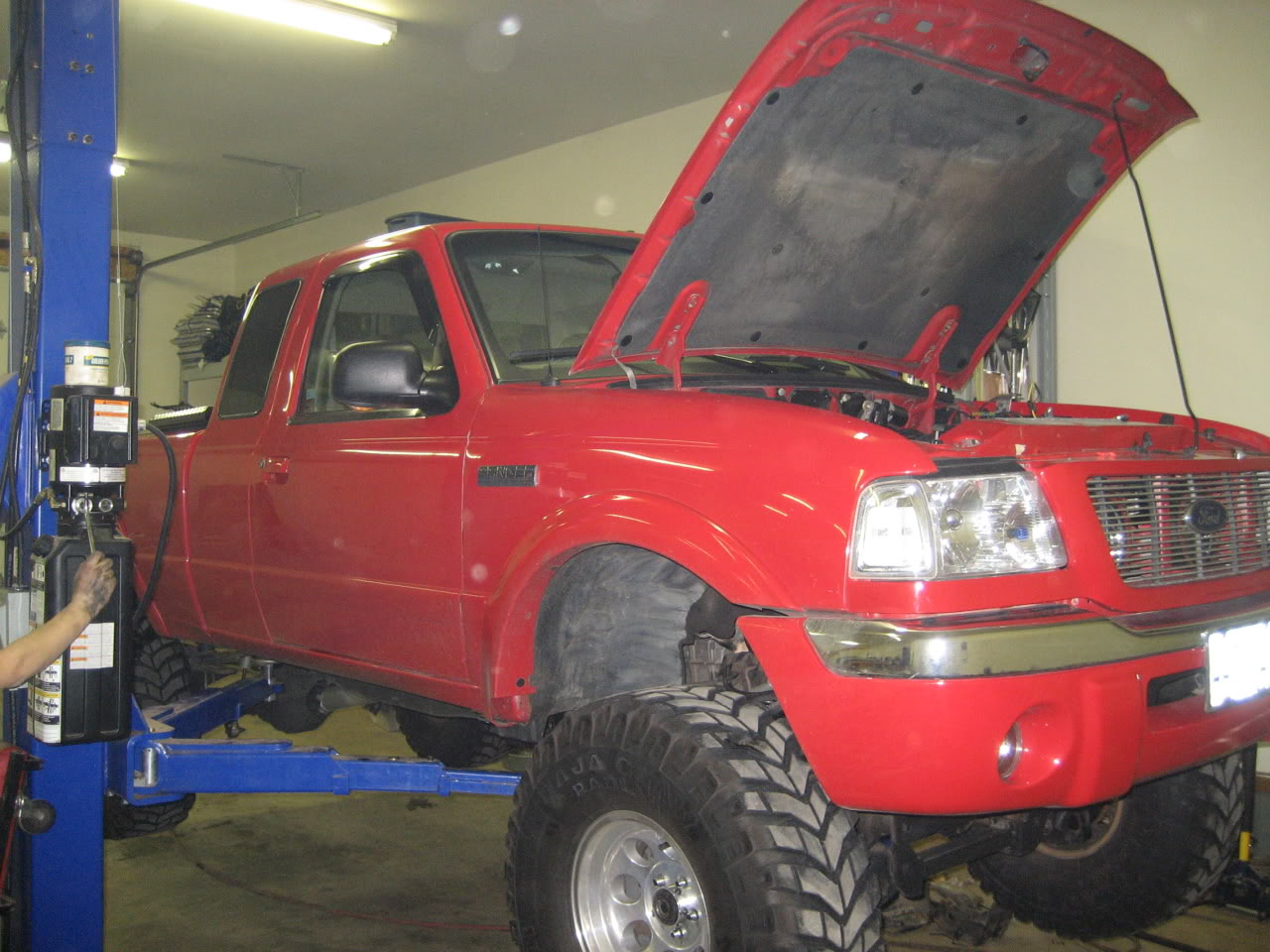

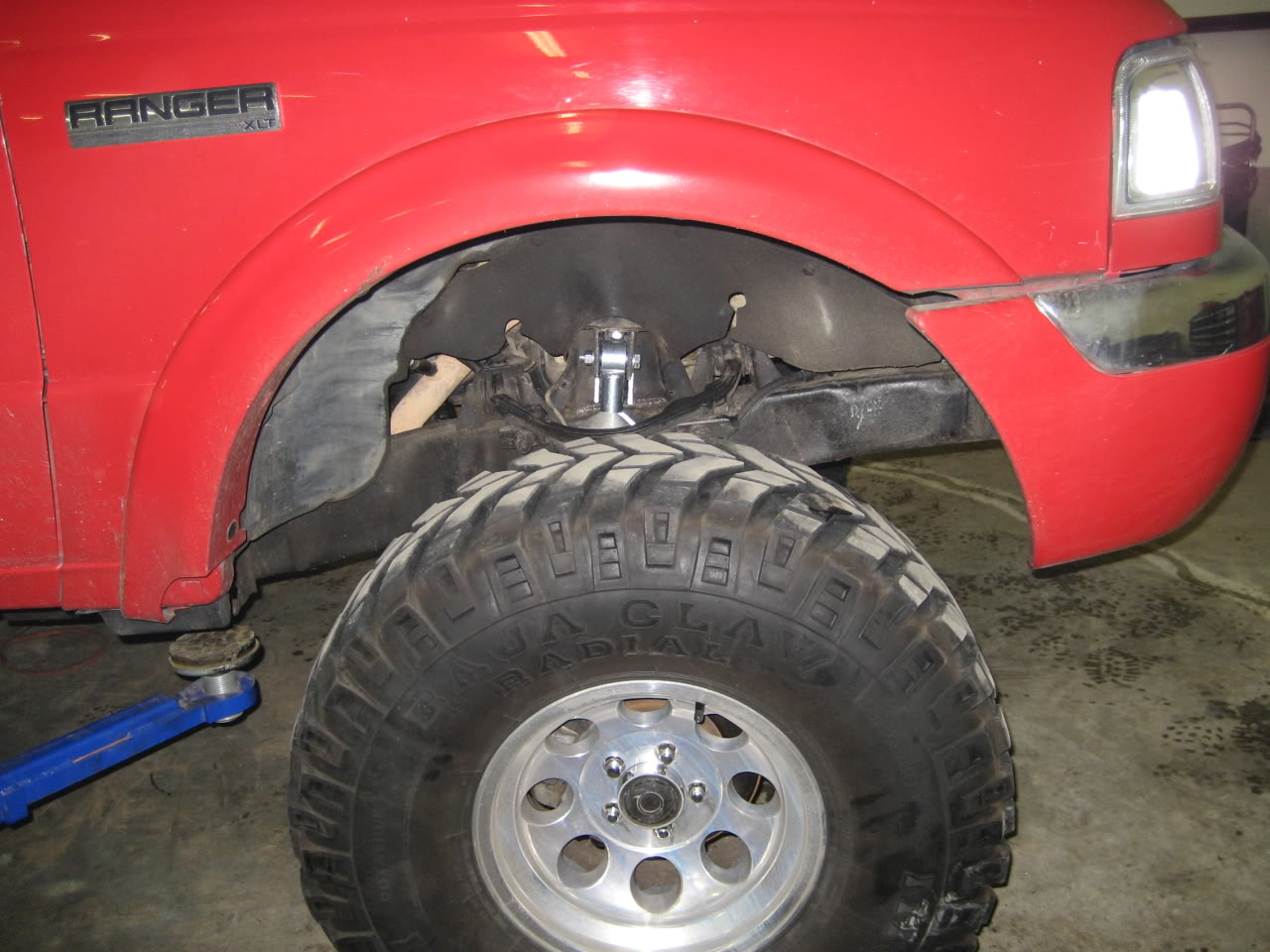

Austy now does... Here's the pics.

Name:  IMG_0014.jpg
Views: 6
Size:  148.2 KB
Name:  IMG_0015.jpg
Views: 9
Size:  155.5 KB

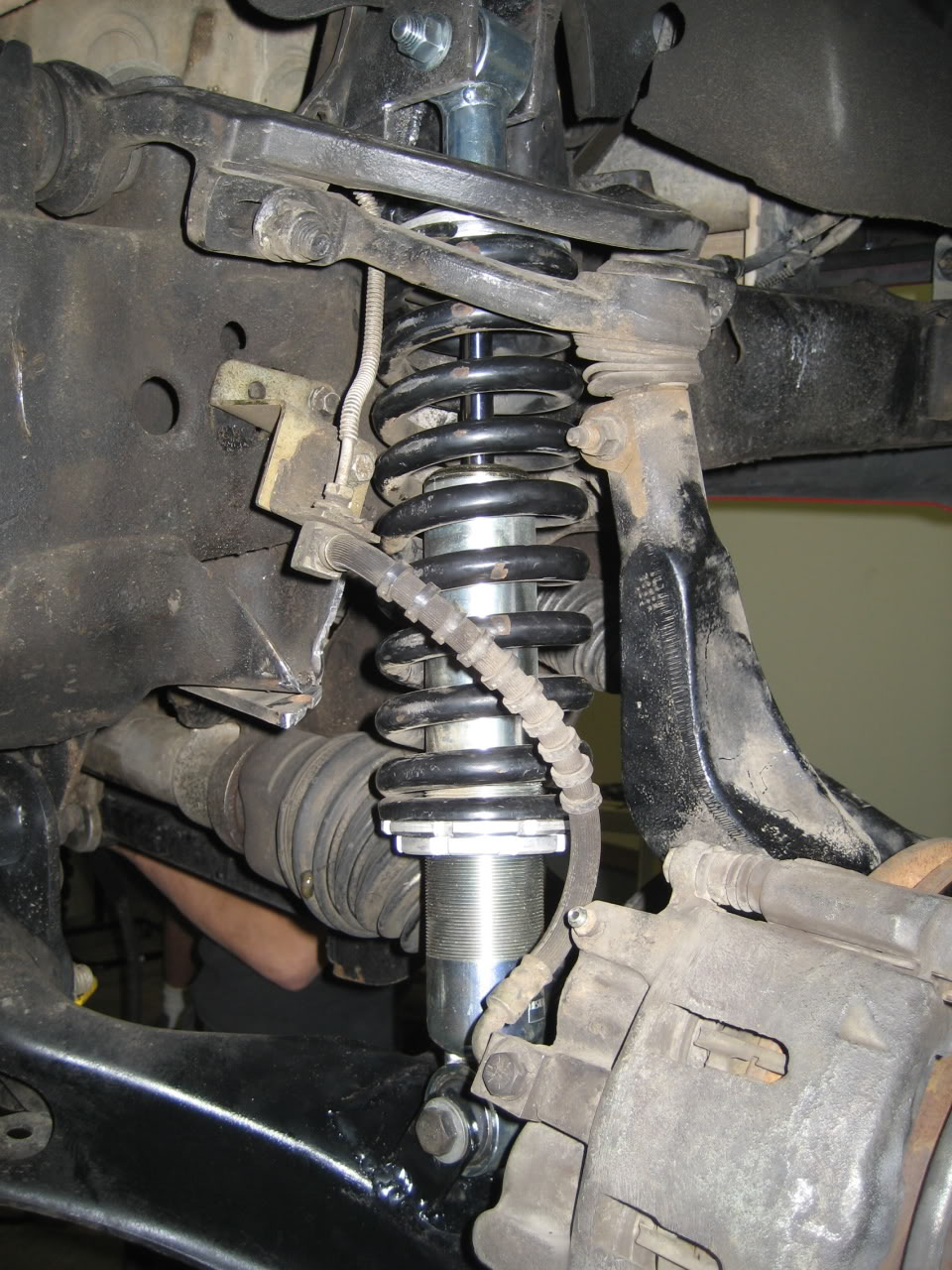

Name:  IMG_0016.jpg
Views: 7
Size:  232.4 KB
Name:  IMG_0017.jpg
Views: 8
Size:  214.5 KB

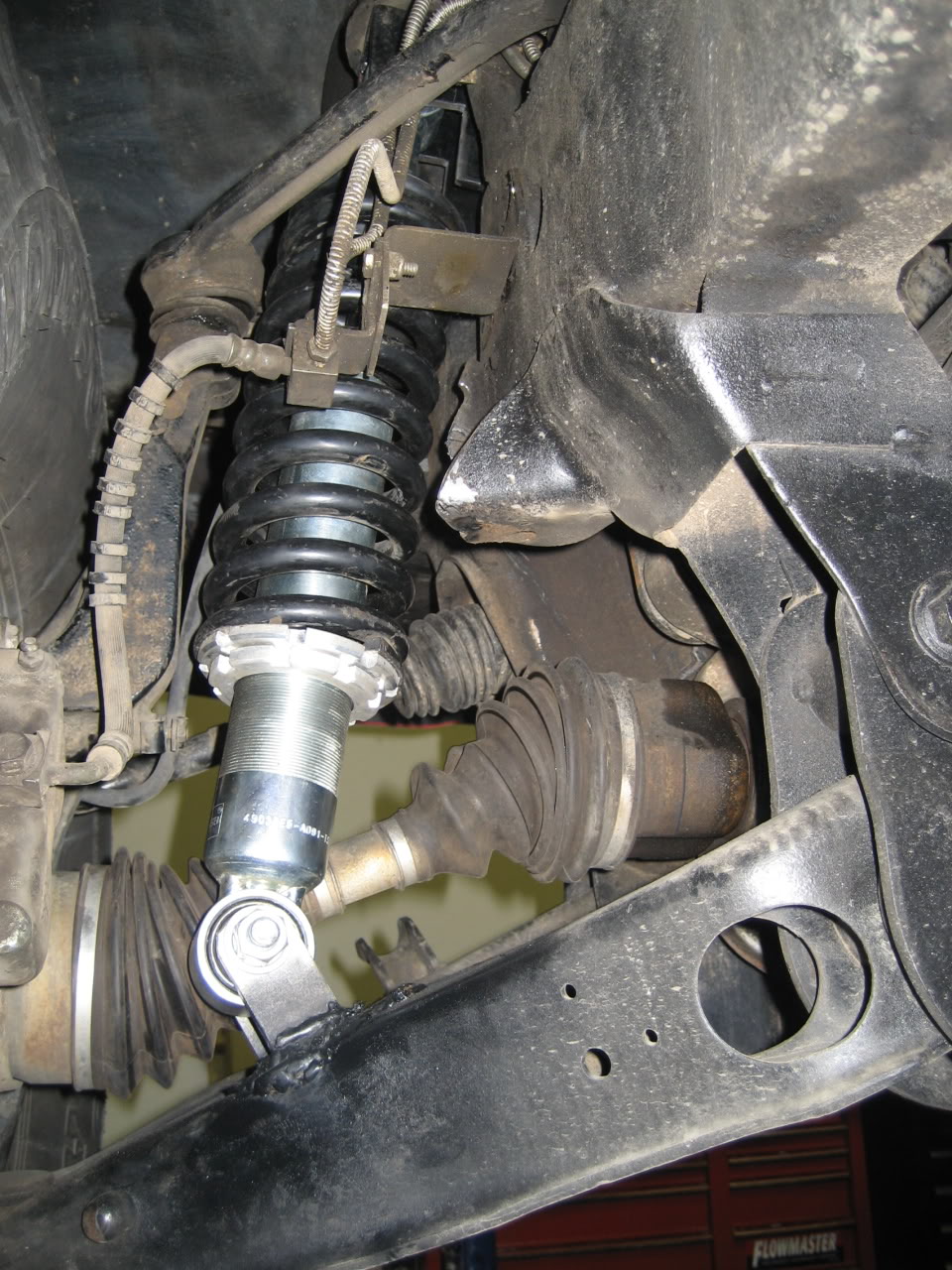

Name:  IMG_0018.jpg
Views: 7
Size:  257.6 KB
Name:  IMG_0019.jpg
Views: 6
Size:  252.5 KB
Name:  IMG_0020.jpg
Views: 5
Size:  217.1 KB
Name:  IMG_0021.jpg
Views: 6
Size:  181.9 KB
Name:  IMG_0022.jpg
Views: 8
Size:  176.4 KB
Name:  IMG_0023.jpg
Views: 7
Size:  154.0 KB

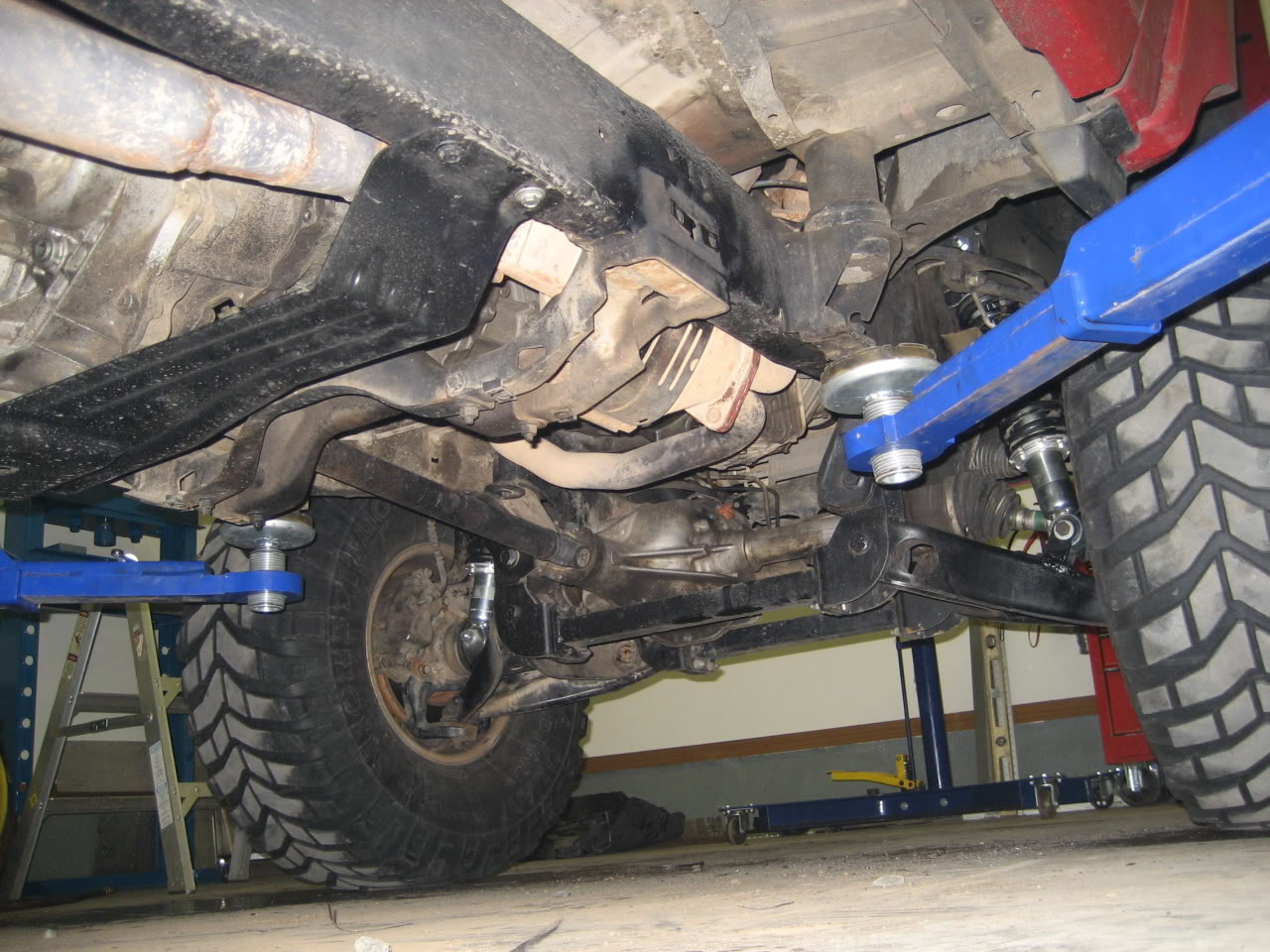

Name:  IMG_0024.jpg
Views: 5
Size:  226.1 KB
Name:  IMG_0025.jpg
Views: 7
Size:  211.6 KB

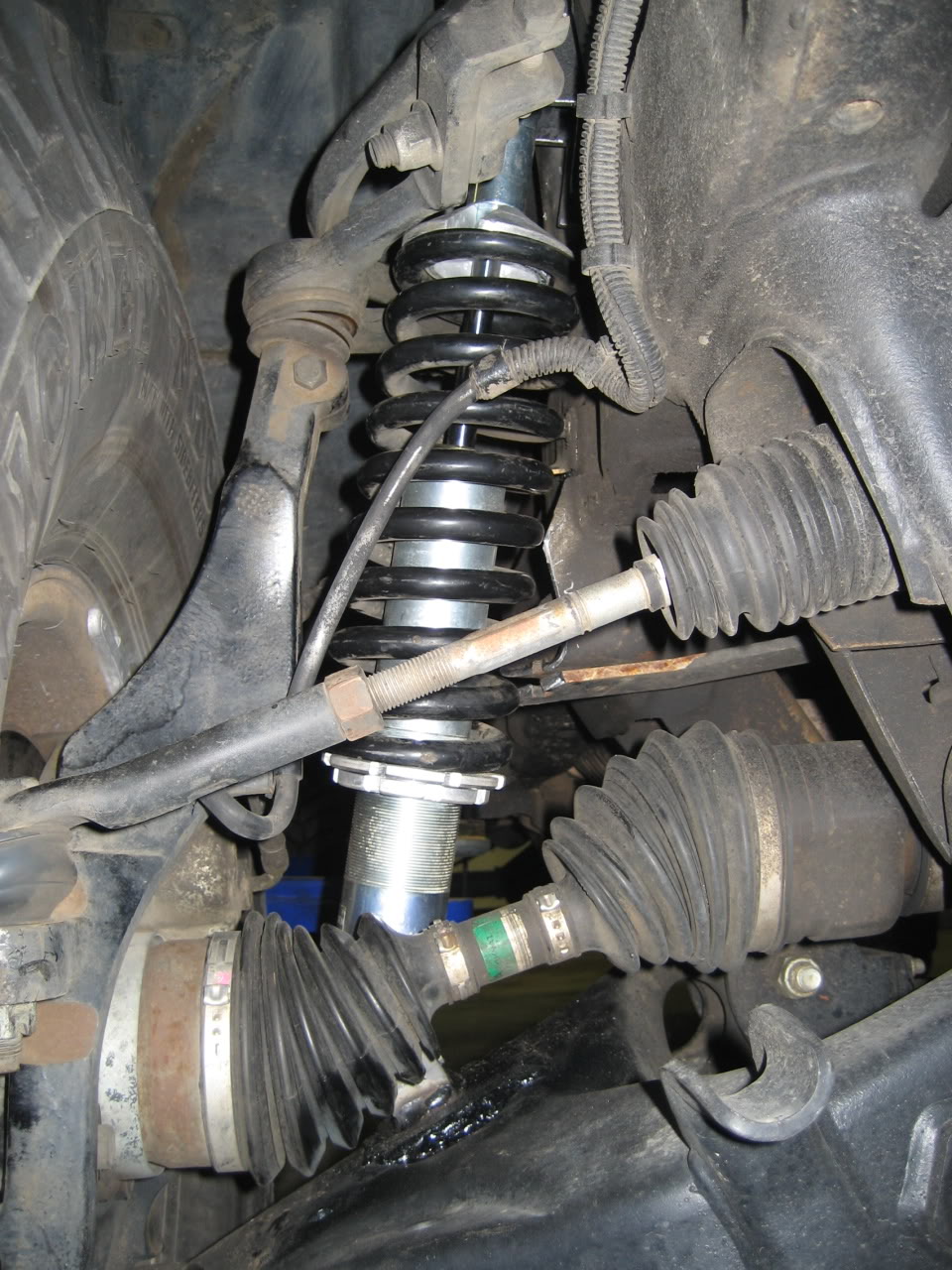

Name:  IMG_0026.jpg
Views: 6
Size:  225.9 KB
Name:  IMG_0027.jpg
Views: 8
Size:  231.8 KB

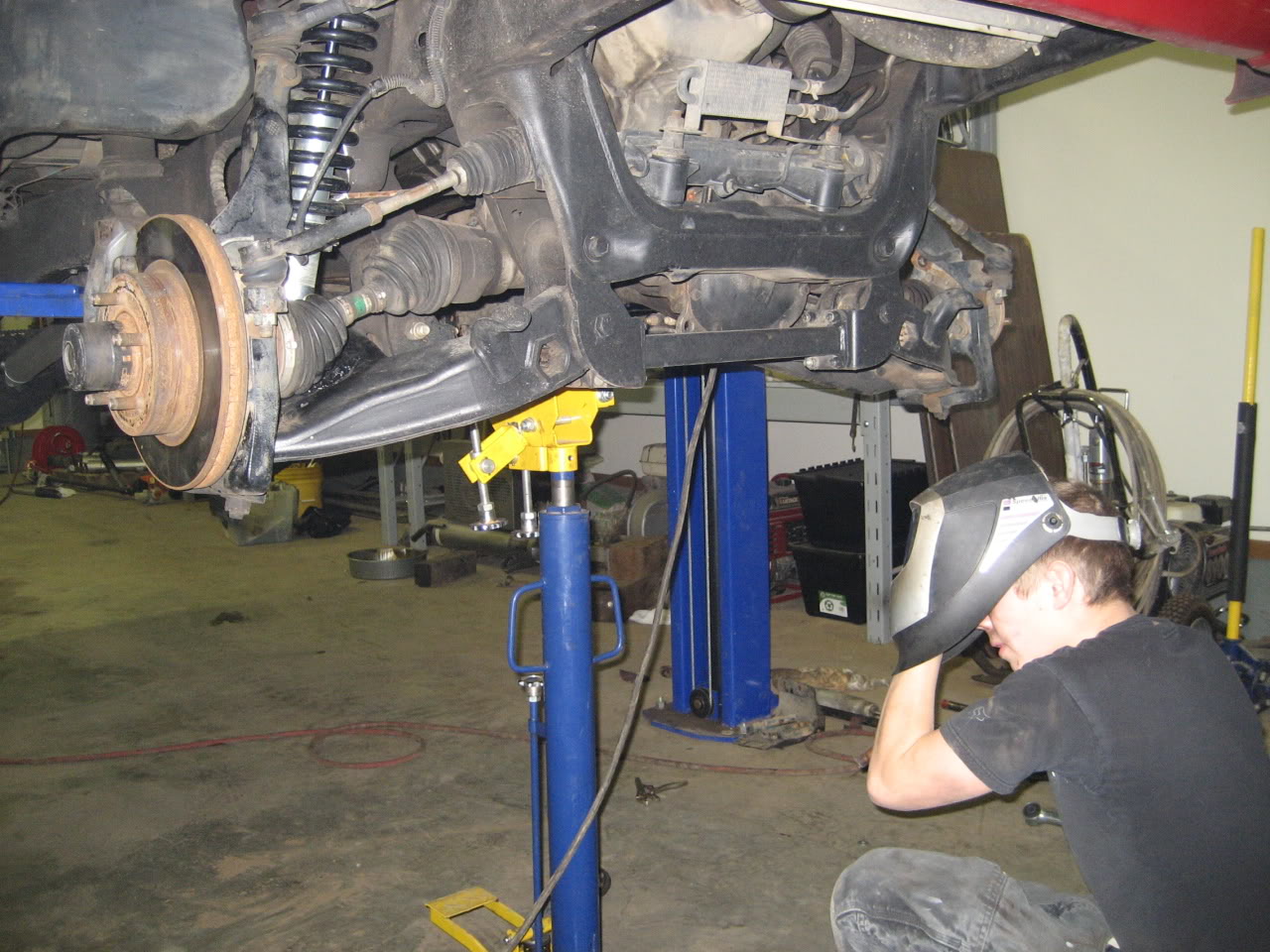

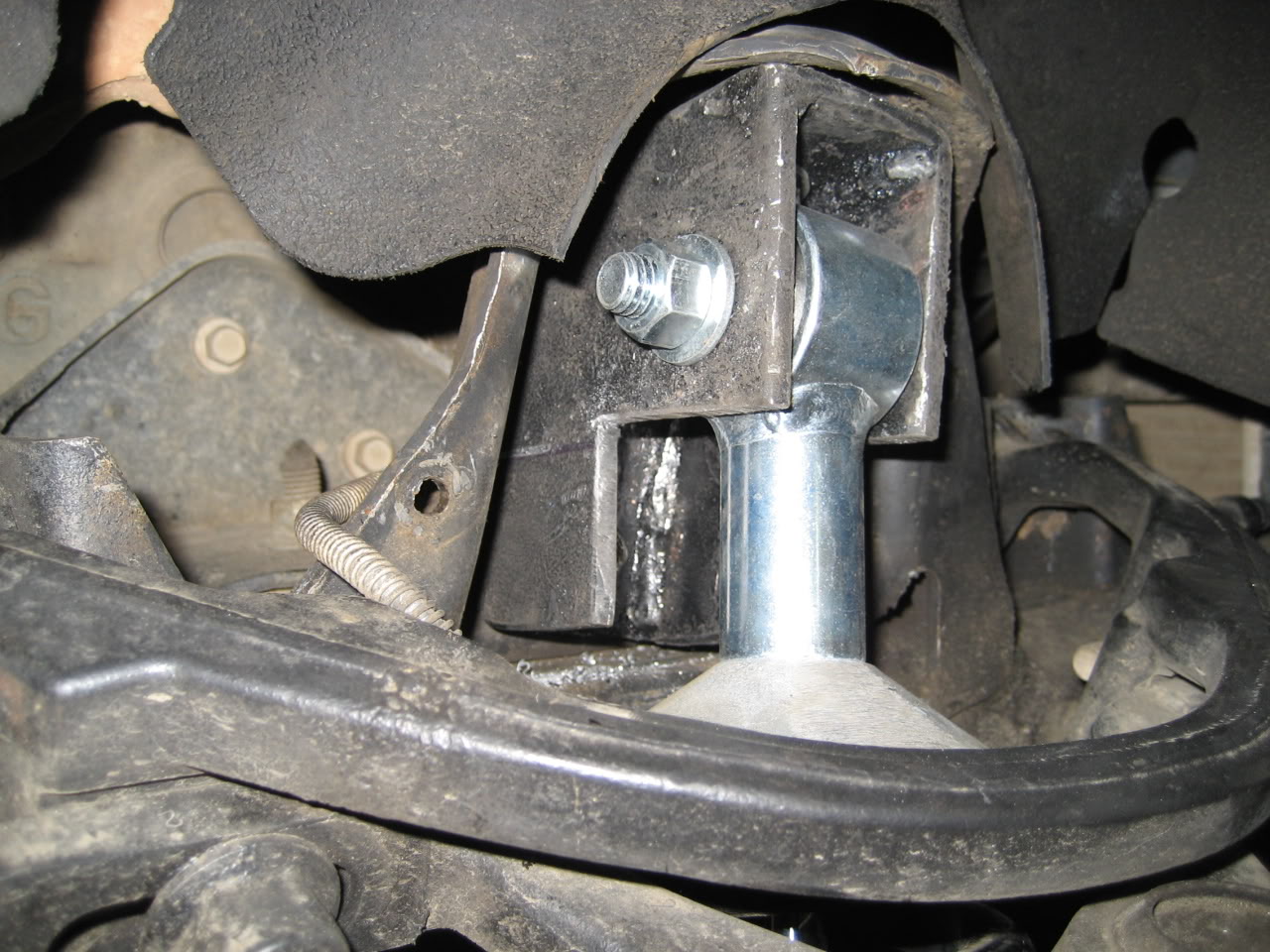

I gave him those brackets I built for his uppers and we cut and moved the hole back up to the RCD factory location and used Jeep shock conversion brackets welded to the A-Arm last night.

I'll have to admit, the kid is pretty witty and knows his mechanics. Without looking on here and knowing what to do, did a lot of it on his own in about 4 hours. I helped for about 2 though.
Reply With Quote
  #29
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
I am hoping to install my Dixon Kit next weekend. As such, my RCD kit would be available the following weekend if you still wanted to meet half way, sooner if you wanted to ship. I actually have 600#, 700# and 750# coils. Swap away until your heart is content!

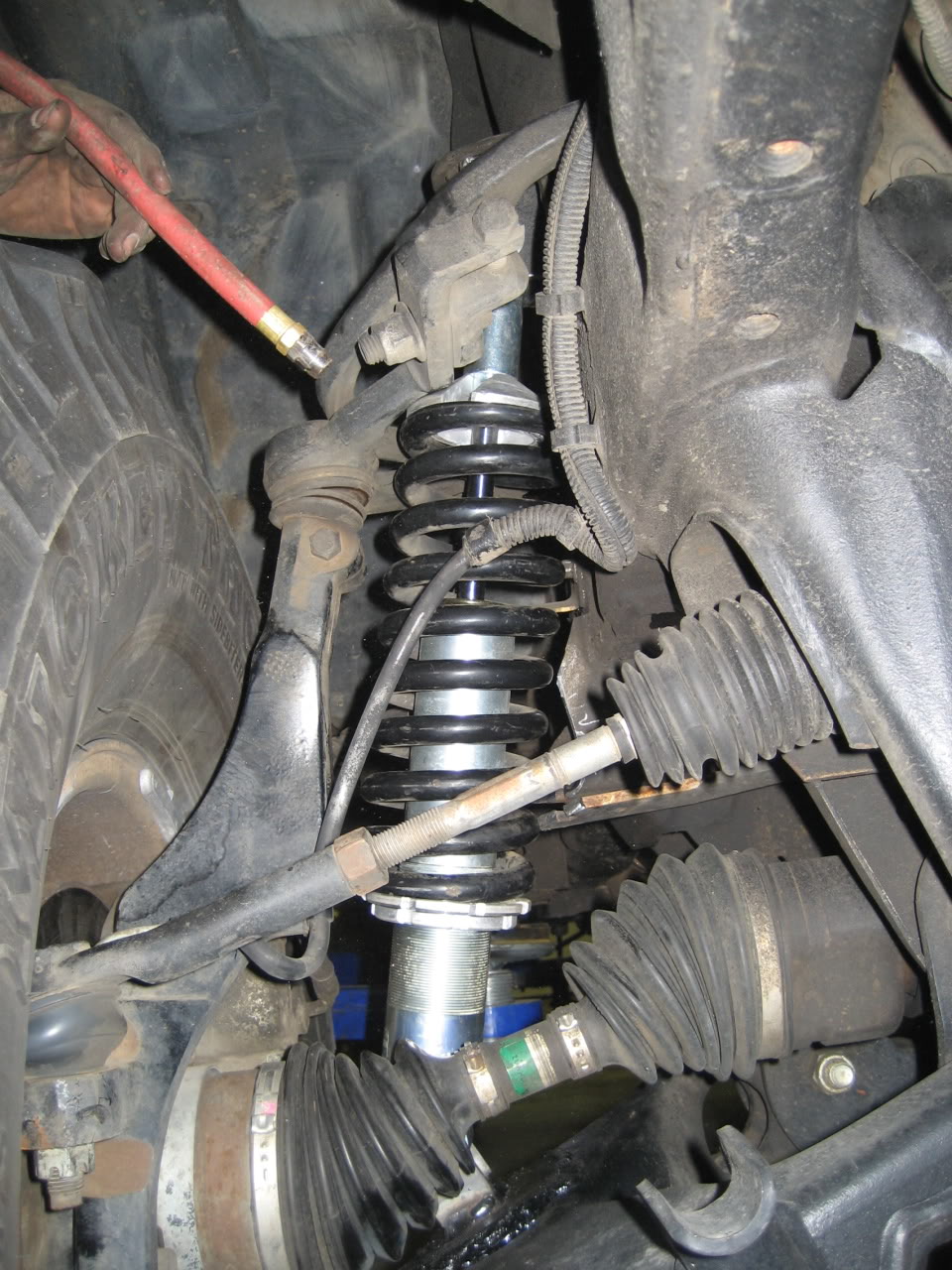

FYI, the Bilstein shocks in the pics are mounted upside down. The shafts should be on the bottom. This is important because you risk drying out the seals if you mount them as shown.
Reply With Quote
  #30
Old 03-27-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Actually, a 4wd shop told me that mine we're upside down. With bilsteins they mount like that. You're supposed to be able to read the name "bilstein" without turning your head upside down.

I was told this yesterday but Superior Off Road. He's put quite a few of these together. So this whole time I've been running my CO's upside down.
Reply With Quote
  #31
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
Interesting, learn something new everyday. Everything that I have ever heard about coilover shocks, indicates that the shaft needs to be mounted down so that the oil can cover the seals. BTW, truck looks good.
Reply With Quote
  #32
Old 03-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I still say they're upsidedown...
Reply With Quote
  #33
Old 03-27-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Call Bilstein and ask
Reply With Quote
  #34
Old 03-27-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
That goes back to the conventional idea of how shocks are mounted... However... The shaft points down on the rear shocks on the bilsteins and that's correct install of them. Bilstein goes against conventional mehtods of install lol
Reply With Quote
  #35
Old 03-27-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
this might be an absolute stupid question but can you run 2.0's without tb's or do you have to run 2.5's?
Reply With Quote
  #36
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
Yes, the RCD kit is designed with a 2.0 shock.
Reply With Quote
  #37
Old 03-27-2009
Ford'sFORD's Avatar
Member
Thread Starter

Join Date: May 2007
Location: San Diego, CA
Posts: 230
just for sh*ts 'n' giggles, what is ur sas going to run u? i'm still leaning towards buying ur kit, but i think i will still want to upgrade from the bilstiens and put on some fox 2.0s.

just edited, i forgot ur doing the DB and not a sas, lol...

Last edited by Ford'sFORD; 03-27-2009 at 12:12 PM.
Reply With Quote
  #38
Old 03-27-2009
Ford'sFORD's Avatar
Member
Thread Starter

Join Date: May 2007
Location: San Diego, CA
Posts: 230
Quote:
Originally Posted by Quasi242 View Post
Yes, the RCD kit is designed with a 2.0 shock.
is there room on the rcd kit to move up to 2.5s? or is there a simple modification that can be done to allow it?
Reply With Quote
  #39
Old 03-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Ford'sFORD View Post
is there room on the rcd kit to move up to 2.5s? or is there a simple modification that can be done to allow it?
NO!
Reply With Quote
  #40
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
A 2.5 shock might work with a custom shock hoop. However, using the stock location, I think that a 3.0" ID spring would hit the frame.

As for the SAS, I am actually going the other direction and am installing a Dixon Kit (kit on order). Cost is fairly insane at over $4,000.00 just to get started.
Reply With Quote
  #41
Old 03-27-2009
Ford'sFORD's Avatar
Member
Thread Starter

Join Date: May 2007
Location: San Diego, CA
Posts: 230
Quote:
Originally Posted by Fx4wannabe01 View Post
NO!
not even by building brackets to extend out the upper a-arms? i'm not tech savy at all, just thought that might be a possiblity since thats where the problem lies with trying to fit 2.5s.
Reply With Quote
  #42
Old 03-27-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
It's very tight fit as it is with the 2.0's as it is....CV shafts and the shock bucket both come to my mind.
Reply With Quote
  #43
Old 03-27-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
The coil overs ARE upside down.
Reply With Quote
  #44
Old 03-27-2009
Ford'sFORD's Avatar
Member
Thread Starter

Join Date: May 2007
Location: San Diego, CA
Posts: 230
thanks! just would have been a nice upgrade. so sticking with 2.0s, i have heard that i def want to upgrade to fox... any take on that?
Reply With Quote
  #45
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
The Bilstein shocks on my kit ride nice. The settling issue is coil related and not shock related. I would recommend running the Bilstein shocks with the heavier weight coils to keep the ride height where you want it. If you have a problem with the shocks in the future, that would be the time to look at alternatives. I personally have not had any problems with the Bilsteins.
Reply With Quote
  #46
Old 03-27-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by Quasi242 View Post
The Bilstein shocks on my kit ride nice. The settling issue is coil related and not shock related. I would recommend running the Bilstein shocks with the heavier weight coils to keep the ride height where you want it. If you have a problem with the shocks in the future, that would be the time to look at alternatives. I personally have not had any problems with the Bilsteins.
x2.

I went with the 800lb coils, shoulda went with 750s
Reply With Quote
  #47
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
Picture from the RCD site.

Name:  RCD1.gif
Views: 5
Size:  38.5 KB
Reply With Quote
  #48
Old 03-27-2009
Quasi242's Avatar
Member

Join Date: Jun 2008
Location: Tucson, AZ
Posts: 155
Are you going to add anti-compression struts to the Superlift kit? The drop brackets may not be strong enough to run coilovers without these struts.
Reply With Quote
  #49
Old 03-27-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
what length coils are yall running?
Reply With Quote
  #50
Old 03-27-2009
Ford'sFORD's Avatar
Member
Thread Starter

Join Date: May 2007
Location: San Diego, CA
Posts: 230
Quote:
Originally Posted by Quasi242 View Post
Picture from the RCD site.

i'll be wheeling with Ranger tonight, so i will get a chance to see the rcd kit up close in person... i'll let you know what i think and if i'll still want to take yours.
Reply With Quote
