any pics of a stock height 2wd on 18s?

with a 45 profile tire if possible ....

possibly buying a 94 ranger xcab tommorow and i found someone else locally selling some 5 spokes with 255/45/18s for $800 with lugnuts ... said they came off a 99 ranger so hopefully the lug pattern didnt change in 98 when they redid the body.
Reply With Quote
  #2
Old 04-15-2008
mossyoak1992's Avatar
Member

Join Date: Jan 2008
Location: Bridgeton, N.J.
Posts: 383
the pattern is the same 5x4.5
Reply With Quote
  #3
Old 04-15-2008
Melt's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
thanks good to know

still would love some pics that way i know if i should put em on and it will be coo for a while or if i should focus my monetary resources on lowering it then gettin rims later. Im originally a honda guy and always would laugh at people puttin 17s on those at stock height ridin 4x4 status haha
Reply With Quote
  #4
Old 04-15-2008
MemphisSenior's Avatar
Member

Join Date: Mar 2007
Location: Spring City, TN
Posts: 331
The diameter of the 245/45 X 18's will be about .70 inches SMALLER then the stock 225/70 X 15's. So they should fill the wheel-well about the same as stockers, on a stock suspension. The thread width will be a bit wider, but not a problem. Your speedometer will be about 2.5% fast. At 60 MPH INDICATED, your true speed will be about 58.5 MPH.

I've got 235/50 X 18's on mine. Sorry, I had already lowered the truck when I went to 18's.

Name:  DSCN0293.jpg
Views: 78
Size:  26.7 KB
Name:  18.jpg
Views: 78
Size:  37.0 KB
Reply With Quote
  #5
Old 04-15-2008
Melt's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
looks awesome ... do you have any full pics of the truck? Those rims are dope too ... i think imma not get the ones i was lookin at and wait till i find some 18s i actually like

i would ask for a parts list for the drop, but as far as i know 97 and earlier rangers have a different front suspension setup
Reply With Quote
  #6
Old 04-15-2008
MemphisSenior's Avatar
Member

Join Date: Mar 2007
Location: Spring City, TN
Posts: 331

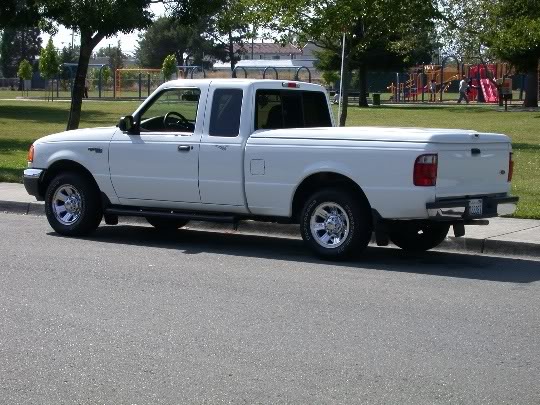

Here you go. Stock

Name:  Newhardbedcover2.jpg
Views: 78
Size:  73.0 KB

and with 2"F/3"R drop with 255/55 X 18's which are 29" tall.


Name:  23.jpg
Views: 203
Size:  44.0 KB

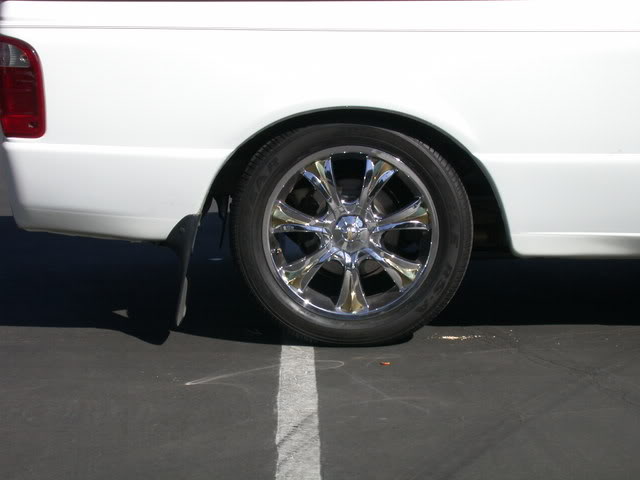

And finally bagged with 235/50 X18"s. These tires are almost exactly the same diameter as stock. Just a bit wider.

With no air in the bags it's about a 4-5"F / 5-6"R drop.

Name:  AirupZEROair.jpg
Views: 74
Size:  52.7 KB


Name:  AirupBackZEROair.jpg
Views: 72
Size:  32.4 KB


Name:  AirupFrontZEROair.jpg
Views: 74
Size:  38.7 KB
Reply With Quote
  #7
Old 04-15-2008
FordFever's Avatar
Member

Join Date: Jan 2008
Location: Las Vegas, Nevada
Posts: 404
thats a really nice white truck!
Reply With Quote
  #8
Old 04-16-2008
ki4dmh's Avatar
Member

Join Date: Dec 2007
Location: Occupied State of Confusion
Posts: 163
Nice!!
Scott
Reply With Quote
  #9
Old 04-16-2008
MemphisSenior's Avatar
Member

Join Date: Mar 2007
Location: Spring City, TN
Posts: 331
Thanks guys. Don't want to hijack this thread from Melt. But if you're interested.

https://www.ranger-forums.com/forum2...ad.php?t=57517
Reply With Quote
  #10
Old 04-16-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
Quote:
Originally Posted by Melt View Post
looks awesome ... do you have any full pics of the truck? Those rims are dope too ... i think imma not get the ones i was lookin at and wait till i find some 18s i actually like

i would ask for a parts list for the drop, but as far as i know 97 and earlier rangers have a different front suspension setup
depends on how much you want to drop it.

3 inch dropped ibeams in the front or you can run 2 inch coils or both together to get a 5 inch drop. Anything more than 2 inches of drop out of a coil you wont be able to align.

The rear is easy a flipkit which puts axle on top of the leafs will net you 5 inches of drop. They also make lowering leafs and what not to.
Reply With Quote
  #11
Old 04-16-2008
Melt's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
dont worry about hijacking my thread, with a nice *** truck like that youre entitled haha

anyways i definitley want to be able to align ... thanks for the input
Reply With Quote
  #12
Old 04-27-2008
Melt's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
bump .. ended up getting a 99 b2500 ... drop will come followed by rims, but first imma do the stereo, tint, and get ridda the front plate.
Reply With Quote
  #13
Old 04-28-2008
Roddy's Avatar
Member

Join Date: Mar 2008
Location: Canada
Posts: 1,332
have you considered a lift kit and 32's? you own a truck....
Reply With Quote
  #14
Old 04-28-2008
Melt's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
i own a 2wd 4cyl truck ..... 32s will kill my gas mileage and i dont go offroading much
Reply With Quote
  #15
Old 04-28-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Melt View Post
i own a 2wd 4cyl truck ..... 32s will kill my gas mileage and i dont go offroading much
With my 2wd 3.0 I actually get better mileage than stock.
Reply With Quote
