Rim Help

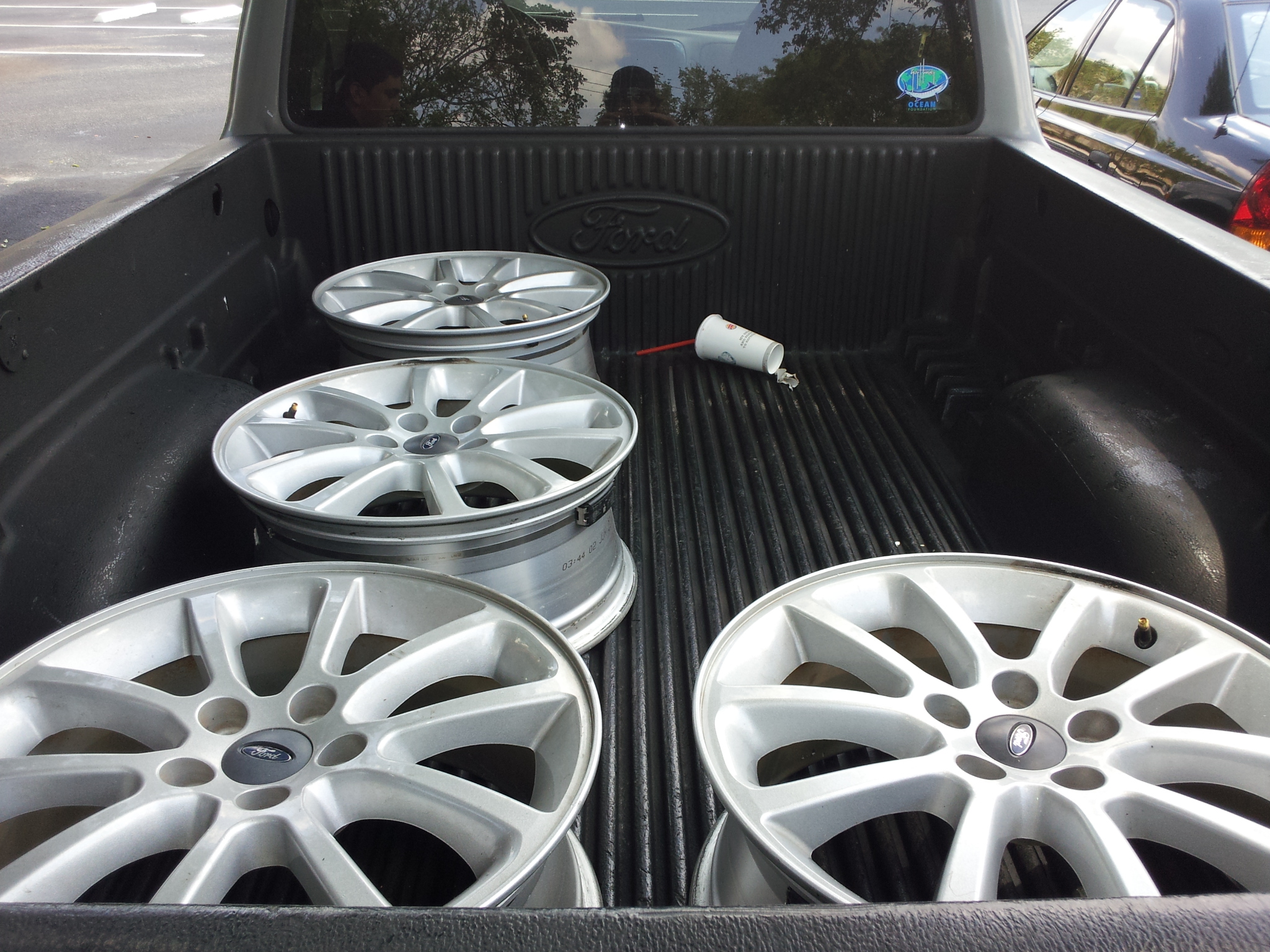

I just purchased a set of 07 edge rims. They are 18x7.5 and I would really like to have the centercaps. Does anyone know exactly what problems I would run into or if they would be fine?
Attached Images
File Type: jpg 2012-05-06 11.58.07.jpg (1.49 MB, 84 views)
Reply With Quote
  #2
Old 05-09-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
<

Last edited by 99offroadrngr; 05-14-2012 at 09:22 AM.
Reply With Quote
  #3
Old 05-09-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
Reply With Quote
  #4
Old 05-09-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Ford Edge
Bolt Pattern (in): 5x4.50
Bolt Pattern (mm): 5x114.3
Offset Range (mm): 34 to 42
Front Center Bore (mm): 70.6
Rear Center Bore (mm): 70.6
Stud_Size: 1/2x20

next time use this site
www.myboltpattern.com

Last edited by 04RangerDave; 05-09-2012 at 02:07 PM.
Reply With Quote
  #5
Old 05-09-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
So they wont fit?
Reply With Quote
  #6
Old 05-09-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
a ranger is 5x4.5 so they should but will look terrible IMHO
Reply With Quote
  #7
Old 05-09-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
Ok thanks im going to test fit them this weekend.
Reply With Quote
  #8
Old 05-09-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Post up some pics when you try them... I'm interested to see what they'll look like.
Reply With Quote
  #9
Old 05-09-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
The offset is what's going to be your problem.
Reply With Quote
  #10
Old 05-09-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by ME00Stepside View Post
The offset is what's going to be your problem.
couldn't agree more



KLC is going to buy a Ranger when he see's this
Reply With Quote
  #11
Old 05-09-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
Sorry to sound dumb but what exactly is offset and what problems will it pose?
Reply With Quote
  #12
Old 05-09-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Distance from the hub to the center of the wheel.

I would like to see pics too.
Reply With Quote
  #13
Old 05-10-2012
Member

Join Date: Apr 2012
Location: lake mary
Posts: 71
those wheels likely won't even bolt on, they will be hitting all kinds of suspension components.



offset and width of a wheel are critical components that must be met before a wheel will fit.
Reply With Quote
  #14
Old 05-10-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
If i ran spacers would that help?
Reply With Quote
  #15
Old 05-10-2012
Member

Join Date: Apr 2012
Location: lake mary
Posts: 71
you could run giant spacers to look better and fit ok(1" at a minimum), but for what it will cost, you could almost buy a complete set of Cragar wheels with better specs.
Reply With Quote
  #16
Old 05-10-2012
Member
Thread Starter

Join Date: Dec 2010
Location: oakland park,FL
Posts: 67
Where would I be able to get spacers?
Reply With Quote
  #17
Old 05-10-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
You're probably going to want a 1 1/2" - 2" spacer. You can get them from many wheel sellers, on ebay, etc.

Try to get hub centric if possible. I'm not a fan of lug centric, because it adds shearing forces to the lugs, and can also cause vibrations from imperfect centering of the wheel.
Reply With Quote
  #18
Old 05-11-2012
Member

Join Date: Apr 2012
Location: lake mary
Posts: 71
Quote:
Originally Posted by ME00Stepside View Post
You're probably going to want a 1 1/2" - 2" spacer. You can get them from many wheel sellers, on ebay, etc.

Try to get hub centric if possible. I'm not a fan of lug centric, because it adds shearing forces to the lugs, and can also cause vibrations from imperfect centering of the wheel.
if you can't bolt a wheel on properly in a star pattern, then working on cars isn't for you. This Hub centric garbage is so over rated. Whether it is a 85HP beater or a 1000HP drag car, if you can bolt the wheel on properly there is no need for those gimmicks.

eBay spacers have a nasty habit of shearing and studs failing. Anything other than name brand is a risk I would not be willing to take(less you do ARP extended studs and slip on spacers).

PS most spacers recommend using open ended lug nuts with extended studs or bolt on spacers. Make sure if you are doing any wet climate driving that you take this into account and buy ones that are made of a material that will not rust. I'm told Snow/salt upnorth is hell on open end lug nuts as everything is exposed. Down in Florida my extended studs haven't had much issue with the elements.
Reply With Quote
  #19
Old 05-11-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
Flipper, you couldn't be more wrong. When the wheels are centered with the hub, the lugs only see clamping force. When they are used to center the wheel, they also become subject to shearing forces. It's that simple. Also, centering with the lugs is not as accurate as centering on the hub. It's got nothing whatsoever to do with someone's ability to mount and torque a wheel.

And the thickness he's going to need for those wheels is definitely going to be in a bolt-on format. Some of the bolt on spacers on ebay are actually quality made. Keep in mind they're not going to be the cheap ones. Whether you get something from ebay or a wheel dealer, you're going to have to pay for the quality ones. For this reason, unless you really like the wheels, I'd say sell them and buy something that fits without spacers.
Reply With Quote
  #20
Old 05-15-2012
Member

Join Date: Apr 2012
Location: lake mary
Posts: 71
Quote:
Originally Posted by ME00Stepside View Post
Flipper, you couldn't be more wrong. When the wheels are centered with the hub, the lugs only see clamping force. When they are used to center the wheel, they also become subject to shearing forces. It's that simple. Also, centering with the lugs is not as accurate as centering on the hub. It's got nothing whatsoever to do with someone's ability to mount and torque a wheel.
You sure about that? I've been building race cars since I was a child. we have had 3 sub 8 second Grand Nationals(and GNXs) as well as 2 corvette drag cars, a 55 PU, a 351C mustang, and right now rebuilding the 9.89 GMC Sprint we blew up at the track after 13 years of abuse and 7 on laughing gas. NONE of them needed hub rings and ALL of them have had slicks and more torque than will be experienced by this ranger.

Studs don't move, so they are placed on the hub at the exact same point every time. the nuts are tightened to the hub of the wheel and assuming the wheel is milled properly and the lugs are tightened properly there should not be any movement or play from it being centered. We have never used hub rings on any of our cars.

Even companies who market hub rings say "they can help reduce vibrations"... not "increase clamping force." If you want to believe they are magic, by all means enjoy.

The only time I have seen them improve anything was one XXR brand wheels and other cheap knock offs due to XXR not milling the stud holes proper @ the hub of the wheel.This was a function of a bandage to cure a poorly milled wheel. My wife rolls on 4 Volk Racing wheels that were built only 3-4 years after she was born and to this day still have no need or functionality for hub rings. Spending money on well built wheels will last 2 decades no problem.... hub rings or not.

hell even some of our Race cars even ran MR gasket Flat non hub centric spacers to non hub centric drag wheels with drag tires(with screws in them to make sure the tire did separate from the wheel on launch)..... not one fear of them having problems, even when the car lifted the front tires to the point where you were looking head on into the sky instead of down the strip.
Reply With Quote
  #21
Old 05-15-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
LOL. I'm not going to get into a dick measuring contest with you, flipper, but yes, I am sure about it. I've been building all kinds of cars for 25+ years myself, and I also know quite a bit about engineering and physics.

Nowhere did I say that rings increase clamping force, that's your inability to read thoroughly. I said the lack of them puts a shearing force on the lugs. And yes, they primarily reduce vibrations. Why? Because they more accurately center the wheel on the hub. Period. Add to these facts, we're talking about spacing the wheel out over an inch beyond the hub. You've now put even more strain on everything, so making sure it's properly lined up becomes more important.

If you feel the need to argue more over this, start another thread instead of jacking this one.
Reply With Quote
  #22
Old 05-15-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Quote:
Originally Posted by ME00Stepside View Post
LOL. I'm not going to get into a dick measuring contest with you, flipper, but yes, I am sure about it. I've been building all kinds of cars for 25+ years myself, and I also know quite a bit about engineering and physics.

Nowhere did I say that rings increase clamping force, that's your inability to read thoroughly. I said the lack of them puts a shearing force on the lugs. And yes, they primarily reduce vibrations. Why? Because they more accurately center the wheel on the hub. Period. Add to these facts, we're talking about spacing the wheel out over an inch beyond the hub. You've now put even more strain on everything, so making sure it's properly lined up becomes more important.

If you feel the need to argue more over this, start another thread instead of jacking this one.
I agree with you. It's a loosing battle for him.
Reply With Quote
  #23
Old 05-15-2012
Member

Join Date: Apr 2012
Location: lake mary
Posts: 71
Quote:
Originally Posted by ME00Stepside View Post
LOL. I'm not going to get into a dick measuring contest with you, flipper, but yes, I am sure about it. I've been building all kinds of cars for 25+ years myself, and I also know quite a bit about engineering and physics.
No thread jacking, the thread was about spacing out wheels that don't fit right.

I happen to be an engineer and specialize in chemical make ups of metals for use in pressure vessels. (see fuel storage tanks, oil/water separators, ect)

You are happy believing that this is going to stop your studs from breaking, by all means, it is fine(not like they are really all that expensive anyway). I have seen decades of proof to suggest that they are not needed, but if it helps you sleep at night it is all good.
