body mount disassembly question

hey guys i've been doing alot of research on this forum in preparation of doing a 1 or 2" body lift after leveling my trucks front end

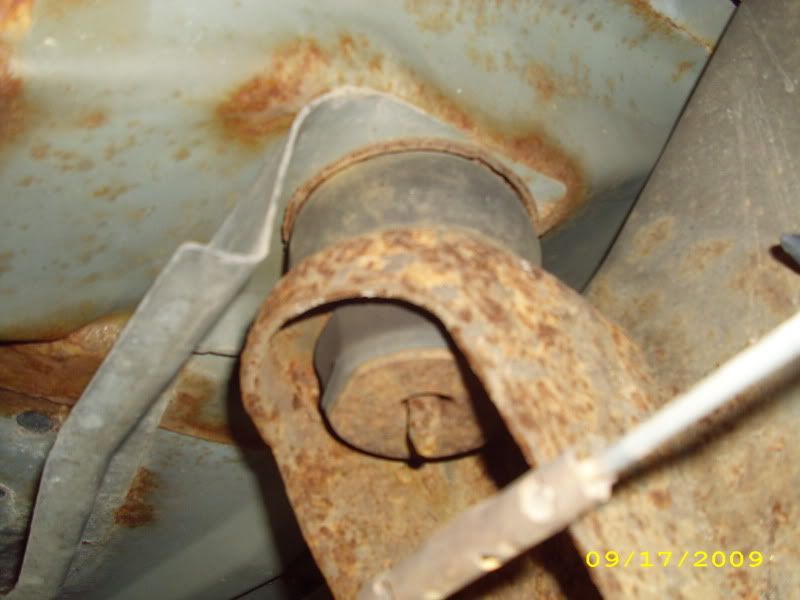

i got under my truck and i'm not sure what i'm looking at its all rust/corroded so if someone that has worked with my application could explain to me what i'm looking at id appreciate it...

i'd really like to be explained how to loosen this? is it a bolt in the middle? is it a nut and i hold the outside, thats why there are flats on it? how would i take this apart?

my truck

02 ranger 4.0 sohc 4x4

Name:  DSCI0187.jpg
Views: 7
Size:  76.6 KB




also i want to level my truck soon but it looks like the only option i have for my ranger is this..

FRONT LIFT/LEVELING KITS - JCWhitney

i saw other threads on degree keys replacement but i saw alot of people saying to never do that?? can someone help clear up what i can do to level my truck?

thanks for the help.
Reply With Quote
  #2
Old 09-20-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
To level the front you can crank your Torsion Bars or get stiffer ones and crank them. Nothing else. To remove that bolt you have to go from the top in the cab. Remove the carpet, rubber grommet, and them bolt. Read the 1" body lift thread there is good information there.
Reply With Quote
  #3
Old 09-20-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
you get to the head from the top inside..

see the bolt sticking threw the washer in the bottom..

Go buy a Map gas kit with the torch and heat it right there till you smell burning rubber pretty good.. then impact out
Reply With Quote
  #4
Old 09-20-2009
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
Quote:
Originally Posted by Redneckstone View Post
you get to the head from the top inside..

see the bolt sticking threw the washer in the bottom..

Go buy a Map gas kit with the torch and heat it right there till you smell burning rubber pretty good.. then impact out
or soak them down with pb blaster for a few days...then add a little more on the day u do it...worked like a charm on my rust welded upstream o2
Reply With Quote
  #5
Old 09-20-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by The_Dealer View Post
or soak them down with pb blaster for a few days...then add a little more on the day u do it...worked like a charm on my rust welded upstream o2
PB blaster isnt gonna do much main problem is they have lock tite on them that does need to be heated. I have removed enough now that heating the **** out of them they will always come out.. your upper o2 sensor doesnt have lock tite slightly different here
Reply With Quote
  #6
Old 09-20-2009
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
yep just heat them worked like a charm on the last body lift i done
Reply With Quote
  #7
Old 09-21-2009
fabioonachopper's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Ware,Ma
Posts: 96
will a 2 inch body lift mess with my steering components? my brake lines? anything else? i've done a ton of research on this site and does anyone know if there is a complete detailed write up on a 2 or 3 inch body lift and what else i'd need to do if i put the body lift in. thanks for the help everyone with your replys
Reply With Quote
  #8
Old 09-21-2009
The_Dealer's Avatar
Member

Join Date: Apr 2007
Location: Macon Georgia
Posts: 348
i was interested on info on the 2" body lift but cant seem to find what needs extending and what doesnt...i can make bumper brackets so that aint no biggie...i just need to know what needs extending and wat to do with fan shroud(could go efan)
Reply With Quote
  #9
Old 09-21-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
yes you will need something for steering with a 2"
Reply With Quote
  #10
Old 09-21-2009
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
if it was me i would just go ahead and get the 3inch kit and be done with it. it would have every thing you would need.
Reply With Quote
  #11
Old 09-21-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
because people like to fight the system.. bring down the man!
Reply With Quote
  #12
Old 09-21-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Did nobody catch the 2" bodylift part? They only make a 1" and a 3" body lift for our trucks.
Reply With Quote
  #13
Old 09-21-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
You can build a 1" BL kit or buy a 3" kit. There is not 2" kit.
Reply With Quote
  #14
Old 09-21-2009
fabioonachopper's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Ware,Ma
Posts: 96
Quote:
Originally Posted by rangerboy101 View Post
Did nobody catch the 2" bodylift part? They only make a 1" and a 3" body lift for our trucks.
if 2" of lift would eliminate the requirement toto extend brake lines or radiator housing or steering than i would go with the 3" and make it a 2"

Name:  uhi.jpg
Views: 7
Size:  21.9 KB
Reply With Quote
  #15
Old 09-21-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by fabioonachopper View Post
if 2" of lift would eliminate the requirement toto extend brake lines or radiator housing or steering than i would go with the 3" and make it a 2"
never extended any brake lines on the 15+ kits I have done. moved a few but never a need to extend.

Radiator housing can stay supposedly if shroud is flipped, or you can go efan..

there is no issues dropping it..

steering doesn't change after the extension no big deal..

but in the end its all what you want.. enjoy
Reply With Quote
  #16
Old 09-21-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by FullThrottle02 View Post
You can build a 1" BL kit or buy a 3" kit. There is not 2" kit.
You can buy 2" pucks......
