HELP Driveshaft what is it ??????
#1
HELP Driveshaft what is it ??????
I am a new owner of a 2000 Ranger 2.5L, 4x2, manual transmission. I was looking under the Ranger to investigate a noise and found a loose part bouncing around on my driveshaft.

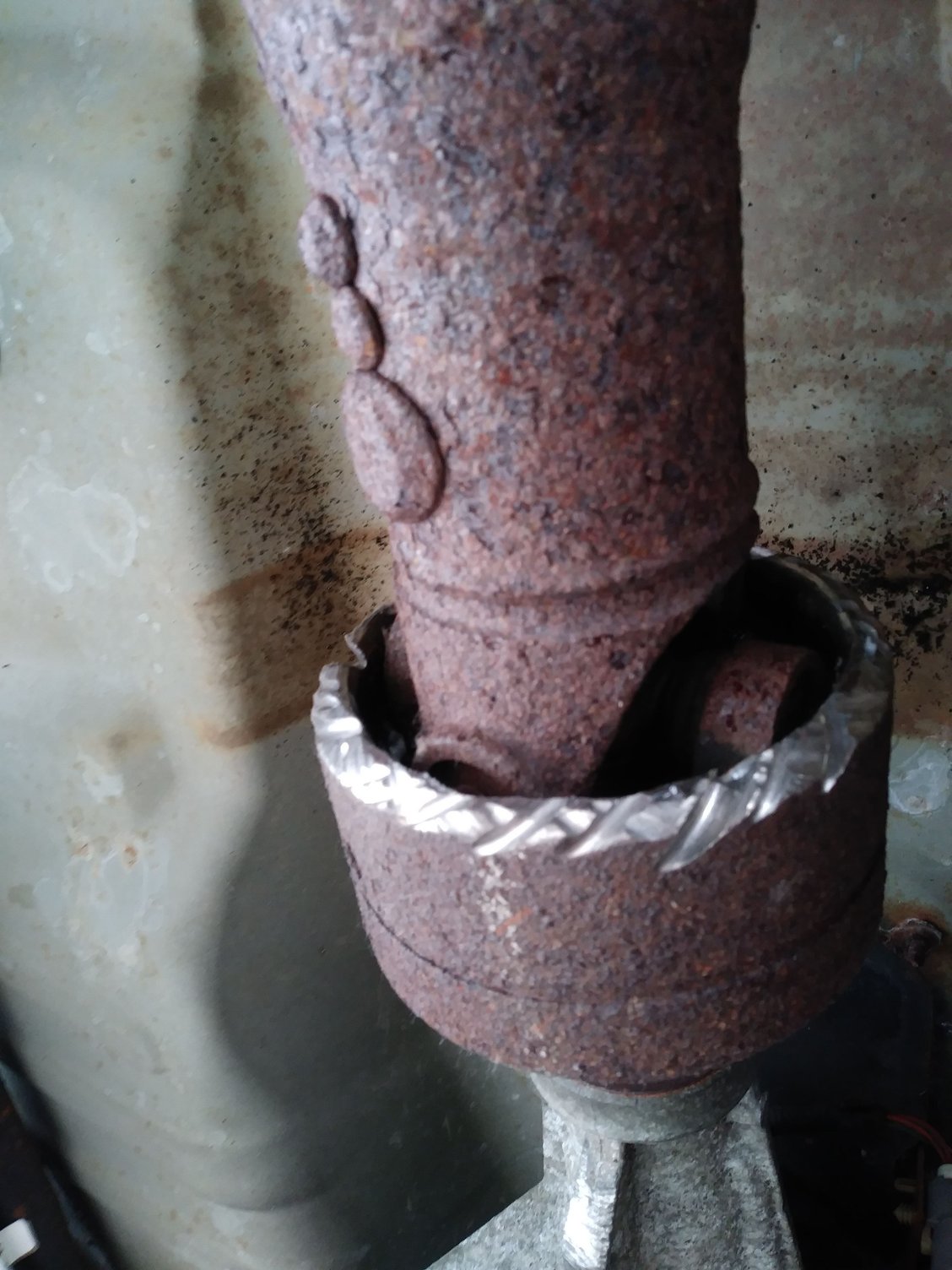

It is a heavy metal cylinder about 6" in diameter and 3 " long with a rubber ring inside. It is bouncing around on the driveshaft where the universal joints connect to the transmission.
As seen in the pictures it has been chewed up from banging around. I have the factory shop manual and Haynes Manual but I can't figure out what the part is and how to fix it. Thanks Paul G
It is a heavy metal cylinder about 6" in diameter and 3 " long with a rubber ring inside. It is bouncing around on the driveshaft where the universal joints connect to the transmission.
As seen in the pictures it has been chewed up from banging around. I have the factory shop manual and Haynes Manual but I can't figure out what the part is and how to fix it. Thanks Paul G
The following users liked this post:
Mnt Mike (05-12-2021)
#2
RF Veteran
iTrader: (1)
Welcome to the forum
It was only used on some of the 4cyl Ranger, its a vibration damper
Unbolt the drive shaft from the rear axle then pull it out of the transmission
The damper is bolted on, you will see how after drive shaft is out
Unbolt it and remove it, and then reassemble, most say they don't notice any vibration without it in place
The damper is also no longer available in any case
It was only used on some of the 4cyl Ranger, its a vibration damper
Unbolt the drive shaft from the rear axle then pull it out of the transmission
The damper is bolted on, you will see how after drive shaft is out
Unbolt it and remove it, and then reassemble, most say they don't notice any vibration without it in place
The damper is also no longer available in any case
The following users liked this post:
Mnt Mike (05-12-2021)
