Post escapre tb 4.0 maf write up(pics added)

Alright guys heres the part list and years:(ill add pics when i can get a chance)
(IF YOU DO NOT HAVE A TUNER ID SUGGEST YOU GET ONE BEFORE DOING THIS. GET A XCAL2 FROM fred a.k.a BOSS 3.0

Escape tb-2001/$60 on ebay
composite upper-2004 ranger/FREEBIE(RPS member)
4.0 maf-96 exploder. You want the SOHC. I have the OHV its a little smaller./FREEBIE(RPS member)

On the upper intake you will need to bore out the inlet with the biggest cutter(hole saw in my case) to get a better benifit from it.

BE CAREFULL AND DO NOT BREACH THE IAC HOLE AT THE TOP OF THE UPPER INTAKE.

You will need some shorter bolts for the upper if you had an aluminum one. And you will need to drill out the inserts for the bolts on the composite upper.

You will also have to trim the tb a little to clear the IAC. I had to extend the IAC plug and TPS plug so that they will reach.

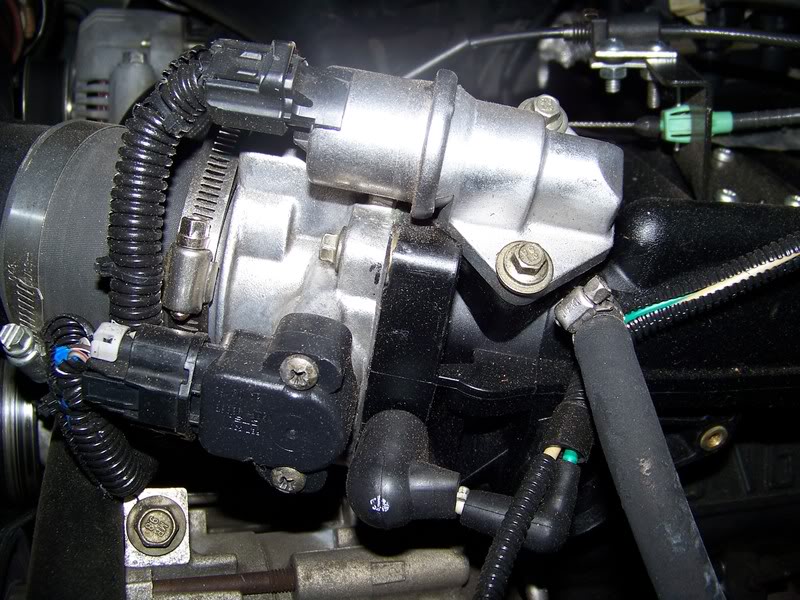

Name:  100_4318.jpg
Views: 14
Size:  124.2 KB
I took engine gasket material to make a gasket to match the tb.

On the upper in take you will see to cavities on either side of the iac hole. I filled them in with some jb weld. Then used some RTV to make sure i had no leaks.

THIS IS IMPORTANT TO DO FOR THE IAC HOLES, TO GET THE MAX FLOW BETWEEN THE TWO BECAUSE THEY DONT MATCH.


NOTE: if you have the throttle cable mode done, snip them off. With this setup its just a little bit longer.

I also did a EGR delete. YOu will use most of the lines that come off of the aluminum upper.

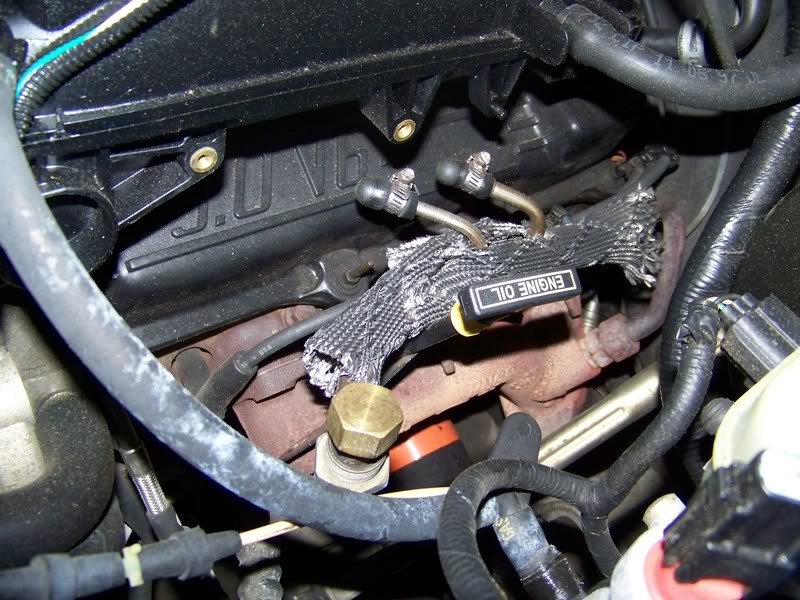

Name:  100_4317.jpg
Views: 46
Size:  127.4 KB
Whatever you dont use find a way to close them up(since they are vacuum lines).

You also will have to figure out a way to remount the coil pack since it will no longer bolt the the upper. (Once I get a chance to fix mine I will post pictures and add to this write up.
temporary i need to make it out of one piece and paint it.

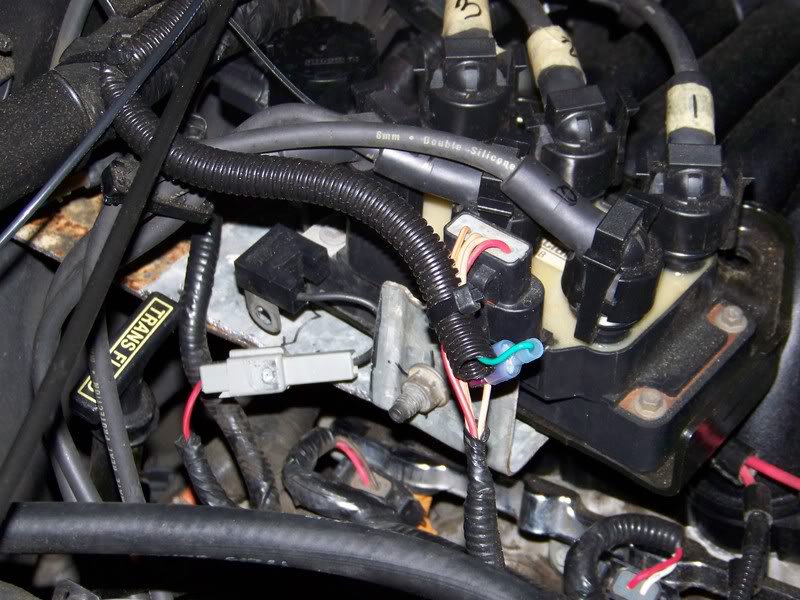

Name:  100_4316.jpg
Views: 11
Size:  105.9 KB

THIS IS THE HARDEST PART OF THESE MODIFICATIONS... ITS ALL JUST LITTLE NIT PICKY THINGS THAT YOU HAVE TO DO TO GET IT RIGHT.

If you may have noticed I have cruise control. You will have to fab something up to get the cable attached. I will post pics when I get a chance to do it.

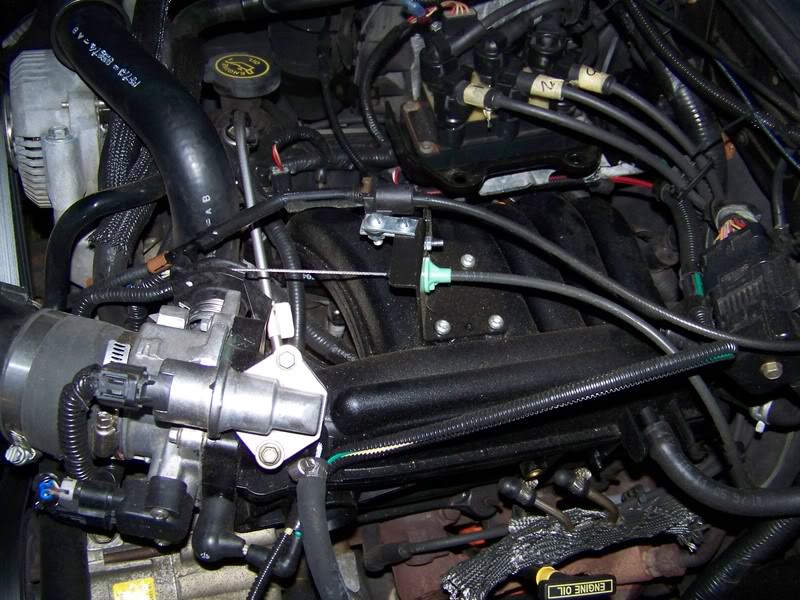

Name:  100_4319.jpg
Views: 11
Size:  120.0 KB
IF you guys have any questions feel free to ask me ,pm me, whatever I am always willing to help.

I think that should cover it. Having an efan will help the install too since the tb angle is a little more towards the radiator then the stock.

If I missed something, just ask me. Hope this helps out anyone that has the GO FAST BUG like I do.

Last edited by bricesedge03; 06-14-2008 at 01:54 AM. Reason: added pics
Reply With Quote
  #2
Old 03-21-2008
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
So, is having the bigger MAF necessary? And why is it that you have to get tuned? Is it only for the new MAF? I don't know, I'm just wondering why my MAF wouldn't be sending to the ECU that there is more air going through than normal. I'm not really knowledgeable when it comes to ecu's so any insight would be great.

Last edited by Oh5Edge; 03-21-2008 at 09:57 AM.
Reply With Quote
  #3
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
He has a 3.0, but is putting a 4.0 MAF on it -- hence the retune.
Reply With Quote
  #4
Old 03-21-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
the larger MAF isn't going to do you any good unless you have a complete exhaust setup (headers, muffler, and piping).....your engine can only get so efficient....the amount of air taken in has to be able to exit....

You would need a retune to get the PCM mated to the MAF....from what I have been told, it is hard to get the tune right for a new MAF...


good job on the write up....
Reply With Quote
  #5
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Not so, Maurice. 3.0's have VERY restrictive MAF's compared to 4.0's. It actually will help as it's a huge restriction in the 3.0. That's why the MAF mod does so much for a 3.0 truck, but rather less for a 4.0 truck.

Fred can do the retune easily as I believe he's done this before for folks.

A 4.0's MAF should be as much flow area as a NA 3.0 will ever need.
Reply With Quote
  #6
Old 03-21-2008
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
So with people having a 3.0 and wanting to upgrade to the larger Escape throttle body, it's just "bolt up" with no re-tune? Would my 3.0 MAF work with the new throttle body?

My MAF is the newer one, that you can't do the MAF mod to.
Reply With Quote
  #7
Old 03-21-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by n3elz View Post
Not so, Maurice. 3.0's have VERY restrictive MAF's compared to 4.0's. It actually will help as it's a huge restriction in the 3.0. That's why the MAF mod does so much for a 3.0 truck, but rather less for a 4.0 truck.

Fred can do the retune easily as I believe he's done this before for folks.

A 4.0's MAF should be as much flow area as a NA 3.0 will ever need.
i didn't realize that a 3.0's MAF was so restrictive....interesting really.....
Reply With Quote
  #8
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by Oh5Edge View Post
So with people having a 3.0 and wanting to upgrade to the larger Escape throttle body, it's just "bolt up" with no re-tune? Would my 3.0 MAF work with the new throttle body?

My MAF is the newer one, that you can't do the MAF mod to.
I believe so if it'll bolt up. I know folks have done it and kept their MAF. The issue is your intake tube and not your MAF.

'05's are nice because you have that already low-restriction MAF.

Last edited by n3elz; 03-21-2008 at 09:45 AM.
Reply With Quote
  #9
Old 03-21-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by Oh5Edge View Post
So with people having a 3.0 and wanting to upgrade to the larger Escape throttle body, it's just "bolt up" with no re-tune? Would my 3.0 MAF work with the new throttle body?
throttle bodies are different and doesn't require a retune...they are not controlled by the PCM.....
Reply With Quote
  #10
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
No retune required for TB changes like that. The new TB has a compatible TPS.
Reply With Quote
  #11
Old 03-21-2008
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
Quote:
Originally Posted by lifted97ranger View Post
throttle bodies are different and doesn't require a retune...they are not controlled by the PCM.....
I figured so, just wasn't sure if taking in too much air would screw with my MAF inputs to the ECU.
Reply With Quote
  #12
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by lifted97ranger View Post
i didn't realize that a 3.0's MAF was so restrictive....interesting really.....
I have no pics of an unmodded 3.0 plastic MAF, but here's the old metal one and the design and blockage amount are similar -- blockage is about the same. Pics are from Fred's RoguePerformance.com site.




If you get to look at a 4.0 MAF, it's body is so much bigger the flow restriction is much less. In the pic below, the red line shows where the MAF sensor went before the cut was made. Compare that to the 3.0 which goes all the way to the bottom of the narrow tube in both metal and plastic versions.

Reply With Quote
  #13
Old 03-21-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
the MAF limits how much air can come into the system...
Reply With Quote
  #14
Old 03-21-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by n3elz View Post
I have no pics of an unmodded 3.0 plastic MAF, but here's the old metal one and the design and blockage amount are similar -- blockage is about the same. Pics are from Fred's RoguePerformance.com site.




If you get to look at a 4.0 MAF, it's body is so much bigger the flow restriction is much less. In the pic below, the red line shows where the MAF sensor went before the cut was made. Compare that to the 3.0 which goes all the way to the bottom of the narrow tube in both metal and plastic versions.

holy crap......that is pretty restrictive...
Reply With Quote
  #15
Old 03-21-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by Oh5Edge View Post
I figured so, just wasn't sure if taking in too much air would screw with my MAF inputs to the ECU.
That can happen. You can max out the MAF and end up lean at open throttle at high RPM's -- just where you don't want it.

But with the 3.0 it's hard to get there -- but it can be done. In fact, Fred and Wayne posted graphs showing that very thing happening with a MAF I believe in their posting on the new high flow MAF they have for 3.0's.
Reply With Quote
  #16
Old 03-21-2008
Fredness's Avatar
Member

Join Date: Jul 2006
Location: Sasquatch Country!
Posts: 175
Escape TB CAN be done without a tune, but there would be lots of learning. Anytime the KAM is killed (pull battery), the learning starts all over.

The datalogs from Brice show a HUGE increase in part throttle air that tapers off as TPS increases and goes to zero just after 3/4 throttle, supporting the fact that it is not the larger bore, but the increased air at smaller throttle angles that is helping.
Reply With Quote
  #17
Old 03-21-2008
Member

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 647
Quote:
Originally Posted by Fredness View Post
The datalogs from Brice show a HUGE increase in part throttle air that tapers off as TPS increases and goes to zero just after 3/4 throttle, supporting the fact that it is not the larger bore, but the increased air at smaller throttle angles that is helping.
So, with knowing that you CAN overload a MAF, would you say it's possible if this part throttle air increase tapers off after 3/4 throttle?
Reply With Quote
  #18
Old 03-21-2008
Fredness's Avatar
Member

Join Date: Jul 2006
Location: Sasquatch Country!
Posts: 175
The 60mm TB (or MAF, for that matter) flow 600cfm of air, the engine itself can only flow 360CFM.

Now, the 2004+ has a 55mm MAF and it is EASILY pegged with simple mods and requires a tune after just a few simple mods. That's how all this came about...
Reply With Quote
  #19
Old 03-21-2008
bricesedge03's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: columbia sc
Posts: 388
wow.

If you are going to run just the tb look at my write up about mating the two.
Reply With Quote
