4.0 belt change and throttle body

Changed the belt today waiting on the draft so I figured I snap a few pics.

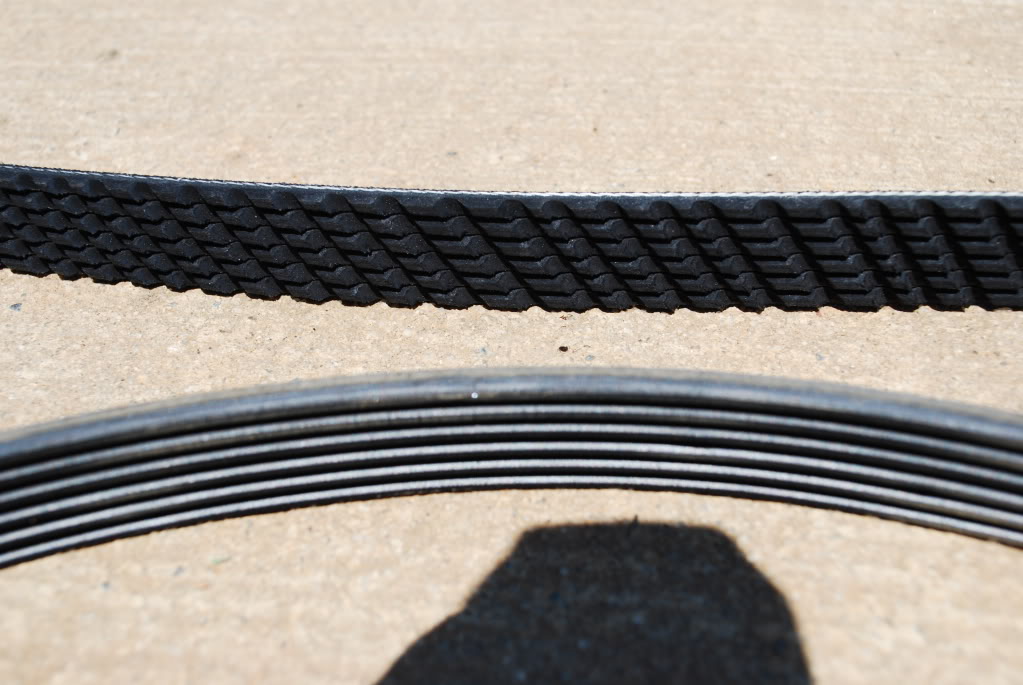

The new belt vs. old belt. I'll keep the old belt as a spare.

Name:  DSC_0428.jpg
Views: 2
Size:  124.8 KB

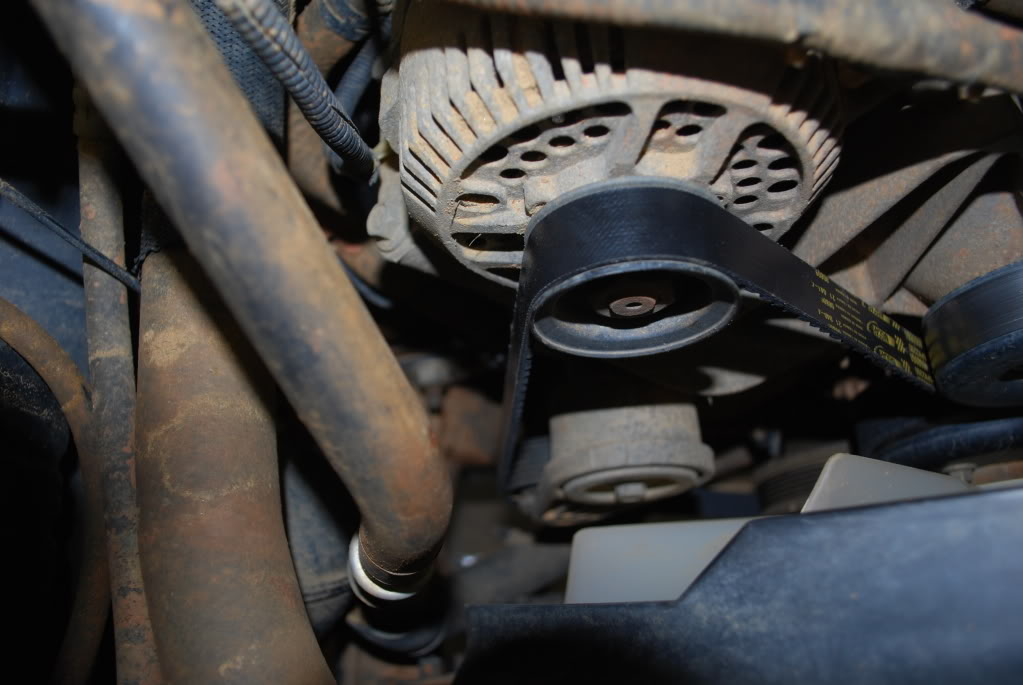

The tensioner, you can just push it with your hands and some testicular fortitude.

Name:  DSC_0433.jpg
Views: 2
Size:  105.8 KB

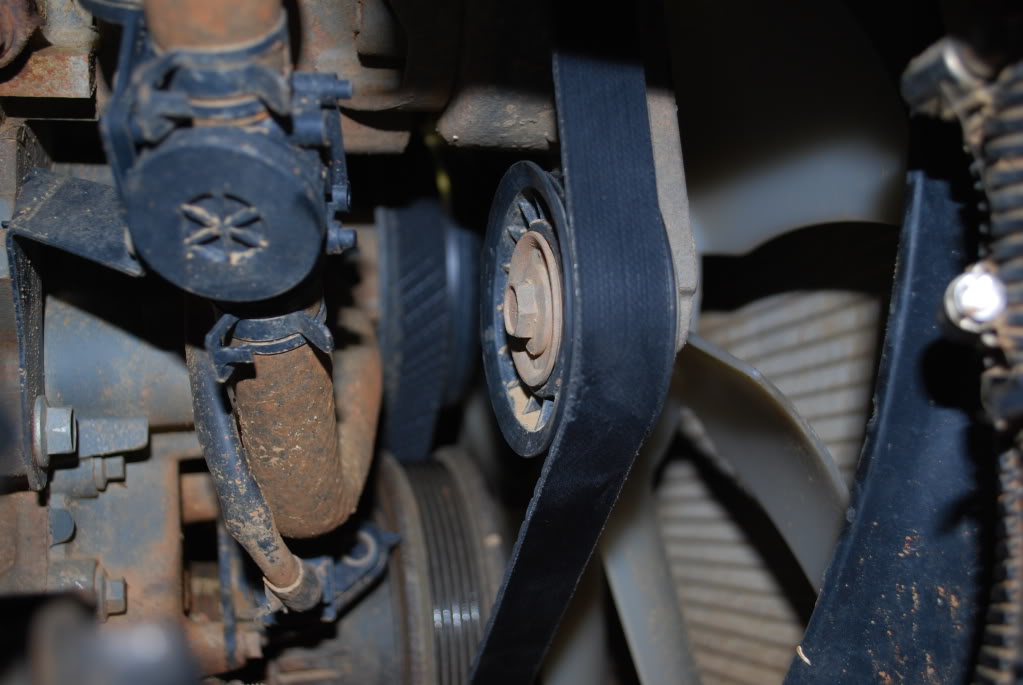

From below.

Name:  DSC_0430.jpg
Views: 2
Size:  106.9 KB

The new belt seems to work great, no more squealing at start up.

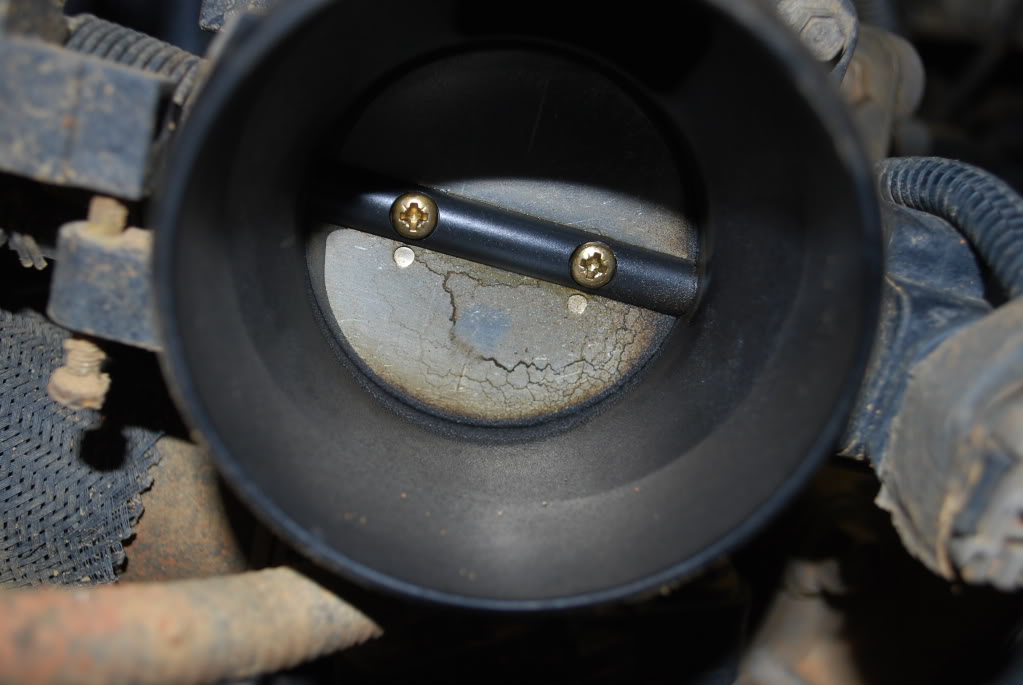

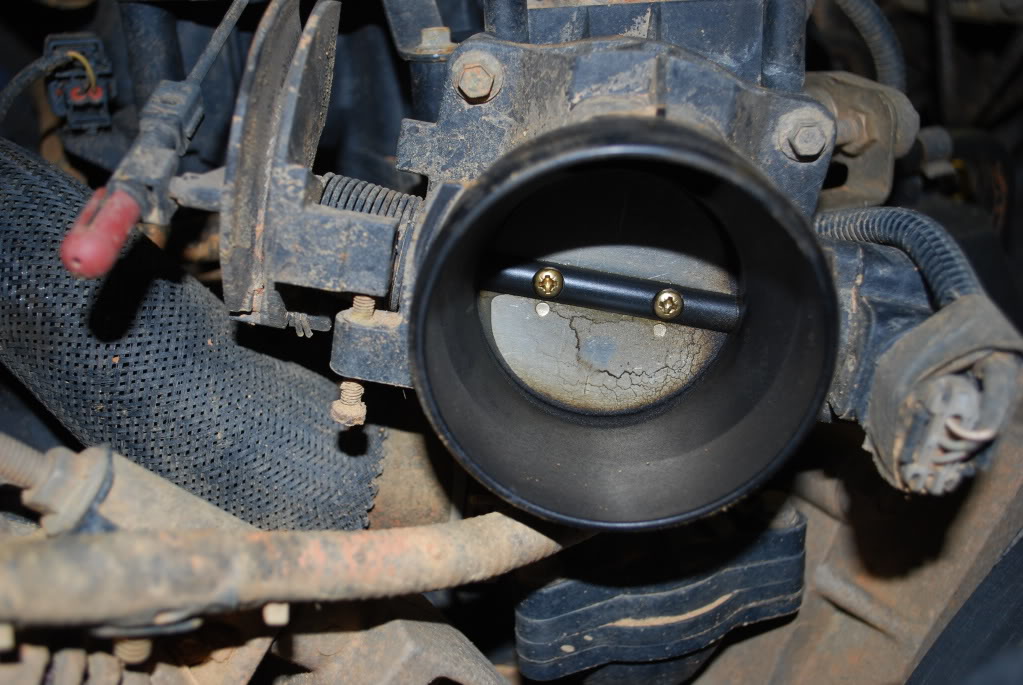

Throttle body is a little dirty. Feels slightly oily, let's hope Takeda doesn't read this. lol But it hasn't been cleaned in over 100k, soooo.

Name:  DSC_0420.jpg
Views: 2
Size:  146.0 KB
Name:  DSC_0423.jpg
Views: 5
Size:  101.0 KB

So I think I'll clean it today along with the IAC and MAF. Just need to figure out the best way to do it. I know, I know search. lol Any advice is appreciated.

..and it's draft day so GOOOOOOOOOOOO PANTHERS!!!!!!!
Reply With Quote
  #2
Old 04-25-2009
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
To clean the TB I just got some throttle body cleaner and sprayed it pretty good let it sit for a couple minutes and wipe the crud away. make sure you have a rag below the TB so there is something to catch the drips. Just to worn you it might have been just mine but it took a couple tries to get the engine to start back up after I was done.

I got that same belt its great.
Reply With Quote
  #3
Old 04-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Justin helped me, I disconected the neg termanial opened the TB and started spraying and used a toothbrush to get it spotless clean
Reply With Quote
  #4
Old 04-25-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Got everything cleaned up just waiting around to make sure they're completely dry. Stuff really wasn't as dirty as I thought it would be. Now lets see if it'll start now that I've done all this. lol

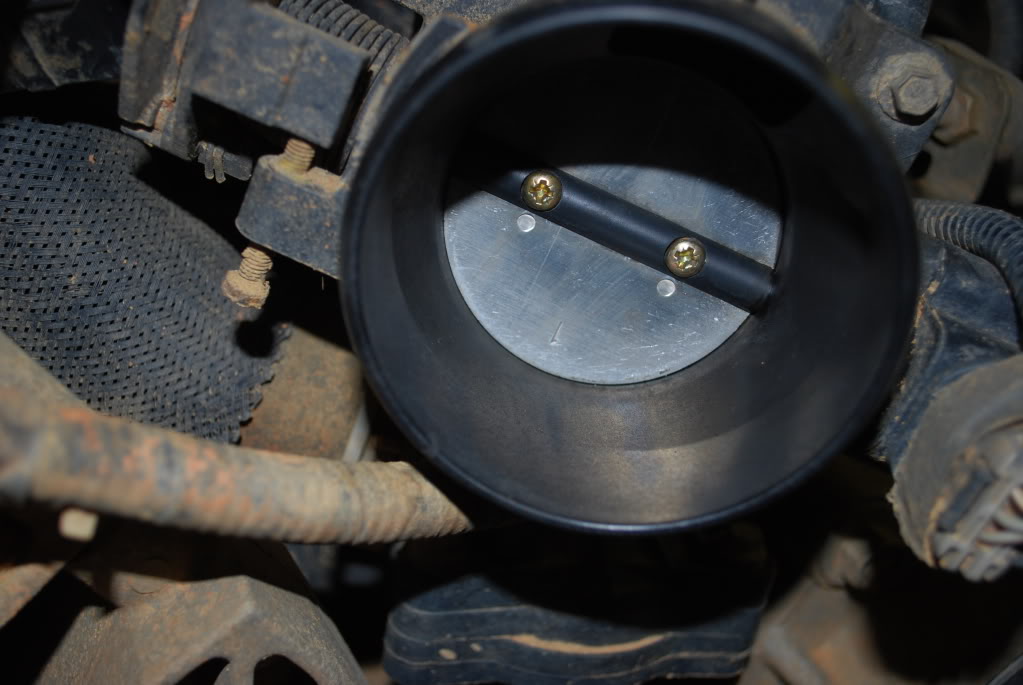

..and some more pics for the hell of it.

Name:  DSC_0437.jpg
Views: 2
Size:  105.6 KB

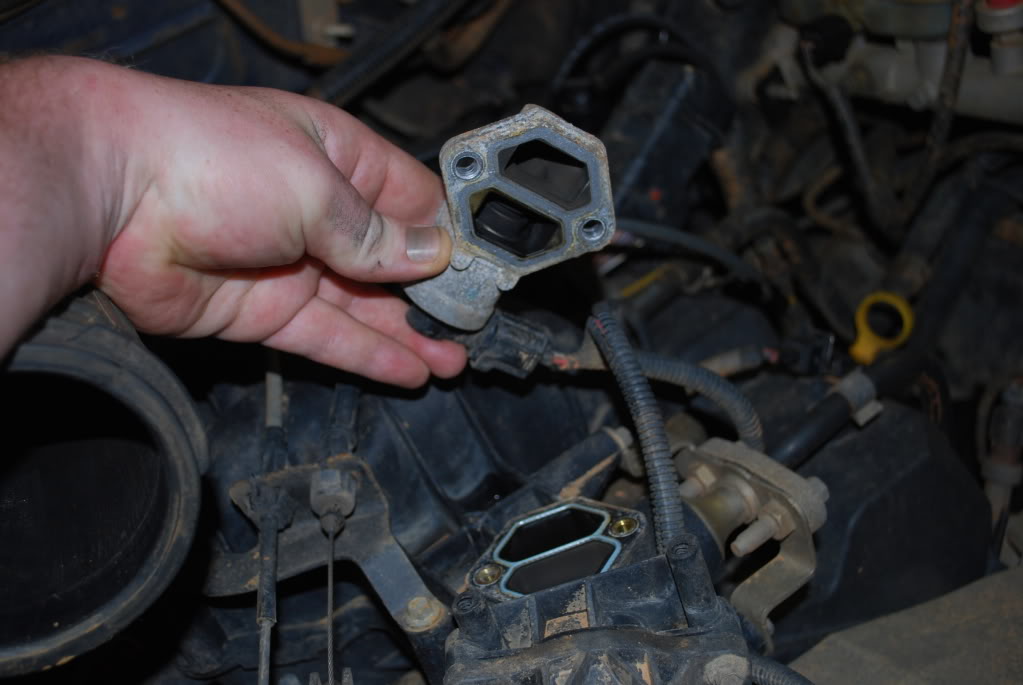

Name:  DSC_0440.jpg
Views: 2
Size:  95.6 KB

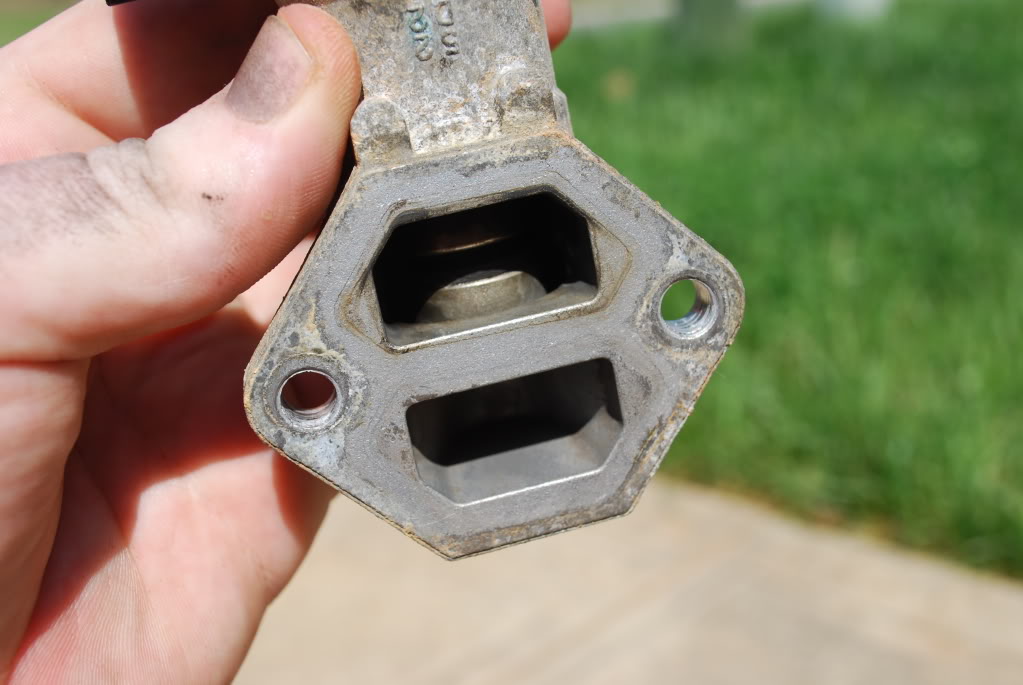

Name:  DSC_0444.jpg
Views: 1
Size:  110.9 KB

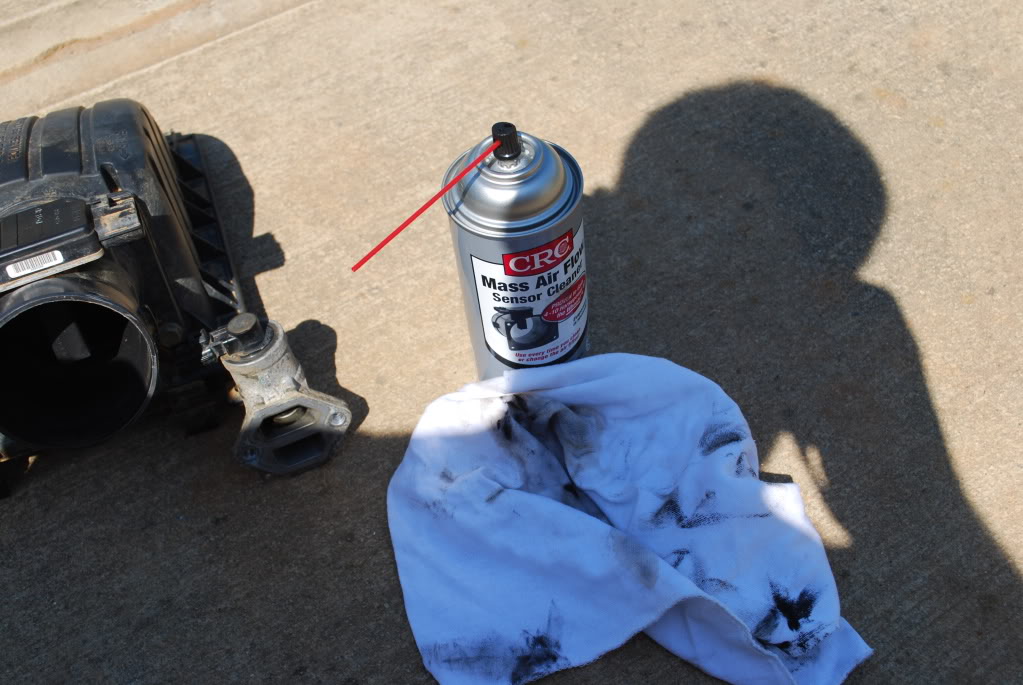

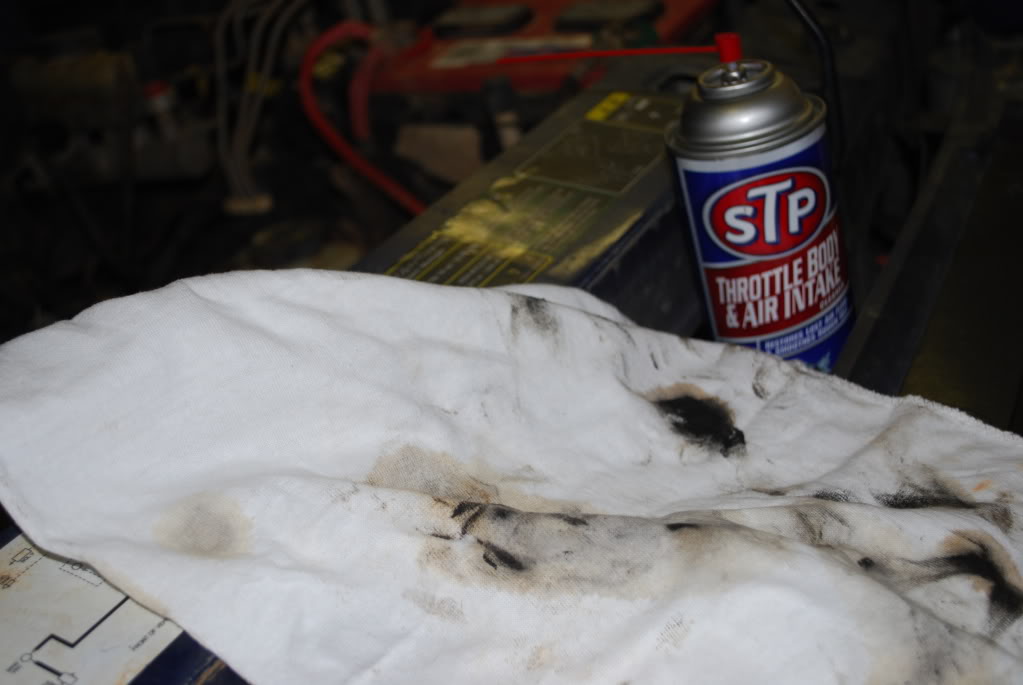

Cleaners I used.
Name:  DSC_0439.jpg
Views: 1
Size:  86.3 KB
Name:  DSC_0443.jpg
Views: 1
Size:  137.9 KB
Reply With Quote
  #5
Old 04-25-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Thats how I did mine @ 40,000. Disconect the battery termanial (-) turn the headlight switch on for 15 seconds and keep the battery un-plugged for a couple mins. Reconnect the termanial with headlights off and it should start right up with no problem.
Reply With Quote
  #6
Old 04-25-2009
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I let everything dry and got it all reinstalled. Works great!! Idle drops down quicker at start up and my butt dyno can tell a slight difference running around town. Yay for long overdue maintenance!!! Thanks y'all.

Last edited by seed60; 04-25-2009 at 06:59 PM.
Reply With Quote
  #7
Old 05-07-2009
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Thanks for the pics and nice post. Did you replace the gasket on the IAC? I'm thinkin' thats a dealer item???
Reply With Quote
  #8
Old 05-08-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
GATORBACK! GATORBACK!! GATORBACK!!! Hey...i just bought one of those today. lol.
Reply With Quote
  #9
Old 05-08-2009
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
i just did the same thing last sunday on my truck. gatorback and cleaned the throttle body with the ford fuel injector cleaner p/n pm-2. it works like the pm-3 but its in a arrosol can and foams up. oh and i also changed my plugs and did the throttle cable mod. i dont know which one helped most but my calibrated butt told me it was worth it.
