Thanks for the add.what I am in need of is wiring diagram this is what I have used for my frame swap,just for reference, currently I’m using the complete electric wiring and drive train from a 93 ranger 4.0 five speed it had roughly 65000 on it when I obtained it,took it on the road and it pulls the 49 Binder around great.What I would like to achieve is have a stand alone harness for the engine ( cleaned up) and get rid of the excess in the engine compartment so I can more easily run the rest in the cab independently currently I’m using all of the OEM wiring from headlights to taillights battery is frame mounted behind cab on frame rail I’m not intending to use the AC just basic heating core with fan, no cruise control and use the factory ranger gauges . And if you have any idea of what wires could be trimmed out that would be awesome. Sorry for sounding so needy but I have been lurking around here for quite awhile and this place is a bank of information again thanks for the add .

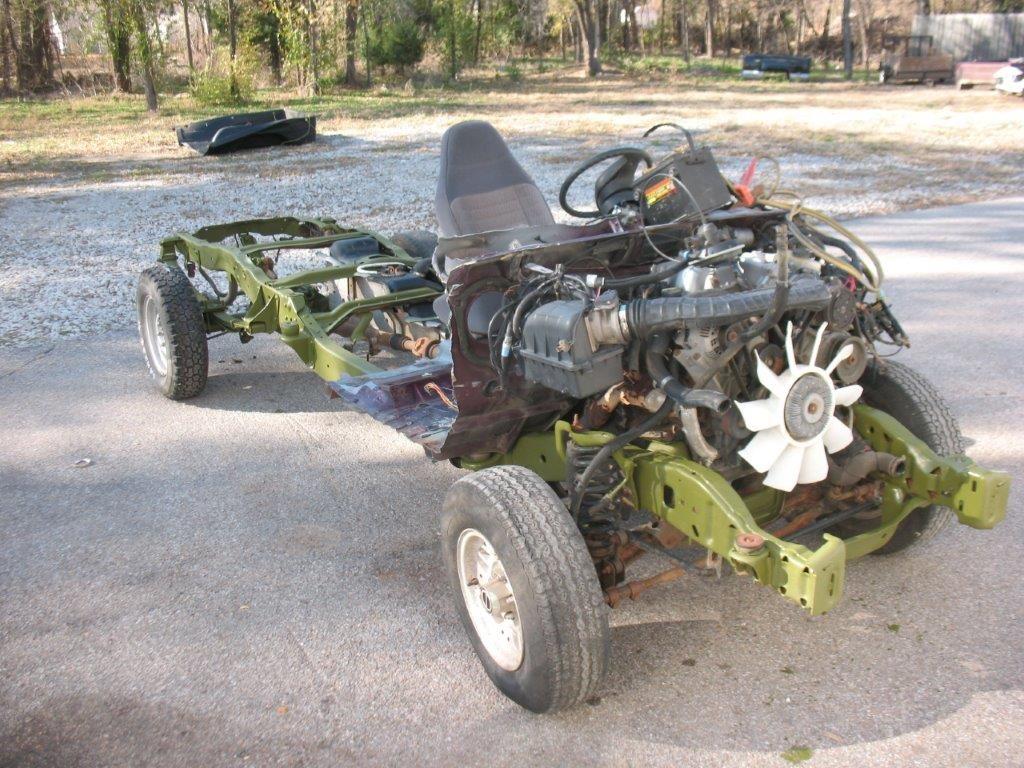

93 Ranger frame swap
