does anyone know what this connector is???

I have a 94 ranger 4.0L and just swaped with a 4.0L out of a 93, everything was going good untill i came across a missing engine connector. I dont have any pics to post but on my old engine there was 3 major connectors coming off the engine that connect by the drivers side fuse area, 2 square ones (gray and black) and one black round 8 pin. well on the 93 motor there is no black round 8 pin. what does that mean? ill see if i can get some pics up later, thanks.

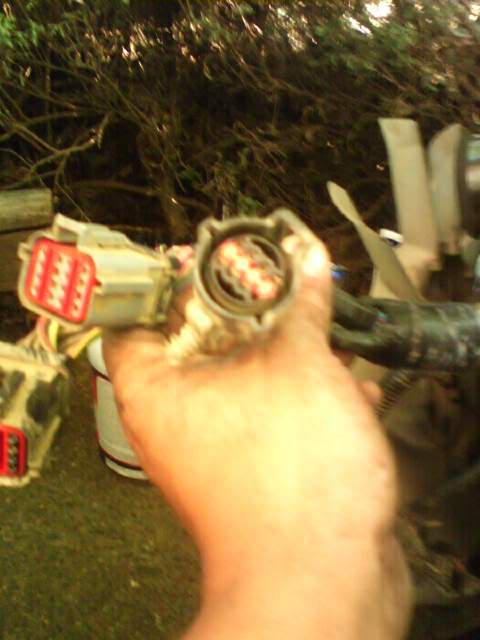

not sure if this will work or not but here it is Name:  P_01284.jpg
Views: 3
Size:  33.2 KB

Last edited by dangeranger27; 08-01-2007 at 10:37 PM.
Reply With Quote
  #2
Old 08-01-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Page not found …but while you're at Photobucket, why not try



You may need to swap the old engine harness over.
Reply With Quote
  #3
Old 08-01-2007
Member
Thread Starter

Join Date: Jul 2007
Location: beaverton oregon
Posts: 9
this should work.....????
Reply With Quote
  #4
Old 08-01-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i scrolled down real fast and thought i saw a chick in a bikini...
Reply With Quote
  #5
Old 08-01-2007
Member
Thread Starter

Join Date: Jul 2007
Location: beaverton oregon
Posts: 9
wow...impressive, ive scrolled over it 30 times and im just not seeing it, damn. my imaginations shot. I think im just going to switch old harnesses, what a pain in the a**
Reply With Quote
  #6
Old 08-01-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
sorry it was no help.. im really tired its been a really long boring day and i was kinda hyper..


good luck with that
Reply With Quote
  #7
Old 08-02-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
I don't have a 94 book but I do have a 93 which is usually the same. In 93, there were two versions of the 4.0L - California and Federal.

The Federal engine was 'bank-to-bank' injection meaning that the injectors are fired simultaneously in two groups of three. The California engine was 'sequential' injection meaning that the PCM fires each individual injector independently.

The 93 California sequential injection has the potential for reduced emissions and is the system used on all current Rangers. However, it also needed more individual wires than the bank-to-bank injection. The 93 California 4.0L had an extra 8-pin connector that was not present on the Federal version. I suspect that the 94 manual would show the same thing.

I believe that you'll need to change the harness and anything else that's different.
Reply With Quote
