Electrical connection

Can anyone tell me what this electrical plug is for? Something tells me that it isn't suppose to be unplugged and it looks like it's been unhooked from day 1.
btw ... It's a 2001 4.0 SOHC

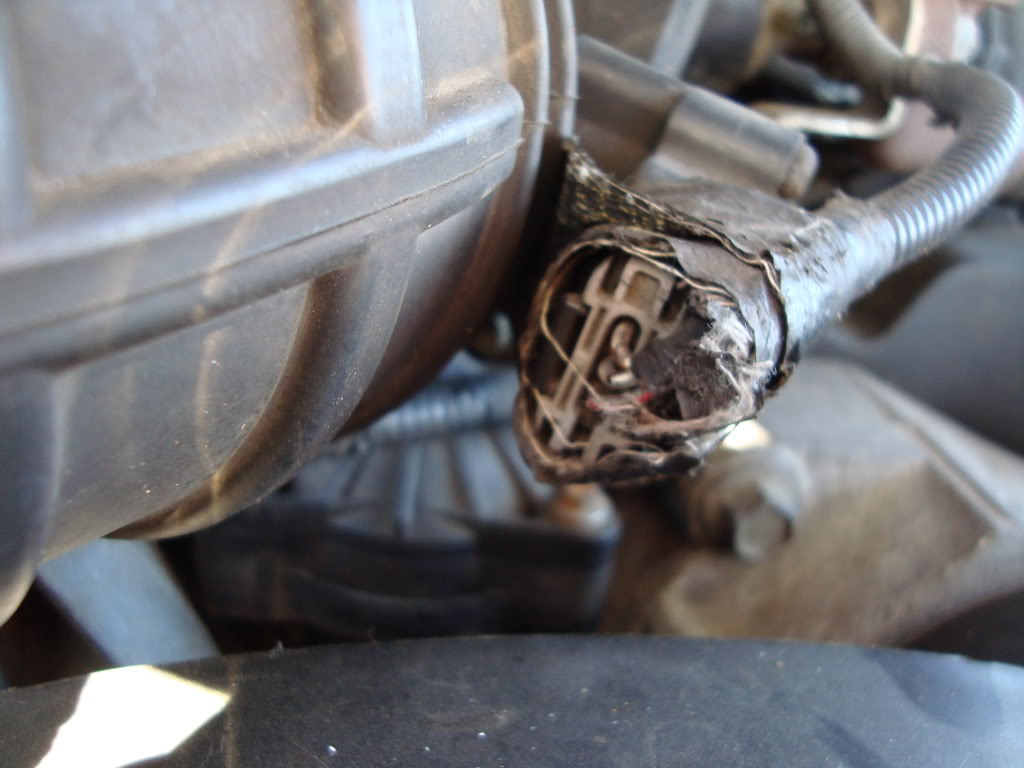

Name:  524.jpg
Views: 2
Size:  82.3 KB
Reply With Quote
  #2
Old 11-08-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
is that going into the throttle body or the sensor at the airbox? its hard to tell
Reply With Quote
  #3
Old 11-08-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by ranger4.0 View Post
is that going into the throttle body or the sensor at the airbox? its hard to tell
The wires are running back towards the throttle body. It's weird, because it's just sticking out there like some kind of diagnostic port.
Could it possibly hook into Idle control unit? becuase the truck idles pretty bad right now.
Reply With Quote
  #4
Old 11-08-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
From the picture, it doesn't even look like it plugs into anything. Looks to be wires coming off the end and going backwards. LOL Weird.
Reply With Quote
  #5
Old 11-08-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by Rolldogg View Post
From the picture, it doesn't even look like it plugs into anything. Looks to be wires coming off the end and going backwards. LOL Weird.
It's actually bolted to that big tube going to the air box.
Could it be the Mass Air Flow Sensor?
Reply With Quote
  #6
Old 11-09-2010
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
I think its the throttle position sensor.
Reply With Quote
  #7
Old 11-09-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by wvcat View Post
I think its the throttle position sensor.
That sounds right, but what does it plug into? (The other end of the TPS?)
Does anyone have any close up pics of their 4.0 SOHC?
Reply With Quote
  #8
Old 11-09-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240

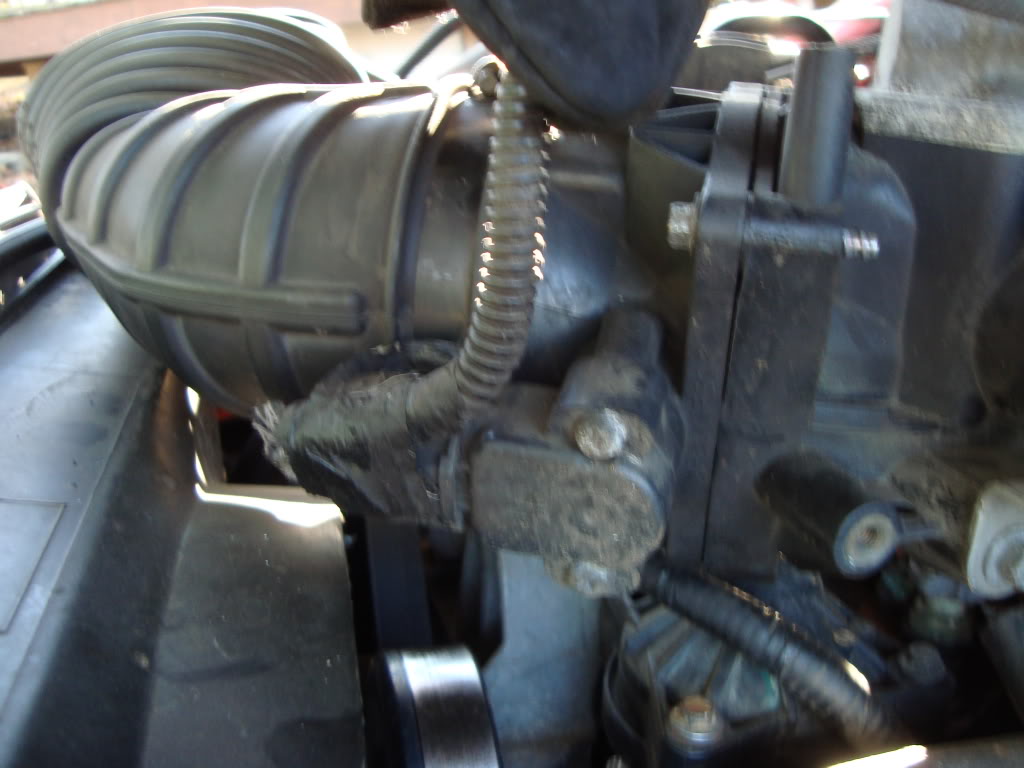

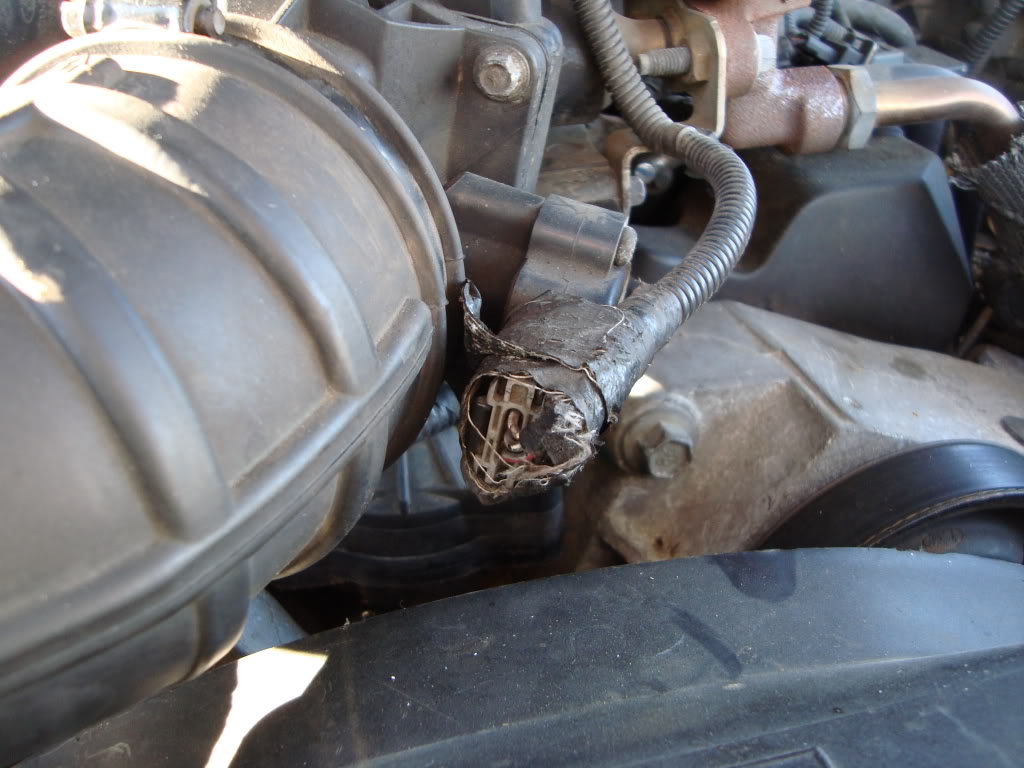

Here's some better pictures of it

Name:  522.jpg
Views: 1
Size:  111.4 KB
Name:  523.jpg
Views: 1
Size:  87.0 KB
Reply With Quote
  #9
Old 11-09-2010
fishy2k8's Avatar
Member
iTrader: (-1)

Join Date: Jun 2006
Location: Avon, IN
Posts: 457
thats your throttle position sensor.. and it looks plugged in to me
Reply With Quote
  #10
Old 11-09-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Ok, I can see that it's plugged in now, but the wires are all running in the oppisite direction and it really got all frayed up. It also looks like it was rigged up with some electrical tape.
Does someone have a picture of one that's not messed up?
Reply With Quote
  #11
Old 11-09-2010
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
The one on my daughters Sport Trac is taped like that also.
Reply With Quote
