Name that part

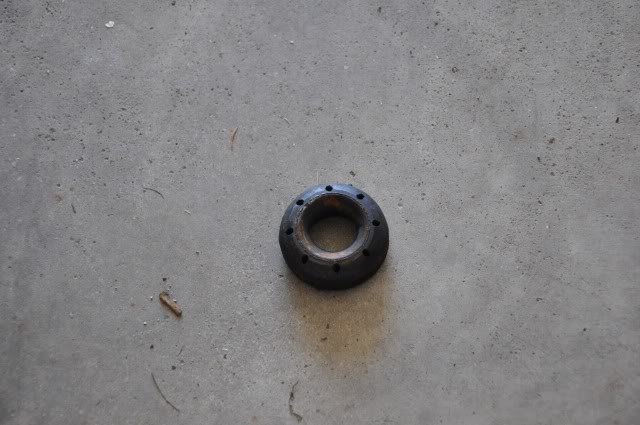

While I was changing plugs on the passenger side of the '03 Ranger 4.0 today, this appeared from nowhere and fell on the floor under the truck from the engine area. Can anyone tell me what it is and/or where it goes? D dont recall hitting anything with the ratchet or knocking anything loose....??? Its all rubber and about 1 1/2" across....hope its nothing really important.

Name:  DSC_0152.jpg
Views: 4
Size:  45.1 KB
Reply With Quote
  #2
Old 09-13-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
looks like a rubber isolator of some sort...possible bump stop
Reply With Quote
  #3
Old 09-13-2010
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Thats what I thought too but the truck has orange bumpstops on the front end and they are both still there. Weird...I took a look around underneath when I had the fenderliner out doing the plugs and couldn't see anywhere obvious where it would go. It has some rust in the center hole like it was on something metal but for the life of me I cant find from where.
Reply With Quote
  #4
Old 09-13-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
it could be part of a motor mount
Reply With Quote
  #5
Old 09-13-2010
4door's Avatar
Member

Join Date: Jul 2010
Location: BakerCity,Or
Posts: 65
One thing for sure thats one less rattle ,,,LOL
Reply With Quote
  #6
Old 09-13-2010
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Quote:
Originally Posted by 4door View Post
One thing for sure thats one less rattle ,,,LOL
Yeah, and frees up an ounce of weight for that extra oomph. Lol. I hope it nothing motor mount related, looks like a motor mount isolator should not come out unless the bolt was removed from inside it....Hmmmm
Reply With Quote
  #7
Old 09-13-2010
hosse's Avatar
Member

Join Date: Nov 2005
Location: Bentleyville,PA.
Posts: 14
Check the top shock mount. Looks like an upper shock bushing
Reply With Quote
  #8
Old 09-13-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
whats the dimensions of it? cant tell how big it is from the pic
Reply With Quote
  #9
Old 09-13-2010
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
Just changed the shocks....definately not from that, the rubber from the shocks was trashed...New rubber came with the new shocks

As for dimesions, it is about an 1 5/8" across and the middle opening is about 7/8" Thickeness is just a shade over 1/2" and it looks fairly fresh, not like something that was exposed to undercarriage elements.
Reply With Quote
  #10
Old 09-14-2010
klc317's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: Cincinnati, OH
Posts: 950
On second thought, maybe it was a leftover from the shock change that fell back in there somewhere...I got under and looked around and couldn't find anywhere else it could be from. Oh well, truck runs fine and hasn't blown up or caught fire yet so I guess I'm good
Reply With Quote
  #11
Old 09-14-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
well its dirty...so it must be importaint! lol
Reply With Quote
  #12
Old 09-18-2010
olecountryjohn89's Avatar
Member

Join Date: Aug 2010
Location: kentucky
Posts: 86
Quote:
Originally Posted by hosse View Post
Check the top shock mount. Looks like an upper shock bushing
He is correct , I just changed mine.
Reply With Quote
  #13
Old 09-18-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Shock mount for sure!
