Tested the new mods. Well, kind of... LOL - Ranger-Forums - The Ultimate Ford Ranger Resource


4.0L OHV & SOHC V6 Tech General discussion of 4.0L OHV and SOHC V6 Ford Ranger engines.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 03-04-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Tested the new mods. Well, kind of... LOL

Tried the new Escort GT-1 GTimer out once so far. LOL

Here are some quotes from a post on another forum about the GT-1 GTimer and a little test I did. LOL

Quote:
$48 with shipping.

Brand new Escort/Passport GT1 GTimer!

Cheaper than a trip to the track.

Pay attention to the 14th (I think) post down about an early test result:

Quote:
Mental note to self: Launching the Ranger will require FEATHERING the throttle. The 4.0 LIKES bolt-ons.

Well, I tried the timer today. I need to adjust the roll out, etc. to get more accurate times and I need to figure out just what my shift points and weight are to get a HP figure, but I was driving to get some gas and I thought I would stop and try it. Only calibration done was pushing the calibration button in the driveway. No finer settings done.

Well I though I would just flat foot the Ranger and let her go. Immediately it started spinning like crazy (60ft time was DISMAL) so I said "**** it" and stayed in it to see what it would do. 1st, 2nd, 3rd for a ways. I was impressed.

Time was not that great though: 16.03 quarter at 93mph (poor, but expected with the wheel spin. [see below]). I let up on it a little because of someone that had pulled out of the yard sell up the road. Gotta learn to launch and hate the spin.

0-60 in 8 seconds flat (On a later run to just 70mph while rolling out a few feet and then punching it. I figure that it can run a mid to high 7sec 0-60 easily with a proper launch. Suprising again.).



I took a pic out the windshield after getting back from the gas station. The guys in the tent up the road selling yard sale stuff were pointing and talking about it when I went back through.

Quote:
Yea, the Bama and the UDP really woke it up. The new 5speed auto is bad-***. It and the 4.10s are great together.

All it has is a modified airbox with an S&B drop in filter (no CAI for the newer Rangers with the slot-in MAF element configuration), Dynomax cat-back (really just a better muffler and prettier pipe [not much power gain]), underdrive crank pulley, and Bama SCT2 tuner, a deleted EGR, and the throttle slack taken out (most 4.0 OHC Rangers have one quarter inch slack which keeps them from getting true full throttle and affects throttle response).

It was on the 93 Performance tune today with no adjustments made other than shift points and firmness.

http://summersville.10.forumer.com/viewtopic.php?t=9103
Reply With Quote
  #2
Old 03-04-2007
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
For 50 bucks you cant go wrong...May i ask where you got it?

Nice tire mark too, lol.

And how did the EGR delete help? ie. normal acceleration or WOT?

I need to start modding my motor....bad.
Reply With Quote
  #3
Old 03-04-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
The EGR delete was done because I hate them. I am old-school about that. I hear all kinds of **** about how they are of a benefit, but if that was true then race cars would have them. I am not falling for it. Less heat, etc. in the intake=better to me. I also got the rear 02s turned off so I can fit my true duals how I want (when I get to it).

I got the Escort from Radar Roy. Ask for the $40 GT-1 GTimer. He sells them for that every once in a while.

[email protected]
Reply With Quote
  #4
Old 03-04-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
That was from a dead stop with no power brake BTW. I am still impressed with it. The sucker just kept spinning. LOL
Reply With Quote
  #5
Old 03-04-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
Looks likes you have a one tire frier! I bet it would be quicker too if you werent 4x4 and had a locker
Reply With Quote
  #6
Old 03-04-2007
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by 01xltranger4x4
For 50 bucks you cant go wrong...May i ask where you got it?

Nice tire mark too, lol.

And how did the EGR delete help? ie. normal acceleration or WOT?

I need to start modding my motor....bad.
no you need 4.56s bad lol
Reply With Quote
  #7
Old 03-04-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Yea. LOL You should see the mark from the other direction. That pic does not do it justice.
Reply With Quote
  #8
Old 03-05-2007
06fx4 L2's Avatar
Member

Join Date: Mar 2007
Location: SO CAL
Posts: 430
Ok somebody mensioned you have an auto in the truck that did that burnout, is that true?? because my fx4 will not burn out if its life depended on it (mines got the torsen though) so did the tuner really make that much difference?? because mine has no power off the line and i really want to fix that..

uhhh, ok i looked again and i couldent find wherei saw 5pd auto, im goin nuts..
so is it auto or manual?


nice burnout by the way..

JOSH
Reply With Quote
  #9
Old 03-05-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Yea, mine has the 5-speed auto.
Reply With Quote
  #10
Old 03-05-2007
mustanger1986's Avatar
Member

Join Date: Aug 2006
Location: Cape Coral, Florida
Posts: 54
Hey i got a 4.0 sohc how do you take the slack out of the accel. cable
and also whats involved in the egr delete, will you have a check engine light?
Reply With Quote
  #11
Old 03-05-2007
BBBB51's Avatar
Member

Join Date: Oct 2006
Location: Alb. N.M.
Posts: 213
where did u grab the udp from?
Reply With Quote
  #12
Old 03-05-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Quote:
Originally Posted by mustanger1986
Hey i got a 4.0 sohc how do you take the slack out of the accel. cable
and also whats involved in the egr delete, will you have a check engine light?
Throttle slack fix:

https://www.ranger-forums.com/forum2...ad.php?t=26881

No pics of the EGR delete, but you have to have the egr function turned off in the SCT tuner. I just made a block off plate for where the valve bolts to the intake (made out of billet aluminum plate), took off the valve, took off the pipe, left the EGR electronic sensor hooked up, took off the vacuum line for the valve and plugged it, took tapered pipe fitting out of the manifold, and drilled out the hole in it and threaded it to accept a 3/8" pipe plug. That way if I want to hook it all back up to fake out the dealer, it will still be non-fuctional but look all hooked up.
Reply With Quote
  #13
Old 03-05-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Quote:
Originally Posted by BBBB51
where did u grab the udp from?

Here:

http://www.rpmoutlet.com/05v6up.htm

It is an ASP pulley...
Reply With Quote
  #14
Old 03-05-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
Actually EGRs do create less heat and help emissions....

They create less heat by pushing exhaust into the intake thus not all the air in the intake is combustable. The more combustable the more heat is generated. Also with it reburning some exhaust it actually helps the efficency of the engine by burning up anything that was previously unburned cleaning up for emissions. Also deleting your EGR will make your truck lean out because the O2 sensors say its running rich, thus causing your truck to lean out. If that makes sense? When you reburn gas it takes out more particals and lowers emissions, when they are not burned your engine will send less fuel to the engine trying to compinsate for the high numbers. Doing so can hurt WOT and overall performance of a truck.

So I believe.
Reply With Quote
  #15
Old 03-05-2007
Member

Join Date: Apr 2006
Location: Paulding , GA.
Posts: 1,435
that is a sweet website

im glad the mustangs 05-07 got the sohc motor soon we will have lots of performance parts
Reply With Quote
  #16
Old 03-05-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Quote:
Originally Posted by IR0NS1N
Actually EGRs do create less heat and help emissions....

They create less heat by pushing exhaust into the intake thus not all the air in the intake is combustable. The more combustable the more heat is generated. Also with it reburning some exhaust it actually helps the efficency of the engine by burning up anything that was previously unburned cleaning up for emissions. Also deleting your EGR will make your truck lean out because the O2 sensors say its running rich, thus causing your truck to lean out. If that makes sense? When you reburn gas it takes out more particals and lowers emissions, when they are not burned your engine will send less fuel to the engine trying to compinsate for the high numbers. Doing so can hurt WOT and overall performance of a truck.

So I believe.
Combusion is good. That is what we are trying to do with out fuel and air. Heat is energy. The truck will not lean out if it has been programed to take deletion of the EGR into account.

Again, if is was that good for a motor, then race cars would have them.

EGR dilutes the flame-supporting oxygen (bad) in the cylinder with injected (inert) exhaust, which slows combustion and therefore avoids NOx-creating temperature spikes. It cuts down on NOx production. That is its function. It is not a performance featue. That is my statement, it is out there, and I am sticking to it.

I want my oxygen, and I want it cold.
Reply With Quote
  #17
Old 03-05-2007
06fx4 L2's Avatar
Member

Join Date: Mar 2007
Location: SO CAL
Posts: 430
yes you are right but the EGRs dont work at WOT... only cruise, just like the old style vacuume advance did...

but i agree with you on takin it out it does make the intake hotter..if you ever worked on a carburated car where the manifold had the exhaust passage undernieth the carb youd know what i mean.. ive seen gas boil in the float bowls!!

JOSH
Reply With Quote
  #18
Old 03-06-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
Yea, they do not work at WOT, but how often do you drive at WOT? I am not getting into a pissing match over EGR. I do not like it so it was my choice to delete it.

BTW, removing the EGR makes the intake COOLER, espcially on the old carbed cars.
Reply With Quote
  #19
Old 03-06-2007
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by 06fx4 L2
because my fx4 will not burn out if its life depended on it (mines got the torsen though)
I've got a 06 FX4 w/4.10s and the stock LS diff. Even with the underdrive and K&N it'll only spin them for 10 ft at best when just flooring it suddenly. The underdrive did help quite a bit though in that aspect.

Rich
Reply With Quote
  #20
Old 03-06-2007
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by IR0NS1N
Actually EGRs do create less heat and help emissions....

They create less heat by pushing exhaust into the intake thus not all the air in the intake is combustable. The more combustable the more heat is generated. Also with it reburning some exhaust it actually helps the efficency of the engine by burning up anything that was previously unburned cleaning up for emissions. Also deleting your EGR will make your truck lean out because the O2 sensors say its running rich, thus causing your truck to lean out. If that makes sense? When you reburn gas it takes out more particals and lowers emissions, when they are not burned your engine will send less fuel to the engine trying to compinsate for the high numbers. Doing so can hurt WOT and overall performance of a truck.

So I believe.
What EGR actually does is reduce flame temperature primarily by slowing combustion.

A flame front has to propagate through the molecules of fuel and air and the recirculated exhaust gases interfere slightly with that.

The slight slowdown of propagation allows the heat to be released over a longer time, reducing the peak temperature that is reached.

NOx emissions are a product of heat, oxygen and nitrogen. You can only control the oxygen and nitrogen so much, so what you primarily want to do is reduce the temperature of combustion without interfering with the expansion of the gases too much.

EGR accomplishes this when properly managed.

It's even used in industrial gas burners for furnaces to reduce NOx, believe it or not. It's been a useful tool for environmental compliance.
Reply With Quote
  #21
Old 03-06-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
I stand corrected... thanks
Reply With Quote
  #22
Old 03-06-2007
wheeler's Avatar
Member

Join Date: May 2006
Location: NorCal
Posts: 23
Nice.
Reply With Quote
  #23
Old 03-17-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302

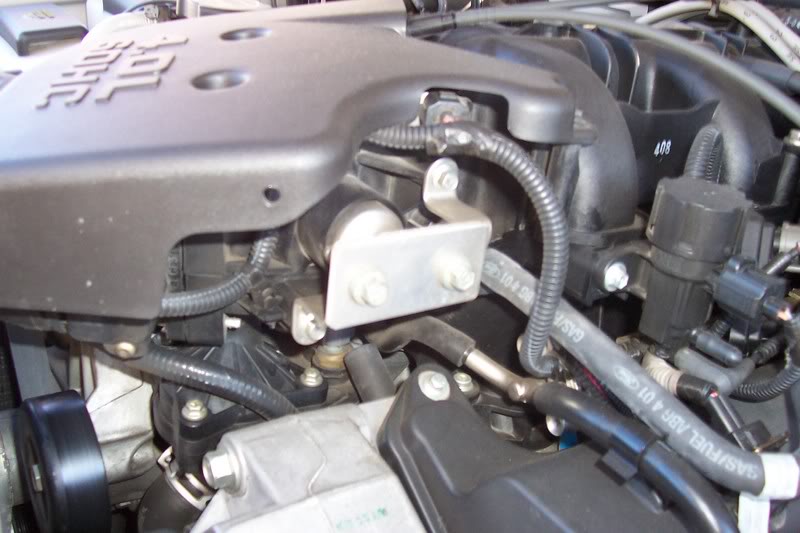

Here is the EGR delete. Made it simple.

Name:  000_1035.jpg
Views: 1
Size:  62.0 KB

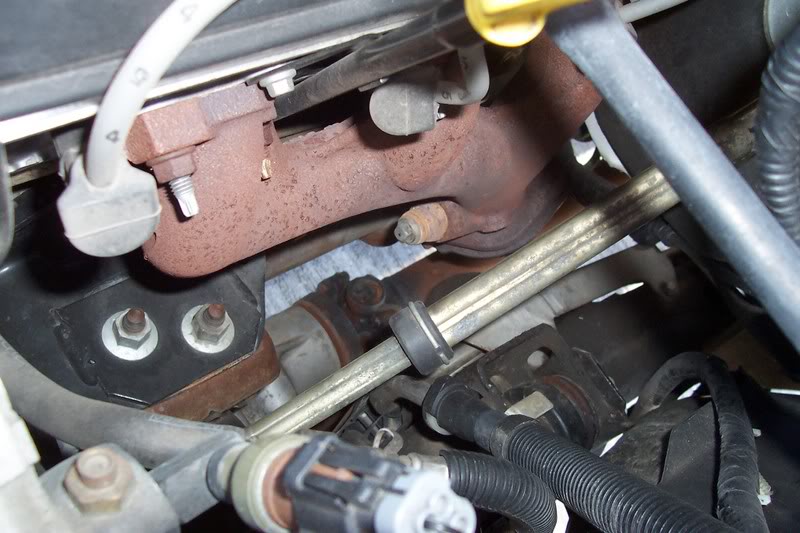

Name:  000_1036.jpg
Views: 1
Size:  75.7 KB
Reply With Quote
  #24
Old 03-18-2007
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Thanks
Reply With Quote
  #25
Old 03-19-2007
TORQUERULES's Avatar
Member
Thread Starter

Join Date: Aug 2006
Location: Ripley, WV
Posts: 302
You are welcome.
Reply With Quote
