timing chain failure?
#1
timing chain failure?
I have on 02 4x4 with 4.0. I was idling down driveway(under 10 mph) and truck just died. No strange noises or pops, just died. I have checked compression in the front cylinder on both sides and have 0 pressure. I am assuming the timing chain gave out. I have the apptitude to pull the engine and fix myself just want assurance I am headed in the right direction. Also, what are the chances that since I was idling and didnt hear any strange noises that I damaged anything(valves,etc...)? Could I be lucky enough for this to just be timing chain and components replacement? I am a maintenence mechanic, I just havent done a lot of engine work
#2
#3
RF Veteran
iTrader: (1)
Yes, if you checked #1 and #4 and 0 psi then its a safe bet the gears have slipped, they don't use keyways they are friction fit
While it is an interference engine its not common to get piston strikes in these but it does happen, seen here: https://www.explorerforum.com/forums...ngs-jpg.59331/
0 psi is a BIG slip
Or once you have the engine out and cam out(or movable/timed) you can do a leak down on each cylinder
Or use a borescope to have a look at top of pistons
While it is an interference engine its not common to get piston strikes in these but it does happen, seen here: https://www.explorerforum.com/forums...ngs-jpg.59331/
0 psi is a BIG slip
Or once you have the engine out and cam out(or movable/timed) you can do a leak down on each cylinder
Or use a borescope to have a look at top of pistons
#4
#5
RonD, I have heard it both ways. If chain goes then engine is toast . and some say I should be ok. I just need to know what to look for when I pull the engine .I am not scared of pulling the engine or of any of the work I may need to do. Just not heavily experienced doing engine work so looking for guidance and assurance I am doing right. I really like the little truck and everything else works good. I want to keep it to use on our old farm. I am also confused about which(?) engine I have. Are there 2 different 4.0s? a sohc or an ohv? If there are 2 different engines how do i know which one I have?
The following users liked this post:
DILLARD000 (02-01-2023)
#6
with those notorious LeftFront+RightRear OilPressurized TimingTensioners.

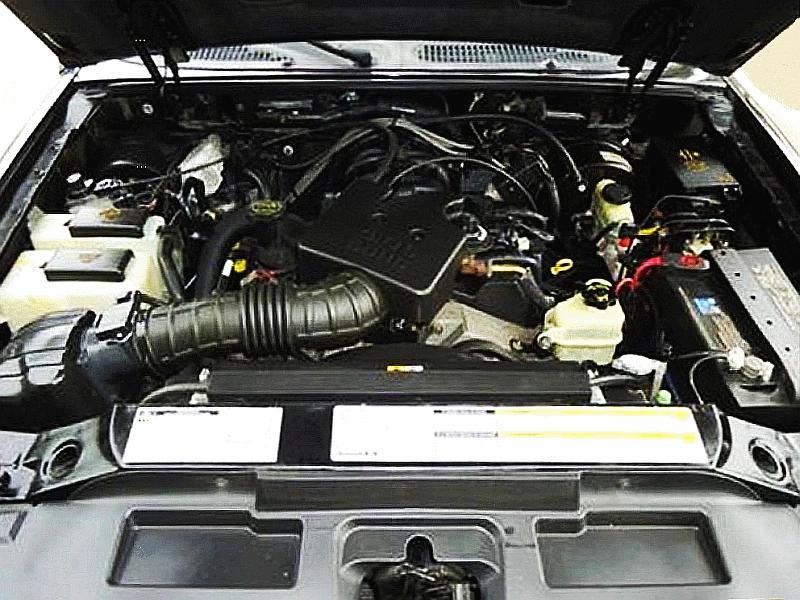

Your 2002 Engin should have same TopSide fittings as my 2001 Job2 V6~4.0L~SOHC.
Last edited by DILLARD000; 02-02-2023 at 03:04 AM.
#7
#8
while I have yall here, if it is timing chain issue(gonna replace them anyway if i use this engine) any suggestions on where to get parts and what to get? I figured i would go ahead and replace the oil pump too. what can I expect to spend on parts? would i be better off getting a reman engine?
#9
RF Veteran
iTrader: (1)
If hoist will handle the weight and you have 3 people then its a bit easier to pull engine and transmission, on a 4x4 you do need to remove transfer case first
Put a piece of plywood over the windshield, I has a snag and engine trans swung back................., new windshield, lol
Remember, when you lift up the engine there will be no weight on front suspension so front of the vehicle will come up very high, which can make it hard to get engine out of engine bay
You can chain the suspension so it doesn't come up as far
Or remove front tires to lower it, after engine is held by hoist
Drain trans fluid first
Put a piece of plywood over the windshield, I has a snag and engine trans swung back................., new windshield, lol
Remember, when you lift up the engine there will be no weight on front suspension so front of the vehicle will come up very high, which can make it hard to get engine out of engine bay
You can chain the suspension so it doesn't come up as far
Or remove front tires to lower it, after engine is held by hoist
Drain trans fluid first
