347 dyno

got the motor back together and dynoed it today it made 508 hp at 6,500 and it had a tq table not a curve it made mid to low 400 tq from 4,600-6500. we stopped it because it is a stock block.
Reply With Quote
  #2
Old 09-15-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
NICE ! Great torque figure.
Reply With Quote
  #3
Old 09-15-2014
pearlkid9988's Avatar
Member

Join Date: Dec 2008
Location: Newnan Georgia
Posts: 828
Is that for the ranger?! that would be one hell of a street truck lol once it hooks up doubt anything would touch it!
Reply With Quote
  #4
Old 09-15-2014
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
Awesome! I'll have a 347 of my own soon. Hope it pushes similar numbers!
Reply With Quote
  #5
Old 09-15-2014
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
Motor

Yes it's for the ranger but it's not a street truck fuel was like 10.00 a gallon. This is a track only. Thinking of going with a 9 inch and 4:30 gears
Reply With Quote
  #6
Old 09-16-2014
pearlkid9988's Avatar
Member

Join Date: Dec 2008
Location: Newnan Georgia
Posts: 828
Nice project! Love to see when this thing is done! And yeah $10 a gallon won't cut it on the street.
Reply With Quote
  #7
Old 09-16-2014
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
The 9" is a good choice, the gears ratio will depend on the rear tires and the rpm you want to be turning when you go through the end of the strip.

You want your engine putting out full power, close to full rpms when you hit the final timer.
Post what your times are, will be interesting to see.

What rpms are you expecting .
What about the stock block, they are ok but they will twist up with too much owner.
There is a torque plate that helps some, it is mounted on the main bearing bolts, and is suppose to eliminate block twist.

Luck to ya !
Reply With Quote
  #8
Old 09-16-2014
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
the motor has main cap support. the truck has a cage but some people say its not a legal cage. i was told by the track it was good till a 11.00 i think. i think its going to make a pass to see what it does with the 3:55 gears so we know where we are at. i was thinking 4:30 gears. the motor builder said it shold be a good 6,000rpm motor all day long.
Reply With Quote
  #9
Old 09-28-2014
Member

Join Date: Sep 2014
Location: Richmond-Metro, VA
Posts: 10
Icon2

Quote:
Originally Posted by faststang90 View Post
...and it had a tq table not a curve it made mid to low 400 tq from 4,600-6500. we stopped it because it is a stock block.
LOL This made me laugh.
Reply With Quote
  #10
Old 09-29-2014
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113

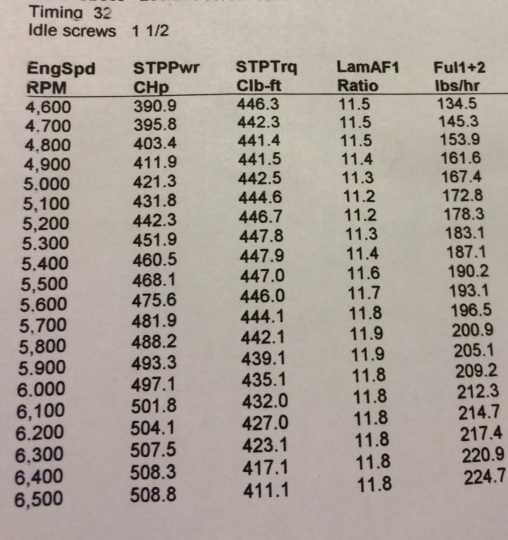

here it is
Name:  dyno_zpsb0f76d29.jpg
Views: 34
Size:  93.0 KB
Reply With Quote
  #11
Old 09-29-2014
Member

Join Date: Sep 2014
Location: Richmond-Metro, VA
Posts: 10
What are you using to tune (or is it carb'd)? A/F ratio is flat straight across the board.
Reply With Quote
  #12
Old 09-29-2014
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
its carb 750 holley/pro form body
Reply With Quote
  #13
Old 03-29-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
made a few passes and the best pass was a [email protected] when you shift into 3rd gear the 1/4 is over so I think the 4:30s are needed.
Reply With Quote
  #14
Old 05-21-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113

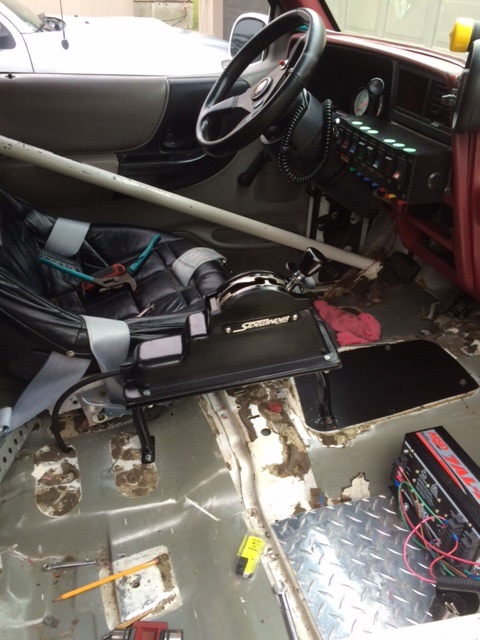

I changed the shifter on it and we will see if its any better.
Attached Thumbnails
347 dyno-new-shifter-.jpg
Reply With Quote
  #15
Old 09-22-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113

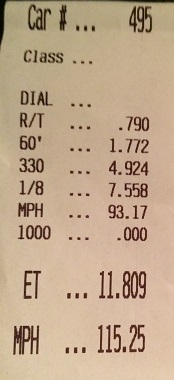

got into the high 11s

Name:  best%20pass_zpsm56dgh2k.jpg
Views: 32
Size:  23.4 KB
Reply With Quote
  #16
Old 11-10-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
had it dynoed to the tires and it made 356 HP/ 339TQ. we picked up around 25 hp to the tires and about the same on TQ
Reply With Quote
  #17
Old 11-10-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
Nice!
Reply With Quote
  #18
Old 11-14-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
made it to the track and it did not pick up as much as I was thinking. best pass was a 11.75 @115. I think the battery went bad because it did not want to start on the last pass
Reply With Quote
  #19
Old 12-05-2015
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
a little better

the cold weather help some.
Attached Thumbnails
347 dyno-11.65.jpg   347 dyno-pass-11.73.jpg
Reply With Quote
  #20
Old 01-16-2016
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113

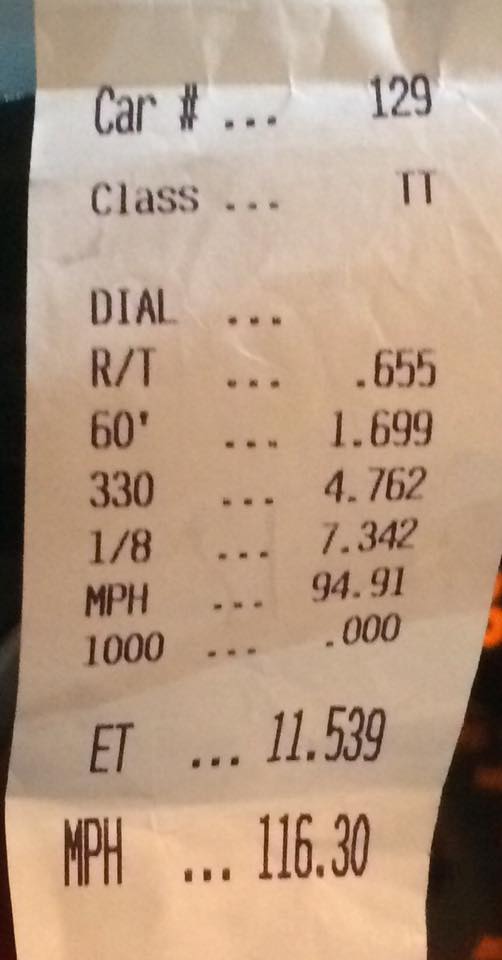

a little better
Attached Thumbnails
347 dyno-best-pass-1-15.jpg
Reply With Quote
  #21
Old 01-16-2016
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
not bad!
Reply With Quote
  #22
Old 01-17-2016
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
yeah I checked the plugs today and they was black. I don't know if the colder air made it that way. I'm going to go down a jet size in the front because it does not want to idle. I keep being told from others to go to a 850 carb but holley says it is to big now and I need a 600. I just don't have a extra 900.00 to buy the wrong part.
Reply With Quote
  #23
Old 03-26-2016
faststang90's Avatar
Member
Thread Starter

Join Date: Feb 2011
Location: dayton texas
Posts: 113
guess i'll see if it helps or not. Name:  holley%20xp%20750_zpso6krtebn.jpg
Views: 38
Size:  72.1 KB
