Too Funny on 7-12-07 I made my first post here, wow what changes have taken place from there. I was only about 95% off on what I wound up doing. SOrry for the repost, but I thought it was funny and cool how far its come. Not even the same truck as I started with.

Wow, my first post here.

First let me start by saying, I am not a troll, and I am dead serious when I say I am here looking to find out info on putting a 6.0 in a ranger. This is going to be a drag truck, and it is going to be done right. I have an 03 F-250 6.0, that runs high 12's with Nitrous. Long story short I have a 6.0 sitting around, some spare parts, a big ole turbo, and I am looking to shoe horn it into a ranger. I was hoping to find a forum where it has been done. I know about the hypermax Spal build, but am looking for something a little different. I am planning on a 2wd Ext cab, that way I can move the firewall back about 6"'s. The tranny and rear end are going to be interesting, but its all in the name of fun. I am a moderator at one of the diesel sites, but I don't want to say it, because I am trying to start this thing off a little secrative.

So far the plan is a 2001 ext cab
my 6.0 with Casserly 250cc injectors,
A regulated return fuel system
Possibly a turbonetics super 72 Turbo, (I have a stock VGT turbo that can go on it, but what fun is that)
Built 5R110 transmission by Suncoast
probably a ford 9" rearend narrowed of course w/3:73 gears
4" cowl hood
completly gutted.
firewall set back a few inches along with the seats and pedals to keep everythign where it feels right.
Full 12 pt cage...through the firewall and all to tie the whole frame together so we won't need to box so much of the frame.
Gonna need heavier front springs and drop beams to get it down and still hold the motor up
custom motor mounts
Custom trans crossmember
custom driveshaft
mini tubs in the back with 15X12 wheels running a 32" slick
Possibly a 4 link
Painless wiring kit...maybe a 12 circuit set-up to keep all the lights and stuff working....it'll be much easier than trying to keep the original crap working after the dash is hacked up
GOOD brakes...maybe a Mustang Cobra retrofit(the spindles are the same)

So what do you guys think? My 03 with Nitrous is over 525 hp, and 1050 Ft pounds, and thats just a tuner, (SCT), intake, exhaust, Fuel system, and NX nitrous kit. We did some math, and were thinking mid 10's if it can hook up.
If you have any HELPFUL suggestions, I would love to hear them. Thanks
Reply With Quote
  #777
Old 03-31-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i want to see it go down the track
Reply With Quote
  #778
Old 03-31-2009
kyle12201's Avatar
Member

Join Date: Apr 2008
Location: East Waterboro, ME
Posts: 1,543
Quote:
Originally Posted by Diesel Ranger View Post
Now thats what I'm talking about. 20, YES, 20 months in the making.



SICK!!
Reply With Quote
  #779
Old 03-31-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
What was going on at Ennis? Some diesel drags?

if you ever get an enclosed trailer I may be interested in that one.. lemme know
Reply With Quote
  #780
Old 03-31-2009
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
Man, I just got thru goin through some recent pages of this thread... there aren't words great enough to describe what you are doin... just awesome man, and we want videos!!!
Reply With Quote
  #781
Old 04-01-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
Quote:
Originally Posted by 99ranger4x4 View Post
What was going on at Ennis? Some diesel drags?

if you ever get an enclosed trailer I may be interested in that one.. lemme know


Yeah there was a Diesel event by NHRDA up in Ennis.


I can't get rid of my car trailer.....that things priceless. LOL
Reply With Quote
  #782
Old 04-01-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
haha give me a heads up before the next Diesel event, I want to see more diesel racing.
Reply With Quote
  #783
Old 04-01-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
Here was the fastest pass that weekend. Alex Laughlin in the Dr. Performance rail. This was the last pass this rail was ever going to make as a diesel. They let it all hang out. It was all over the track, but he never let out of it.

http://www.youtube.com/watch?v=H7i9dCK6Wh0
Reply With Quote
  #784
Old 04-01-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
Well its getting close to being finished, and the final things are starting to come together. We have decided for now to not run an intercooler, and to look at water injection for keeping the temps in check. Eventually we will be adding a Hellman intercooler to the mix, but time and money are getting tight. One call to Snow Performance, to discuss the options, and a Stage 2 Diesel boost cooler with a 220 pump is on the way. Matt was excited about the project, and wanted to be a part of it, and offered a second system if needed to keep the temps in check. Thanks a bunch to those guys and welcome aboard. :rockwoot:

http://www.snowperformance.net/product.php?pk=25

Reply With Quote
  #785
Old 04-02-2009
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Where does the water get injected? It's always been my understanding that water in the cylinders is bad!
Reply With Quote
  #786
Old 04-02-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by Gearhead61 View Post
Where does the water get injected? It's always been my understanding that water in the cylinders is bad!
Too a certain extent. It is extremely helpful in boosted motors. The water helps too cool the cylinder walls and helps too boost the octane to help with knock. Most people run 50/50 water/meth mix. But in race applications some people run 100% water. Its a very vine mist. Now its been a while sence I have played with boosted motors so if i am wrong someone please let me know.
Reply With Quote
  #787
Old 04-02-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
No your pretty much dead on, except in a diesel, there is no octane, there is Cetane, the exact opposite of Octane. Octane delays the combustion, Cetane helps it combust sooner. Compression ignition, AKA Diesel engines, squeeze air in the cylinder till it is extremely hot, then injects diesel into it causing the combustion process.

The water helps remove the latent heat in the air and acts much like an intercooler cooling the charged air from the turbos. When the air is compressed, it heats up. When you cool it whether with an intercooler, or water injection, you can cram more of it into the cylinder. More air = more power. Using Meth along with the water adds fuel, Methanol, to the process as well which = more power. The water is injected in the intake manifold just prior to the intake manifold. It is under high pressure, and water per say does not enter the cylinder. Water vapor enters the cylinder, think fog.
Reply With Quote
  #788
Old 04-02-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by Diesel Ranger View Post
No your pretty much dead on, except in a diesel, there is no octane, there is Cetane, the exact opposite of Octane. Octane delays the combustion, Cetane helps it combust sooner. Compression ignition, AKA Diesel engines, squeeze air in the cylinder till it is extremely hot, then injects diesel into it causing the combustion process.

The water helps remove the latent heat in the air and acts much like an intercooler cooling the charged air from the turbos. When the air is compressed, it heats up. When you cool it whether with an intercooler, or water injection, you can cram more of it into the cylinder. More air = more power. Using Meth along with the water adds fuel, Methanol, to the process as well which = more power. The water is injected in the intake manifold just prior to the intake manifold. It is under high pressure, and water per say does not enter the cylinder. Water vapor enters the cylinder, think fog.
I never knew the difference between octane and cetane and was just too lazy to look it up. I knew the just of how a diesel worked but I always thought it was the air that started the combustion not the fuel. Great info.
Reply With Quote
  #789
Old 04-02-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
Nope timing in a diesel is controlled by the injector. One of the reasons you can get a runaway with a diesel around a propane tank leak. There is no way to shut off the "ignition" because if it has fuel it will run forever. The only way to shut it down is to kill the air.
Reply With Quote
  #790
Old 04-02-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Or kill the fuel... But yeah. :-)

Gasoline = combustion

Diesel = Compression.
Reply With Quote
  #791
Old 04-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
.
Reply With Quote
  #792
Old 04-02-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
Good post Matt.
Reply With Quote
  #793
Old 04-03-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
A couple of shots from last week.


Name:  IMG_1644.jpg
Views: 2
Size:  107.8 KB

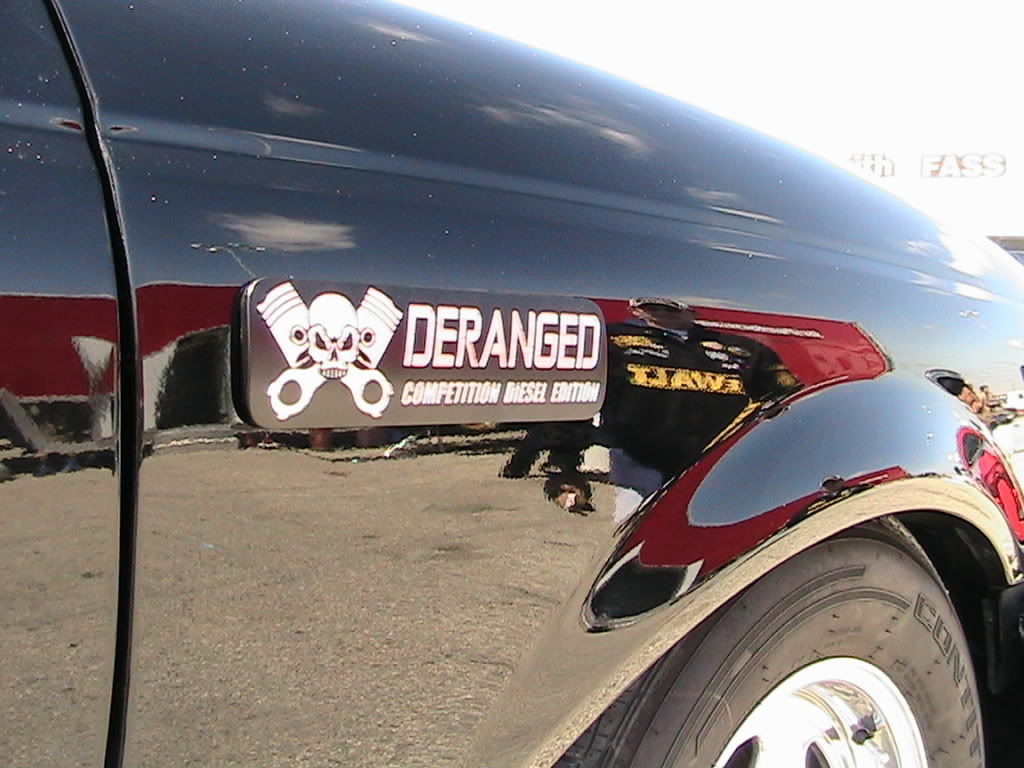

Name:  IMG_1658.jpg
Views: 2
Size:  132.6 KB

Name:  IMG_1661.jpg
Views: 2
Size:  100.8 KB
Reply With Quote
  #794
Old 04-03-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
I've had blue ***** for the past year watching this build, can't wait to see/hear the finished product. A milestone in Ford Ranger engine swaps and drag trucks for sure, awesome work.
Reply With Quote
  #795
Old 04-03-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
SKEET!!!
Reply With Quote
  #796
Old 04-04-2009
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
I've never heard a bad things about Snow Performance. About how long with that 2 quarts of water last?
Reply With Quote
  #797
Old 04-04-2009
Diesel Ranger's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: TX
Posts: 639
About 1/4 mile. LOL
Reply With Quote
  #798
Old 04-04-2009
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
LOL better get the 2.5 Gal tank they sell.
Reply With Quote
  #799
Old 04-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by karrbass4life View Post
LOL better get the 2.5 Gal tank they sell.
..it only has to last a 1/4 mile, i think that was the joke.
Reply With Quote
  #800
Old 04-07-2009
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Quote:
Originally Posted by 99ranger4x4 View Post
..it only has to last a 1/4 mile, i think that was the joke.
I know.
Reply With Quote
