  #151
Old 10-08-2009
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
yum
Reply With Quote
  #152
Old 10-08-2009
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
Probably 3 MPG on city and 4 MPG on the highway LOL
Reply With Quote
  #153
Old 10-08-2009
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
Hey Chris when are you planning to post videos of your truck?
I wanna hear see it in action!!
Reply With Quote
  #154
Old 10-09-2009
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
I take it that the 80 pounder is on the left in both pics?
Reply With Quote
  #155
Old 10-09-2009
Member

Join Date: Feb 2008
Location: Bristol, Connecticut
Posts: 107
Quote:
Originally Posted by 302project View Post
Probably 3 MPG on city and 4 MPG on the highway LOL


You will be surprised. If your tuner knows what he is doing, then you will not knowtice a difference in mpg's. Only thing i am worried about with your setup is the big injector but still high impedance. You might have some part throttle and/or idle problems, but that is all up to your tuner.
Reply With Quote
  #156
Old 10-10-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
awesome!.. I like all the 02 sensors bunched up together lol
Reply With Quote
  #157
Old 10-10-2009
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
Quote:
Originally Posted by 05prerunner View Post
I take it that the 80 pounder is on the left in both pics?
Yeah the 80 lbs are on the left they are the thin ones


Quote:
Originally Posted by Red91Stang View Post
You will be surprised. If your tuner knows what he is doing, then you will not knowtice a difference in mpg's. Only thing i am worried about with your setup is the big injector but still high impedance. You might have some part throttle and/or idle problems, but that is all up to your tuner.
He is the only one around where I live that have talked to me and I could see that he knows what he's talking about. I told him the power that I want and he told me that I would only get it with these injectors and once again he told me that he could tune it with no problems for idle. He has tuned a Ford GT that have gone up to 1800 WHP CRAZY!!!
YouTube - TT Ford GT
YouTube - 1800 Hp Ford GT


Quote:
Originally Posted by INT3RC3PTOR View Post
awesome!.. I like all the 02 sensors bunched up together lol
Thanks. The guy that does this custom kits (Exhaust manifold and downpipes)
does it this way since there is only one BIG exit.
Reply With Quote
  #158
Old 10-10-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah pretty rad, wouldnt think thatd work but I suppose why not.
Reply With Quote
  #159
Old 10-17-2009
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
I finally got some tune done to the truck but unfortunately not like i want it but it works. Anyways here are some vids.
Watch closely the second video and notice that I loose traction at 80mph+ And this is only at 12 lbs of boost!!!

YouTube - My Turbo V8 Ranger First Drive

YouTube - Driving my turbo v8 ranger
Reply With Quote
  #160
Old 10-19-2009
TS6034's Avatar
Member

Join Date: Jul 2008
Location: Michigan
Posts: 138
Awesome work man!
Reply With Quote
  #161
Old 10-20-2009
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072

^pretty much sums up my reaction

I cant even begin to imagine that engine in a Fox body with slicks.
Reply With Quote
  #162
Old 10-20-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^ couldnt of said it better lol wow man
Reply With Quote
  #163
Old 10-25-2009
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
After a few runs including the one that I video taped, the truck started to smoke like it was a concert smoking machine so I decided to stop that by installing a moroso breather tank

Name:  FILE0023.jpg
Views: 8
Size:  204.6 KB

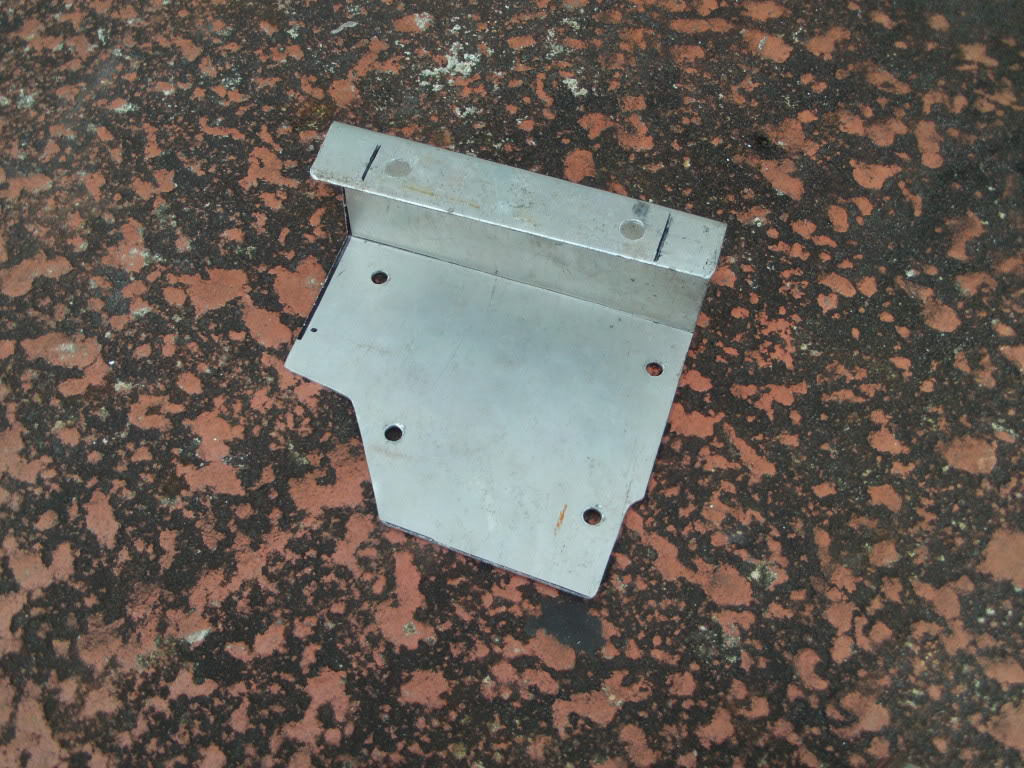

Here is the bracket that I made that is going to hold the tank

Name:  FILE0022.jpg
Views: 8
Size:  220.0 KB
Moroso breather tank

Name:  FILE0024.jpg
Views: 8
Size:  133.0 KB
After several hours thinking where teh heck i was going to mount the tank since the tank is a little taller than what I thought, because I was going to mounted next to the fuel regulator but the lines were going to hit the intake tube so no. I found the perfect spot next to the battery bracket/support/whatever its called lol

Name:  FILE0028.jpg
Views: 8
Size:  141.4 KB

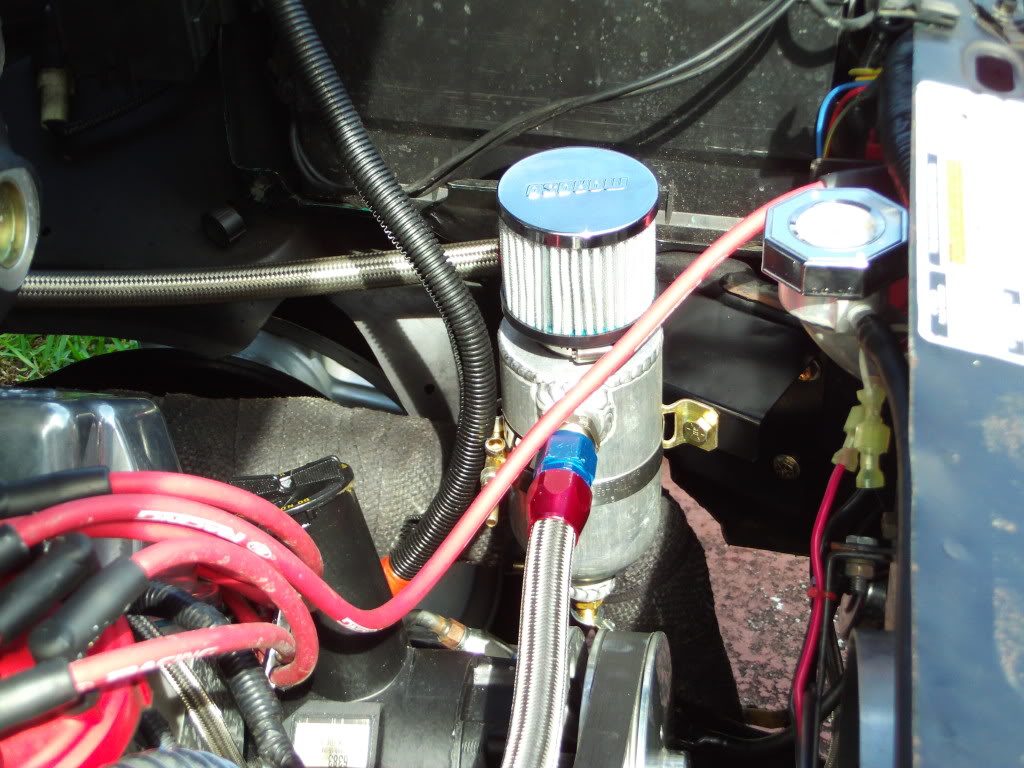

Here it is on its new home lol

Name:  FILE0025.jpg
Views: 8
Size:  130.9 KB

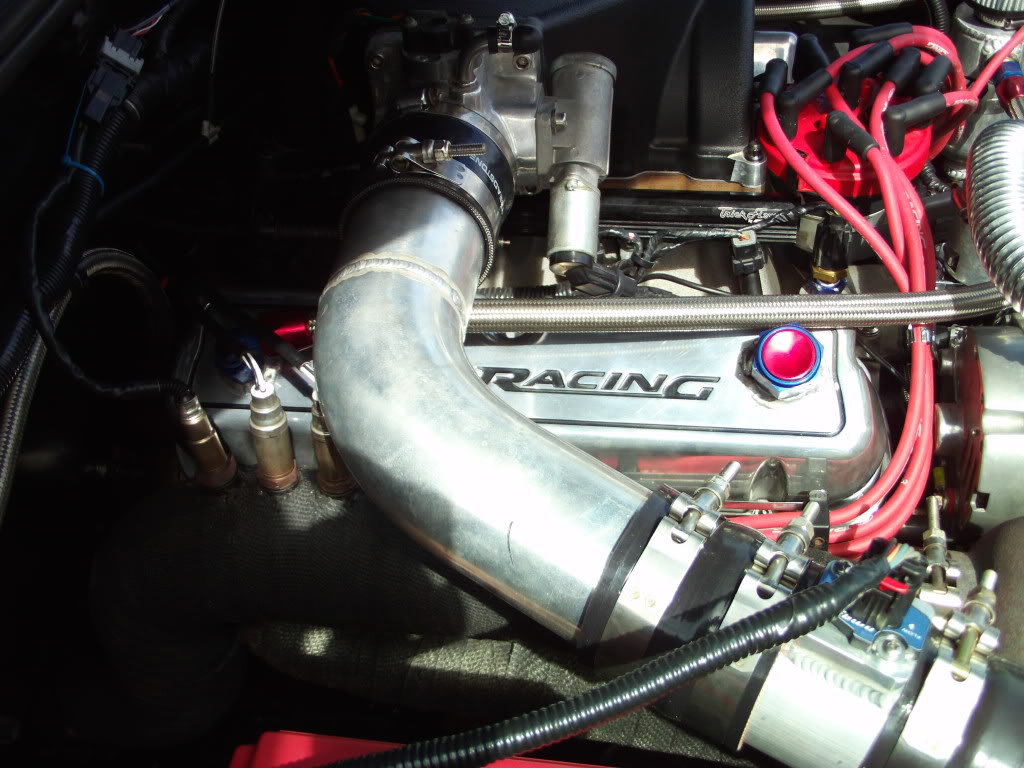

For the breathing lines I used -10an lines and fitting which are more than enough in my opinion. Also I used a -16 an fitting and cap as an oil cap becuase the rubber oil cap after a while the rubber get soft and lets oil come out.

Name:  FILE0026.jpg
Views: 8
Size:  154.8 KB

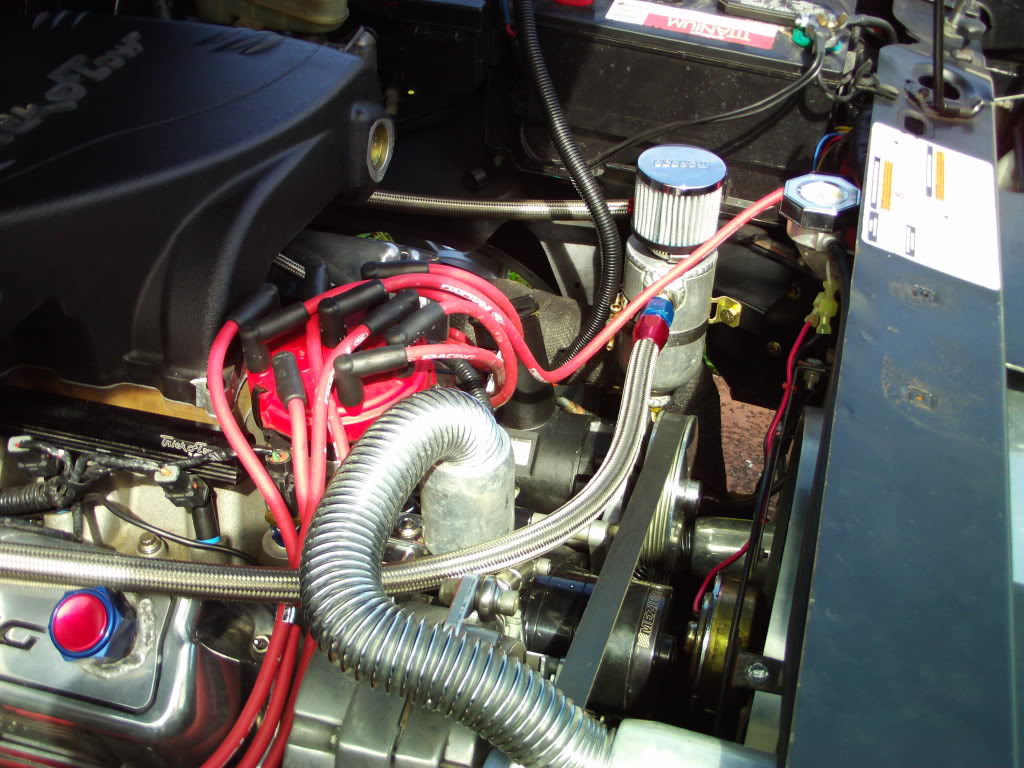

Another shot

Name:  FILE0029.jpg
Views: 8
Size:  123.4 KB
Again another shot

Name:  FILE0027.jpg
Views: 9
Size:  115.0 KB

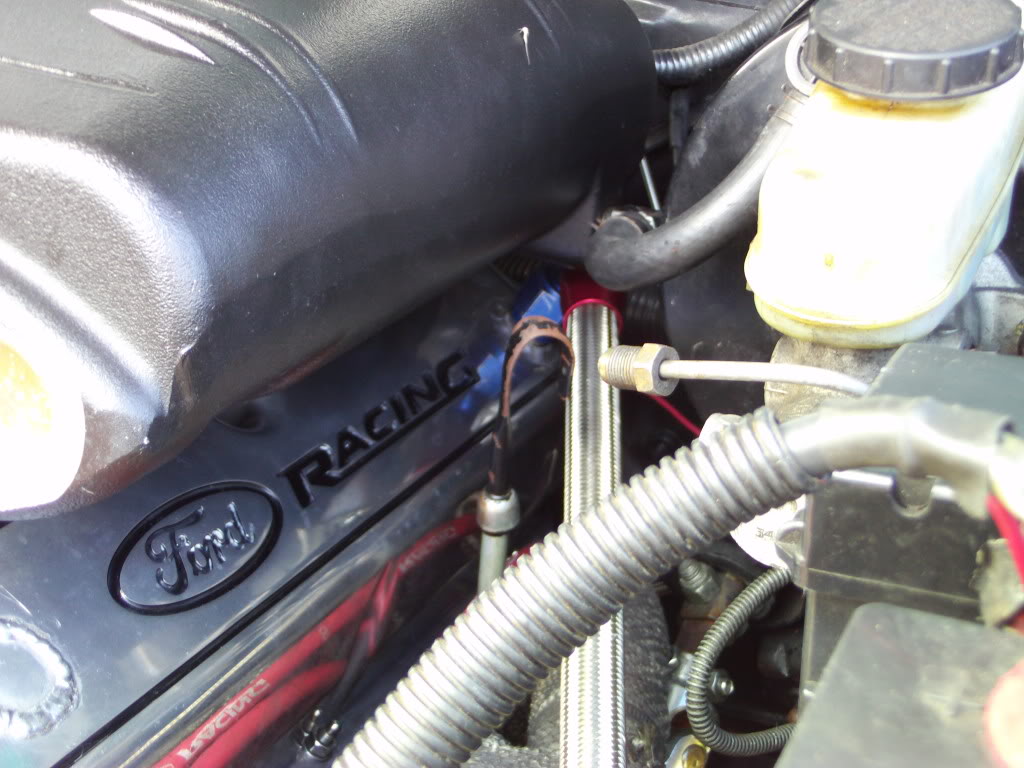

A shot on the other side


I took the truck for a little drive and guess what no more oil smoking machine lol

BTW I also deleted the pcv valve I put a rubber plug in the hole so I don't have to worry about boost going into the block. I used this
Reply With Quote
  #164
Old 02-24-2010
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
When I changed the stock rims for the ones I have for now (17") back in 2001, the truck never stopped the same (NOW IMAGE WITH A V8 AND TURBO). That's when I knew I wanted big brakes for my truck. But unfortunately all of us know that Wilwood and other brake companies don't care about making big brakes for the rangers, except for revolutionbrakes.com they make kits for probably all the cars.
Anyways here are some pics of my brake project. As of now I can only do the rear side first, because I don't have the fron't rotors and brackets yet.
I should be getting them next week (Can't wait)


This is the kit that I bought. It has an internal parking brake.


This is my Ford 9+ rearend, axle removed

Name:  SNC000518.jpg
Views: 8
Size:  239.2 KB

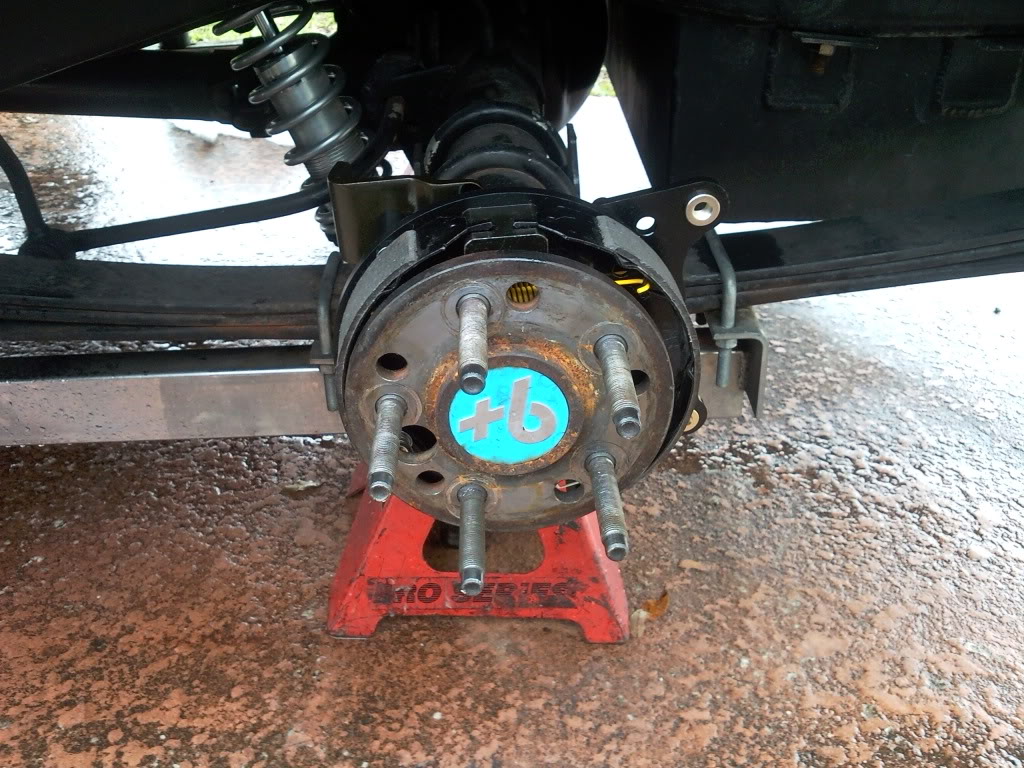

The parking brake and caliper bracket goes first

Name:  SNC000519.jpg
Views: 10
Size:  222.9 KB
Then the axle goes in

Name:  SNC000610.jpg
Views: 8
Size:  266.3 KB
I had to cut the OEM axle retainer and installed the wilwood retainer since the caliper bracket is thicker

Name:  SNC000611.jpg
Views: 8
Size:  203.6 KB

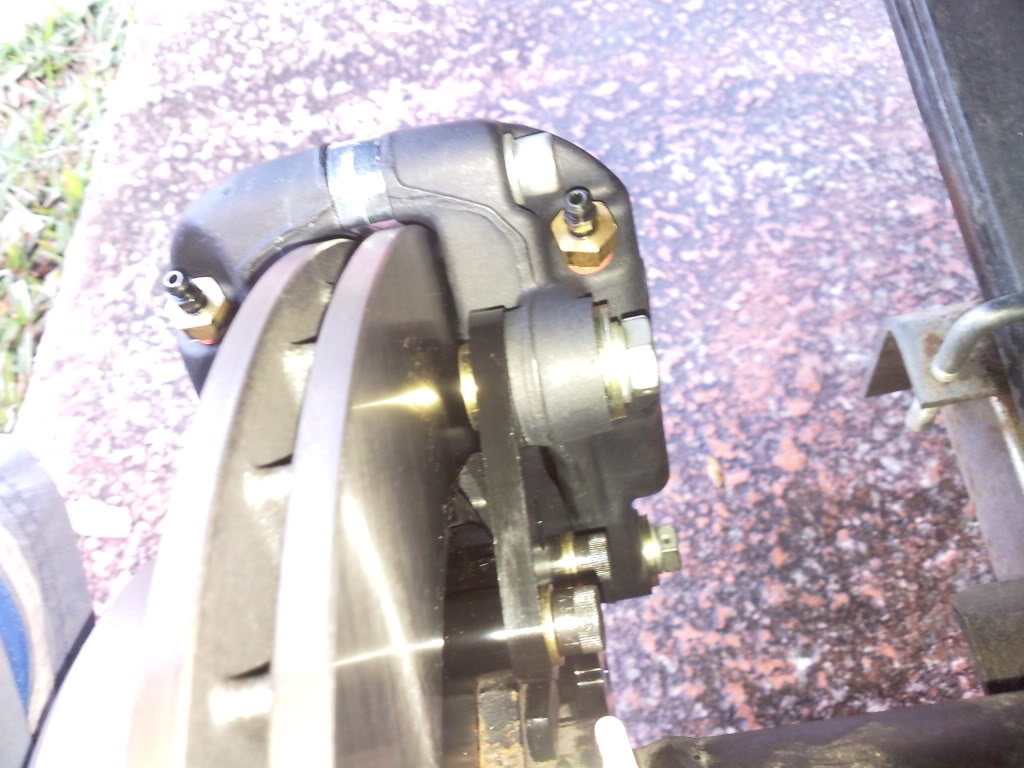

Next, the rotor and the caliper are installed

Name:  SNC00065.jpg
Views: 8
Size:  129.5 KB

Name:  SNC00063.jpg
Views: 8
Size:  105.6 KB

Name:  SNC000516.jpg
Views: 8
Size:  129.9 KB

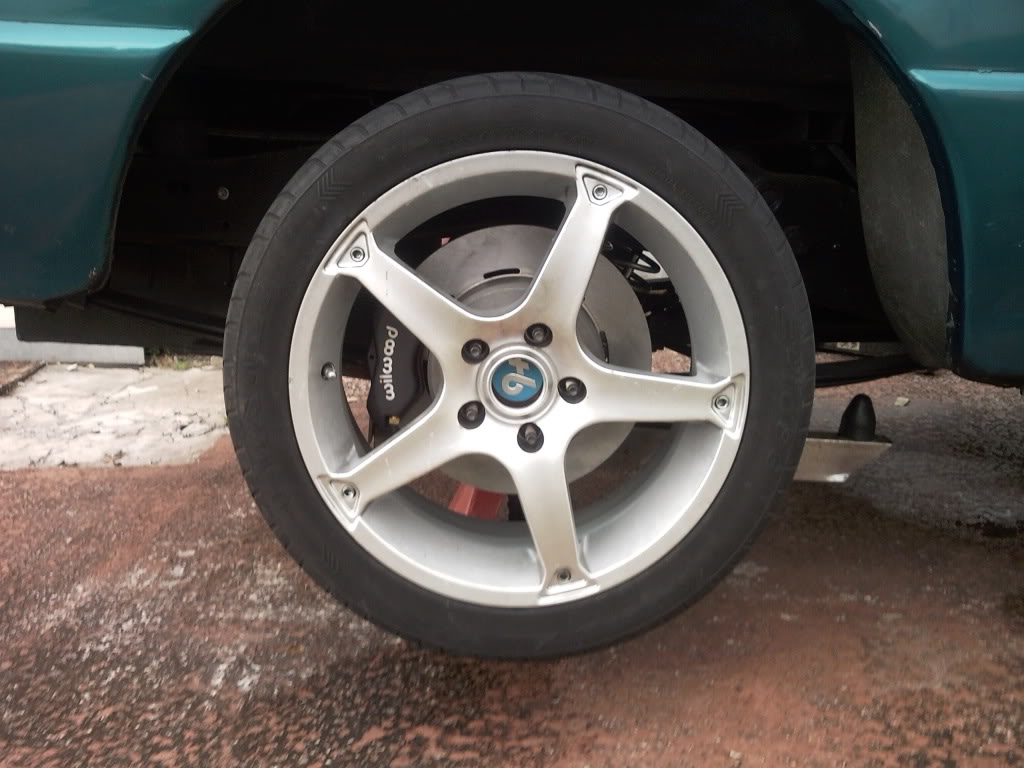

And that's how it looks

this is the front caliper which is a lot bigger than the rear ones. Both front and rear calipers have 4 pistons.
Name:  SNC00068.jpg
Views: 8
Size:  94.5 KB

I haven't tested them yet since I don't have the complete front kit and I don't have the back lines yet, and I need to flush the system also.

I will post pictures of the front kit as soon as I get them!

Last edited by 302project; 02-24-2010 at 09:33 PM.
Reply With Quote
  #165
Old 02-24-2010
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Wow, sweet brake package (as well as the rest of the truck obviously). Mind if I ask the price or where you bought it from?

From what I understand the guy who machined the rotors/hubs to work with 13" Cobras that everyone was using jacked his prices up like crazy, so this may be a lot more reasonable for an entire kit.

Thanks
Reply With Quote
  #166
Old 02-24-2010
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
^^Thanks!!

Both kits I bought were from revolutionbakes.com BUT I did buy the front rotor/hub and caliper brackets but I don't know if is the same guy you are talking about. I bought the rotor/hub adapter and caliper brackets from Tee Rev aka racin' ranger from rangerpowersports.com which he designed to work with the wilwood calipers at no extra cost. I bought the kit around october last year and it
cost me $345 plus $40 ups charge from canada, I don't think he raised the price but I could be wrong. Both front and back kits cost me like $2500 plus the $385.

Note: The front kit is made for a 96-04 mustang not a ranger but again with the rotor/hub I can use them.
Reply With Quote
  #167
Old 02-24-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 302project View Post
^^Thanks!!

Both kits I bought were from revolutionbakes.com BUT I did buy the front rotor/hub and caliper brackets but I don't know if is the same guy you are talking about. I bought the rotor/hub adapter and caliper brackets from Tee Rev aka racin' ranger from rangerpowersports.com which he designed to work with the wilwood calipers at no extra cost. I bought the kit around october last year and it
cost me $345 plus $40 ups charge from canada, I don't think he raised the price but I could be wrong. Both front and back kits cost me like $2500 plus the $385.

Note: The front kit is made for a 96-04 mustang not a ranger but again with the rotor/hub I can use them.
Yeah, he bumped the price to $425 plus the unknown $40 UPS surcharge that pops up when you recieve the package.

i think you paid too much for that kit though....a Cobra R caliper would have been just has good...and only slightly better than the standard cobra caliper. Did you try the PBR cobra caliper before going with the 4piston ones??
Reply With Quote
  #168
Old 02-26-2010
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
^^Damn that sucks

And no, I've never tried the PBR cobra caliper but I've always liked
Wilwood over factory cobra brakes. The cobra R calipers I do like since it's Brembo but they apparently forgot the rear. I want one brand name for the entire system
Reply With Quote
  #169
Old 03-31-2010
Member

Join Date: Mar 2010
Location: Cortland/ Binghamton NY
Posts: 4
where is the finished product?
Reply With Quote
  #170
Old 05-08-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Deleted by Scrambler82
Reply With Quote
  #171
Old 05-13-2010
Alex98's Avatar
Member

Join Date: Jul 2007
Location: Baltimore, Maryland
Posts: 844
lol that makes my motor swap seem like nothin at all.
Reply With Quote
  #172
Old 06-15-2010
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224
Quote:
Originally Posted by fbmbks View Post
where is the finished product?
Here it is.

It's been a while since I have posted. So here's a little update.

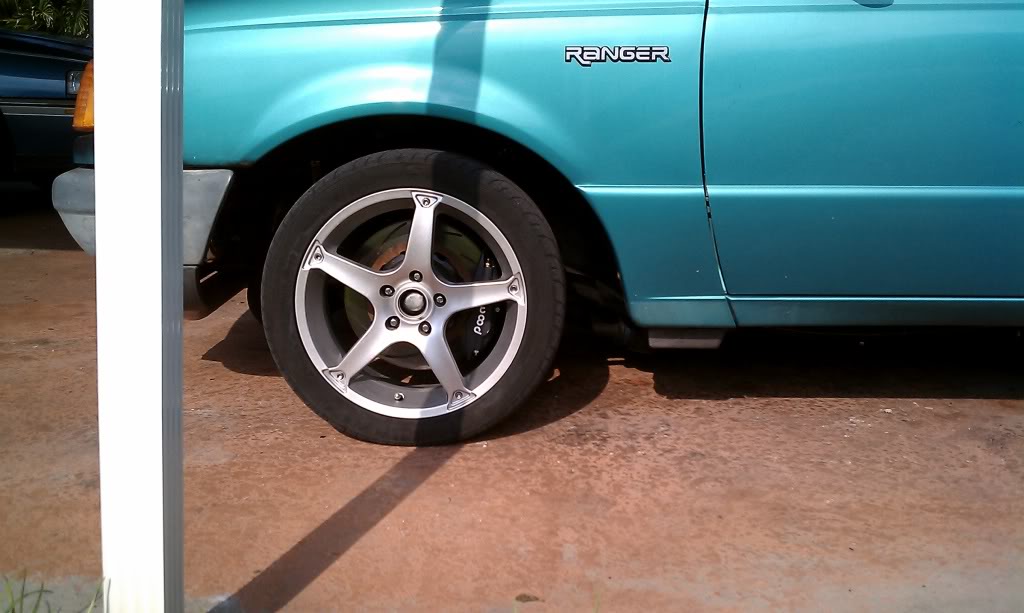

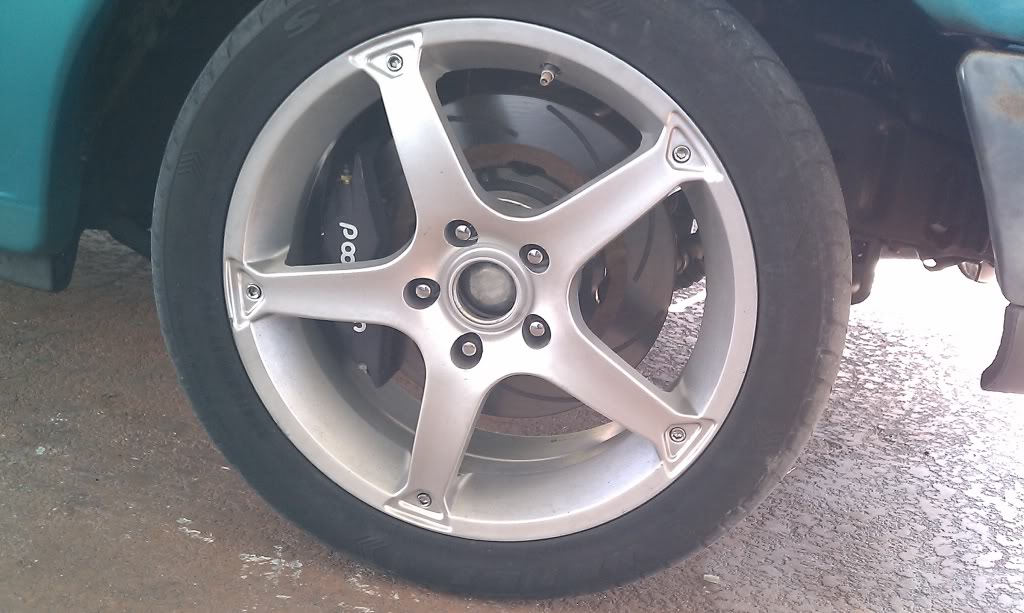

Here's a couple of pics of the front brakes.

Name:  f06a4cd4.jpg
Views: 8
Size:  78.7 KB

Name:  a03e6f65.jpg
Views: 8
Size:  101.7 KB


This comes next
Reply With Quote
  #173
Old 08-04-2010
302project's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Opa Locka, Fl
Posts: 224

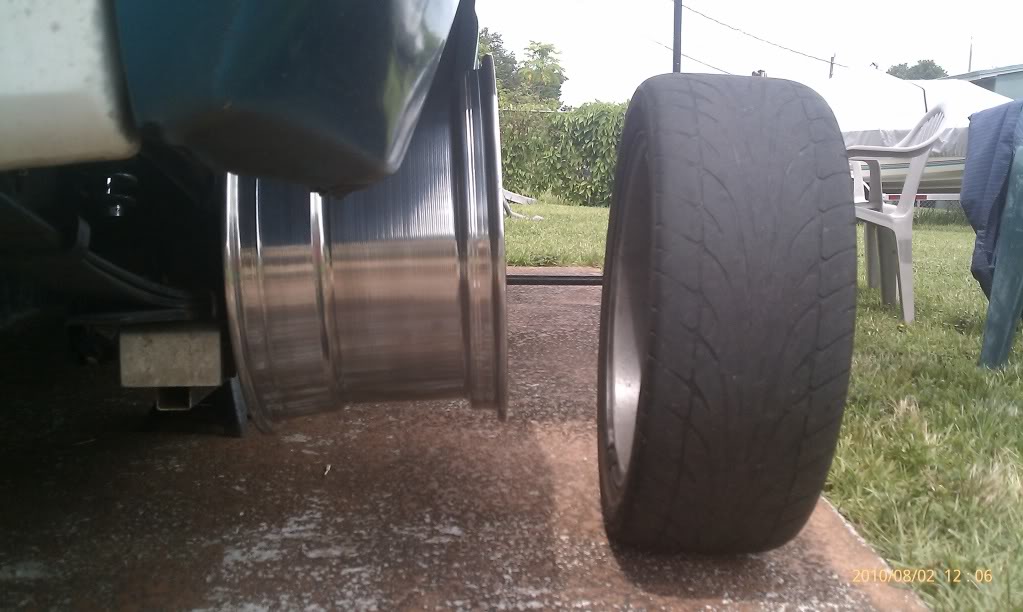

Well, it was about time I buy the rims lol. It took me this long becuase I ordered some 15s by 10 but i found out that the brakes were too big for these rims and that also i could squeeze one more inch wide, so i went for the 17s by 11. In a couple of weeks I'll have the drag radials. Hopefully that will help with my traction issues lol. And yes I still have to buy the front rims.

Name:  ac8cfed1.jpg
Views: 9
Size:  41.7 KB

Name:  f18148e9.jpg
Views: 11
Size:  90.1 KB

Name:  aeb2fd81.jpg
Views: 9
Size:  87.5 KB
Reply With Quote
  #174
Old 08-04-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Awesome upgrades. Truck looks great!
Reply With Quote
  #175
Old 08-04-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
badass
Reply With Quote
