Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap

Hey guys. I am going to swap a V8 into my truck hopefully, and I have so many questions already. I did start a preemptive build thread but instead of littering it with more questions that progress and answers, I figure I would put it here instead. I took some pics so maybe you guys know how to help.

This thing was crashed and somewhat stripped when I got it so I dunno what it is all supposed to look like stock:

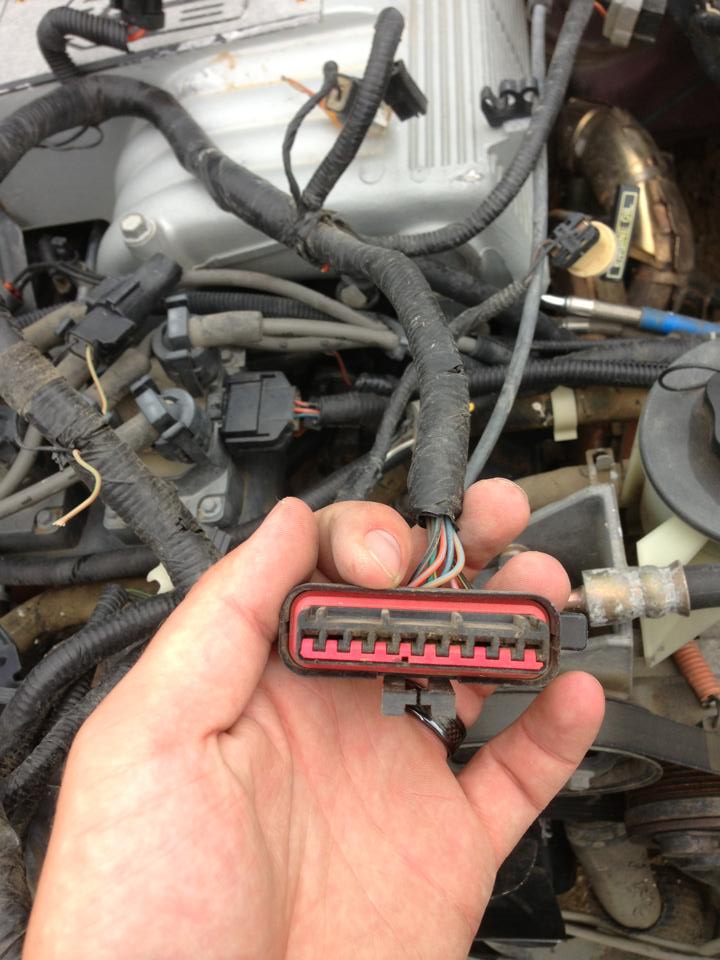

Ok this connector confused me:



but then I found this thing in the cab area:

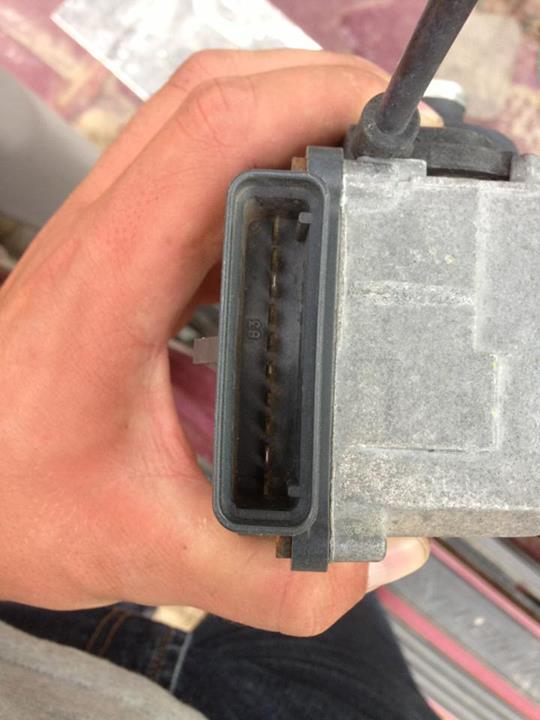

It has a cable attached to it, could it be the cruise unit? I am not sure if thing has cruise or not. My Ranger does not, if the Explorer does how does that get dealt with?

Speaking of dealing with things:



Does all this get transferred over too?

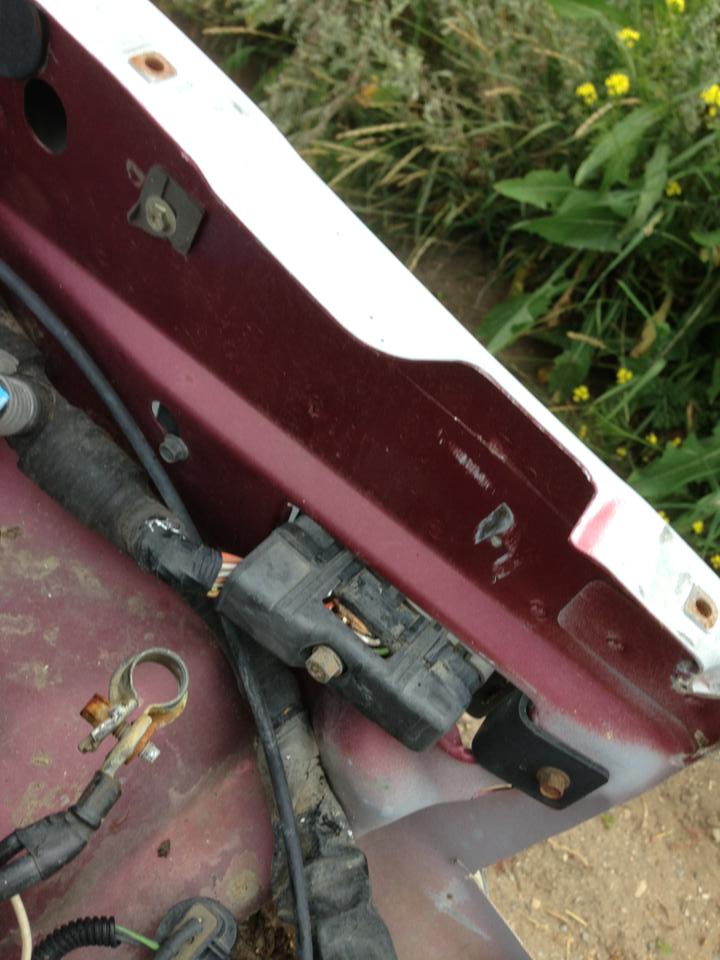

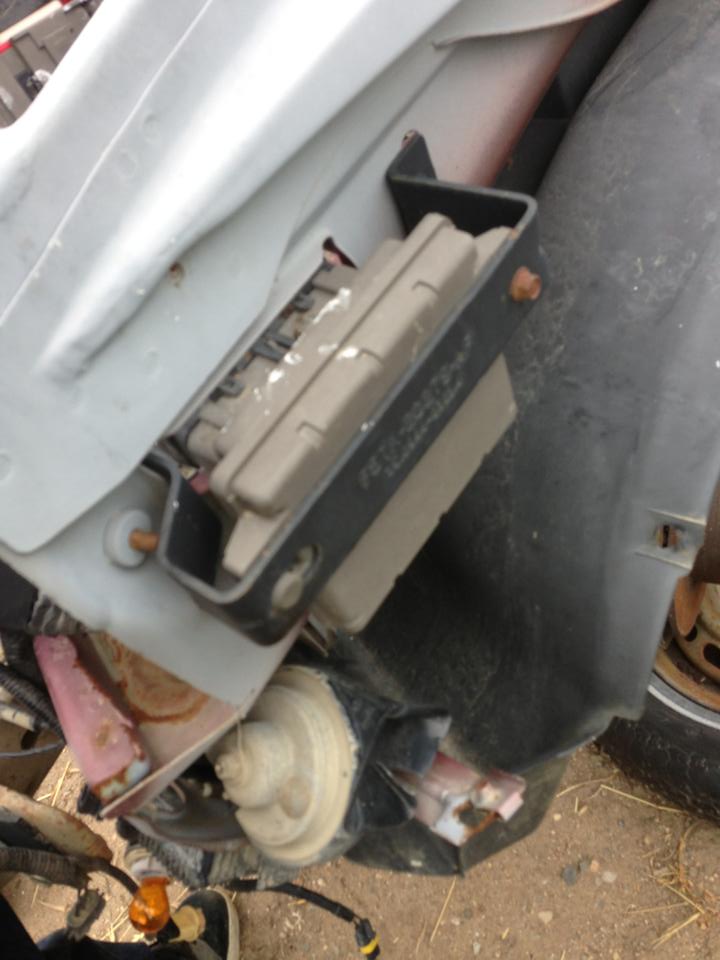

This thing is sandwiched in the fender:





What is it and does it get transferred over?

The following are all things I don't know what the heck they are:

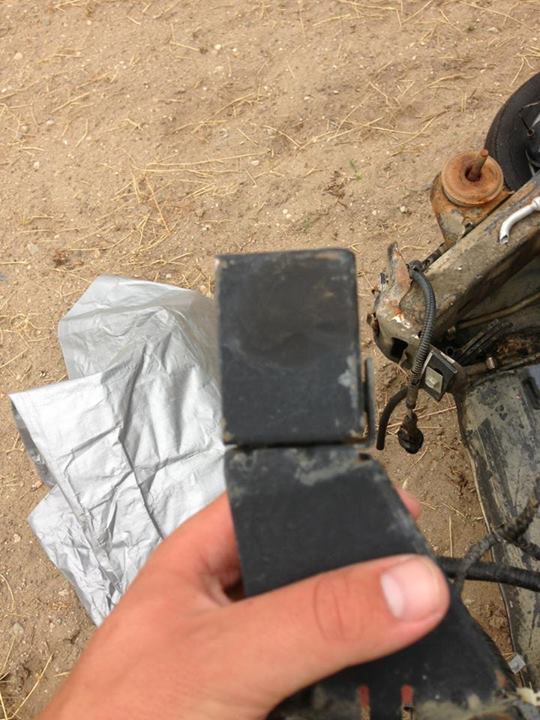

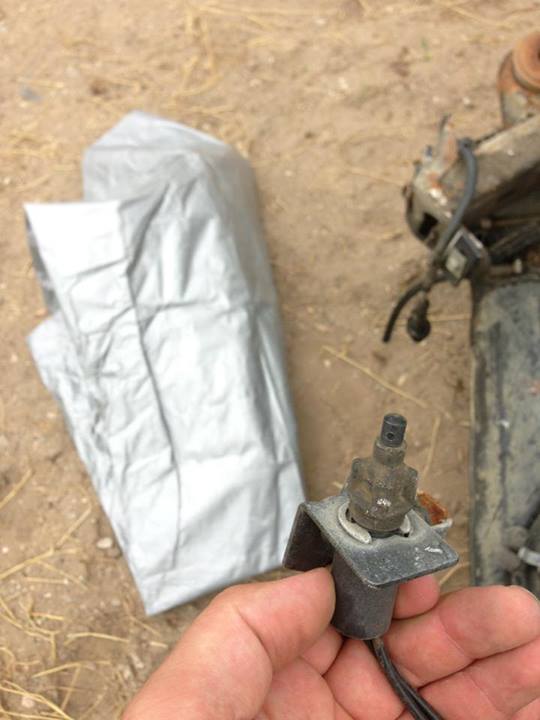

Dweano's guess: hood close sensor? It has a thing that goes down

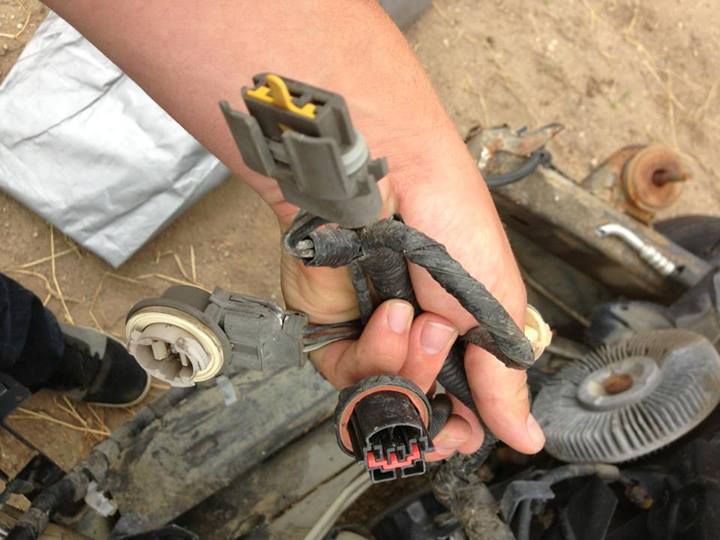

Dweanos guess: Headlight stuff?



DG: is this that crash sensor thing that gets mounted on the core support?

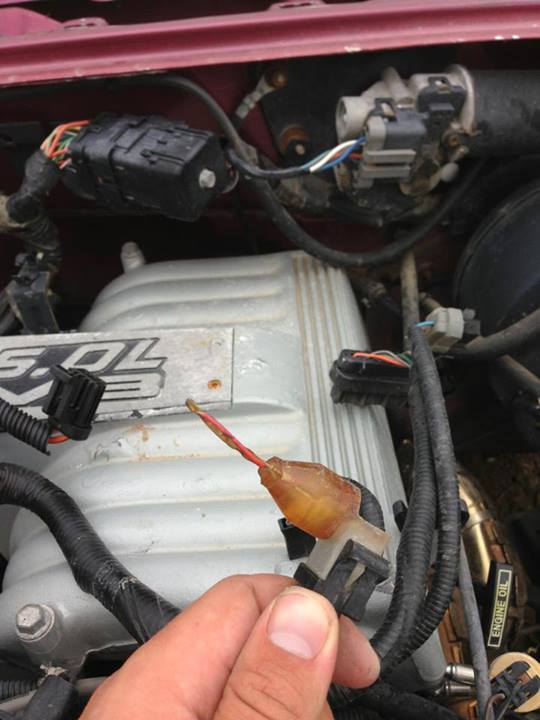

WTF. Dweano's guess: Copper wire trapped in amber to be studied by future scientists

So that concludes the what are these section of the tour. Does it all get transferred over? Every electrical thing under the hood? Or just engine stuff or what? It all seems tied together.

So:

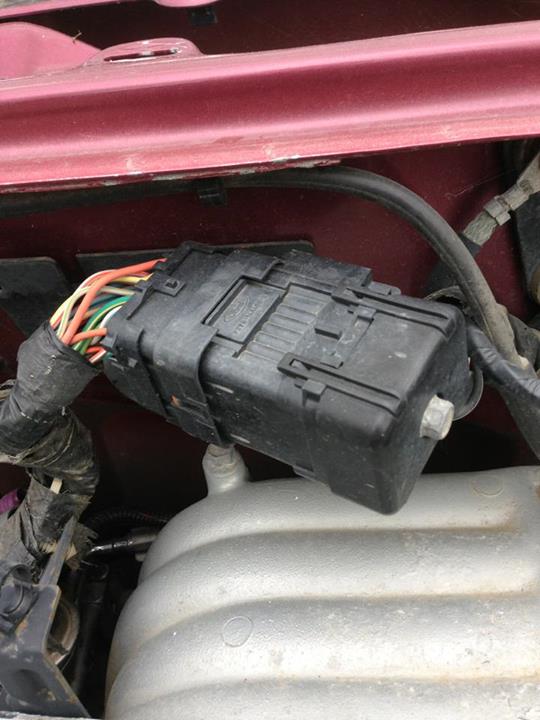

This looks like a bulky connector...tell me more please?

One last shameful question:

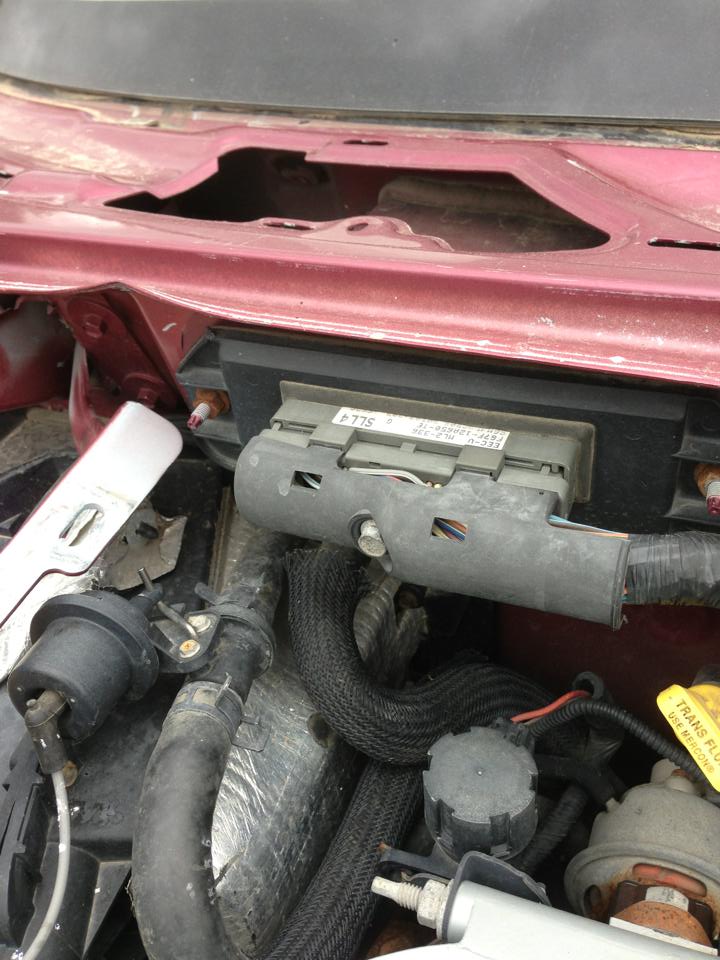

This is the PCM/ECU correct? I am a newb with this stuff. But I gotta learn sometime, thats what I have done with the other systems on this truck. Don't judge haha
Attached Thumbnails
Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1149038_10151593080716378_496273458_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-15639_10151593081141378_965097171_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1151044_10151593079801378_1228957462_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1150426_10151593080276378_1967319340_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-971058_10151593080206378_1605928038_n.jpg

Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1005799_10151593080646378_916419023_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1146467_10151593080591378_1431042130_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-1001731_10151593080481378_772624505_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-483960_10151593080351378_450407364_n.jpg   Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-58611_10151593080801378_579952461_n.jpg

Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-556755_10151593081041378_71594922_n.jpg
Reply With Quote
  #2
Old 08-09-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Lots of questions with not a lot of answers from me haha. Good luck with the build. Look forward to seeing the final product.
Reply With Quote
  #3
Old 08-09-2013
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
I have got a few answers from TRS. I am more wondering what goes and what stays and what has to be moved over to the Ranger ya know?
Reply With Quote
  #4
Old 08-09-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Yeah I gotcha. A lot of the stuff is accessory junk but there is a couple very important do dads that need to come over. TRS has a couple great write ups on it. Be sure to check them out.
Reply With Quote
  #5
Old 08-09-2013
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
Yeah I am reading. I just gotta figure it all out. Obviously you will need to cut into the harness and remove stuff?
Reply With Quote
  #6
Old 08-10-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Or just not connect the parts of the pig tail.
Reply With Quote
  #7
Old 08-11-2013
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
So basically all the wiring gets swapped over (oh boy) but only certain things are essential? For example the hood ajar switch probably is something that could get left?
Reply With Quote
  #8
Old 08-11-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
I believe so. Just depends how many bells and whistles you want after the swap.
Reply With Quote
  #9
Old 09-23-2013
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
Basically all this stuff doesn't even need transferring. Bonus! I read more and it is becoming more clear
Reply With Quote
  #10
Old 01-23-2014
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
For anyone reading this...basically all this crap doesn't need to get transferred. The computer connects to the engine (transfer it) and the "big bulky connector" connects the engine to the rest of the body and hooks up to the Ranger. So...its all good
Reply With Quote
  #11
Old 01-23-2014
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
The 42 pin engine connector?
Reply With Quote
  #12
Old 02-06-2014
Dweano's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Saskatchewan
Posts: 208
yes
Reply With Quote
  #13
Old 02-09-2014
Member

Join Date: Feb 2014
Location: Mesa, AZ
Posts: 4
I have a 07 2wd I want to do this same conversion it is nice to see others that are doing the same thing or already have. I'm looking for a 1999-2001 Mercury Mountaineer V8 2WD for a donor.
Attached Thumbnails
Questions concerning wires and wiring and harnesses and thingamabob's for V8 Swap-592.jpg
Reply With Quote
  #14
Old 02-09-2014
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
07 might make that a little more difficult with the wiring. I want to say that an 07 you will be doing full custom gauges since its all computer fed. Depends on your electrical skill.

There is a guy who did the swap on an 04 but I have no idea how he made it all work
Reply With Quote
  #15
Old 02-09-2014
Member

Join Date: Feb 2014
Location: Mesa, AZ
Posts: 4
Very true but if I had the whole donor couldn't I swap out that also?
Reply With Quote
  #16
Old 02-09-2014
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
I dont think they are shaped the same. Anything can be made to work but I am a little out of my league on this one. My 98 swap was a bolt in
Reply With Quote
  #17
Old 02-09-2014
Member

Join Date: Feb 2014
Location: Mesa, AZ
Posts: 4
True I haven't seen anyone that has done a swap on this new of a truck.
Reply With Quote
  #18
Old 02-09-2014
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
Hey do it up and take lots of notes and pictures
Reply With Quote
