can 2 speakers be installed at the speaker covers on a 2010 ranger regular XL?>>>

I just acquired a 2010 ranger XL regular cab and it appears that in the back there are 2 speaker covers with nothing inside except just the opening for some speakers on the plastic trim, but once I took off the cover the plastic does not seem solid to be able to support some speakers especially if roads get rough and stuff.... anyone know for sure??? if so what size???
Reply With Quote
  #2
Old 09-23-2010
Jelly's Ford's Avatar
Member
iTrader: (3)

Join Date: Mar 2010
Location: KnoxVegas, TN
Posts: 874
Another thing you gotta worry about is getting wires into that area too if it able to hold speakers of any kind. But for being able to hold speakers, look at the speakers in the front panels. That's what the back is going to have to be like if you want to put speakers there. Non-sufficient bracketing will rattle horribly especially on rough roads like you are saying.
Reply With Quote
  #3
Old 09-24-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
Quote:
Originally Posted by 2010 View Post
I just acquired a 2010 ranger XL regular cab and it appears that in the back there are 2 speaker covers with nothing inside except just the opening for some speakers on the plastic trim, but once I took off the cover the plastic does not seem solid to be able to support some speakers especially if roads get rough and stuff.... anyone know for sure??? if so what size???
i did this on my 08 mazda go to walmart they have some pioneer 6x8's they say made for ford rangers on the box ford only ran the wiring to under the drive set for the rear speakers so you will have to run it from the to the back where the speakers go the speakers mount to the grill then the grill screws back on to the panel you will also need another stereo to make sound come out of them aswell

here is some pics

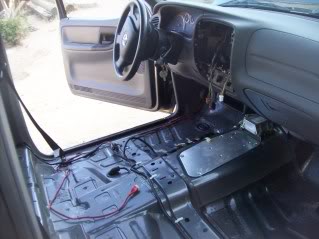

Name:  000_0010.jpg
Views: 8
Size:  34.2 KB

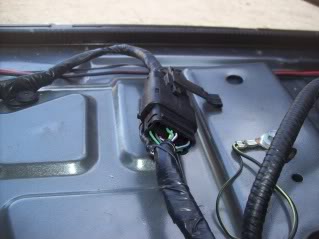

here is the plug they run the speaker wire from the radio to
Name:  000_0009.jpg
Views: 7
Size:  30.8 KB

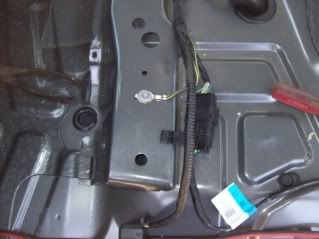

Name:  000_0004.jpg
Views: 10
Size:  31.1 KB
speaker wires going into the plug(not all speaker wires)
Name:  000_0005.jpg
Views: 8
Size:  30.2 KB

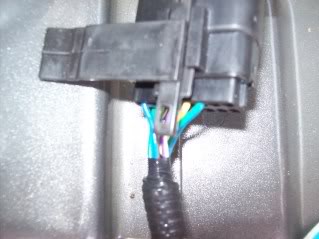

other side of plug the missing wires are the speaker wires
Name:  000_0006.jpg
Views: 7
Size:  30.6 KB

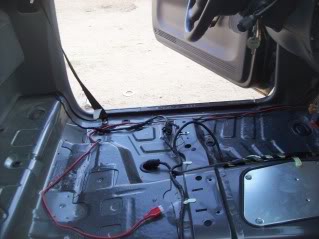

Name:  000_0007.jpg
Views: 7
Size:  34.0 KB

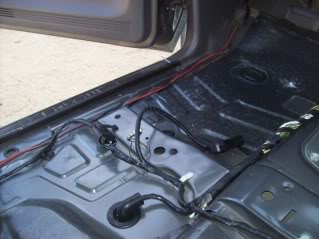

Name:  000_0008.jpg
Views: 8
Size:  34.0 KB

BTW to me hours to track those wires to where they ended you might be able to go to the dealership and buy the missing wiring harness for the rear speakers
Reply With Quote
  #4
Old 10-06-2010
trextegra's Avatar
Member

Join Date: Apr 2010
Location: Beacon Falls CT
Posts: 304
its not that hard just to run speaker wire back from the head unit
