  #101
Old 01-10-2008
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
I'd like to get a set of components, but it sounds good to me. I'm not doing any competitions or anything and it doesn't get blasted too often anyways. My buddy has the same amp and we've purposely tried to blow out the speakers but they seem to hold up pretty well. Like i said, the amp isn't pushing nearly what it can, but that was the point. I didn't want to buy an amp that would be sufficient and run hot all the time.

So far, it's been good to me, but I'll keep in mind what you mentioned. Good info to keep in mind regarding the Infinity's. Thanks for the heads up!
Reply With Quote
  #102
Old 01-12-2008
timpat92855's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Lousiville, MS
Posts: 1,067
i have had alot of subs...but like my buddy and me tell everyone else...once you go square, you dont go back LOL...nice setup though
Reply With Quote
  #103
Old 01-13-2008
schatten789's Avatar
Member

Join Date: Feb 2007
Location: Matagorda County, Texas
Posts: 735

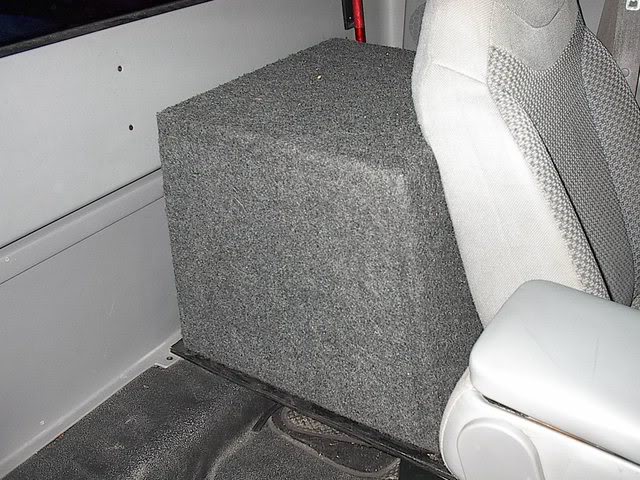

heres mine..........

built a platform for it to set on.

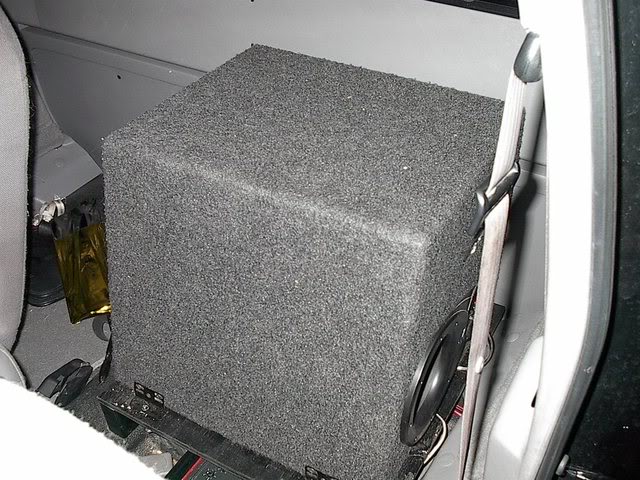

Name:  IM001293.jpg
Views: 58
Size:  82.0 KB
Name:  IM001294.jpg
Views: 59
Size:  74.7 KB

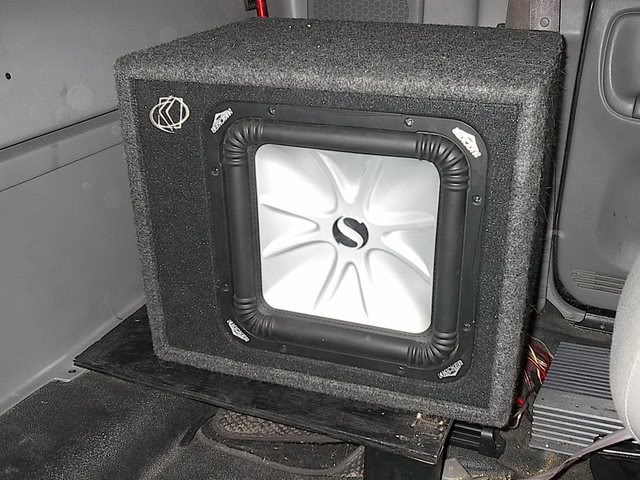

Name:  IM001295.jpg
Views: 58
Size:  71.3 KB

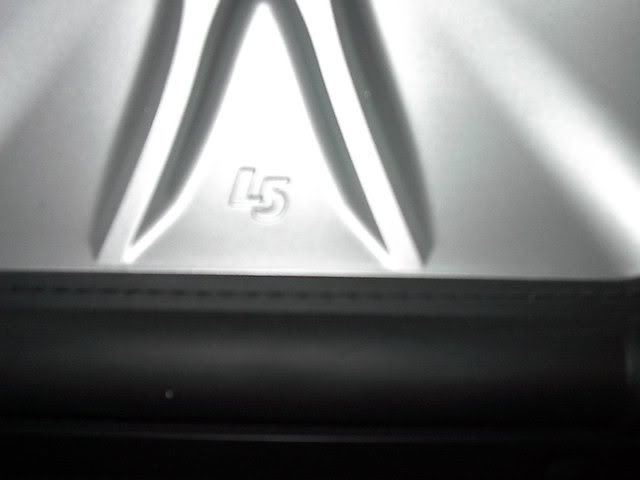

Name:  IM001297.jpg
Views: 55
Size:  19.2 KB


that is enough to make the crack in my window bigger.
Reply With Quote
  #104
Old 01-14-2008
TrailRateThisFx4's Avatar
Member

Join Date: Nov 2005
Location: Royal Oak, Michigan
Posts: 1,022
heres mine didnt feel like adding the pics back up...

https://www.ranger-forums.com/forum2...ad.php?t=38062
Reply With Quote
  #105
Old 01-16-2008
KoDaK's Avatar
Member

Join Date: Oct 2007
Location: susanville Ca.
Posts: 177

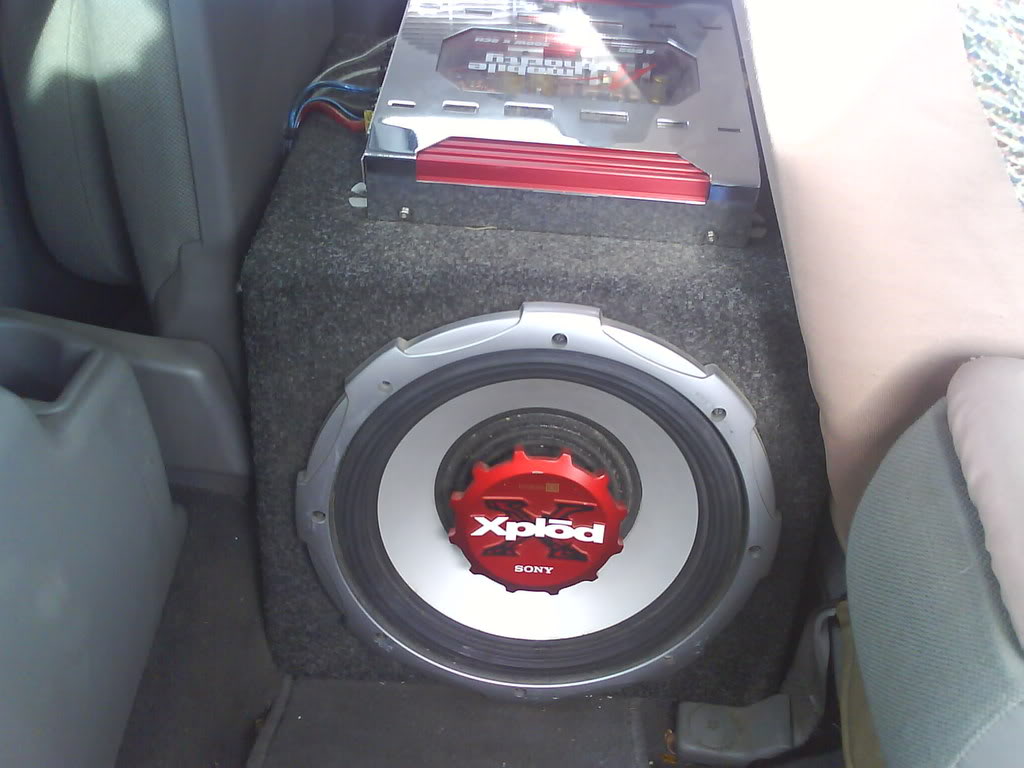

sony xplod 12" 1200w, sealed, powered by 600w mobile authority amp..

Name:  DSC00129.jpg
Views: 72
Size:  83.8 KB


Name:  rf.jpg
Views: 49
Size:  20.5 KB
Reply With Quote
  #106
Old 01-17-2008
Member

Join Date: Dec 2007
Location: Independence, OH
Posts: 37

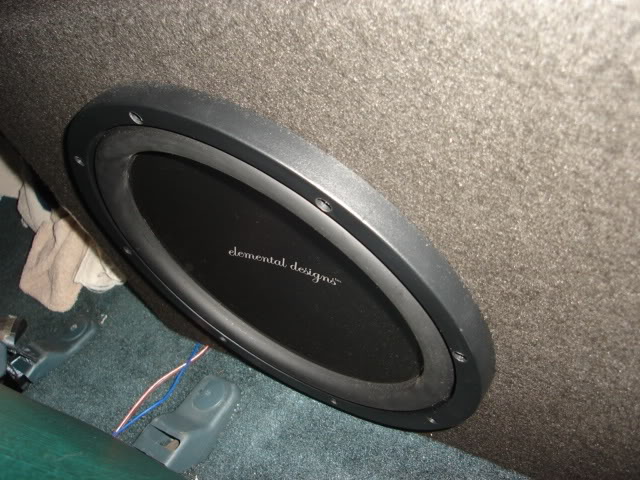

not a good pic, used one from b4. its basically about 1.2 cu ft sealed behind drivers seat with a elemental designs 13kv.3 and a kenwood 500w rms amp on the back. the box does its job, but ill eventually fiber glass one. and that sub pounds LOW!!!

Name:  DSC02804.jpg
Views: 49
Size:  75.5 KB
Reply With Quote
  #107
Old 01-17-2008
SanityAside's Avatar
Member

Join Date: Aug 2005
Location: Houston, Tx
Posts: 2,199


Reply With Quote
  #108
Old 01-19-2008
BNF861's Avatar
Member

Join Date: Mar 2007
Location: Chilliwack, BC, Canada
Posts: 87
Here is my setup. Amp is mounted under the passenger seat and the box behind the passenger seat. I use one of the jump seats regularly for my daughter and wanted to be able to use the other if need be.



Reply With Quote
  #109
Old 02-05-2008
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
lol thats a nice setup and you got to keep the seats. Good work.
Reply With Quote
  #110
Old 02-14-2008
SoCalRanger's Avatar
Member

Join Date: Feb 2008
Location: San Diego, CA
Posts: 39

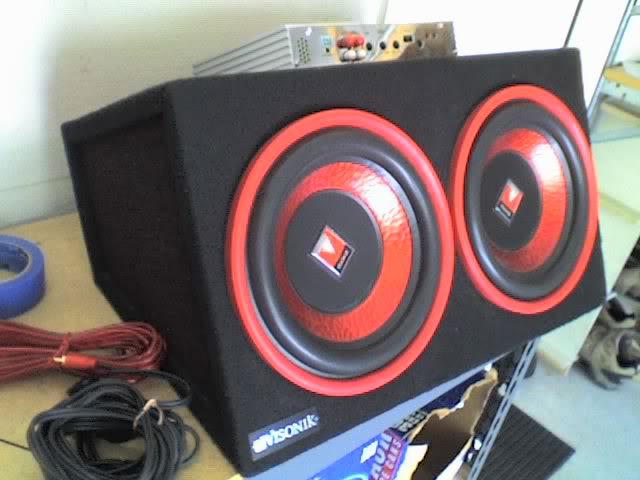

here's mine, i wired em up a couple days ago.
yes yes, it is just a cheap system that i got at like kragen autoparts or autozone.
i would take some pics of them in my truck, its raining pretty hard rite now so ill get some tomarrow.
They are 2-10" Visonik subs, Visonik amp. I also put in a JVC headunit to go with it.
For how cheap they were they sound great and are loud *** hell.
Name:  subs.jpg
Views: 53
Size:  39.0 KB
Reply With Quote
  #111
Old 02-14-2008
99ranger4X4OFFROAD's Avatar
Member

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238

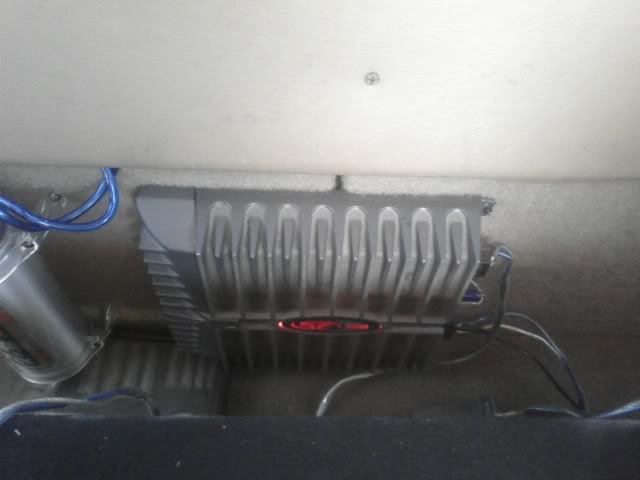

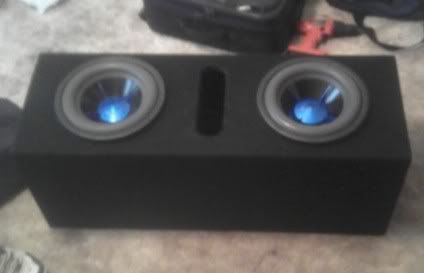

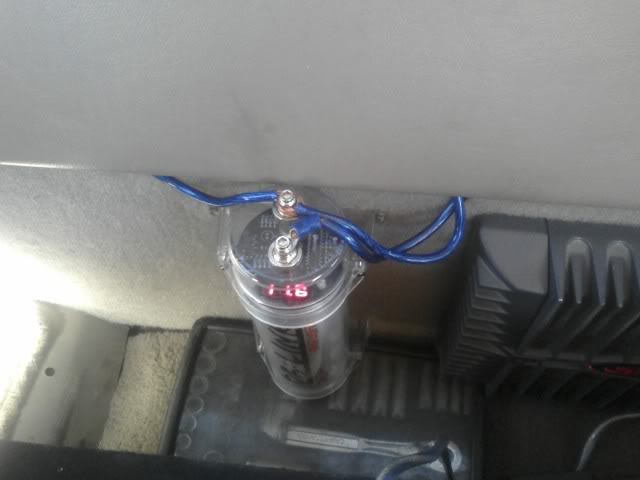

i got 2power acustik **** 10's these weight 40lbs each powered by rockford fosgate punch 1500w amp I got the ***** off ebay and have had them close to 9 months workin good and the amp from a good friend of mine and have had it for 2 months and they sound good

Name:  SSPX0075.jpg
Views: 49
Size:  13.0 KB
Name:  SSPX0165.jpg
Views: 50
Size:  23.6 KB
Name:  SSPX0166.jpg
Views: 51
Size:  26.2 KB
Name:  SSPX0042.jpg
Views: 49
Size:  29.5 KB

Last edited by 99ranger4X4OFFROAD; 02-14-2008 at 02:22 PM.
Reply With Quote
  #112
Old 02-26-2008
KoDaK's Avatar
Member

Join Date: Oct 2007
Location: susanville Ca.
Posts: 177
daniel i was thinkin bout getting one 10" **** or a 12" how do those tens sound? how much vibration out of them? i want to shake the crap out of everything but still sound good.. i measured the right sized ported box for the 15 but it wont fit in my ranger... so idk if i want the 10 or 12 they cost about the same.. i figure they both have the same size magnet so the ten should sound better but the 12 should vibrate more cuz you use a lil more power.. idk i dont think i like the look of the 4 fins on the tens 8 fins look a lot better.. anyone know if the 12"s has 8 fins on them?
Reply With Quote
  #113
Old 02-26-2008
Snowboard101's Avatar
Member

Join Date: Dec 2006
Location: CT
Posts: 130
Quote:
Originally Posted by crawly1025 View Post
Like i said, the amp isn't pushing nearly what it can, but that was the point. I didn't want to buy an amp that would be sufficient and run hot all the time.
Now I'm not positive here but I'm pretty sure you won't get very good sound out of under-powered subs. There's an optimal power range for every subwoofer, and thats why you get an amp that matches its/there power range
Reply With Quote
  #114
Old 02-26-2008
99ranger4X4OFFROAD's Avatar
Member

Join Date: Feb 2008
Location: Amarillo, Tx
Posts: 238
Quote:
Originally Posted by KoDaK View Post
daniel i was thinkin bout getting one 10" **** or a 12" how do those tens sound? how much vibration out of them? i want to shake the crap out of everything but still sound good.. i measured the right sized ported box for the 15 but it wont fit in my ranger... so idk if i want the 10 or 12 they cost about the same.. i figure they both have the same size magnet so the ten should sound better but the 12 should vibrate more cuz you use a lil more power.. idk i dont think i like the look of the 4 fins on the tens 8 fins look a lot better.. anyone know if the 12"s has 8 fins on them?

they vibrate the truck i have vibrated the mirror off a few times and i noticed the other day i set off a car alarm when i pulled into a audio store parking lot. the 10s and 12s have the same specs just the 12 is a bigger diameter is all. and in the ported box i have it puts out clear clean bass and i still get plenty of voice to come over them i would say this is the best set up i have ever owned
Reply With Quote
  #115
Old 02-27-2008
timpat92855's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Lousiville, MS
Posts: 1,067
got my new system laying in my floor of my room..waiting on my amps to get here...then the fun of getting the 2 l5 15s in my truck...LOL.. then its time for pics and time to see if i can bust my back glass
Reply With Quote
  #116
Old 03-13-2008
JakeH05's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
my system

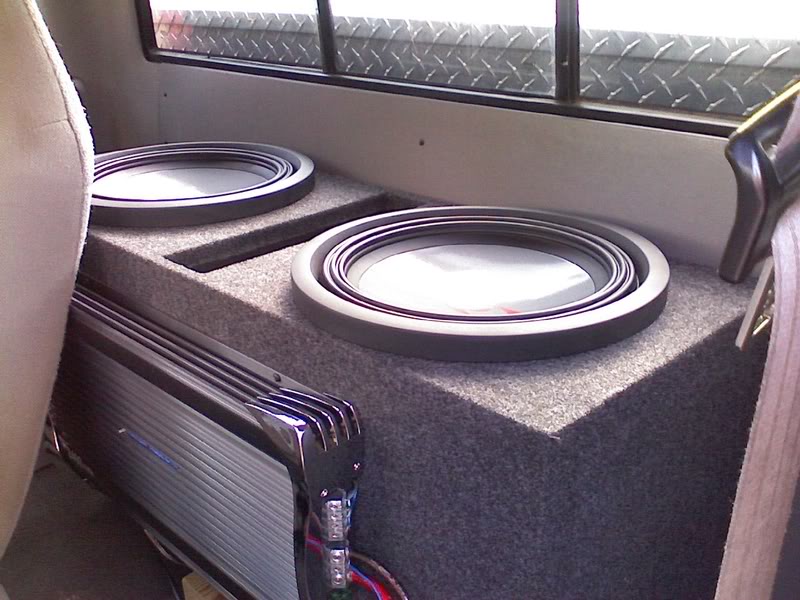

2 Alpine Type R 12's Power Acoustik 2400 watt amp 540 rms to each sub custom vented box

Name:  jhalpinetypeRs.jpg
Views: 55
Size:  88.5 KB

The truck

Name:  me4.jpg
Views: 51
Size:  70.5 KB


Truck is For Sale
Reply With Quote
  #117
Old 04-05-2008
roxbury29's Avatar
Member

Join Date: Mar 2008
Location: Crown Point, INDIANA
Posts: 50
http://www.onixsound.com/product_img/OCFRD13-10.jpg

makes a PERFECT sub enclosure - fits under jump seat
can put a 10" woofer
I currently have a Dual-voice coil MEMPHIS sub installed in it
with a 400watt RMS amp bridged to 1ohm
it sounds very nice.. all types of music..
Reply With Quote
  #118
Old 04-05-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I might actually have to pick one of those up, that would be perfect. Do you know a price?
Reply With Quote
  #119
Old 04-06-2008
roxbury29's Avatar
Member

Join Date: Mar 2008
Location: Crown Point, INDIANA
Posts: 50
The Memphis subwoofer i put in it worked VERY WELL

I have another choice - was Kicker speaker ( they make a shallow depth woofer too ), but opted for the Memphis- I believe it had an overall lower cu.ft ratio needed..
this box is small- but you dont loose any foot room in the back seat and it fits PERFECT under the jump seat.. I may add a second one - just for fun..

also you can hide your amp- under the passenger seat- Out of site!!

clean and simple...
Reply With Quote
  #120
Old 04-06-2008
roxbury29's Avatar
Member

Join Date: Mar 2008
Location: Crown Point, INDIANA
Posts: 50
Hi, forgot- the price
about $ 30.00 ( with black carpet to match my interior )

best place to get this is on Ebay-
type onix subwoofer- look for the Ebay member doremifrog

send him a messege with the correct model # - for the one that is on the Onix web site
he builds them and sells cheap on ebay - the box was perfectly built - i beleive he is a authorized mfg for Onix

hope this helps..
Reply With Quote
  #121
Old 04-06-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Shoot for 30 bucks I could just build it myself lol, thanks for the info though, it will be good plans to go off of.
Reply With Quote
  #122
Old 04-06-2008
roxbury29's Avatar
Member

Join Date: Mar 2008
Location: Crown Point, INDIANA
Posts: 50
Hi, it may have been less- I am guessing - It was around 30- with shipping
I purchased it about a year ago..

I couldn't get anyone in my area to built one for me under 50.00

that is true- it has the dimension on the web site for reference if you want to buid it!

it does fit nice.. If I can find a pic in my comp. i will post it tomorrow..
Reply With Quote
  #123
Old 06-17-2008
oldman_d's Avatar
Member

Join Date: Mar 2008
Location: WA
Posts: 116
When I saw Gearheads box I thought wow what a great idea. I've had it in for a while, but didn't want to post until I got an alarm. The box is all one unit and the sub is sitting in 0.96 cubic feet of space. It has two fans cooling the three amps inside the holding area and the fans are turned on by the deck. I also used the jump seat mounting hole to bolt the box to the truck. Please don't mind the dust, that's what happens when you do wood flooring, and have to haul the small sanders inside the cab to keep them from getting wet.

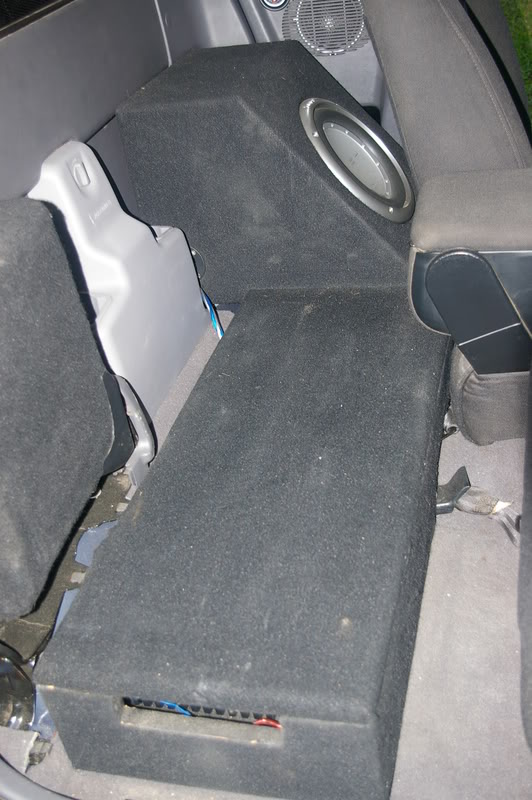

Here's what it looks like all closed up:
Name:  IMGP0879-1.jpg
Views: 52
Size:  79.9 KB

And here's the maze of wiring, amps (two Rockford 2 channel, and an Alpine mono) with the lid open, also you can see one of the fans on the lid of the box:

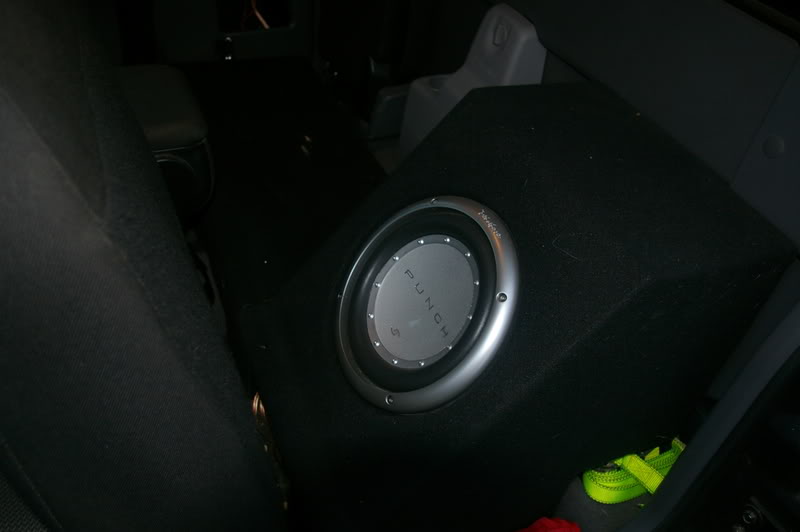

Just a shot of the sub in his sealed enclosure:

Name:  IMGP0881-1.jpg
Views: 50
Size:  25.1 KB

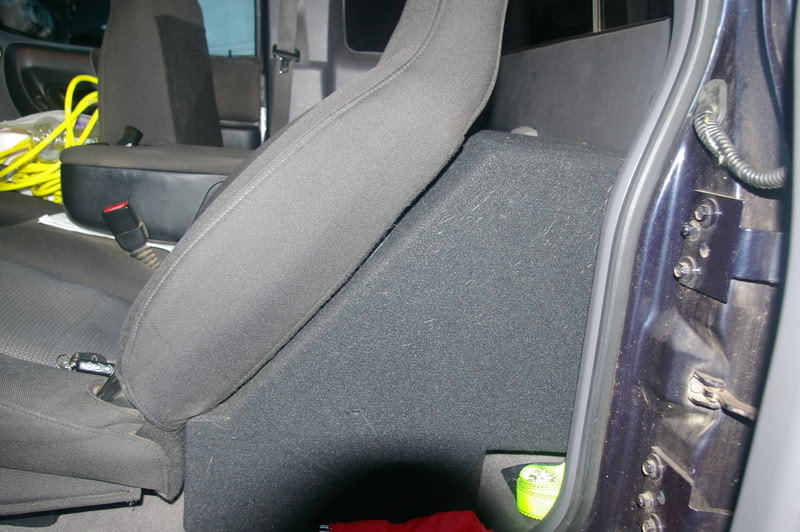

Proof that the seat can go all the way back AND tilt all the way back, flush mounting the sub helped with this also:

Name:  IMGP0882.jpg
Views: 49
Size:  87.9 KB
Reply With Quote
  #124
Old 06-17-2008
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
that looks great!!!
Reply With Quote
  #125
Old 11-27-2008
austinz400's Avatar
Member

Join Date: Jun 2008
Location: Auburn, AL
Posts: 34

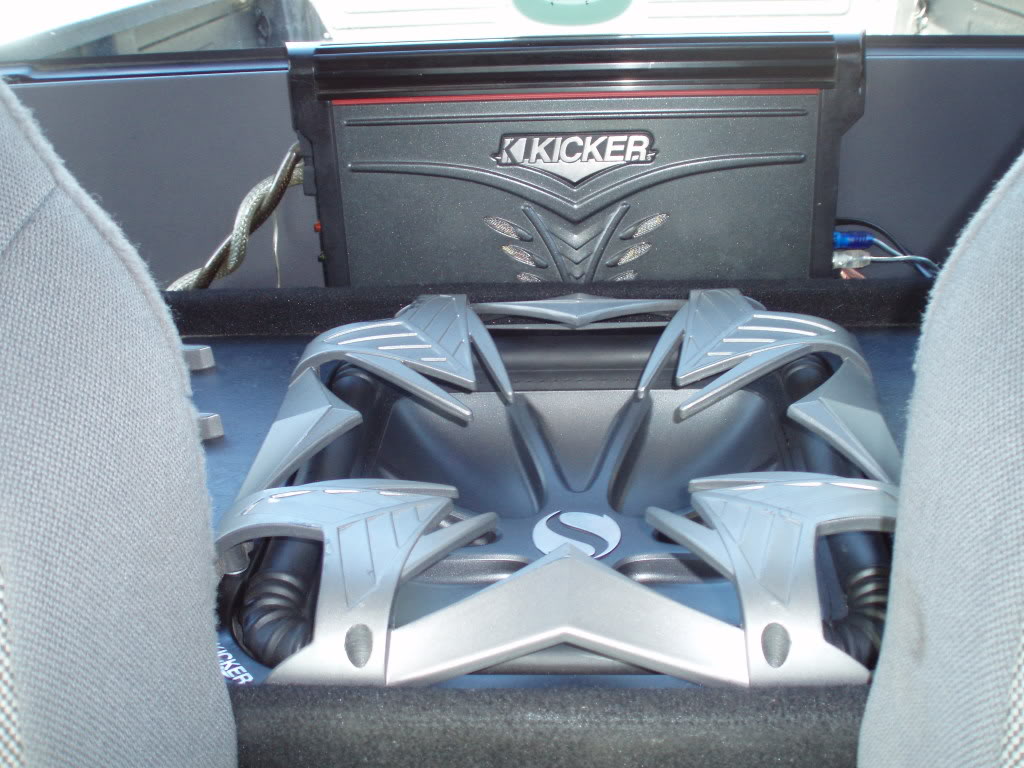

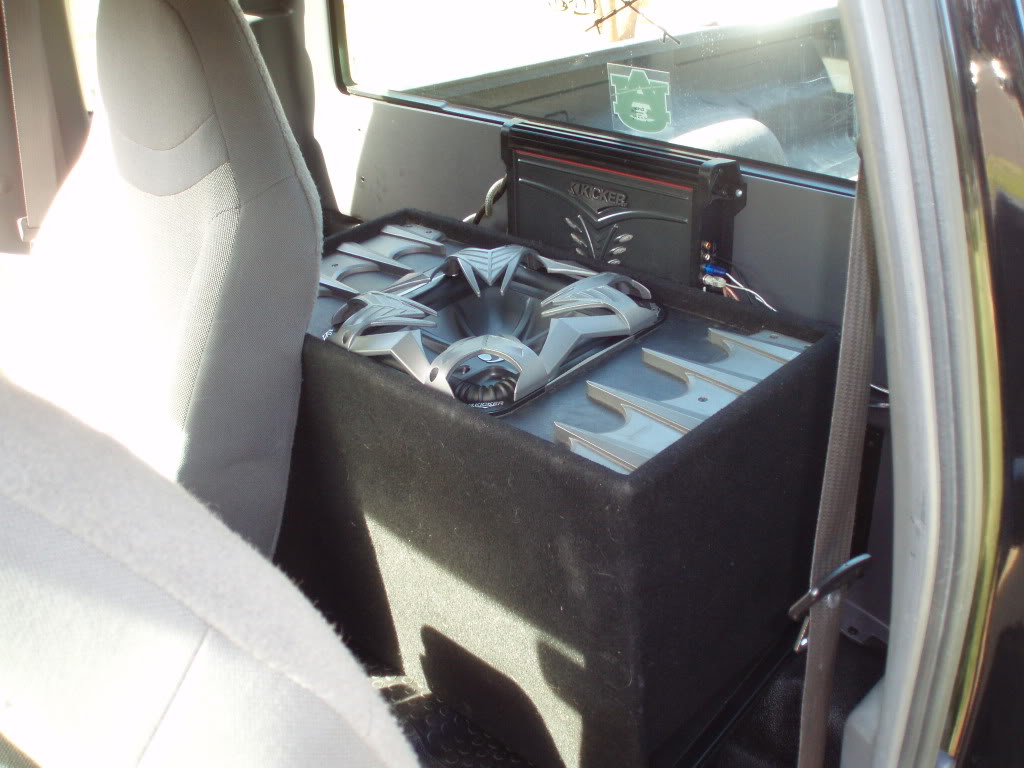

This is one of my setups... one 12" L7 runnin off my ZX750. Usually i have 2 L7's but i took one out for the trip home for some room. I will post more pics when i get it back in there. Enjoy!

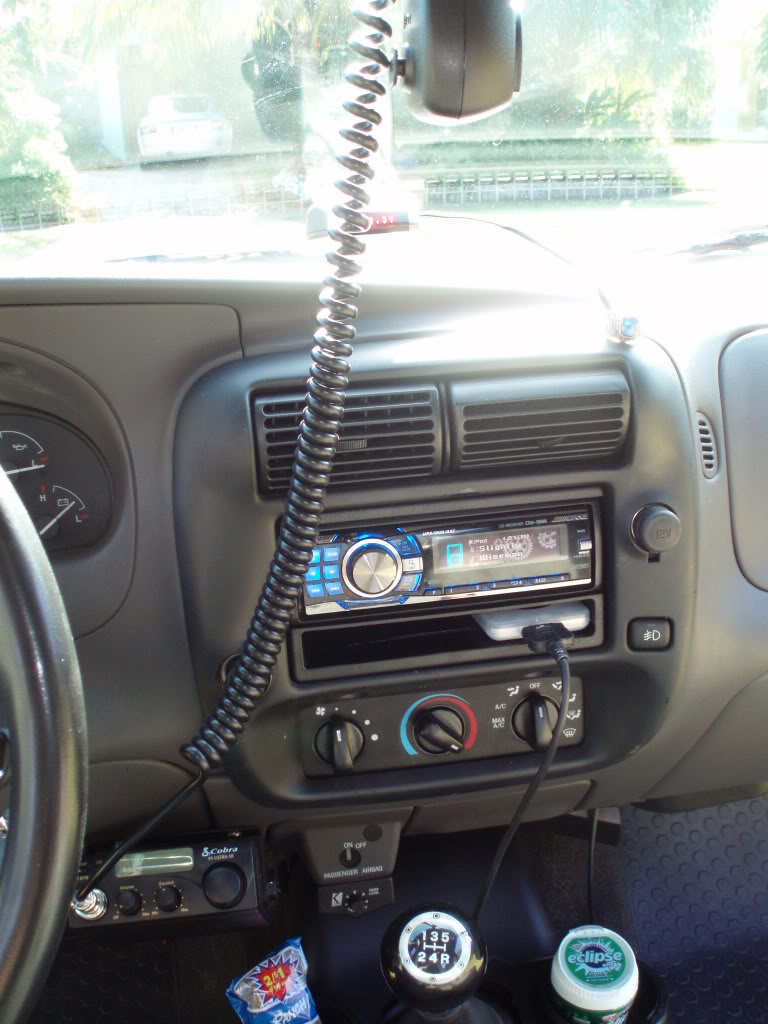

Name:  P1010065.jpg
Views: 52
Size:  110.1 KB
Name:  P1010067.jpg
Views: 53
Size:  127.8 KB

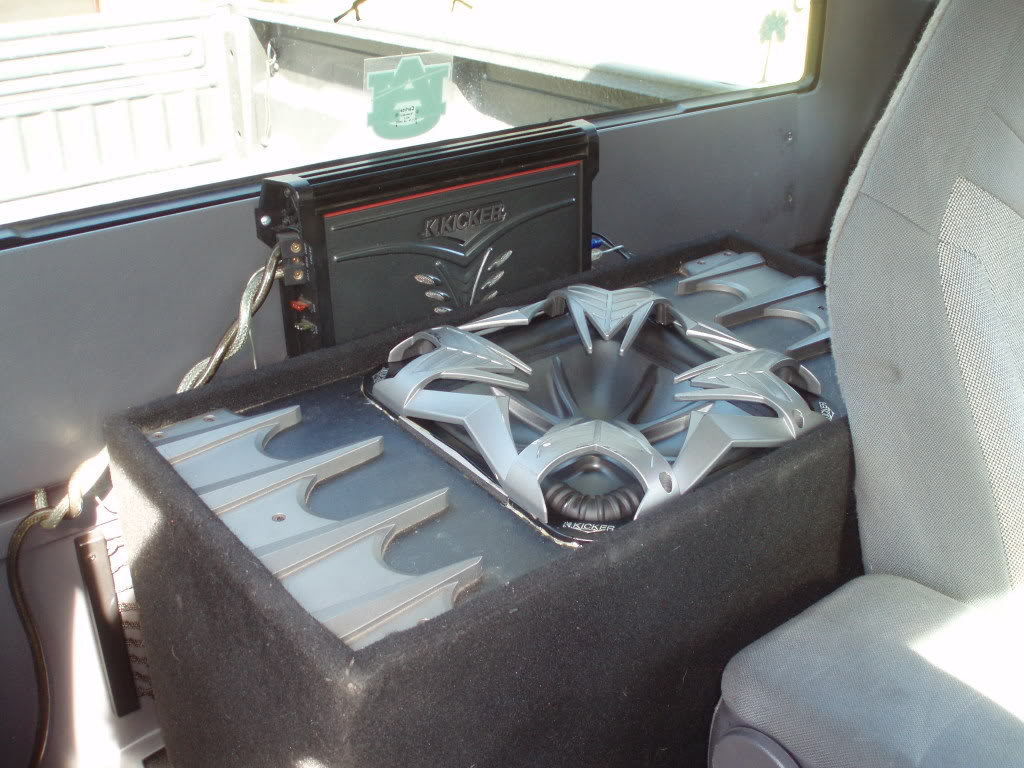

Name:  P1010062.jpg
Views: 51
Size:  127.1 KB
Name:  P1010064.jpg
Views: 51
Size:  103.1 KB
Reply With Quote
