Quote:
Originally Posted by --weezl-- View Post
also, on the stock 07 fx4's with this HU... are there audio outs on them? or would i have to jerry rig something to work? i know i have an audio in, i can't tap a sub to there, can i? :D
They have something to hack the wiring and make the preouts for amp hook up. My girl has them on her 08 escape because they have the worst dash design ever and the radio is spread all over the center stack.

Why dont you get a different head unit sound quality is improved so much. even with stock speakers. plus it would be easier than figuring the whole wiring tap thing out
Reply With Quote
  #202
Old 09-19-2009
boxdgm's Avatar
Member

Join Date: Jul 2009
Location: Minnesota/Florida
Posts: 18
Quote:
Originally Posted by --weezl-- View Post
define "big 3" for me, that's a term i've never heard before
its adding bigger wires 0ga or 4ga to your charging systems wires, the lower resistance of the bigger wires will allow you to get the most power from your charging system.
Alt + to Battery +
Alt case or engine block to Chassis ground
Chassis Ground to Battery -
Reply With Quote
  #203
Old 09-19-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
do they make a kit for it, or do i have to grab the wires and terminals and make it work?

what size is stock? the ones that are on my truck look like they might have been modified, but i'm not 100% sure, didn't take that good of a look at it
Reply With Quote
  #204
Old 09-19-2009
NATEFX407's Avatar
Member

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459
not sure if they make a kit for it, but eyeball up what you need, buy a few feet of wire, and the terminals, it's probably easiest just to make them that way. Also not sure what size the stock wires are, I haven't done the big 3 as my system is pretty small.
Reply With Quote
  #205
Old 09-19-2009
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

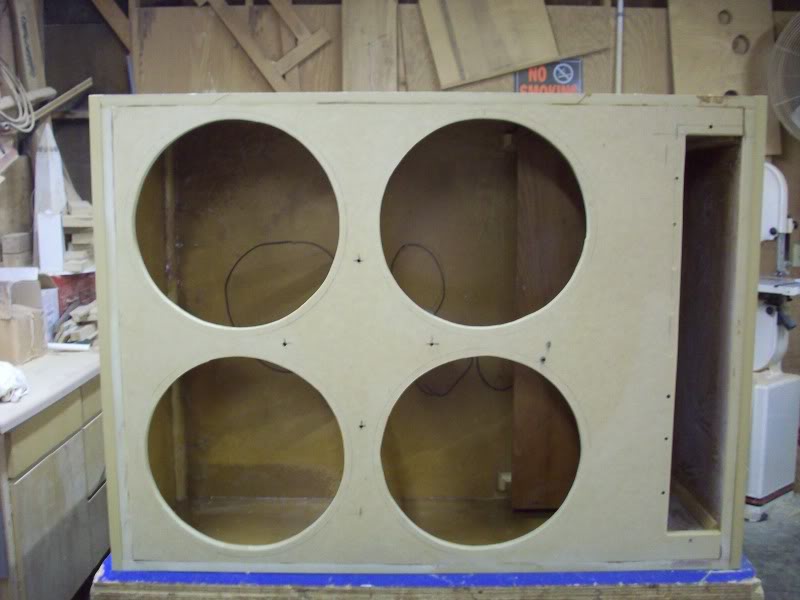

Heres some pics of my box. Its not quite done yet tho.
Name:  415sproject033.jpg
Views: 25
Size:  65.7 KB

Pic of the dowel rod for bracing
Name:  415sproject034.jpg
Views: 24
Size:  64.7 KB
Reply With Quote
  #206
Old 09-19-2009
turbonegro32's Avatar
Member

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
Quote:
Originally Posted by --weezl-- View Post
define "big 3" for me, that's a term i've never heard before

also, on the stock 07 fx4's with this HU... are there audio outs on them? or would i have to jerry rig something to work? i know i have an audio in, i can't tap a sub to there, can i? :D
anyone know where i can get a center console like this one???
Reply With Quote
  #207
Old 09-19-2009
mud390's Avatar
Member

Join Date: May 2009
Location: Japan
Posts: 66
That console came stock in my 03 Edge extended cab.

Kris
Reply With Quote
  #208
Old 09-19-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
the center console, or the shifter trim? they are 2 seperate pieces.

this is STOCK in an 07 ranger fx4 level II (i was looking at an identical truck, but just fx4 offroad, and it had the ugly xl model rubber shift boot and such... so if your looking in a JY, look for the level II's. I'm 99% sure this will answer your question
Reply With Quote
  #209
Old 09-19-2009
turbonegro32's Avatar
Member

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
the actual center console, not the cupholders around the shifter
Reply With Quote
  #210
Old 09-19-2009
turbonegro32's Avatar
Member

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
you can barley see it in the pic lol
Reply With Quote
  #211
Old 09-19-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by turbonegro32 View Post
the actual center console, not the cupholders around the shifter
either way, the level II's are different than the fx4 off roads, i think the dash is different too, but i'm not 100% i'll go grab some more pics of the console for you
Reply With Quote
  #212
Old 10-26-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
man, i just flipped through, those are some big enclosures. i'd like to put a sub in but i know that i'd loose the cargo room and i like to have the extra space. i've got a pic that i found online. it's a cardboard box and the sub sticks out the side. looks awsome.
Reply With Quote
  #213
Old 10-28-2009
DrMacZed's Avatar
Member

Join Date: Sep 2007
Location: Corvallis, Oregon
Posts: 92
Here's mine nothing terribly fancy just a 300W 8" kicker sub. I did incorporate a bit of a storage cubby into the top of the enclosure though.

Reply With Quote
  #214
Old 12-01-2009
offtheclock's Avatar
Member

Join Date: Nov 2009
Location: cincinnati, OH
Posts: 20
even though this is nothing like you are suggesting, heres mine.
eclipse 15" home made enclosure - sealed box, 1.66 cu. ft. - - my design, allows both seats to fully recline, all of the way back.
also fit two amps back there, no seats though, and mine is a two door.
Attached Thumbnails
Extended cab owners.....POST PICS OF YOUR ENCLOSURE!!!-11-24-09013.jpg   Extended cab owners.....POST PICS OF YOUR ENCLOSURE!!!-11-24-09015.jpg   Extended cab owners.....POST PICS OF YOUR ENCLOSURE!!!-11-24-09010.jpg   Extended cab owners.....POST PICS OF YOUR ENCLOSURE!!!-sspx0114.jpg
Reply With Quote
  #215
Old 12-03-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
nice looking box... i bought my new hu couple days ago, went to get my subs and amp out of my mustang, and it has been broken into, my clarion amp, my 2 10" mtx's and my 12" sub gone... about $1500 in total if i had to replace it i figure
Reply With Quote
  #216
Old 12-03-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632

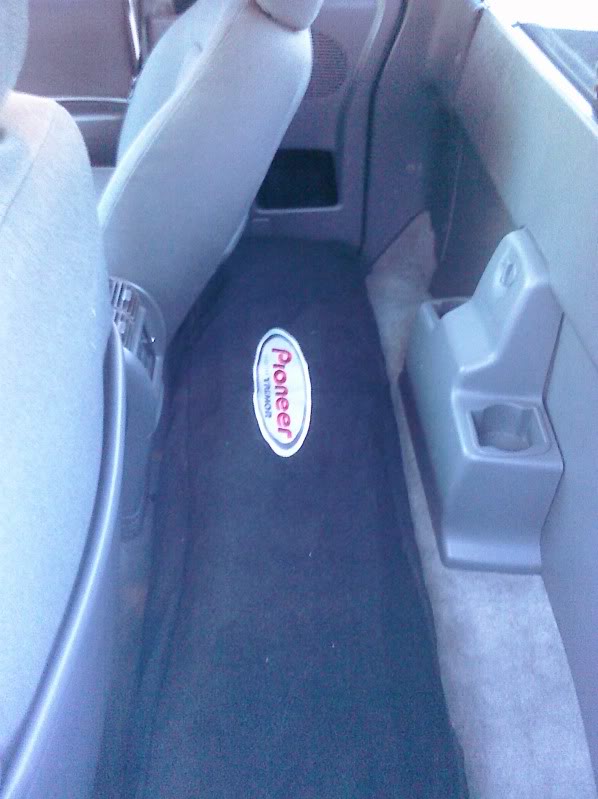

Name:  CIMG0633.jpg
Views: 24
Size:  87.5 KB
Reply With Quote
  #217
Old 12-03-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632

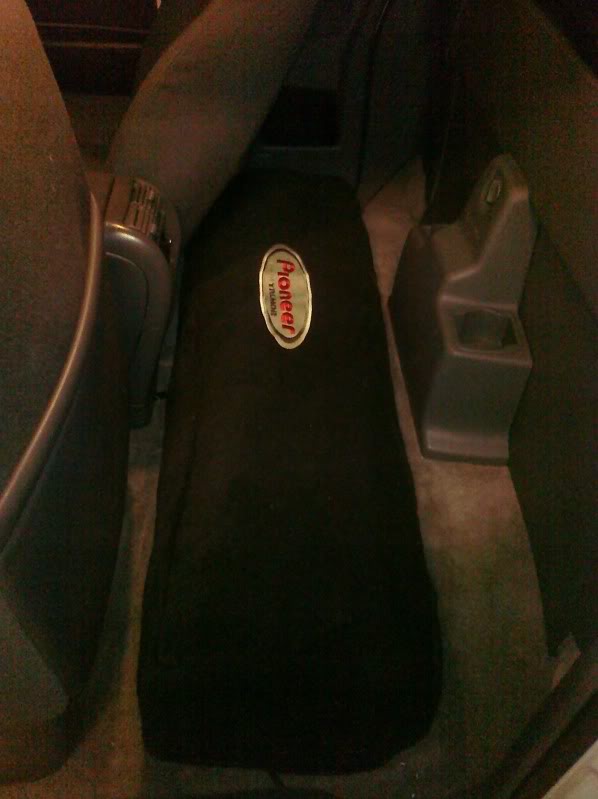

Name:  CIMG0621.jpg
Views: 24
Size:  63.0 KB
Reply With Quote
  #218
Old 12-03-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
what's in it? do the back seats still work?
Reply With Quote
  #219
Old 12-04-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
negative on back seats...wasnt planning on running them anyways, so the boxed worked out great. This is the Tremor sound system....box has a pioneer 10" on one side, amp on the other.
Reply With Quote
  #220
Old 12-06-2009
Thefigus's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Oak View, CA
Posts: 107

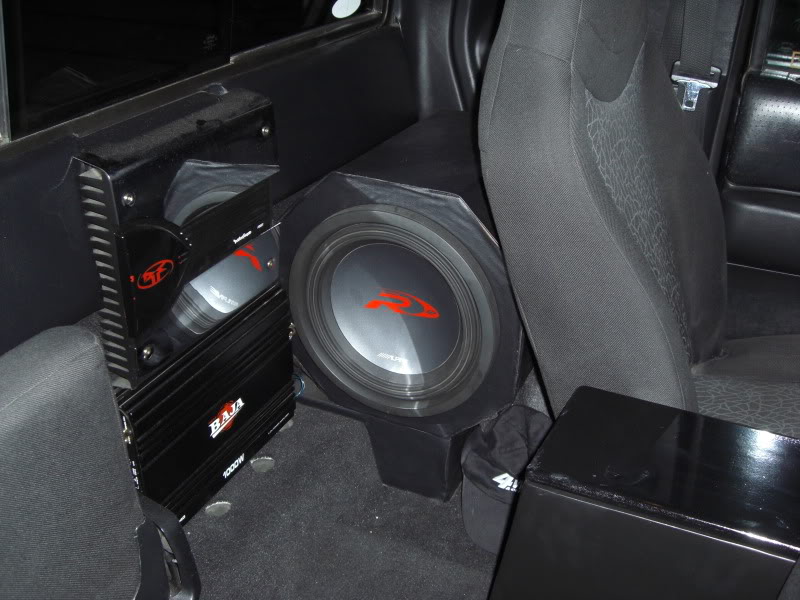

Name:  Picture242.jpg
Views: 156
Size:  106.9 KB

Please ignore my crappy wrap job on the sub box, I haven't had time to re-do it yet.

Rockford Fosgate P3001 sub amp, 12" Alpine type R, P.O.S door amp (I already have a replacement), 5x7 Rockford Fosgate powers in the doors, and a sony deck.
Reply With Quote
  #221
Old 03-01-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I've had mine for almost 4 years, but I've never taken pics till now.





Reply With Quote
  #222
Old 03-01-2010
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
does nobody on here run high quality stuff? the best i saw was AQ, Fi, RE. no sundown, DC, DD, RD, audiopulse/TCsounds, cascade, T3, Incriminator Audio. plz sombody post these.

Last edited by the Answer; 03-01-2010 at 04:49 PM.
Reply With Quote
  #223
Old 03-01-2010
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
i spoke too soon ok so here is a RE.

why would u seal a SX i had mine [email protected]
i dont think ur supposed to run sealed with the SX
Reply With Quote
  #224
Old 03-01-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
who are you talking to?
Reply With Quote
  #225
Old 03-01-2010
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
Quote:
Originally Posted by RudemAn85 View Post
For how small the box is, IT POUNDS with the RE...




^^^^ why seal a SX
Reply With Quote
