My little project: Amp 'Box'

For a long time I've been planning on building a false floor or something to put my amps underneath. Well I finally got around to doing it. I built a box type thing that sits on the back floor, with a lid that now acts as the floor, and my amps and wiring are inside it.

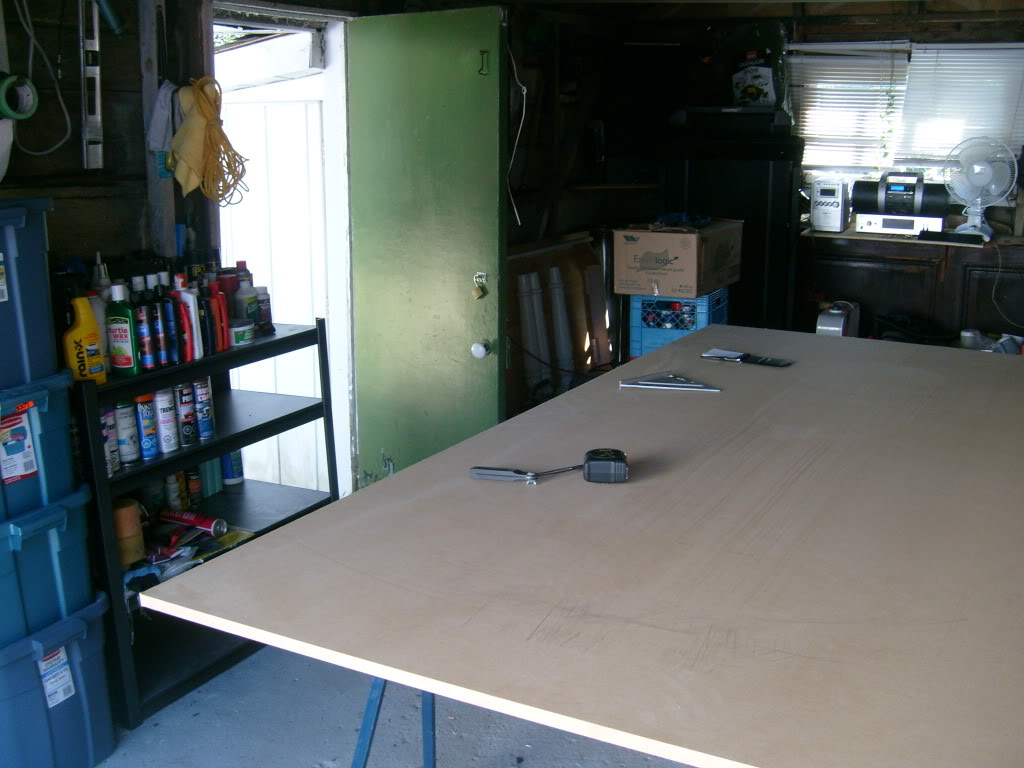

My humble workspace:

Name:  AmpBox002.jpg
Views: 1
Size:  127.1 KB

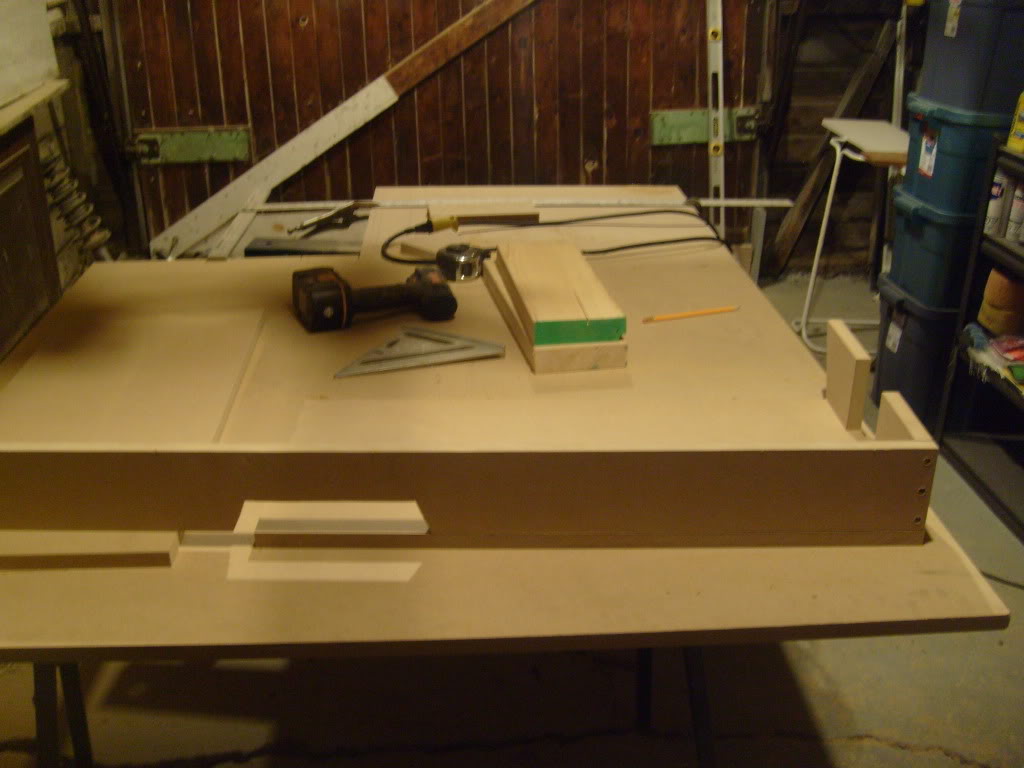

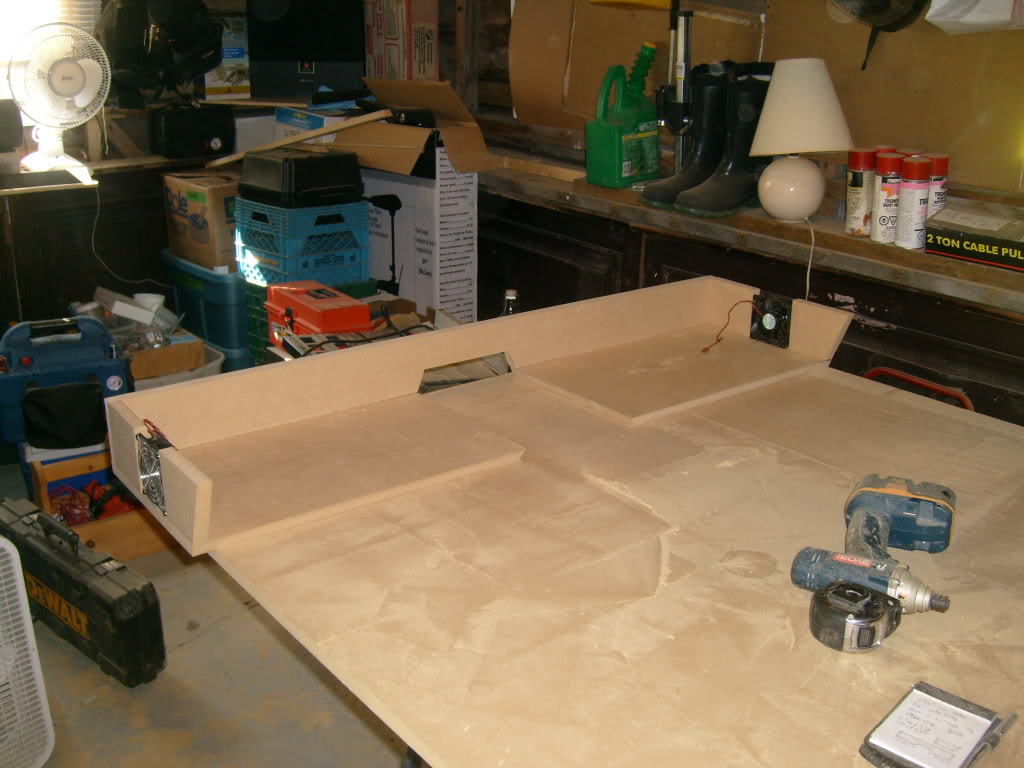

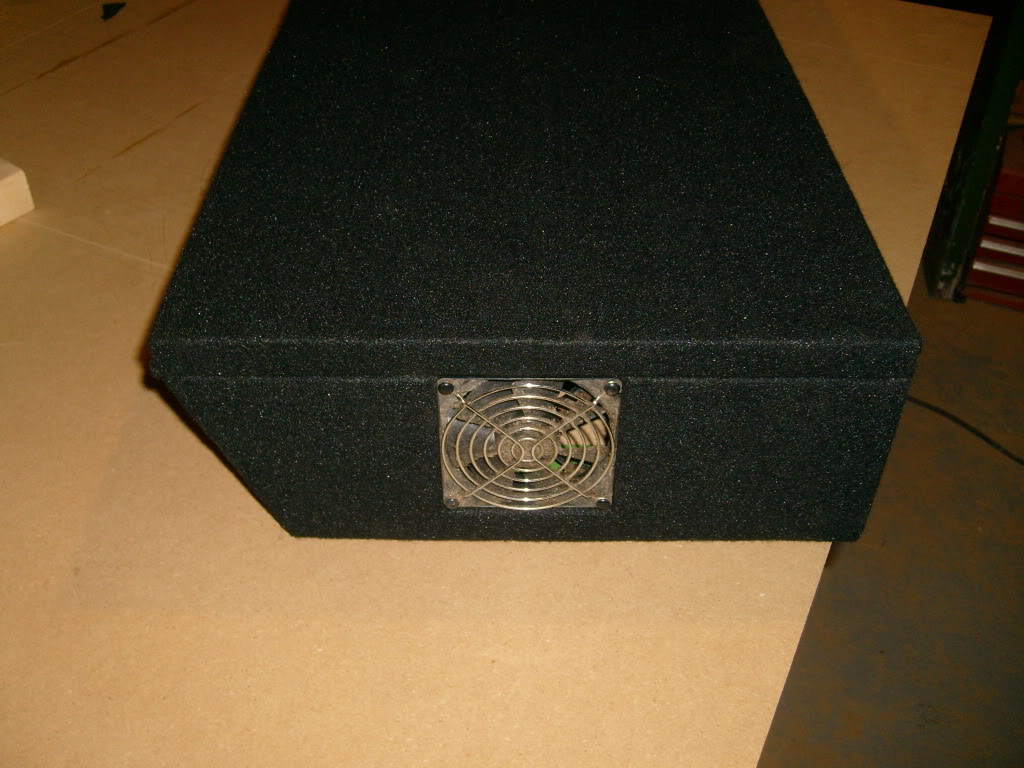

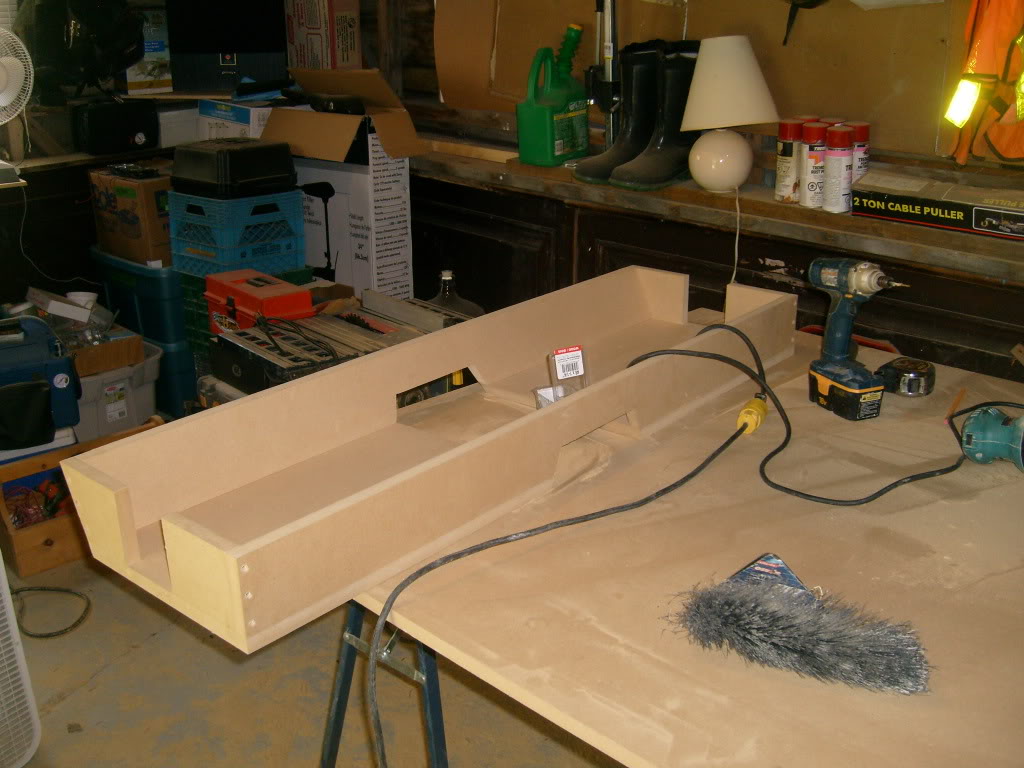

Building Pics:

Name:  AmpBox005.jpg
Views: 1
Size:  117.2 KB

Name:  AmpBox008.jpg
Views: 1
Size:  110.1 KB

Name:  AmpBox011.jpg
Views: 1
Size:  105.4 KB

Name:  AmpBox012.jpg
Views: 2
Size:  139.1 KB

Name:  AmpBox015.jpg
Views: 1
Size:  96.6 KB

Name:  AmpBox016.jpg
Views: 1
Size:  145.6 KB

Name:  AmpBox024.jpg
Views: 2
Size:  120.9 KB

Name:  AmpBox028.jpg
Views: 1
Size:  121.9 KB

Name:  AmpBox043.jpg
Views: 1
Size:  154.5 KB

Name:  AmpBox044.jpg
Views: 0
Size:  185.5 KB

Name:  AmpBox038.jpg
Views: 0
Size:  158.1 KB

This is the underside of the lid:

Name:  AmpBox046.jpg
Views: 1
Size:  188.9 KB

It was my first time carpeting anything, but I think I did ok, you can just barely see the joints in the last pic of the underside.

I'm still working on wiring up the fans to a relay, then I can get some pics of it installed. I had it in and it fits well. Next project will be a new box for my 10" but I'm still deciding where to put it/what shape to make it. I need to keep at least 1 jump seat.

Let me know what you think and any suggestions you might have for box design!
Reply With Quote
  #2
Old 09-16-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Looks good! Put the sub on the drivers side that way you dont have to worry about having to adjust your seat really far up or anything when somebody sits in the jump seat. The passenger will have to worry about it. LOL
Reply With Quote
  #3
Old 09-16-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Where does the power come in at into the box?

That's damn clean man. Good work.
Reply With Quote
  #4
Old 09-16-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Damn Nate that is very clean!
Reply With Quote
  #5
Old 09-17-2009
NATEFX407's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459

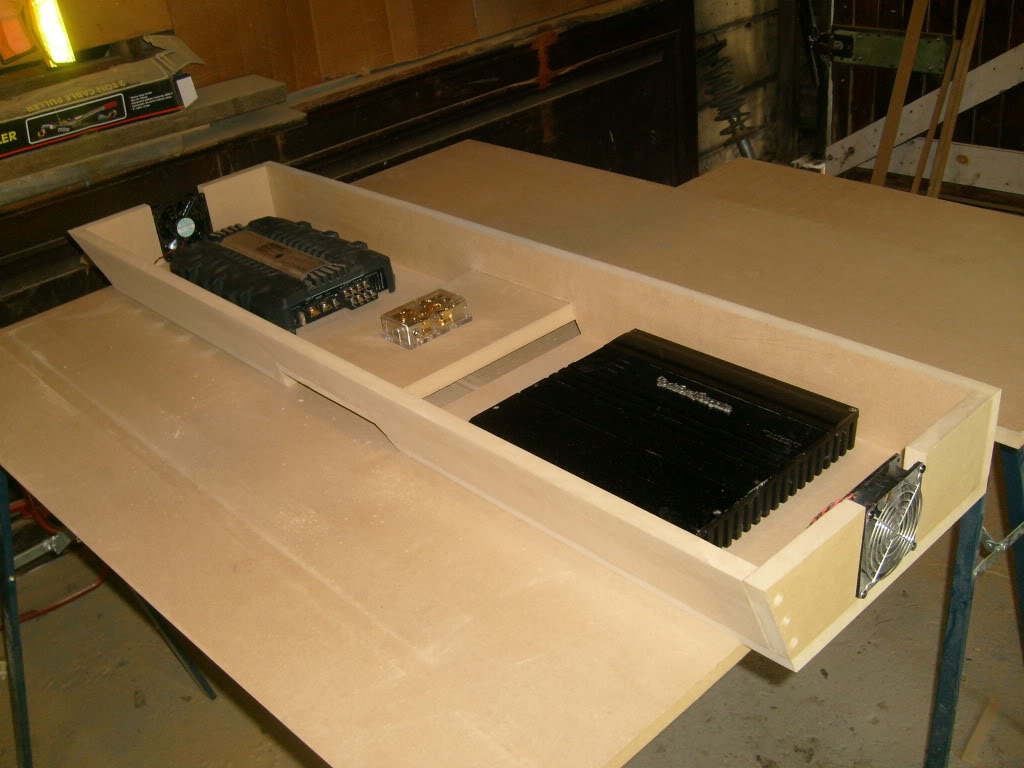

Thanks guys. You can see in this picture

Name:  AmpBox028.jpg
Views: 0
Size:  121.9 KB

I've left a little piece out on each side of the hump. My power wire/speaker wires/etc will be run through there.
Reply With Quote
  #6
Old 09-17-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Not bad buddy! Not bad at all!


Nice and clean - decent job on the carpeting.. I'm still sitting here twiddling my thumbs waiting till I can get out to Home Depot for my own carpeting to pick up :-D
Reply With Quote
  #7
Old 09-17-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
That came out awesome! Best one I've seen on here before
Reply With Quote
  #8
Old 09-18-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
are there any pics of it in the truck? are you able to make it any thinner? looks good btw.
also, if it's raining/wet out, you have a friend in the back, is water from their shoes/boots gonna be able to stay out and/or not be absorbed into the wood?
Reply With Quote
  #9
Old 09-18-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
dang, that looks great with the little fans. good work
Reply With Quote
  #10
Old 09-18-2009
NATEFX407's Avatar
Member
Thread Starter

Join Date: Dec 2008
Location: Kawartha Lakes, ON
Posts: 459

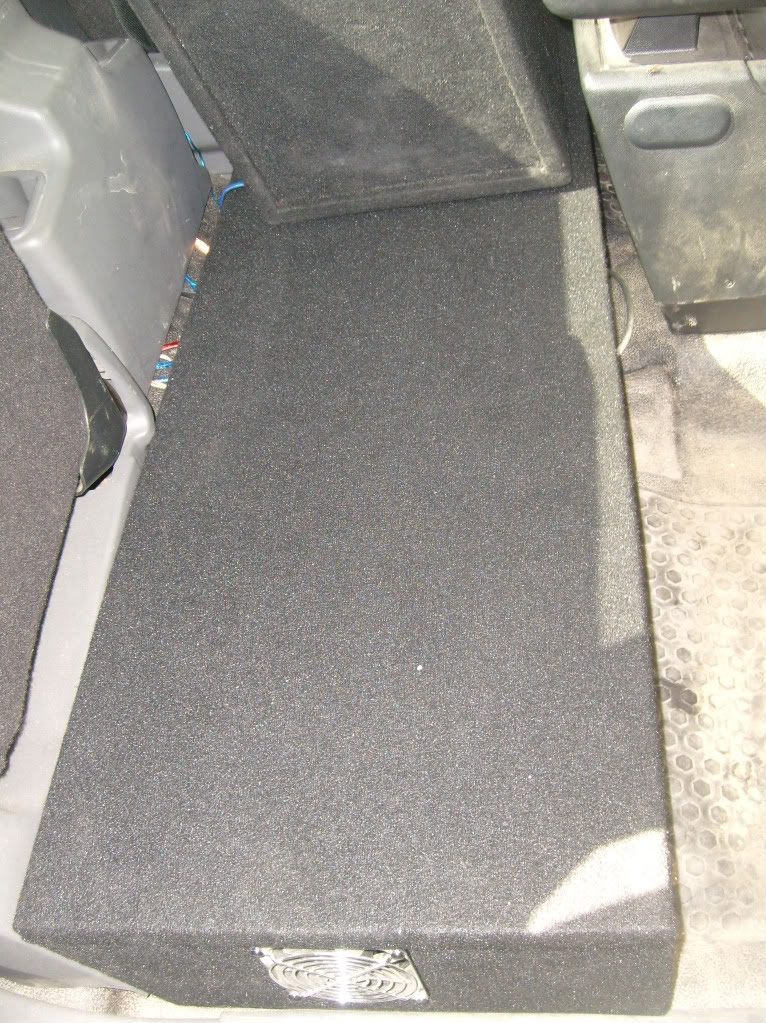

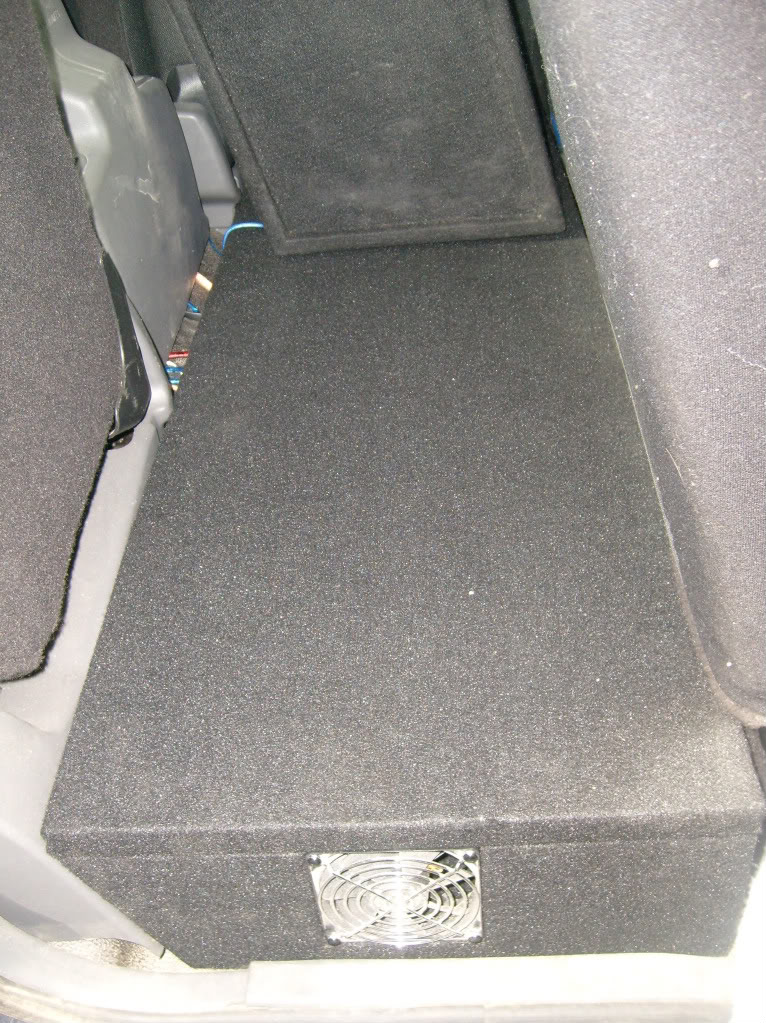

I just took a couple quick pics of it in the truck. Excuse the dirt, it's a work truck.

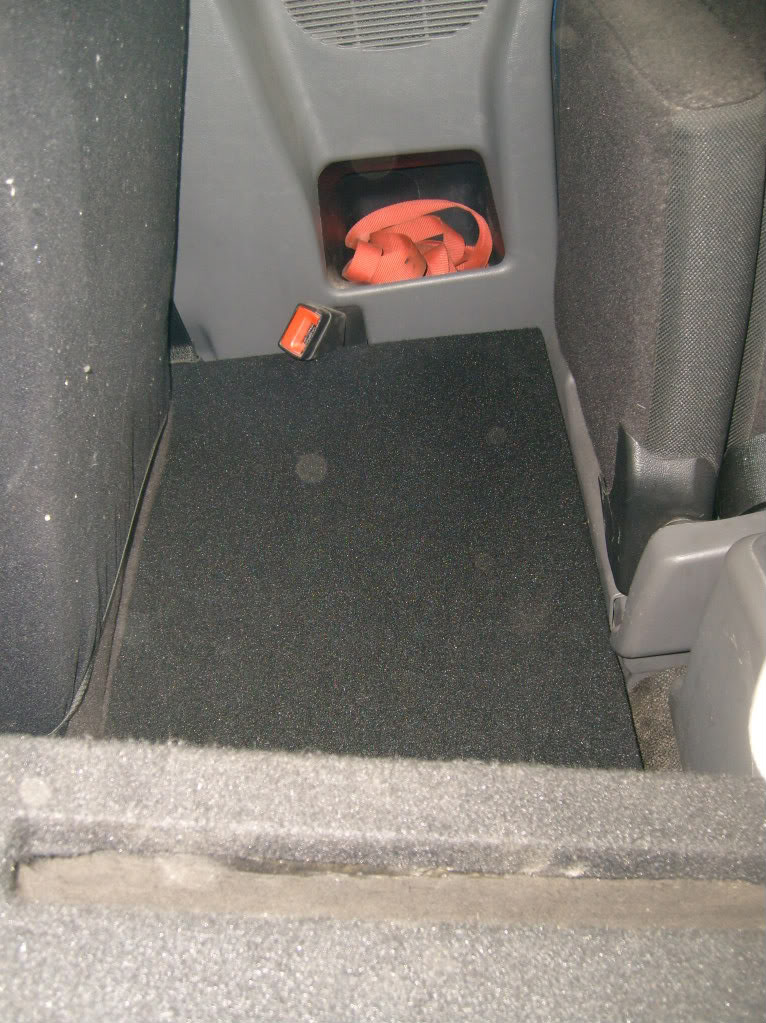

Name:  AmpBox048.jpg
Views: 0
Size:  246.2 KB

Name:  AmpBox049.jpg
Views: 0
Size:  247.8 KB

Name:  AmpBox050.jpg
Views: 0
Size:  170.0 KB

Name:  AmpBox051.jpg
Views: 0
Size:  113.5 KB

You can see a few wires in front of the jack compartment, but that's alright, that's where I hope to build a new box. My 10" is in a cheap box right now that I got at a pawn shop, and the optimum enclosure for it (Infinity Reference 10" 250 RMS) is quite a bit smaller than what it's in right now. I'm also considering getting a new 10" though, maybe an Alpine Type R or X, so I'm gonna wait on the box.

Anyway, yeah I had hoped to build it about 1 1/2" shorter, but I ended up having to build it at this height in order to fit those fans in. I'm not sure how much I like it, but it was a fun project and total cost was $30. $15 -half sheet MDF, $15 -Carpet. I had everything else laying around.

I rarely ever have anyone ride in the back, my wife has a Pontiac Sunfire, my truck is just for me and work. But if I do and they have muddy feet they will be taking their shoes off. The mud wouldn't get into the wood, but it would get into the carpet.

It's kind of trippy when I turn on the cd player, I hear three clicks (main relay for fans+amp remotes, and then relay inside each amp) then the fans start to hum.
Reply With Quote
  #11
Old 09-18-2009
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
since it's done, it's too late for this. but since your floor is rubber, maybe coating the box in herculiner or something similar. this would be for security reasons moreso, maybe a little cosmetic.

again it looks good either way.
Reply With Quote
