Quote:
Originally Posted by blue99ranger
looks good, but whats with the 2 belt buckle thingies?

theyre shoulder pads for the seatbelts, you know how some seats belts scuff up your collar bone or shoulder when on long rides and such? well its just alittle extra protection.
Reply With Quote
  #27
Old 05-03-2007
blackbetty's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: aurora, ontario, CANADA
Posts: 904

The enclosed amp looks cool, but you might want to install the PC fan on one side & cut a hole the same size as the fan on the other side for optimum cooling performance.


Good job![/QUOTE]


Im two steps ahead of ya! lol
Reply With Quote
  #28
Old 05-03-2007
Strider0O0's Avatar
Member

Join Date: Jul 2004
Location: Philadelphia, PA
Posts: 3,588
Quote:
Originally Posted by blackbetty
It doesnt matter where its mounted as long as its mounted somewhere, could be near the battery, under the dash, beise the amp...wherever you want. My best option was to put it near the amp for a few reasons, if i put it near the battery then i run the risk of flooding it when i go offroading, its very accessible and easy to maintain and see by the amp box.

PLEASE!!!!!!! for safety's sake and for the sake of your truck, relocate your fuse to as close as possible to the battery!!! many trucks/cars CATCH ON FIRE because of fuses being placed at the wrong ends of wiring!!!

ASK L2EN FOR PICS OF WHAT HAPPENS WHEN THE FUSE IS AT THE WRONG END OF THE WIRE!!!
Reply With Quote
  #29
Old 05-03-2007
blackbetty's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: aurora, ontario, CANADA
Posts: 904
Reply With Quote
  #30
Old 05-03-2007
blackbetty's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: aurora, ontario, CANADA
Posts: 904
Quote:
Originally Posted by Strider0O0
PLEASE!!!!!!! for safety's sake and for the sake of your truck, relocate your fuse to as close as possible to the battery!!! many trucks/cars CATCH ON FIRE because of fuses being placed at the wrong ends of wiring!!!

ASK L2EN FOR PICS OF WHAT HAPPENS WHEN THE FUSE IS AT THE WRONG END OF THE WIRE!!!


Some people deserve to be shot cuz I was told different.
Reply With Quote
  #31
Old 05-03-2007
Member

Join Date: Nov 2005
Location: Aberdeen and Salisbury MD
Posts: 1,840
looks great man. def great work.
Reply With Quote
  #32
Old 05-03-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Seems I've been posting this pic alot lately! I'll add another for effect =\

Name:  DSCN1646.jpg
Views: 0
Size:  95.1 KB

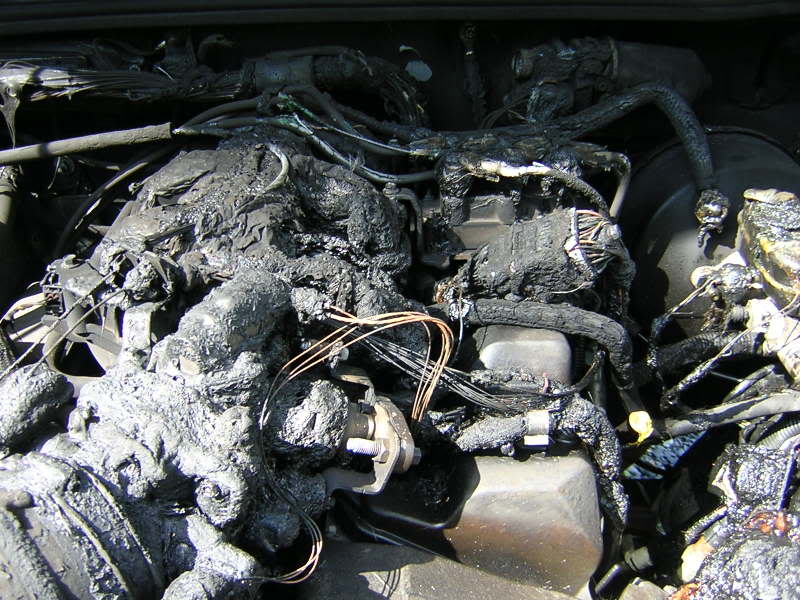

Name:  DSCN1650.jpg
Views: 0
Size:  99.5 KB<Was a Motor
Name:  DSCN1666.jpg
Views: 0
Size:  94.3 KB<Was an Optima Battery
Reply With Quote
  #33
Old 05-03-2007
wldunn13's Avatar
Member

Join Date: Apr 2007
Location: Rocky Hill, CT
Posts: 19
I always mount my fuses right off the battery. You can bolt it down or zip-tie it there.

Install looks great! I have never seen subs mounted this way...usually I mount them firing to the rear and down, but it does look really cool. In the past I have found this fan to work very well in applications similar to yours. It's more expensive than a PC fan, but I have noticed that it cools it much better (and it can be hidden, so it looks better IMO). Add some plastic spacers under the amp to raise it off the carpet for ultimate cooling.
Reply With Quote
  #34
Old 05-03-2007
Strider0O0's Avatar
Member

Join Date: Jul 2004
Location: Philadelphia, PA
Posts: 3,588
Quote:
Originally Posted by blackbetty
Some people deserve to be shot cuz I was told different.
yeah man.. Travis' truck cought on fire because the fuse was- what..... maybe 5 feet away? just please promise yourself that you will correct the wiring ASAP. sure it might be a pain in the *** to have to rework something you just finished, but it will be worth it. as mentioned above... within 18" of the battery seems to be the norm.

the main purpose for that inline fuse is to protect the wiring itself from taking on too much power, heating up, and catching on fire. placing it at the end of the line instead of the beginning is a serious risk.
Reply With Quote
  #35
Old 05-05-2007
dallas_01gt's Avatar
Member

Join Date: Mar 2007
Location: Kansas
Posts: 116
That turned out looking nice! Where did you get that carpet at? I never can seem to find any good carpet in my area.
Reply With Quote
  #36
Old 05-05-2007
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks real good man!
Reply With Quote
  #37
Old 05-06-2007
blackbetty's Avatar
Member
Thread Starter

Join Date: Nov 2006
Location: aurora, ontario, CANADA
Posts: 904
Quote:
Originally Posted by dallas_01gt
That turned out looking nice! Where did you get that carpet at? I never can seem to find any good carpet in my area.

thanks! I got it from my local automotive upholstrey shop, they do work on everything from 1920's fords to ferraris and lambos. I did co-op there in grade 12 and they really liked me and i had fun time so it was all good, the owner gives me deals on everything, i got all the fabric to wrap the amp and sub boxes for $40, i used about 8 yards in total and he charges about $10 a yard for the material so i got a good deal! :)
Reply With Quote
