my system needs some help

so ive already bought new speakers 4x kicker ks680's and i have a single 10" jl audio w3v1 w/ a kicker zx300.1 amp.

my question: how do i wire my amp to my pickup while retaining the stock HU?

and how should i wire my sub to my amp

here are some pics of my amp connections

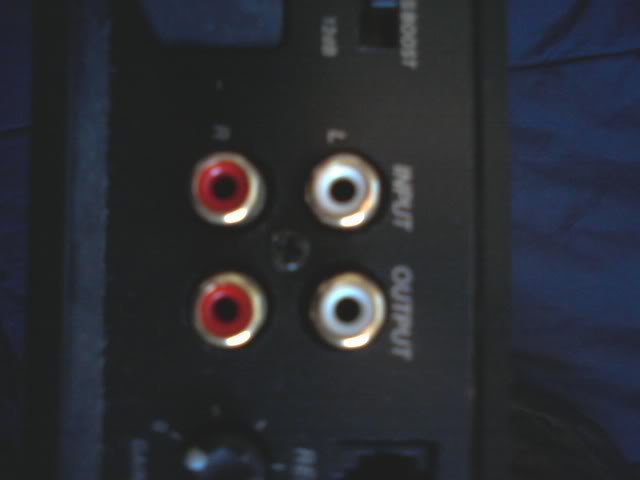

this one confuses me cause if it was mono it would only have one in and one out correct? why is there a left and right? and how would i wire this to my sub?
Name:  ampconnections2.jpg
Views: 2
Size:  14.1 KB
for this one i know what gain is, but what is and how would i use (if needed) the other two? one says remote and the other smaller one says high level input.
Name:  ampconnections3.jpg
Views: 2
Size:  10.4 KB
this one i know 12v+ will be battery + and the other to ground. as far as the batt+ what is in the line im guessing a fuse (how big?) and is there anything else that should be in there? and the one in the middle, i dont know what that is, its labeled REM, what is that and how is it wired (if needed?)
Name:  ampconnections4.jpg
Views: 2
Size:  11.1 KB

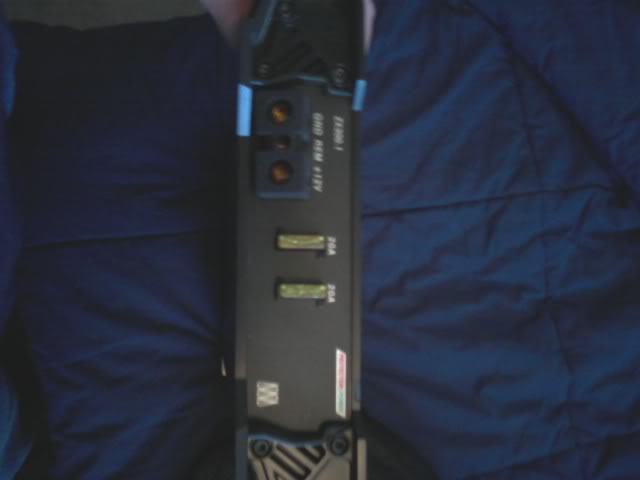

overall view of one side of amp
Name:  ampconnections5.jpg
Views: 3
Size:  15.8 KB

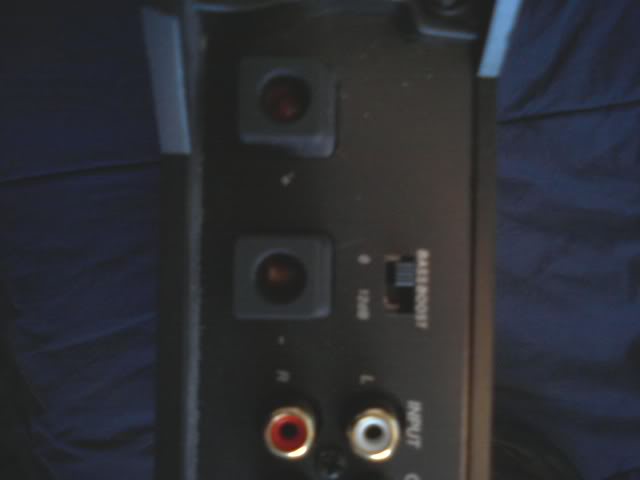

and this pic, these terminals are not labeled except for a + on the right one and a - on the left, what are these, what do they do and how are they wired (if needed?)
Name:  ampconnections.jpg
Views: 2
Size:  13.6 KB

some diagrams would be absolutly superb lol

thanks a million for any help that anyone has

Chappy
