replace antenna coax cable

ok i searched the threads and found no good answer and i looked for you tube videos but could not find the part i need
i removed my base antenna and disconnected the coax cable from all the interior holders,
cut the base off, split the cable housing, cut the old coax out and inserted and secured the new coax with electric tape
removed that little metal clip also that i guess was to keep it from pulling into the cab??
i am trying to fish the new coax by pulling the old into the cab but when the new connector hits the firewall it stops

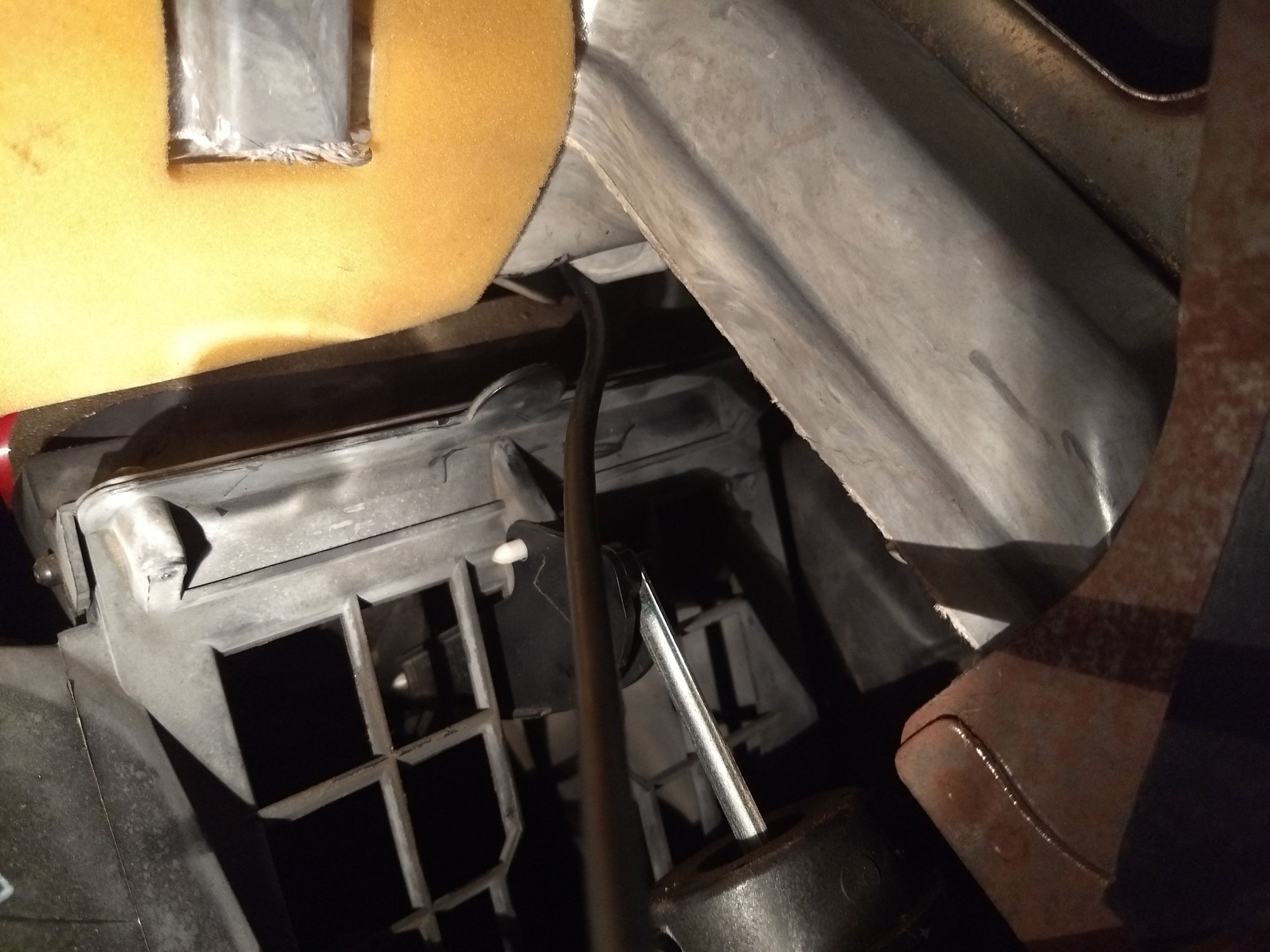

cant see hole, do not know what to remove next. this flap on top allows no access.
is there any other way than to remove the dash????

Reply With Quote
Old 1 Week Ago
Thread Starter
Join Date: Sep 2018
Location: CALABASH
Posts: 12
resolved, pulled and pulled and pulled some more and the grommet popped out of the pass through and boom there it came
Reply With Quote
Old 1 Week Ago
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 9,785
Put a light(trouble light/flashlight) at the antenna's hole and then look inside the cab for the light, that should help you see where wire needs to run.

Doubled up antenna wire won't fit thru the holes.
Try attaching a Pull String to the old cable and pull the string thru with old cable, then attach new cable to pull string and pull new cable in.
"Pull string" can be string or small diameter wire

Use dish soap on new antenna cable, it acts as a lube when pulling it in, rubber insulation has high friction
