Custom Driveshafts

Those of you that have had custom driveshafts made for the Superlift or RCD kits and did not buy the Superlift Driveshaft can you post some pics of the driveshaft they made?

My local driveshaft shop cannot make the flange or even get the flange that goes from the transfer case to the Double cardon joint.

This is all I need to make my truck 4wd again.

I called Superlift to see if I could get a hold of that piece and they do not offer to sell them and the people that make them for Superlift do not sell just pieces.

When i get home i will take some pics of what I'm talking about if you are confused.

If anyone knows where i could get a hold of one of these pieces I would greatly appreciate it!
Reply With Quote
  #2
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
are you talking about the flange like is on the rear driveshaft that bolts to the transfer case?

if so, you could possible get a driveshaft from a '97 and older Ranger and use the front part of that driveshaft.......my front driveshaft doesn't have the double cardon in it and we have the same transfer case.....
Reply With Quote
  #3
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
i will also take a picture of my driveshaft were it meets the t-case when i get off for you.....that way you can see if that would work.....
Reply With Quote
  #4
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
no the front driveshaft on the 98+ trucks is a wierd indented flange type deal. Didnt Jey use some sort of adapter to go to a normal CV flange?
Reply With Quote
  #5
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yours bolts up with the Ujoint, its a different beast. you have a 1350 right?

Mine is a 1354 which just has a big dish shaped connection on the front of the Tcase.
Reply With Quote
  #6
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
no the front driveshaft on the 98+ trucks is a wierd indented flange type deal. Didnt Jey use some sort of adapter to go to a normal CV flange?

I'm wondering if i could take the output shaft off and put one on from a 1350 transfercase... then i would not need this funky flange.
Reply With Quote
  #7
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by zabeard
yours bolts up with the Ujoint, its a different beast. you have a 1350 right?

Mine is a 1354 which just has a big dish shaped connection on the front of the Tcase.
mine is a 1354 also........
Reply With Quote
  #8
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Zack, go find a manual 1354 from a 91-94 explorer or 1993-1997 ranger. it will bolt up to your truck, and it will have regular yokes not the wierd CV flange.
Reply With Quote
  #9
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by redranger4.0
Zack, go find a manual 1354 from a 91-94 explorer or 1993-1997 ranger. it will bolt up to your truck, and it will have regular yokes not the wierd CV flange.
he could take the front flange off of his truck and bolt on a flange of a '97 and older 1354 t-case if his flange is that much different.......

my '97 has a 1354 t-case......the exact same 1 that is in the '98+ trucks....i don't see why there is any difference in them.......

you could use the u-joint flange and it would actually be better than the double cardon that you have now.....
Reply With Quote
  #10
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by redranger4.0
Zack, go find a manual 1354 from a 91-94 explorer or 1993-1997 ranger.
1st - the manual t-case was never offered in an Explorer
2nd - good luck finding 1 and when you do, expect to pay out the *** for it...
Reply With Quote
  #11
Old 04-03-2007
HAZZARDJOHN's Avatar
Member

Join Date: Dec 2005
Location: Wyoming MN
Posts: 2,400
Quote:
Originally Posted by lifted97ranger
1st - the manual t-case was never offered in an Explorer

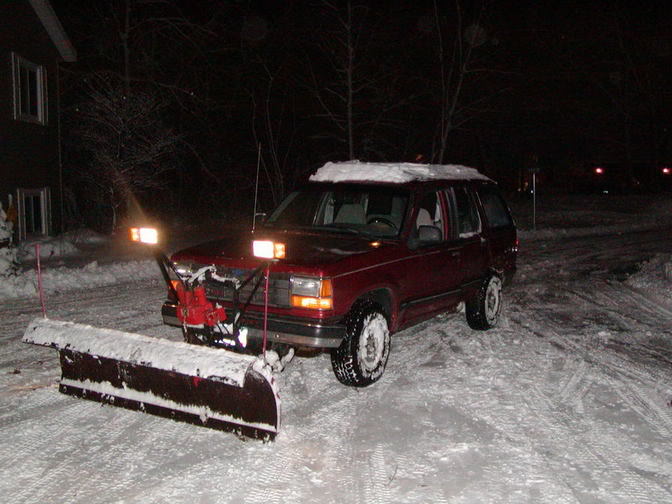

Wrong! My 1991 Had and still has a manual t-case. It was standard on the XL Xplodr


Name:  explorer01.jpg
Views: 4
Size:  59.0 KB
Reply With Quote
  #12
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by HAZZARDJOHN
Wrong! My 1991 Had and still has a manual t-case. It was standard on the XL Xplodr


didn't even know they made an XL Explorer.......thanks for the correction..

but still good luck finding 1...
Reply With Quote
  #13
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by lifted97ranger
1st - the manual t-case was never offered in an Explorer
2nd - good luck finding 1 and when you do, expect to pay out the *** for it...
I just pulled my manual 1354 from a 91 explorer, and there was another one there in another 91 explorer.
Reply With Quote
  #14
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by lifted97ranger
1st - the manual t-case was never offered in an Explorer
2nd - good luck finding 1 and when you do, expect to pay out the *** for it...
select rangers in 93-97 had manual 1354. our old 96 had one.

they are out there just have to find them
Reply With Quote
  #15
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
i still don't think there is a difference in the 1354 in the '98+ from the 1354 in the '97 and older......

EDIT: ahhh never mind....i saw a picture of 1 on ebay......i still bet the flange could be unbolted and the flange off my 1354 bolted on....
Reply With Quote
  #16
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by lifted97ranger
i still don't think there is a difference in the 1354 in the '98+ from the 1354 in the '97 and older......
The front flange is different.
Reply With Quote
  #17
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Name:  e220139b.jpg
Views: 4
Size:  36.3 KB

Name:  cba47131.jpg
Views: 4
Size:  37.7 KB

that is what jey used to adapt a driveshaft to his tcase. its made by tom woods.
Reply With Quote
  #18
Old 04-03-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by redranger4.0
The front flange is different.
read above post again! i edited it!
Reply With Quote
  #19
Old 04-03-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Dammit Zach I threw away my old driveshaft like two weeks ago because the CV was busted in it. You should have said something I'd have gladly hacked off the 'tulip-style' flange (I think thats what they call it) and dropped it in the mail to you.
Reply With Quote
  #20
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by Gearhead61
Dammit Zach I threw away my old driveshaft like two weeks ago because the CV was busted in it. You should have said something I'd have gladly hacked off the 'tulip-style' flange (I think thats what they call it) and dropped it in the mail to you.

I have my stock one, but the drive shaft place said they could not do anything with it.
Reply With Quote
  #21
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0




that is what jey used to adapt a driveshaft to his tcase. its made by tom woods.

is there another piece missing from that first picture? or maybe i dont understand what it did for it.
Reply With Quote
  #22
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
I just pulled my manual 1354 from a 91 explorer, and there was another one there in another 91 explorer.

how much did you pay for that one?
Reply With Quote
  #23
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
130 with the shift linkage
Reply With Quote
  #24
Old 04-03-2007
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by zabeard
is there another piece missing from that first picture? or maybe i dont understand what it did for it.
that peice is just an adapter. It adapts what ever size CV jey used to the weird 1354 CV yoke.
Reply With Quote
  #25
Old 04-03-2007
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0
that peice is just an adapter. It adapts what ever size CV jey used to the weird 1354 CV yoke.

just to make this clear.

when you say CV that jey used you mean a Double Cardon Ujoint?

because in my situation i see that piece/adapter, then anther piece then my Double Cardon Ujoint then the shaft.

Jey is not using a "CV Joint" like what the stock ranger has right?

If I had the piece that bolts to the other half of the Double Cardon Ujoint and it didnt match up to my Tcase that is no problem i would just make my own adapter.

I wish i was close to home so i could get some pics to help explain.
Reply With Quote
