Do these gears look alright?

Bought this front axle 2 weeks ago, it has 81,000 miles on it. I opened it up this past weekend to see how the gears looked and I'm not sure if its ok for them to be like this or not:

Name:  DSC01748.jpg
Views: 2
Size:  121.7 KB
Everything else looked good. The guy said if there's any problems with the gears I have a month to return it and get my money back. Just wondering what you guys think.

Thanks,
Clay
Reply With Quote
  #2
Old 10-21-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
How is the ring and pinion?
Reply With Quote
  #3
Old 10-21-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
just weld them all together and youll be fine!! trust me!!
Reply With Quote
  #4
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
I'm not sure what the ring and pinion look like. Could welding them together even be an option. I don't think I'm going to do that.
Reply With Quote
  #5
Old 10-21-2009
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
They are about shot.
I only see one thrust washer behind the side gears and there is usually 2 or 3.
I'm going by the Dana axles I've rebuilt , before the flames start.

Whoever had it apart last didn't set the spacing correctly. The side gears did not mesh deep enough.
If they overlooked that , you should pay close attention to the ring and pinion .
Reply With Quote
  #6
Old 10-21-2009
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by cchsbuzz19 View Post
I'm not sure what the ring and pinion look like. Could welding them together even be an option. I don't think I'm going to do that.
What an 'old timer' told me :
If ya burn it your gonna learn it.

Meaning you will learn the error of your ways.
Reply With Quote
  #7
Old 10-21-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
is it just my eyes or does no one see the c clip on that axle shaft
Reply With Quote
  #8
Old 10-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
No C-clip, but an E-clip....



It's a front 98+ M35. The surface rust(i assume it's rust) tells us a history of water in the diff, yet mine was half filled with water and the spiders didn't look anything like that. Side gears look at little chewed up, but again, it's been so long since I've looked at what those spiders and sides are supposed to look like, so IDK. Safest bet is to get to a good gear shop and see what their say is.
Reply With Quote
  #9
Old 10-21-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
What gears are in it? Stock or otherwise?

Like these guys said, lets see the ring gear (the big one) that's really going to be what matters. In a front axle if the spiders are a little off it's not going to hurt anything.
Reply With Quote
  #10
Old 10-21-2009
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by rngprerunner View Post
In a front axle if the spiders are a little off it's not going to hurt anything.
Sorry , but that is not true . If just one tooth on a side gear goes it will trash the diff. I've seen it happen more than a few times.
The side gears in the pics are not meshing deep enough .This is not due to whether a C or E clip is present . All the clip does is hold the axle shaft IN . The side gears push toward the outside of the case. The thrust washers between the side gear and the bearing determine the mesh between the side gear and the spider .If the gears are not meshed deep enough you get what you see in the pics .
The less gear contact , the weaker the connection between teeth , the easier teeth are broken .
Reply With Quote
  #11
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
I think I'm just gonna take it back, I'm in no rush to do this anymore. I really don't want to risk putting this in and it not performing properly or breaking on me. Heres a zoomed out pic of the whole thing:
Name:  DSC01744.jpg
Views: 2
Size:  152.0 KB
Reply With Quote
  #12
Old 10-21-2009
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
YEEEOOWWW !!

Now lie to me and tell me there was something similar to gear oil in there when you opened it up .

Where did you get it and did they tell you it had less that 1,000,000 miles on it ?
Reply With Quote
  #13
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Whats its supposed to look like? The gear oil was grayish, felt like oil so it wasn't runny like water. I need to know so I can tell the guy when I return it.
Reply With Quote
  #14
Old 10-21-2009
rngprerunner's Avatar
Member

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by OTRtech View Post
Sorry , but that is not true . If just one tooth on a side gear goes it will trash the diff. I've seen it happen more than a few times.
Eh... sure, to the extreme. Looking at those things I'd bet they have 100,000 miles on them and have another 100,000 in them. In the front of a Ranger doesn't worry me at all. Are we looking at the same contact patch?
Reply With Quote
  #15
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Dang I have some serious bad luck. I hope the guy understands and gives me my money back. I got it from a junkyard.
Reply With Quote
  #16
Old 10-21-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Most JY's around these parts have a 30day money back sorta deal.

Tell ya what, talk to the JY, I'll go get my stock 80,000 mile axle from my buddy's shop, I'll pull the cover and take pics. I'll show you what a 80,000 mile front axle should look like. I know it's a good axle too...it used to be mine, now it's mine again. lol.
Reply With Quote
  #17
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417

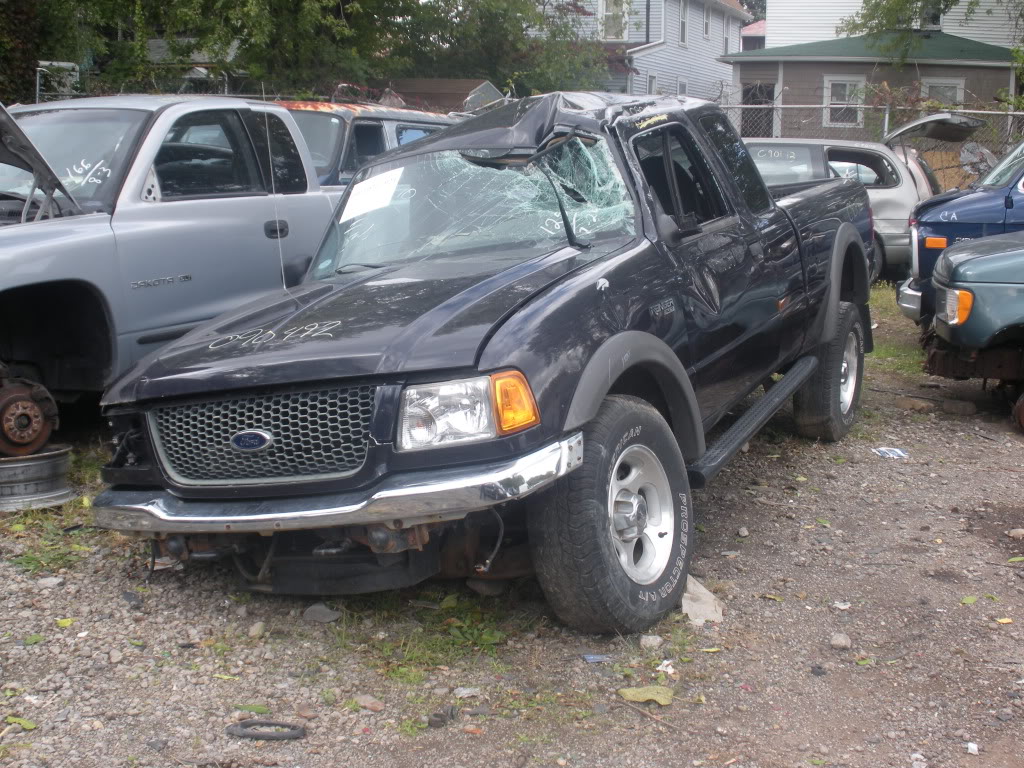

It came out of this, an 03:
Name:  DSCN1453.jpg
Views: 3
Size:  253.2 KB
Reply With Quote
  #18
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Quote:
Originally Posted by Fx4wannabe01 View Post
Most JY's around these parts have a 30day money back sorta deal.
Ya thats what he said.
Reply With Quote
  #19
Old 10-21-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
ohhh that is the front! now the pics make sense....wiw its been a long day

it doesnt look too out of the ordinary for a d35 then, my spiders looked like that (the mushroomed over look) and the other front axle i had looked much worse than that. will brakleen remove the stains on the side gears?
Reply With Quote
  #20
Old 10-21-2009
cchsbuzz19's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Quote:
Originally Posted by rngprerunner View Post
What gears are in it? Stock or otherwise?

Like these guys said, lets see the ring gear (the big one) that's really going to be what matters. In a front axle if the spiders are a little off it's not going to hurt anything.
Its got 4.10s in it.
