Explorer Dif. cover Q's..

So i have a noob *** question about the Ear'd explorer diff covers. i finally got mine and i have all the plugs. but i noticed there is one at the top that i dont have but it looks to be for a temp sensor? is that correct? and where the hell can i get it heh

here are some pics of what I'm talkn about

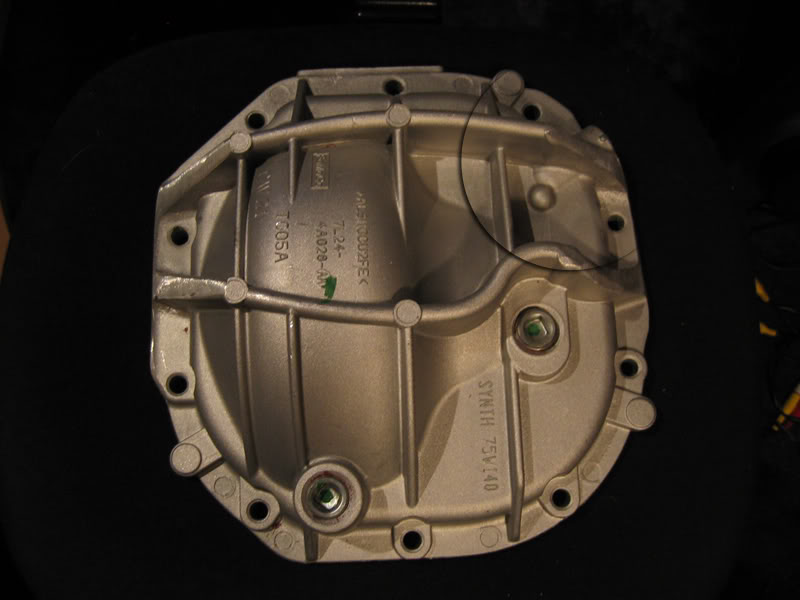

Name:  diffcover001copy.jpg
Views: 2
Size:  51.6 KB

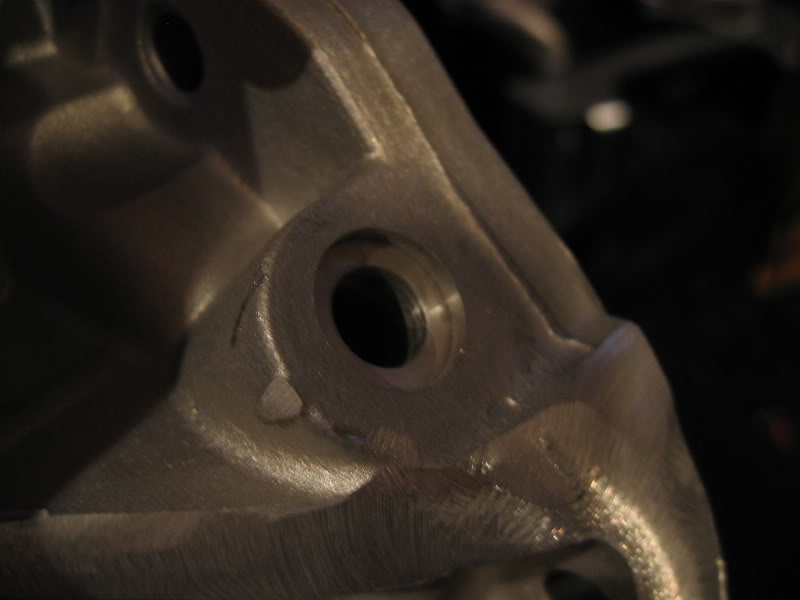

Name:  diffcover003.jpg
Views: 3
Size:  33.4 KB

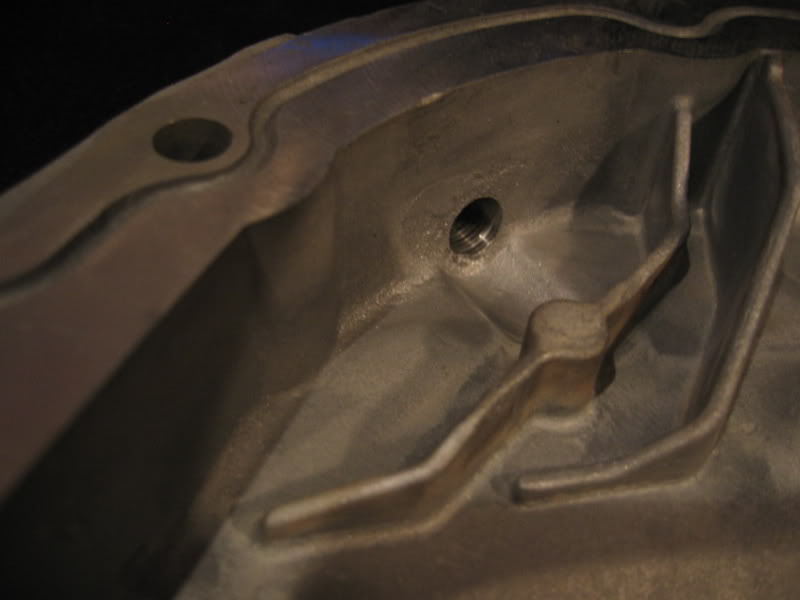

Name:  diffcover004.jpg
Views: 2
Size:  33.3 KB
Reply With Quote
  #2
Old 08-18-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
mine just had a plastic plug in it.

if it is a temp sensor thing is prolly standard thread.
Reply With Quote
  #3
Old 08-18-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Yeah I guess i could see if any of my sensors i have laying around from my gauges fit. then i guess I'd have a rear dif. temp gauge heh.

but i think i might just find a bolt i can thread in there
Reply With Quote
  #4
Old 08-18-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i doubt a bolt will fit. gonna need some type of pipe plug, fitting plug etc.. its prolly 1/8 NTP
Reply With Quote
  #5
Old 08-18-2007
DerangedPony's Avatar
Member

Join Date: Apr 2006
Location: New Berlin, WI
Posts: 351
If it was for the temp sensor, I would think it would be in a place where the sensor would sit in the oil?

Just take the cover to the local hardware or auto store and ask for a plug that fits.
Reply With Quote
  #6
Old 08-18-2007
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Tap the port to 1/8 NPT and use a 1/8 pipe plug with sealant.

Also- the level plug in the Ex cover is in the wrong place for our application. The IRS Ex doesn't run the diff level as high as our axles do because its fluid doesn't lube the wheel bearings. Be sure to use the hole in the Ranger diff housing to set the fluid level or your wheel bearings will fail.
Reply With Quote
  #7
Old 08-18-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
i welded mine up
Reply With Quote
  #8
Old 08-18-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon2 Info:

Quote:
Originally Posted by INT3RC3PTOR
So i have a noob *** question about the Ear'd explorer diff covers. i finally got mine and i have all the plugs. but i noticed there is one at the top that i dont have but it looks to be for a temp sensor? is that correct? and where the hell can i get it heh
===============================================

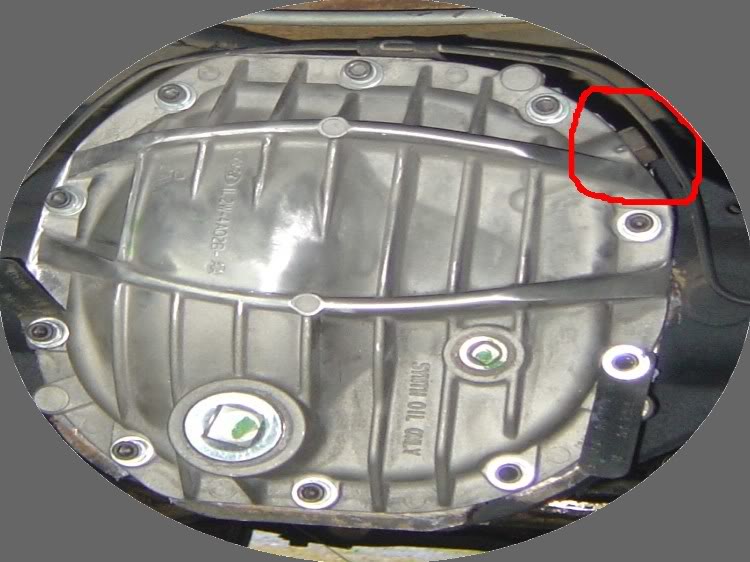

That hole in the Explorer cover is for the breather tube, as the Explorer doesn't have one on the axle tube....................so you can either plug it like I did with a self-tappin bolt or find ya a piece of tubin & press it in & run a second breather..............
Name:  Explorerdifferencialcoverinfohelp75.jpg
Views: 2
Size:  63.2 KB
Reply With Quote
  #9
Old 08-19-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by rwenzing
Tap the port to 1/8 NPT and use a 1/8 pipe plug with sealant.

Also- the level plug in the Ex cover is in the wrong place for our application. The IRS Ex doesn't run the diff level as high as our axles do because its fluid doesn't lube the wheel bearings. Be sure to use the hole in the Ranger diff housing to set the fluid level or your wheel bearings will fail.
so are you saying i need to make a higher fill hole? i was thinking if i can get a plug for the breather hole i can fill to the fill-plug and then tightn it and the pour a little more in from that top hole.
Reply With Quote
  #10
Old 08-19-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by INT3RC3PTOR
so are you saying i need to make a higher fill hole? i was thinking if i can get a plug for the breather hole i can fill to the fill-plug and then tightn it and the pour a little more in from that top hole.

no, he's saying use the stock ranger fill hole
Reply With Quote
  #11
Old 08-19-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
oh..**** yeah i forgot where it was.. i was wondering how that would work..but yeah retard moment
Reply With Quote
  #12
Old 08-19-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
bring it to SC with you and ill weld it up if thats the route that you wanna go..
Reply With Quote
  #13
Old 08-20-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
i'm prolly gona have it on the truck before then.. i hope. so i might just get a plug for it. I could weld it myself but i need to set my welder back to alum. and get some gas. I'm too lazy though
Reply With Quote
  #14
Old 08-21-2007
TireIron's Avatar
Member

Join Date: Feb 2006
Location: Methuen, MA
Posts: 790
yea, i just tapped it to 1/8 NPT and put a pipe plug in it.
