gears issue

k guys i got my gears long time ago finally installing them
the probolem is when i called completeoffroad they told me to get the standard gears....well... guess what... i need the thick gears

on the rear i got dana 44 series 3 so i need the dana 44 thick gears

what ive read is that on normal gears and thick gears the pinion is the same? the only thing that changes is the ring?

anyone might help out to see what difference in thicknes of the ring? i caled completeoffroad but he didnt answer me with numers just "ehmm no.. buy new gears 169$..."

therfore i should be ok by getting a spacer made to fit for the difference in size? or atleast while i decide what to do if i eventually get a rear arb locker that anyway i cant install it with thick gears....


thansk i really need to get my truck running again...
Reply With Quote
  #2
Old 07-02-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
what ratio did you have before? what ratio are you changing to? are you sure its a dana 44 in the rear?
Reply With Quote
  #3
Old 07-02-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
i had 3,73 and im going to 4.56.

Im sure its a dana 44 series 3. The housing is the same as a standard dana 44 but the carrier changes a lil therfore i needed the thick gears.

The thing is that what ive read the pinion on std gears and thick gears is the same? All that changes is the thickness on the ring? And should i be ok getting a spacer? But what i cant get is the difference between size on the standaard gears and the thick gears on the 4.56 gears...
Reply With Quote
  #4
Old 07-02-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
do not get a spacer... thats super ghetto!! yes the d44 has a carrier break around 4.11 i think.. you either need thick gears OR a new carrier! since you already have the regular gears i would get a new carrier for the gears and set em up with that

EDIT: Dana 44 carrier break, 3.73 and down; 3.92 and up
Reply With Quote
  #5
Old 07-02-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
hmmm this really sucks. Ive heard from some guys on argentina that have done this but atleast do this as a temporal fix while i save for a locker that fits the regular gears... Still need to find the size difference between the rings
Reply With Quote
  #6
Old 07-02-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
just get a new carrier. like 50 bucks.. job done
Reply With Quote
  #7
Old 07-02-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
got the numbers already. I need a 0.310 in spacer to make the gear work. And dont want to loose the limited slip i got on the rear, atleast for know till i get a real locker... **** happens...
Reply With Quote
  #8
Old 07-08-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
got the spacer now gotta see how it fits..

i used the measurments that the guy from complete offroad gave me.. im not sure how precise he is.. hope it fits ok. anyway worst case scenario i got it to thick and just gotta cut of come more out of it so no biggie.

some pics of the work they gave me

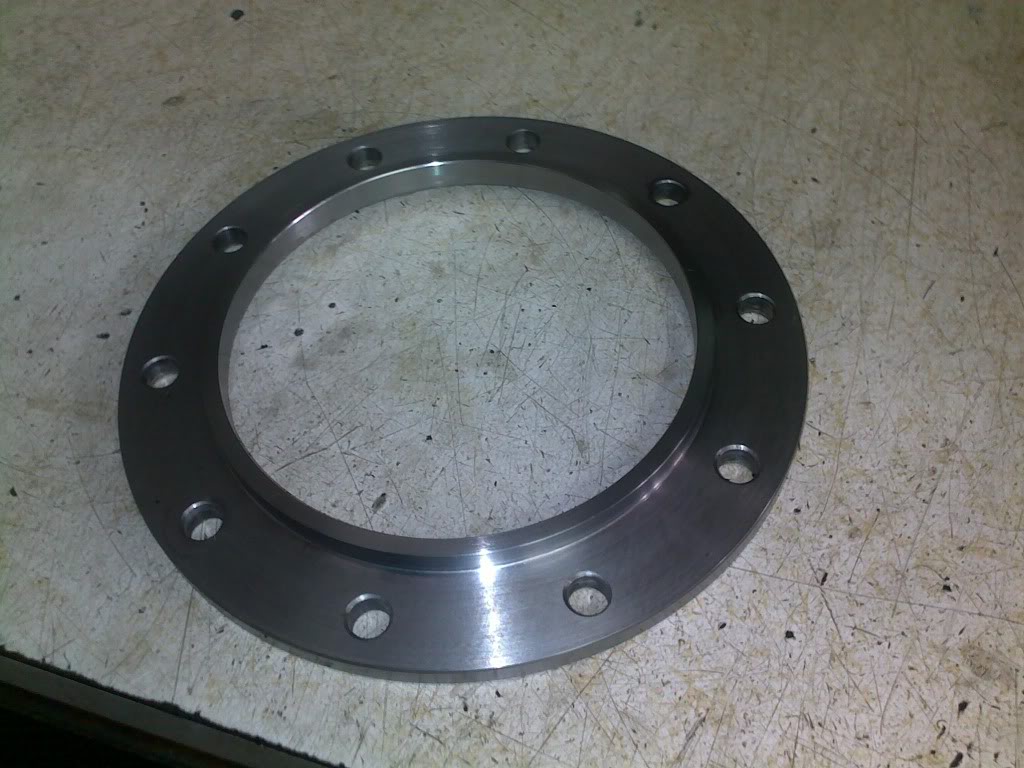

Name:  08072010318.jpg
Views: 1
Size:  122.2 KB

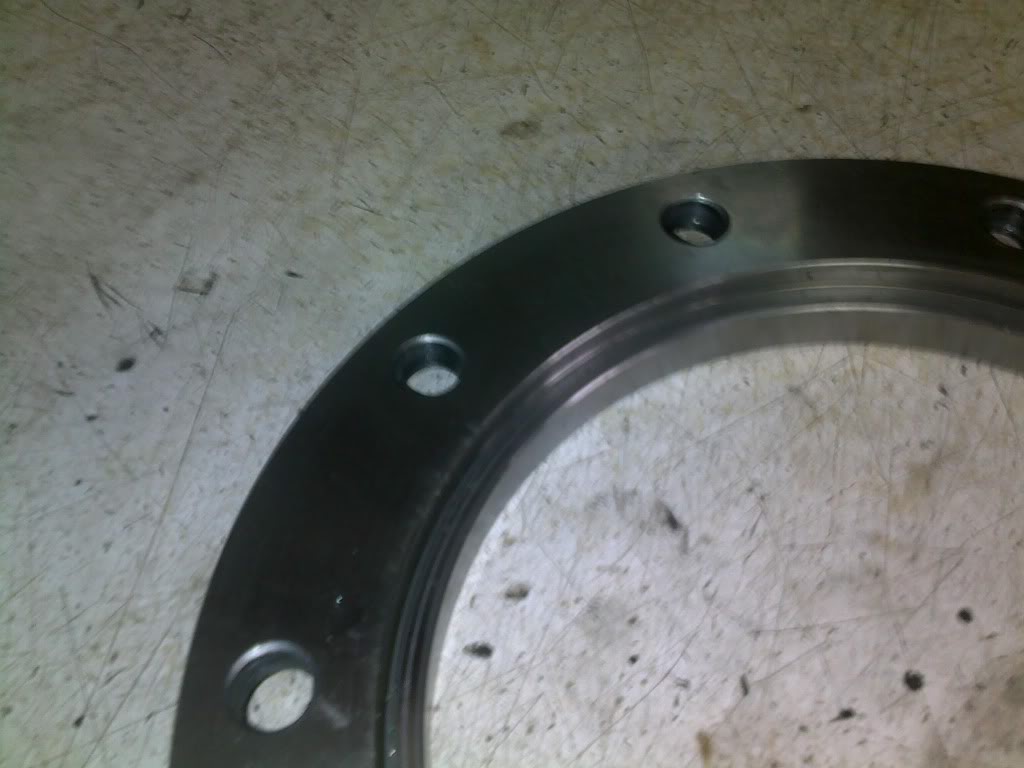

Name:  08072010319.jpg
Views: 1
Size:  72.7 KB

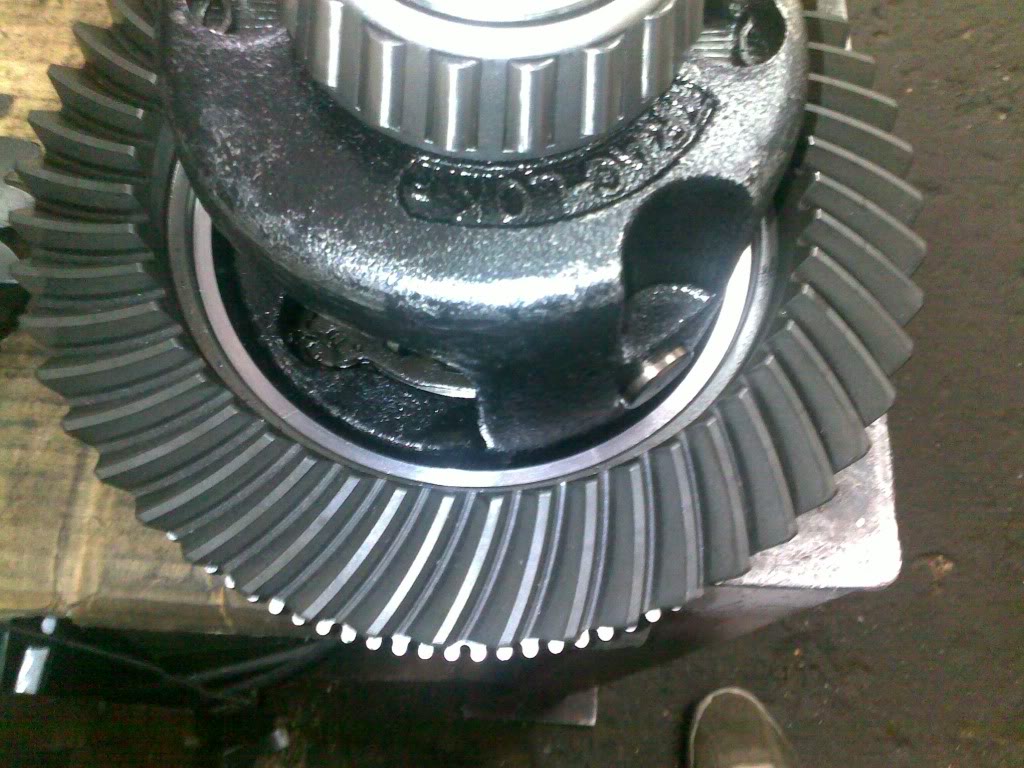

Name:  08072010323.jpg
Views: 1
Size:  144.7 KB

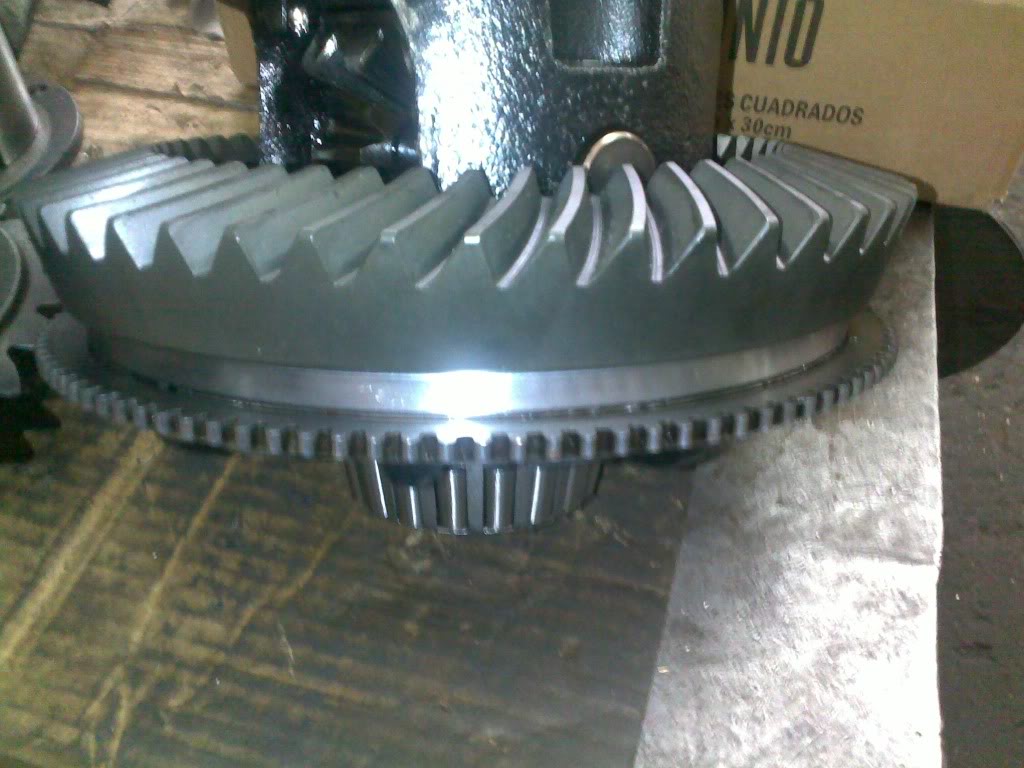

Name:  08072010324.jpg
Views: 1
Size:  107.3 KB
Reply With Quote
  #9
Old 07-08-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Glad you got it figured out. Hope it works well for you.
