Lost a Hub...?

ok, so saturday night, i had the brilliant idea to go night wheelin with a bunch of drunkies lol

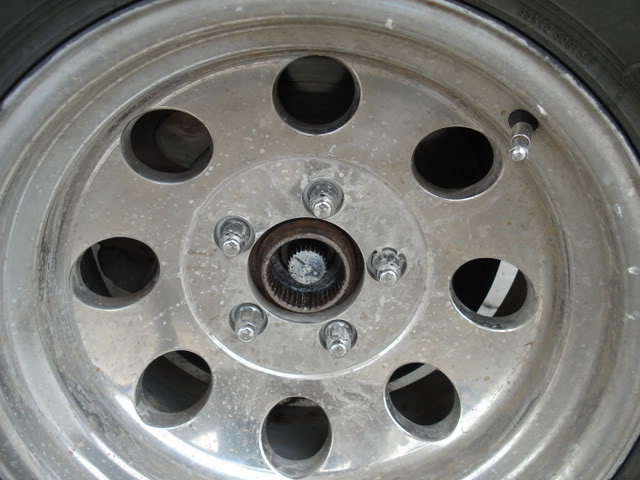

ANYWHO, i snapped a CV shaft, and lost a hub
Name:  longs006.jpg
Views: 1
Size:  54.9 KB

is it alright if i drive around like that until i get the money to get a new set of AVM hubs? or do i need to throw my stock hubs back on?
The problem with that is i think i modified them to be always locked.. and between that being the side with the broken CV shaft, and having a locker.. i dont want it spinning..

who thinks what?
Reply With Quote
  #2
Old 09-03-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
anyone?
Reply With Quote
  #3
Old 09-03-2007
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
I have no idea!
Reply With Quote
  #4
Old 09-03-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
what is holding the shaft in there?

i dont see why you cant drive around like that until you get the parts. just keep an eye on it
Reply With Quote
  #5
Old 09-03-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
the axle nut? lol

the hub just snaps on.. no bolts or screws.. its pretty gay, and probably why i lost it..
Reply With Quote
  #6
Old 09-03-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by zabeard
what is holding the shaft in there?
this is the key. on a PVH truck im not sure what retains the CV shaft in the hub, but sumthin needs to be there to keep the preload on the hub bearing. im sure its not JUS the hubs, dont they jus snap on?


edit**
Quote:
Originally Posted by 99ranger4x4
the axle nut? lol
i dont see any axle nut in that pic. got a better pic?
Reply With Quote
  #7
Old 09-03-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you should have an axle nut i would think but i never messed with pvh before
Reply With Quote
  #8
Old 09-03-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yea good point, popped into my head haha, i remember someone saying something about a snap ring? i can call the shop that installed my lift tomorrow and ask them how it went on..

but theres o pressure from the hub onto the axle.. that i know of, i mean it was plastic clips holding it on...
Reply With Quote
  #9
Old 09-03-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
been a loooooooong time since ive seen inside a PVH hub truck. with a properly installed snap ring on the axle shaft, i would give you a thumbs-up to drive w/o the hub.
Reply With Quote
  #10
Old 09-04-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
there is indeed a snap ring holding it in.

i have put a little over 100 miles on it this way so far, nothing has flown off or blown up
Reply With Quote
  #11
Old 09-04-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
if the snap ring is still there i would think you are fine.
Reply With Quote
  #12
Old 09-04-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
looks like i need to invest in a beefier set of snap ring pliers before i replace anything.. at least i don't have to worry about axle nuts and tightening them to a specific torque i THINK lol.. who knows

and for good measures i think im going to pick up a driver side shaft too, its probably not too far behind
Reply With Quote
  #13
Old 09-04-2007
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
Matt, just so you know, you actually aren't going to have any problems running it like that EXCEPT if you get off camber so far that your suspension articulates enough for the CV to slide out, I wouldn't put a whole lot of faith in the little snap ring, but as long as you are babieing (sp?) it I think you will be ok. Isn't your RCD in the front strapped anyway which would be a good thing in this case.
Reply With Quote
  #14
Old 09-04-2007
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
You need to at least get a cap on that hub.Keep the dirt/water out of those wheel bearings.
Reply With Quote
  #15
Old 09-04-2007
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
now u tell me after i have been driving around in the rain.. haha

but know there has been water in there...


as for keeping the CV shaft in.. the trucks only seeing pavement until its fixed.. its not very capable in 3(2?)wd i have noticed

i dont really have much faith in the hubs keeping th CV in.. like i said, they are held on my little plastic clips
Reply With Quote
