Replacing transfer case YL54-AA
#1
Replacing transfer case YL54-AA
Going to be replacing the transfer case in my 2000 ford ranger XLT 3.0
The transfer case I have in mine is a bw1354 YL54-AA
Does the transfer case I buy to replace mine need to match the YL54-AA? Yes I know a manual t case would be the way to go but honestly it's already hard enough for me to find one at all locally.
I just need to know if the replacement t case needs to also be a YL54-AA or
The transfer case I have in mine is a bw1354 YL54-AA
Does the transfer case I buy to replace mine need to match the YL54-AA? Yes I know a manual t case would be the way to go but honestly it's already hard enough for me to find one at all locally.
I just need to know if the replacement t case needs to also be a YL54-AA or
#2
RF Veteran
iTrader: (1)
No, it doesn't, but it does need to be a BW1354 from a 1998-2011 Ranger or Mazda B-series, these years have the propeller joint connection for front drive shaft
Shift motor never changed, even F-150s used same shift motor on larger transfer cases
You have a 2000 Ranger so you do not need the "speed" sensor on transfer case
Shift motor never changed, even F-150s used same shift motor on larger transfer cases
You have a 2000 Ranger so you do not need the "speed" sensor on transfer case
#3
No, it doesn't, but it does need to be a BW1354 from a 1998-2011 Ranger or Mazda B-series, these years have the propeller joint connection for front drive shaft
Shift motor never changed, even F-150s used same shift motor on larger transfer cases
You have a 2000 Ranger so you do not need the "speed" sensor on transfer case
Shift motor never changed, even F-150s used same shift motor on larger transfer cases
You have a 2000 Ranger so you do not need the "speed" sensor on transfer case
literally any 1998-2011 BW1354 will work and hookup without anything missing?
#4
RF Veteran
iTrader: (1)
#6
RF Veteran
iTrader: (1)
#7
#8
RF Veteran
iTrader: (1)
Should be fine
Rust is all on the shift motor
The vibration damper, just below the motor, can be taken off, you can leave it off if you want, personally I have never noticed a difference
Drain the fluid and refill

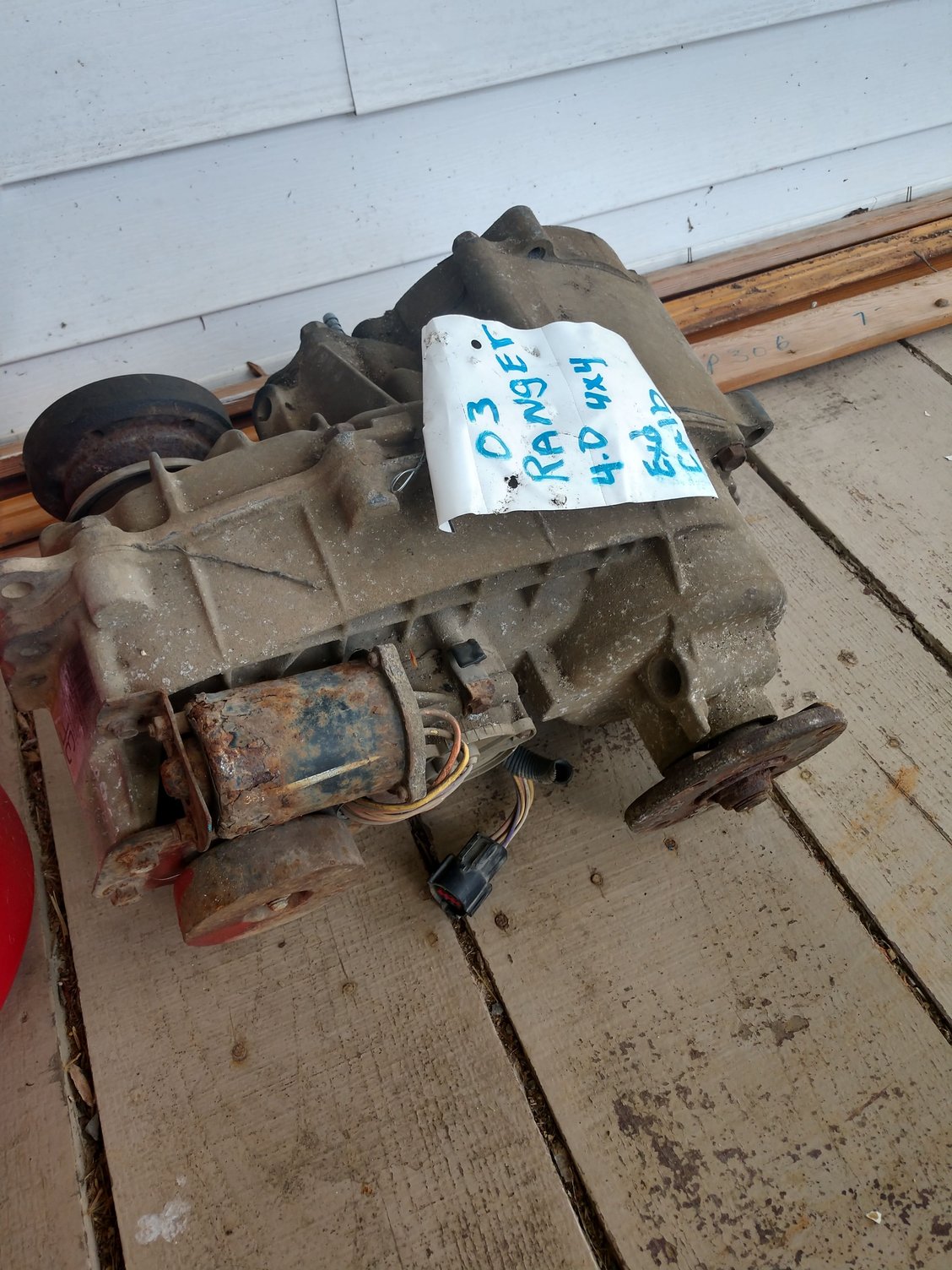

Just soap and water should clean it up, there is a VENT on the front side, you can see the nipple in the pic, plug it when cleaning
If you want to paint it you can, but thats a personal choice
Rust is all on the shift motor
The vibration damper, just below the motor, can be taken off, you can leave it off if you want, personally I have never noticed a difference
Drain the fluid and refill
Just soap and water should clean it up, there is a VENT on the front side, you can see the nipple in the pic, plug it when cleaning
If you want to paint it you can, but thats a personal choice
#9
Should be fine
Rust is all on the shift motor
The vibration damper, just below the motor, can be taken off, you can leave it off if you want, personally I have never noticed a difference
Drain the fluid and refill
Just soap and water should clean it up, there is a VENT on the front side, you can see the nipple in the pic, plug it when cleaning
If you want to paint it you can, but thats a personal choice
Rust is all on the shift motor
The vibration damper, just below the motor, can be taken off, you can leave it off if you want, personally I have never noticed a difference
Drain the fluid and refill
Just soap and water should clean it up, there is a VENT on the front side, you can see the nipple in the pic, plug it when cleaning
If you want to paint it you can, but thats a personal choice
Thanks again for the info Ron.
I got the new (used) transfer case bolted up today and the old one taken out, the old one sounds like it has loose pieces inside and makes an awful clicking and catching sound when turning by hand lol.
Did have some issues with the Gasket for it, I bought a new one and it's the paper type gasket, had to re-seat it to try and prevent the initial leaking. I wanted to use a gasket instead of RTV so hopefully it's sealed tight now, i'm going to wait until tomorrow to reattach the driveshafts to make sure there's no leaks. Also had to buy a new housing bolt for the top most left side, the one I removed had aluminum or something of the sort in the threads that would not come out. Hoping this fixes my 4wd with no further issues.
#10
So I ran into an issue on the last step... The rear driveshaft hookup is a 3 inch bolt pattern while the old one is 2.5 inches from center to center. Do I need to try to swap the rear hookup from the old transfer case to the new one? Or buy a new rear u-joint flange to fit the new t-case? didn't even know this is an issue I could have and didn't even think to measure the bolt patterns before buying the new one lol
#11
RF Veteran
iTrader: (1)
OK, thats an odd one
2000 and 2003 should have the same rear flange, 1998 and up used 3", I have read 1998/9 can have 2.5" but never seen it myself
3 things you can do
Swap whole drive shaft, wrecking yard, need to match regular cab or extended cab length
Swap rear flange, need 30mm thin walled socket and puller, and new rear seal
Swap u-joint flange, not sure if they used same size u-joint, so may have to get dual size u-joint
2000 and 2003 should have the same rear flange, 1998 and up used 3", I have read 1998/9 can have 2.5" but never seen it myself
3 things you can do
Swap whole drive shaft, wrecking yard, need to match regular cab or extended cab length
Swap rear flange, need 30mm thin walled socket and puller, and new rear seal
Swap u-joint flange, not sure if they used same size u-joint, so may have to get dual size u-joint
#12
#13
RF Veteran
iTrader: (1)
#14
#15
RF Veteran
iTrader: (1)
#16
#17

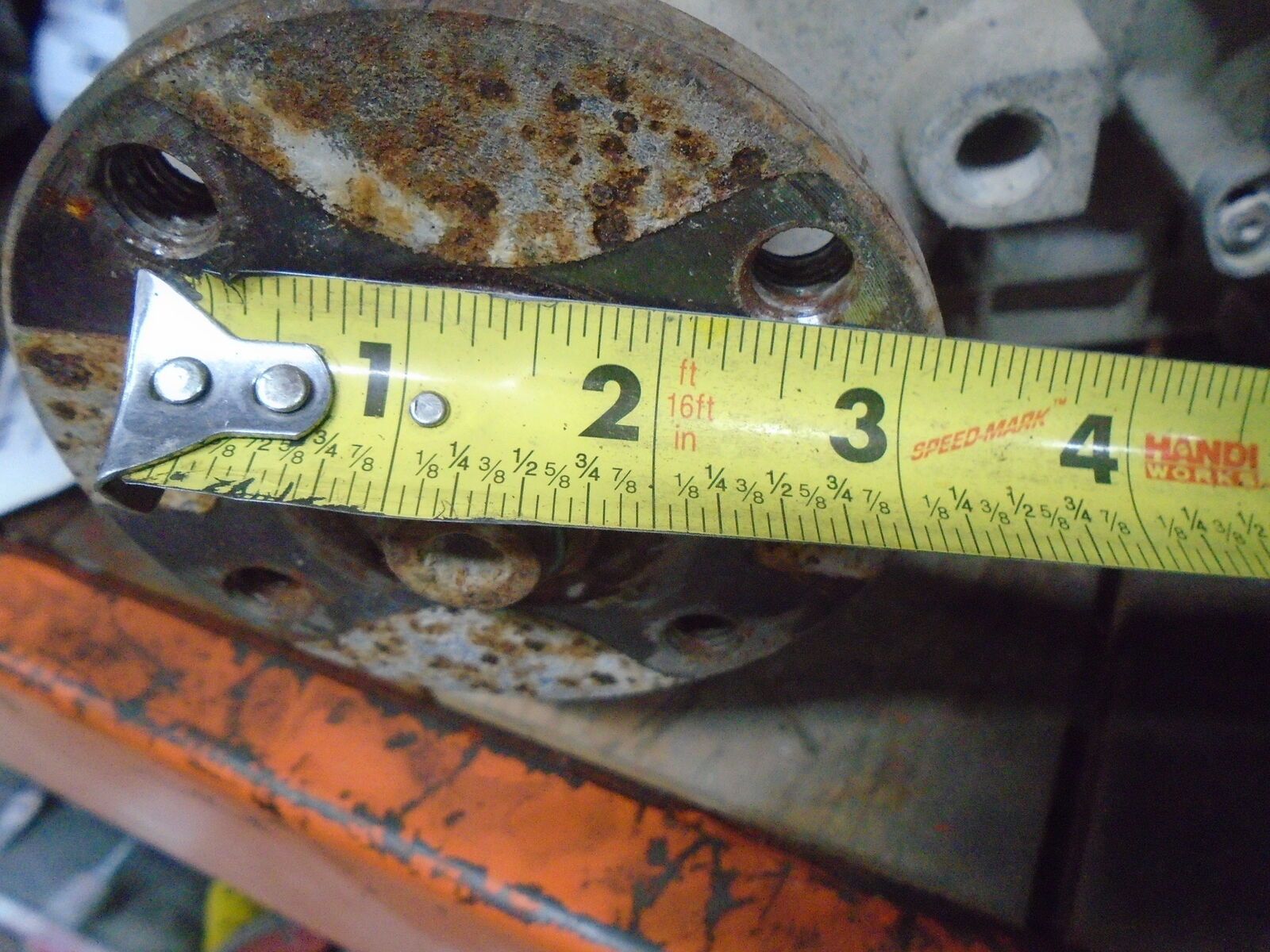

It's really hard to find information on the specific bw1354 # variations but from the info i'm getting from these ebay sellers it's leading me to believe that the YL54-AA models specifically have the 2.5" spacing for whatever reason. Just got these pictures from ebay sellers with my specific model
#18
RF Veteran
iTrader: (1)
#20
#21
RF Veteran
iTrader: (1)
#22
Not a problem at all Ron, you're not the only person who gave me the same info. No way to know unless you've encountered it, apparently it's only on the 2000-2003 models so a small window. You've helped me with many problems with my little ranger, thanks again.
#23
RF Veteran
iTrader: (1)
#24
For what it’s worth, I just received a rebuilt t-case for my 1999 4.0 OHV 5spd. I found this thread when it was en route to me and had a day of wondering, but when it arrived I found to my relief that it matched my original 2.5” bolt pattern rear output shaft flange.
