Shift Motor Wiring Question

Am replacing the shift motor on the transfer case. I want to use the new plug, but do not know how to get the brown wire pin and the other two pins from the magnetic pickup out of the old plug and into the new. Any Ideas?
Thanks - Bill
Reply With Quote
  #2
Old 03-01-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179

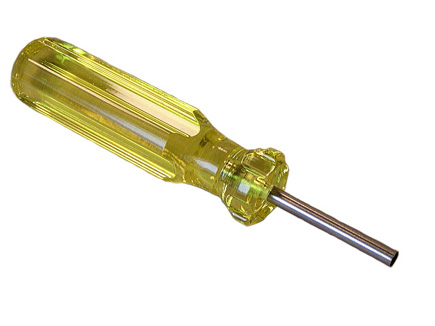

If there using weatherpack connectors you'll need a neat little tool like this

You can find more info at weatherpack.com






.
Reply With Quote
  #3
Old 03-01-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Most Ford connectors have this little red insert in them that you pull out to release the pins. I'm guessing Rev's tool facilitates that? I've managed to get them out other ways, but the right tool is priceless sometimes.
Reply With Quote
  #4
Old 03-01-2008
Rev's Avatar
Rev Rev is offline
Level I Supporter

Join Date: May 2005
Location: San Diego, CA
Posts: 1,179
Na, that tool is for weather packed connectors.




I believe the ones your thinking of are more like this. I think they called them comb lock or something to that effect.



Heres another link with some good info on electrical connectors

AutomotiveElectricalConnectors




.
Reply With Quote
  #5
Old 03-02-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Got ya. Well, the shift motor connectors I'm familiar with are round, but then I've got two older Explorer transfer cases and haven't really looked at newer ones.
