torsen lsd front diff install

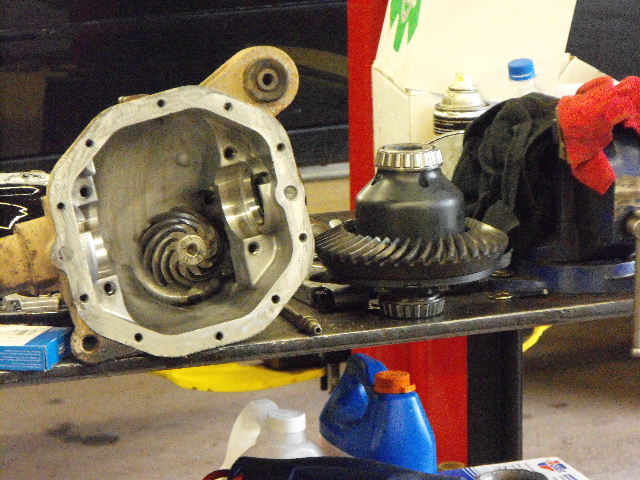

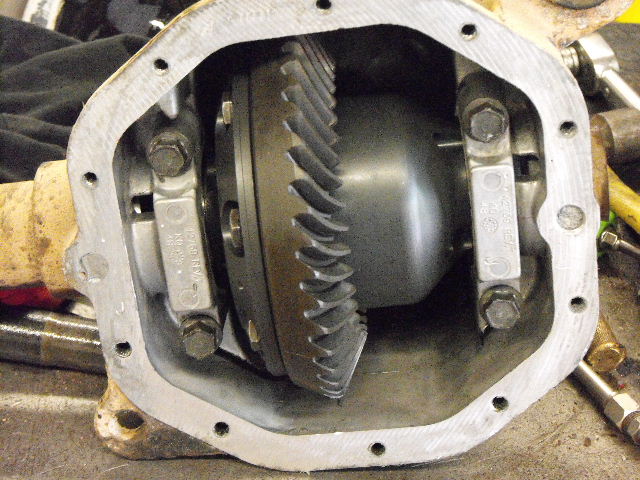

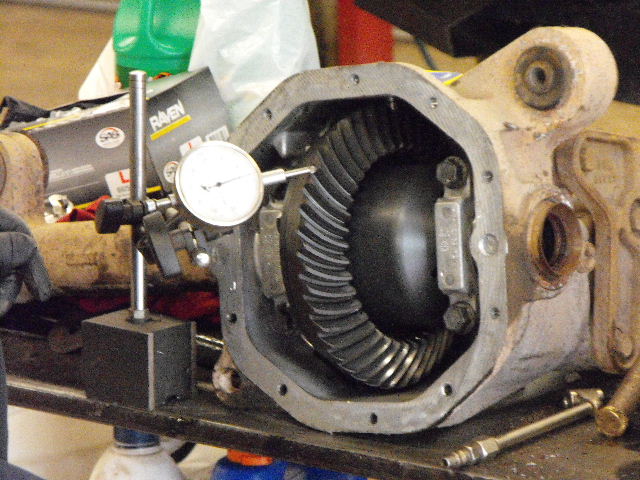

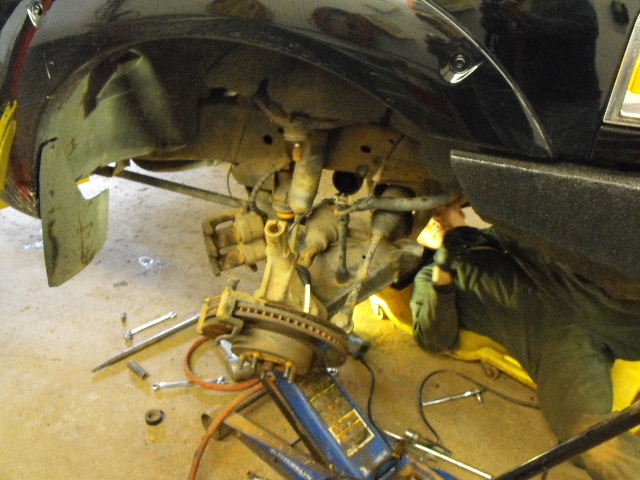

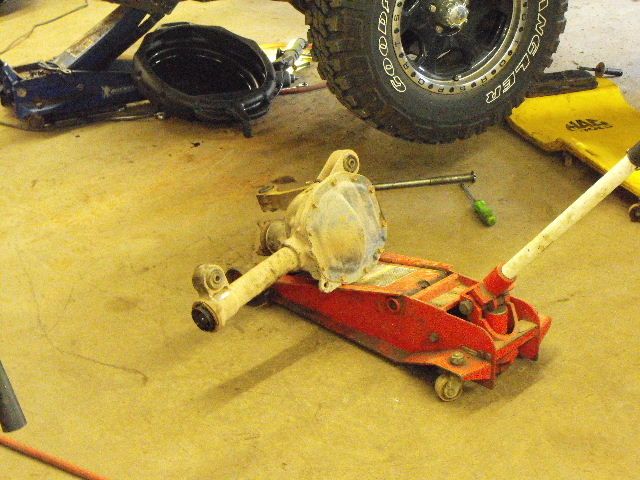

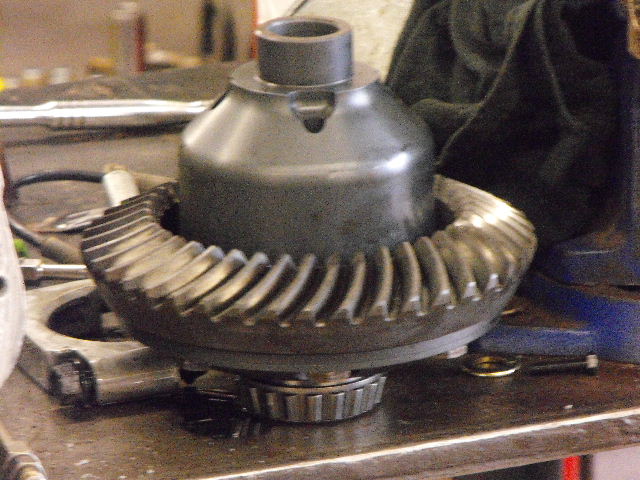

.. just a few pic of the install of the new torsen lsd , 95 & newer front diff
Attached Thumbnails
torsen lsd front diff install-2010_05200001.jpg   torsen lsd front diff install-2010_05200002.jpg   torsen lsd front diff install-2010_05200004.jpg   torsen lsd front diff install-2010_05200009.jpg   torsen lsd front diff install-2010_05200011.jpg

torsen lsd front diff install-2010_05200018.jpg   torsen lsd front diff install-2010_05200014.jpg   torsen lsd front diff install-2010_05200020.jpg   torsen lsd front diff install-2010_05200022.jpg
Reply With Quote
  #2
Old 05-20-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Looks great. I think I just might have to have one of these.

Just to clarify, that's D35 in 95up Explorer and 98up Ranger, correct?
Reply With Quote
  #3
Old 05-20-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Bob I bet it would be a lot nicer to drive in 4x4 than the front Aussie. I really liked having Aussies front and rear off road, but sometimes it was a pain, and a little awkward in snow. Had the torsen been available earlier I would have run the Aussie rear and torsen front.
Reply With Quote
  #4
Old 05-20-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice!

Can't wait to hear how this thing works.
Reply With Quote
  #5
Old 05-20-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Quote:
Originally Posted by brianjwilson View Post
Bob I bet it would be a lot nicer to drive in 4x4 than the front Aussie. I really liked having Aussies front and rear off road, but sometimes it was a pain, and a little awkward in snow. Had the torsen been available earlier I would have run the Aussie rear and torsen front.
Yes. On snowy roads in 4WD, a front locker needs tires that are exactly the same diameter or it pulls like a ****. I had to measure the circumference of all four and pick the pair with the best match for the front. Even with matched tires, it pulls momentarily each time the locker engages when the power is applied. Not the end of the world but it gets your attention. I'm sure that you experienced the same thing.
Reply With Quote
  #6
Old 05-20-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
I rotate tires every 3k miles (always have) so I didn't really have an issue with pulling due to that. But it does absolutely pull the wheel to dead center when you get on the throttle initially. It is kind of fun really, but if you drive regularly in the snow/ice it would get less fun. The last experience I had with both Aussies in snow was pulling the trailer from Oregon to Kentucky, snowed from Idaho all the way through Wyoming. At times there was 60-70 mph winds from the side and having front and rear lockers in 4x4 actually helped keep me going the direction I wanted. Pretty interesting though being on an ice covered road, tracking sideways for miles at a time with a trailer. Didn't bother me so much as it bothered my wife who was driving behind me!

Anyway I strongly considered a true-trac for the front of the F150 but I ended up with an E-locker to be easy on the CV joints, while having all the traction when I need it.
Reply With Quote
  #7
Old 05-20-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Quote:
Originally Posted by brianjwilson View Post
I rotate tires every 3k miles (always have) so I didn't really have an issue with pulling due to that.
I had two of the 4 tires replaced under warranty at 2 dfferent odo's so there was some diameter variation despite the tires having been rotated on schedule.
Reply With Quote
  #8
Old 05-20-2010
the old guy's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: pictou, nova scotia
Posts: 98
... ya bob thats right, and you don't even kno the thing is in there when drivin in 2wd, in 4wd the steering feels alittle heavier but it turns without any binding, next week im taken it out for a real workout, i'll let you guys kno how well it does..

Last edited by the old guy; 05-20-2010 at 10:42 PM. Reason: misspelling
Reply With Quote
  #9
Old 03-03-2012
the old guy's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: pictou, nova scotia
Posts: 98
well here it is almost 2 year later and the torsen has been working just great , in mud the front end just keeps diggin away, in heavy snow if the truck can't go forward it will go sideways, on snow covered roads or ice you can't beat the traction.. no problems with binding in turns & in 2 wd you don't kno its there.. i have a detroit trutrac in the rear & the torsen up front seems to be the perfect combination for what i use the truck for..
Reply With Quote
  #10
Old 03-03-2012
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Nice! Glad it's working out.

I've been slacking on getting one....
Reply With Quote
  #11
Old 03-03-2012
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
I wanted to get that L/S up front but never did. Guess I will just stay locked and deal with it.

Glad to see it is holding up though.
Reply With Quote
  #12
Old 11-08-2016
Member

Join Date: Apr 2016
Location: Santa Monica,California
Posts: 7
Torsen

Yep just pot in a torsen T-2 in my 06 FX4 front Dana 35 Modified and yes that's the correct part # cost me $500 plus $25 S&H $350.00 labor no clutches and springs to bust!!! Torsen all the way!!!! Plus unlike Detroit and powertrax 100 percent US made!!!!
Reply With Quote
  #13
Old 11-10-2016
Sempertye's Avatar
Member

Join Date: Jul 2015
Location: Reno, Nevada
Posts: 52
I absolutely love mine. I don't know its there until I put it in 4wd, even then it isn't a nuisance. Pulls straight on a hard acceleration, and just keeps going.
Reply With Quote
