Icon9 Tranny problems : manual shifting needed; any ideas?

Hello, I have a 99, 3.0, 4wd with automatic transmission w/ OD having some issues. It has 213k miles on it and still runs like a top till here recently. Lately when I stop somewhere the tranny acts funny.

I stop at a gas station, get some gas and get in and turn the beastie on. When I put it into drive to go, give it some gas to go, the RPM goes up and it barely creeps. I noticed I can manually shift into 1 to get him going and upshift to 2 and back into drive. It runs fine for a while and then decides to act up again once in a while. Sometimes it's when I stop to get gas and then at other times it's in a parking lot. It varies so much when it does this I'm unable to directly link it to a certain situation. So I can't tell for sure if It's linked to getting gas or a fuel system since it happens at other times as well.

Does anyone have any ideas? I'm lost on this one, however, I think the torque converter could be to blame. Any ideas and suggestions would be appreciated.
Reply With Quote
  #2
Old 01-05-2011
LuckyRanger13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Santa Fe, TN
Posts: 554
Anyone have any ideas?
Reply With Quote
  #3
Old 01-05-2011
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
your o/d off light wouldnt happen to be flashing would it?
Reply With Quote
  #4
Old 01-05-2011
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
amanda im no auto person but i do know their is a plate in the valve body on the trans that likes to seperate and cause problems... sounds to me the problem is in the valve body. may be time to take it to the trans shop
Reply With Quote
  #5
Old 01-06-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Redrocket View Post
amanda im no auto person but i do know their is a plate in the valve body on the trans that likes to seperate and cause problems... sounds to me the problem is in the valve body. may be time to take it to the trans shop
Mechanic told my friend the same thing for his Explorer. He ended up getting a new transmission.
Reply With Quote
  #6
Old 01-06-2011
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936

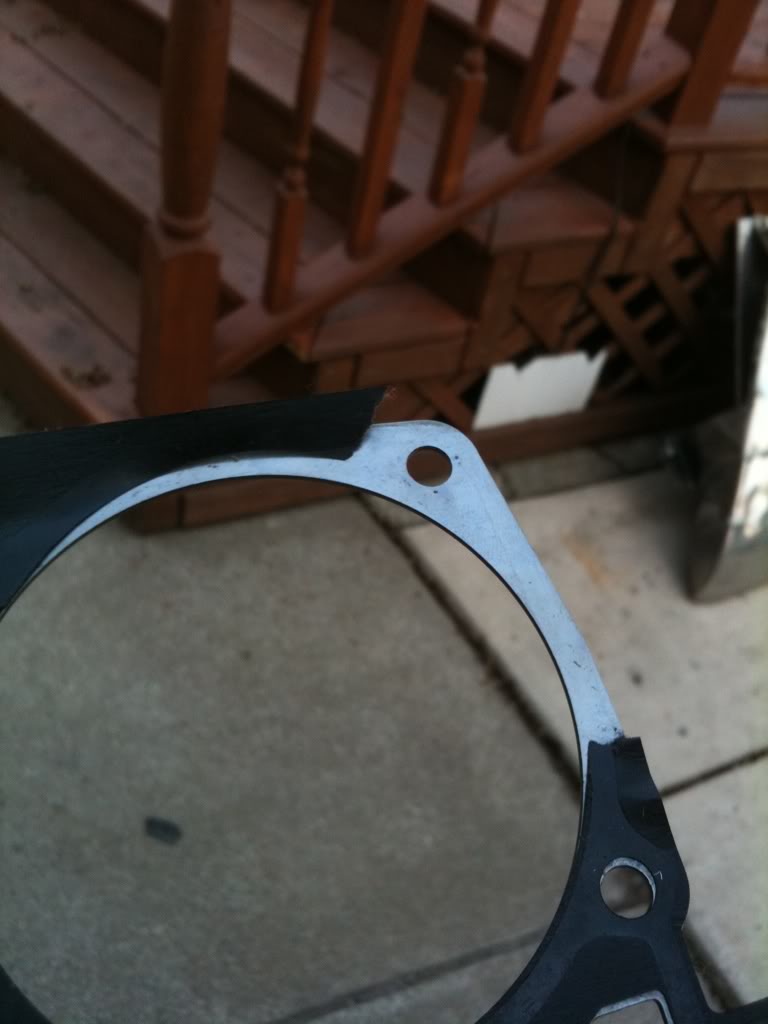

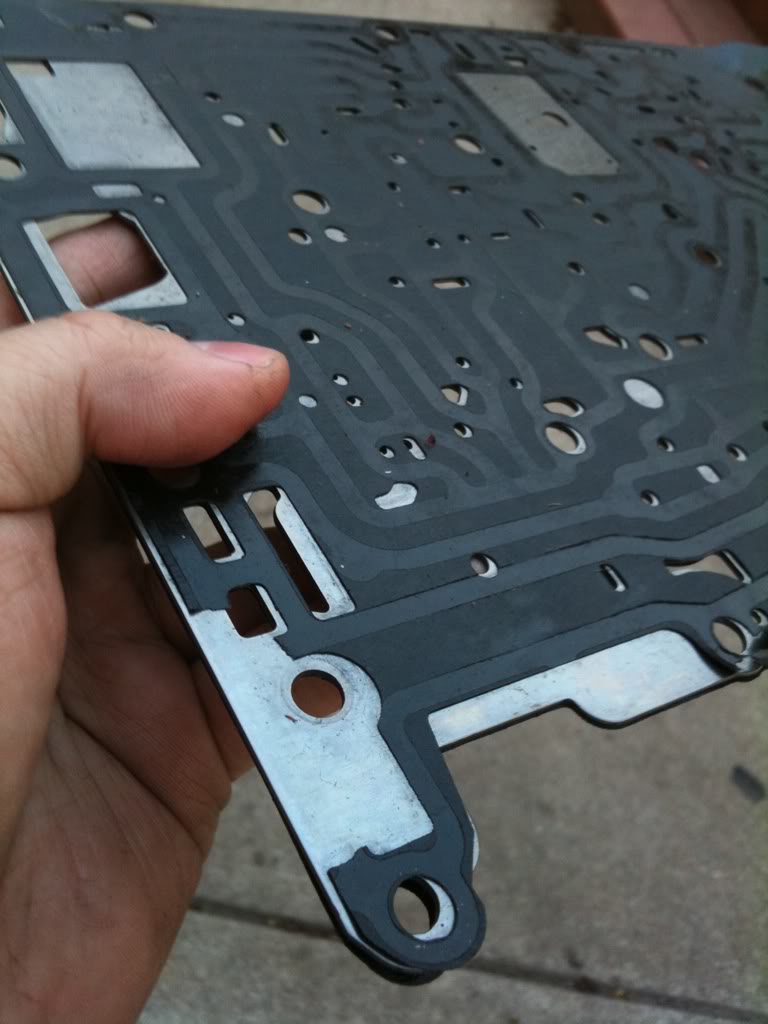

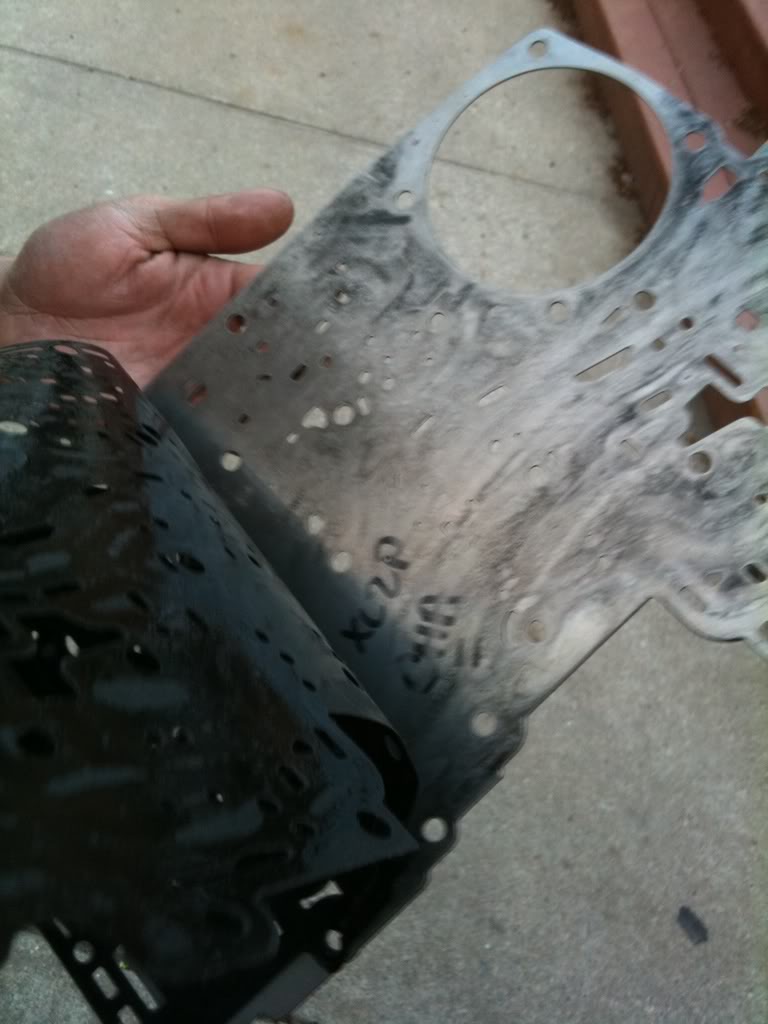

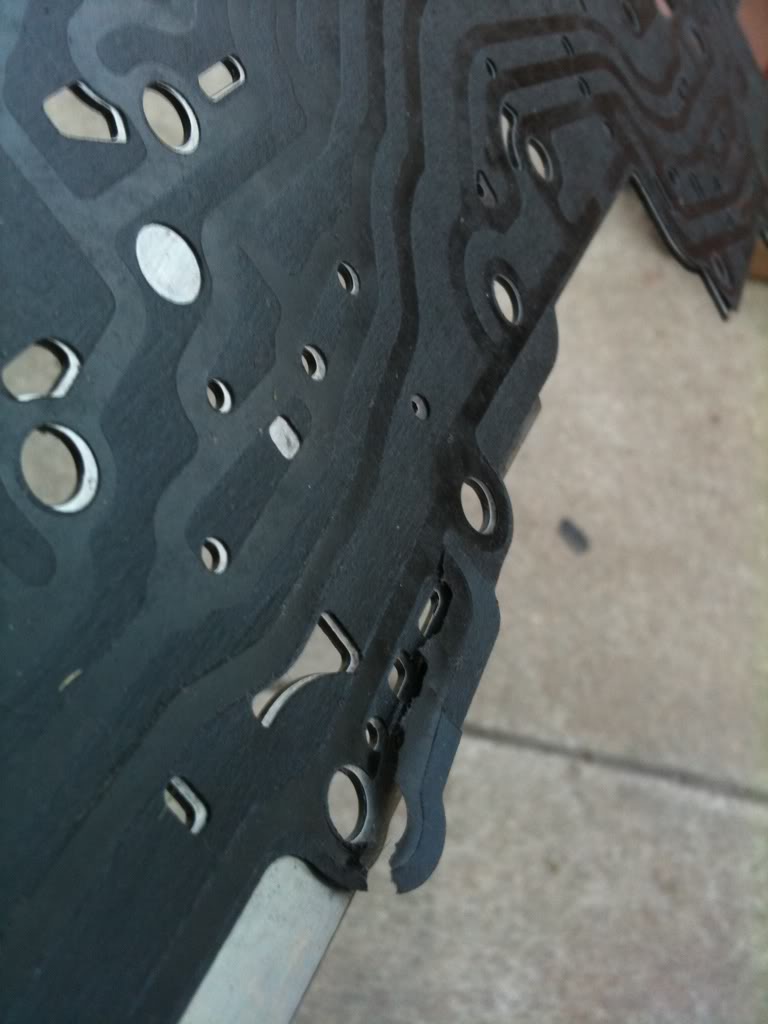

Sounds like my Trans back in April it was the separator plate on the valve body.. its around $100 for the gasket/plate.

the gasket is supposed to be bonded to the plate and you can see all the rips in mine prob simular to yours. its supposedly a common problem






Name:  5f860227.jpg
Views: 7
Size:  68.6 KB
Name:  0d9d3848.jpg
Views: 7
Size:  61.7 KB
Name:  ed2220dc.jpg
Views: 7
Size:  71.7 KB
Name:  264da193.jpg
Views: 7
Size:  49.4 KB
Reply With Quote
  #7
Old 01-06-2011
LuckyRanger13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2007
Location: Santa Fe, TN
Posts: 554
Seperator plate between the engine and the tranny? This may change things... no my O/D light isn't flashing however the check engine light is on. This is probably due to an unhappy O2 sensor behind my empty cats. Every time the codes are pulled it's the O2 sensor. I need to figure out how to trick the sensor into thinking the cats are still useful.

I had thought it was the torque converter going out.... Any thoughts on this?
Reply With Quote
  #8
Old 01-06-2011
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
No that plate is in the valve body inside the trans.. you remove the pan then valve body then theirs your gasket
