Transfer case drain plug

I can't find it. I don't think I have one. I see the fill plug but there is no drain plug. What am I missing here?

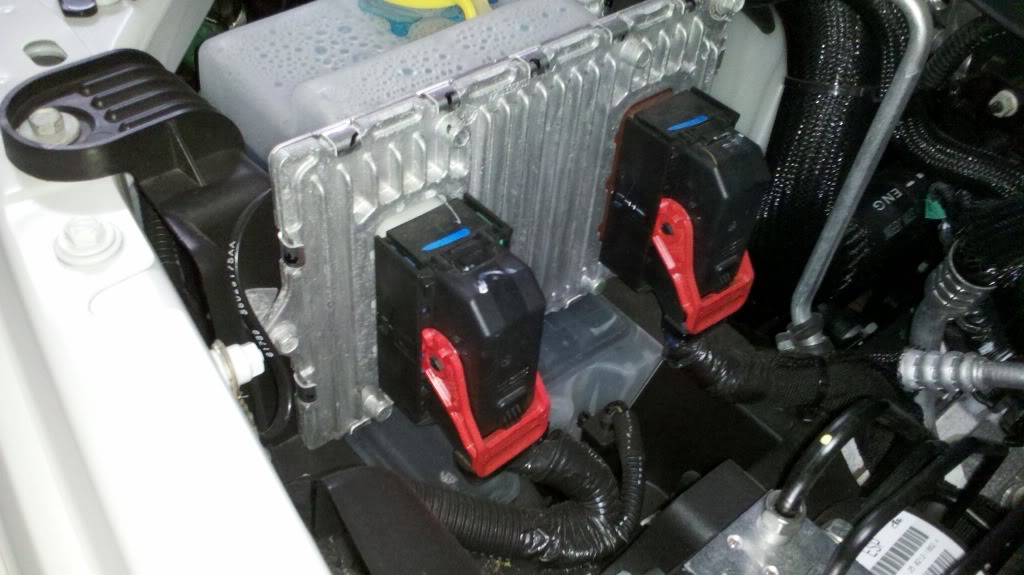

Name:  001-2.jpg
Views: 4
Size:  93.3 KB

Last edited by 05Edge-04GT; 09-27-2008 at 01:04 PM.
Reply With Quote
  #2
Old 09-27-2008
Hayn Time
Unregistered User

Posts: n/a
remove the damper plate (4 bolts with the round thing (damper) on it). The drain plug should be right behind it.
Reply With Quote
  #3
Old 09-27-2008
05Edge-04GT's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Illinois
Posts: 399
Ok cool thanks. Im gonna try it now.
Reply With Quote
  #4
Old 09-27-2008
05Edge-04GT's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Illinois
Posts: 399
Yep thats where it is. Thanks. I feel stupid I didn't look under there. There is a little gap and you can clearly see the plug behind the damper before removing it.
Reply With Quote
  #5
Old 09-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
haha...i felt kind of stupid as well when i couldn't quite find it....then DUH, right there. lol. Glad you got 'er all figured out.
Reply With Quote
  #6
Old 09-29-2008
97ranger4x4's Avatar
Member

Join Date: Sep 2008
Location: Sacramento, CA
Posts: 77
what fluid do you put in your transfer case? I have never changed mine and I have a 132k miles. It probably needs to be done. The drain plug is the one in that looks like it will accept a 3/8 or 1/2 in drive socket right next to the ATF label right?

Thanks,
KC
Reply With Quote
  #7
Old 09-29-2008
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
Right
Reply With Quote
  #8
Old 09-29-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
3/8" socket yes.

and i use ATF.

be careful when your tightening up the bolts on that dampener. i stripped out 2 of the holes
Reply With Quote
  #9
Old 09-29-2008
97ranger4x4's Avatar
Member

Join Date: Sep 2008
Location: Sacramento, CA
Posts: 77
I will check my service manual for the torque settings for those bolts.

Thanks, guess I have a new project for this weekend...
Reply With Quote
  #10
Old 09-30-2008
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Pull the fill plug first, or at least loosen it.


You would be mighty pissed if it stripped out on ya after you drained the case.
Reply With Quote
  #11
Old 09-30-2008
97ranger4x4's Avatar
Member

Join Date: Sep 2008
Location: Sacramento, CA
Posts: 77
yeh that is what I did when I did my rear diff fluid.
