How Hard is it to Remove the Plastic honey comb Foglight Piece?

I looked and looks like to clips holding it in but is it glued into position as well?

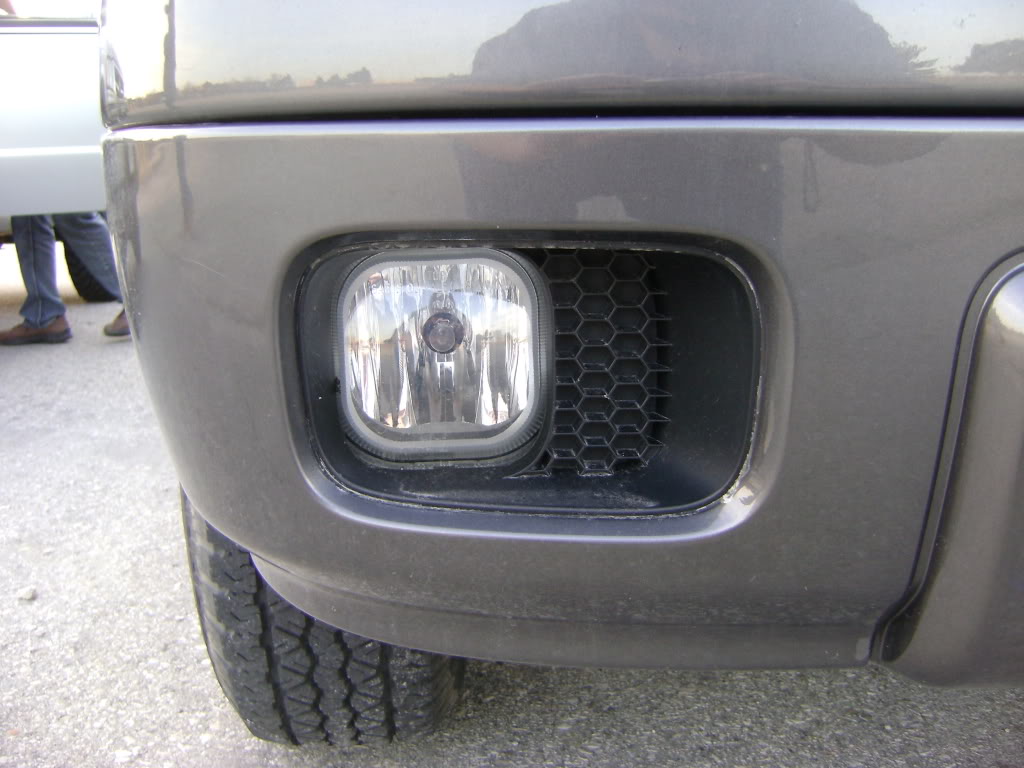

Name:  2009AprilBramptonMeet021.jpg
Views: 9
Size:  112.5 KB
Reply With Quote
  #2
Old 06-12-2009
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
On the back remove the 2 speed nuts and one bolt to remove the fog light then just pop it out....no glue!
Reply With Quote
  #3
Old 06-12-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
u got a pic of said bolts? lmao
Reply With Quote
  #4
Old 06-12-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
dang thats pretty easy...

Lazler send me your bumper :-D
Reply With Quote
  #5
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Bump! I see 2 bolts and 2 plastic clips.. what do i have to remove to get the honeycomb part out? Any help would sure be nice lol
Reply With Quote
  #6
Old 06-20-2009
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
I don't have a picture but you have to remove the fog light assembly first. 2 nuts on the inside edge and a bolt on the outside edge. after removing the light press the 2 little clips and it should slide out.
Reply With Quote
  #7
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
Quote:
Originally Posted by Lazler View Post
Bump! I see 2 bolts and 2 plastic clips.. what do i have to remove to get the honeycomb part out? Any help would sure be nice lol
sounds like time to start unbolting and just figure it out. sounds like once you get the foglight off, which i would bet are those 2 bolts, the honeycomb can just be snapped out (probably those clips)


Goodluck
Reply With Quote
  #8
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
I'll go get a picture.. one of the bolts has a spring on it? brb
Reply With Quote
  #9
Old 06-20-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
yeah I see those spring bolts on mine too, those might be the adjusters///
Reply With Quote
  #10
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
Quote:
Originally Posted by Lazler View Post
I'll go get a picture.. one of the bolts has a spring on it? brb
Reply With Quote
  #11
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
they are uploading.. 2 mins maybe
Reply With Quote
  #12
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
Reply With Quote
  #13
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Pictures!:

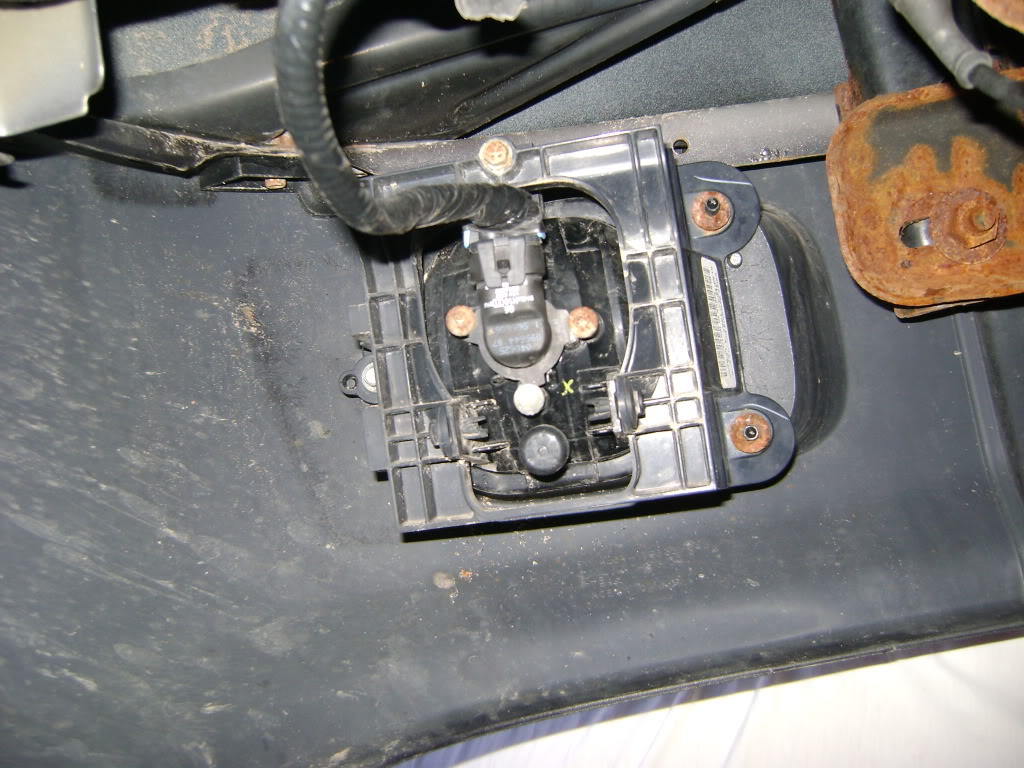

Name:  013-5.jpg
Views: 7
Size:  157.1 KB

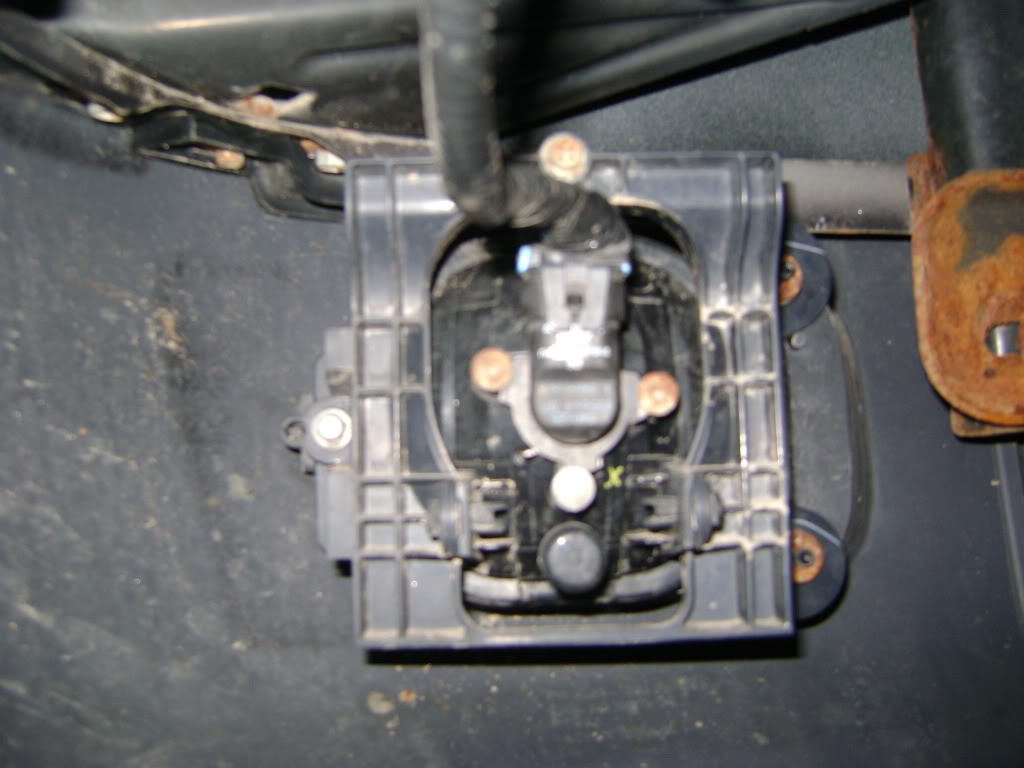

Name:  014-5.jpg
Views: 6
Size:  90.5 KB

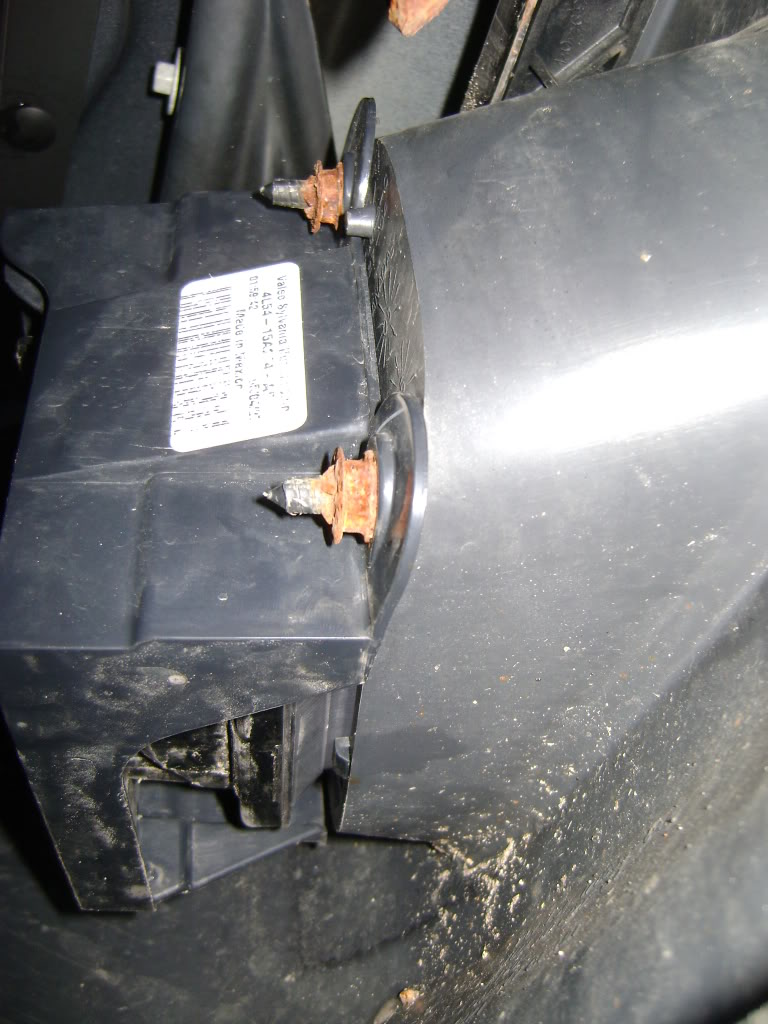

Name:  016-3.jpg
Views: 8
Size:  130.2 KB

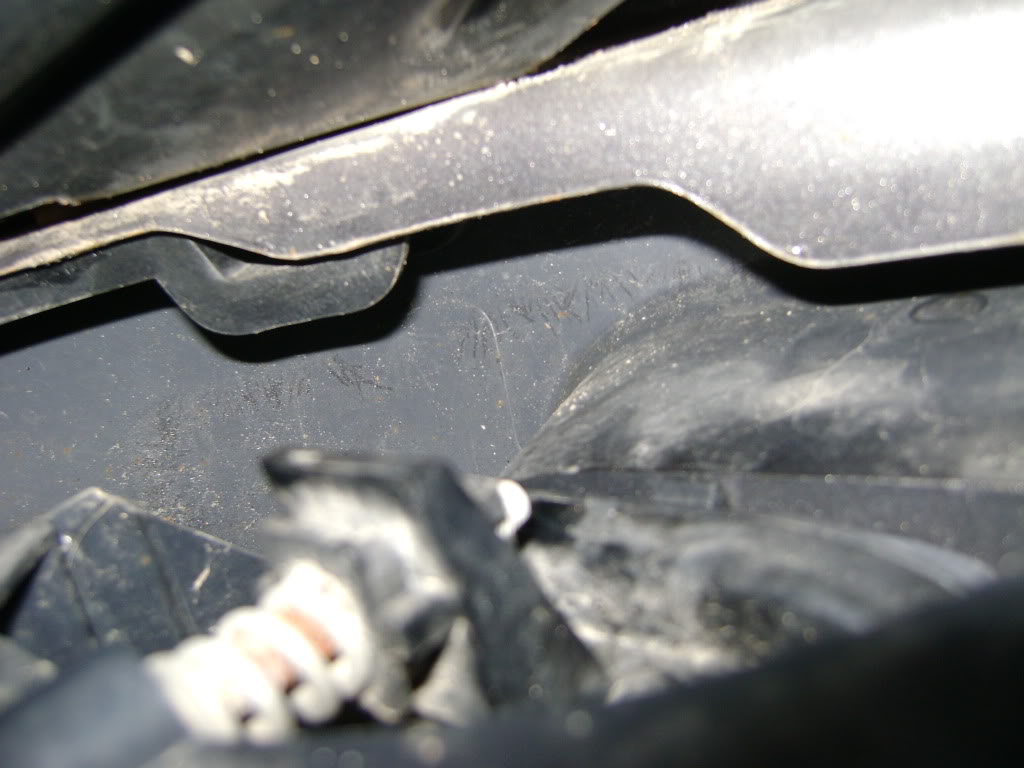

Then the spring.. not a very good picture:
Name:  011-6.jpg
Views: 6
Size:  97.3 KB
Reply With Quote
  #14
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
its definiteltly those that one bolt off to the side and the spring things holding in the fog light. i bet its a compress the spring and turn 90 degrees to release or something like that. thats what i would try. then worry about the plastic part
Reply With Quote
  #15
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
oh or the spring thing is to aim the fogs, then i woulnt turn it. looks like those rusty looking clip things things. does it look like there is any way to unscrew it?
Reply With Quote
  #16
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
i don't wanna touch it cause if it does fall apart i am SOL and will have air holes in my valance for a while LOL
Reply With Quote
  #17
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
yeah, it really looks like you would have to undo that one bolt and those plastic studs. which sucks, i wouldnt want to break those either. i know someone just masked them off, if your up for the work.



im assuming you want to paint it
Reply With Quote
  #18
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
yeah painting the fog light honeycomb pieces, mirrors, door handles, tailgate handle and plastic bumper cover on the back
Reply With Quote
  #19
Old 06-20-2009
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
should look good! i did my grill and headlights the other day. ive always been reluctant to paint the door handles because i dont know how they would wear.
Reply With Quote
  #20
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
yeah.. i never touch the top i always use the the back side so should look good cause i am painting to colour match (the handles and mirrors) then black for the fogs and bumper piece
Reply With Quote
  #21
Old 06-20-2009
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
There are three parts holding the foglight onto the honeycomb, two are those flimsy metal nuts on the plastic posts (right side), and one bolt (left side).

Just get the right sockets to remove the nuts and bolt, and you will have your foglight out. The bolt with the spring on it is the adjuster for the light. If I remember correctly, that does not have to be removed to get the fog light out of the honeycomb.

I have no idea how to get the honey comb out after that. You may just have to paint them while they're in the bumper. Blue painter's tape and an exacto knife should do just fine.
Reply With Quote
  #22
Old 06-20-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
winks how the heck do u get those metal rings off to get at the nut?
Reply With Quote
  #23
Old 06-21-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
remove the bolt and the two metal clips and the fog light comes out. you can remove the clips with a pair of pliers. (lefty loosy and righty tighty)
Reply With Quote
  #24
Old 06-21-2009
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
yep thats the 3 I was talking about. don't mess with the spring bolts unless your lights need aimed.
Reply With Quote
  #25
Old 06-21-2009
Lazler's Avatar
Senior Member
Thread Starter
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Alright Thanks guys! How do u get those really thin metal clips off to get to the nuts?
